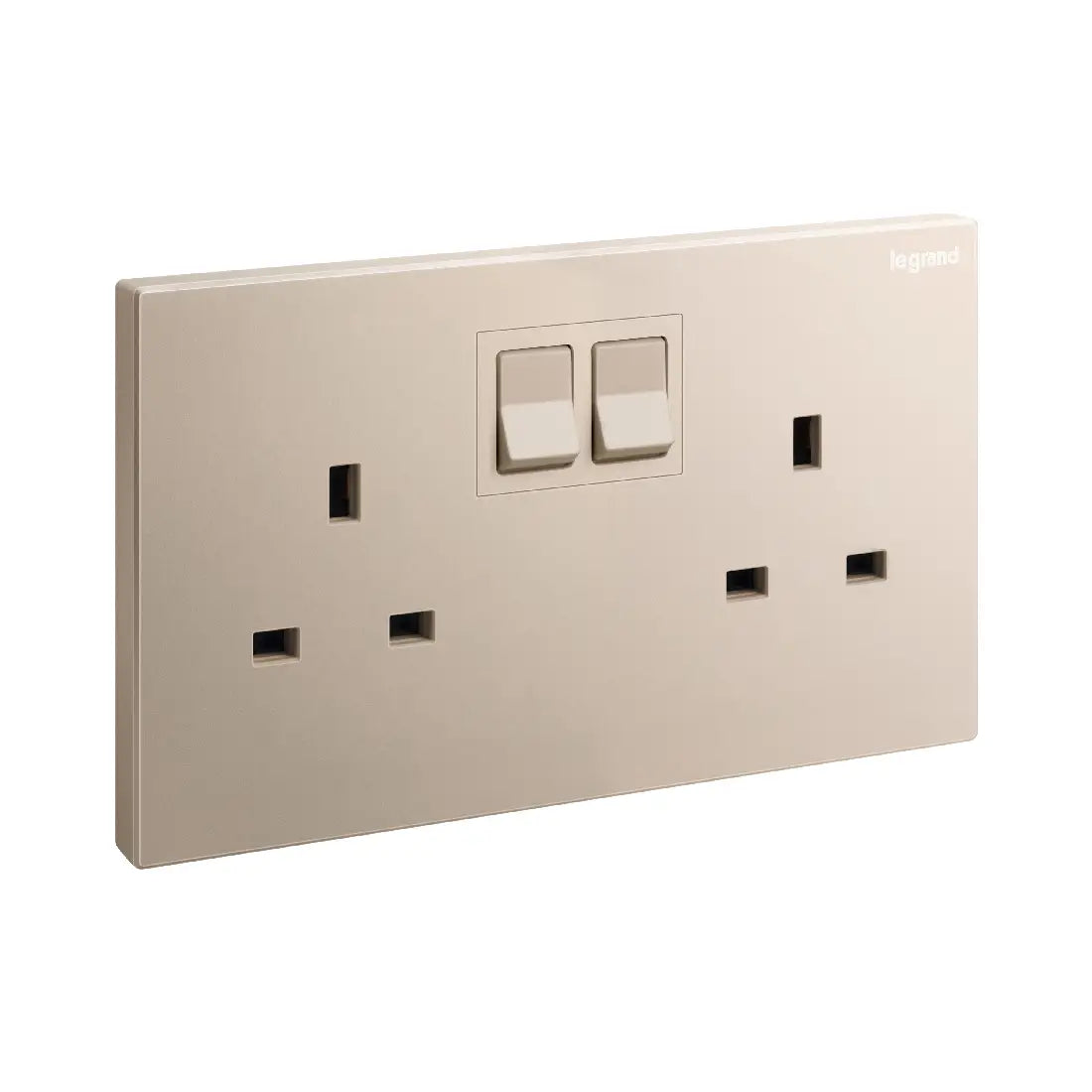

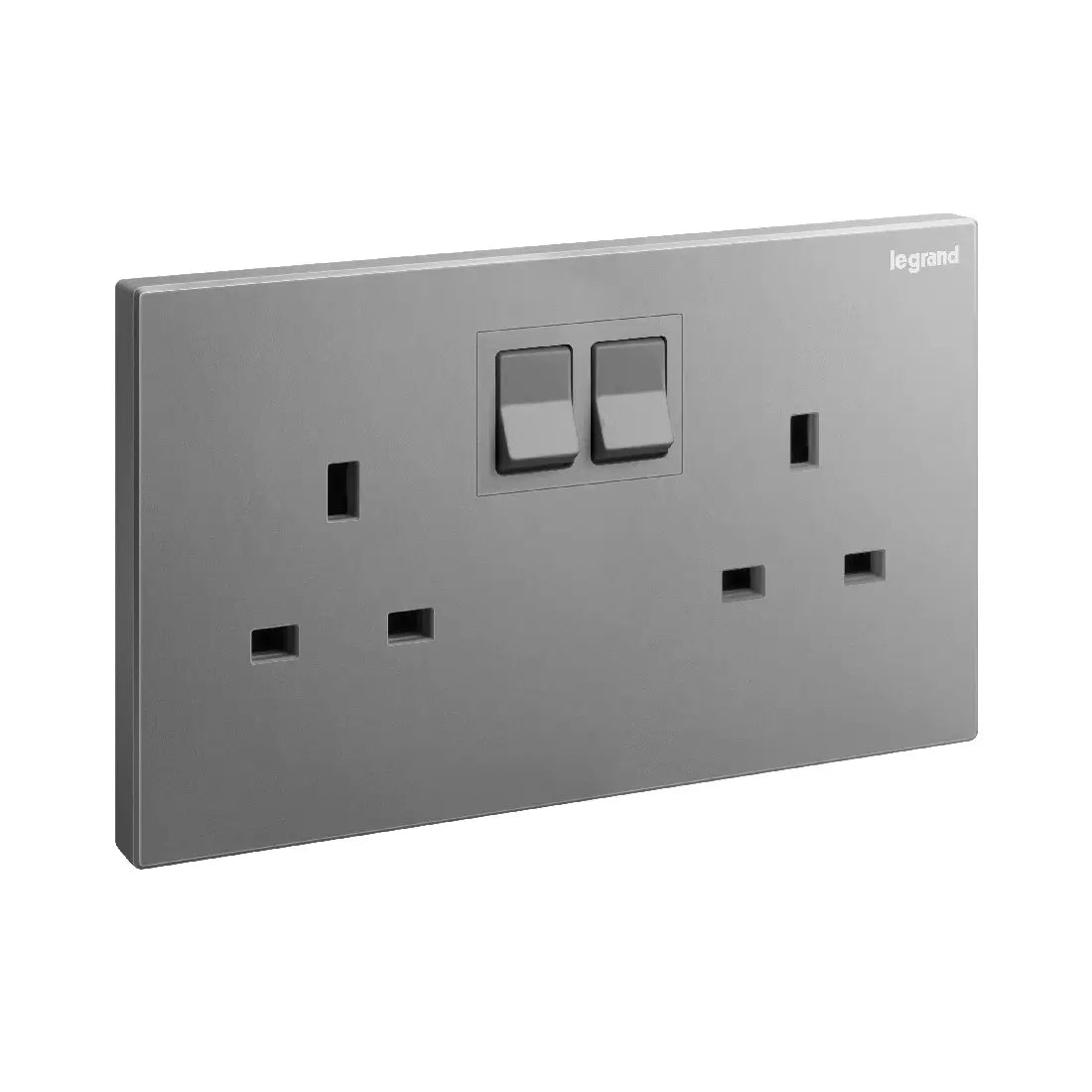

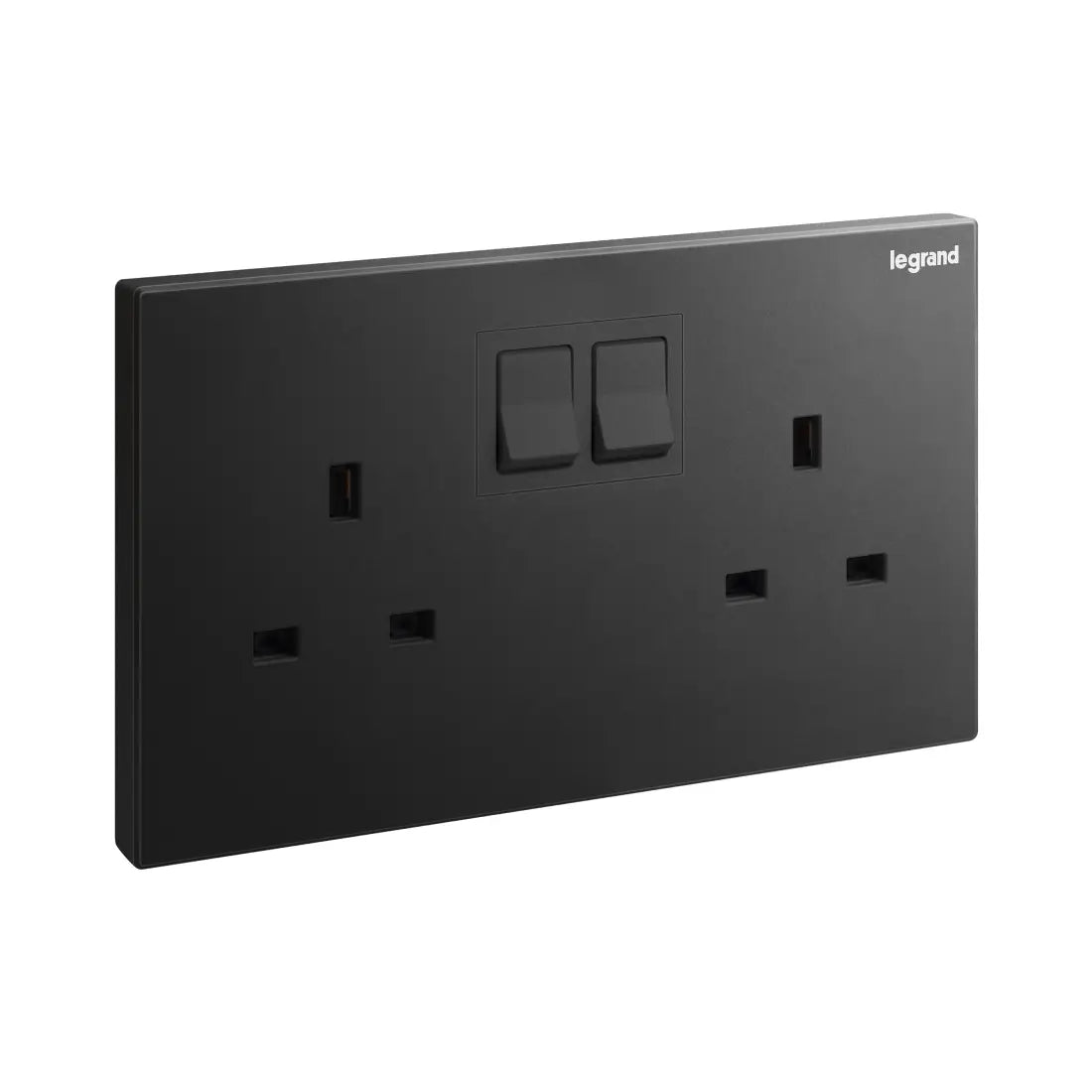

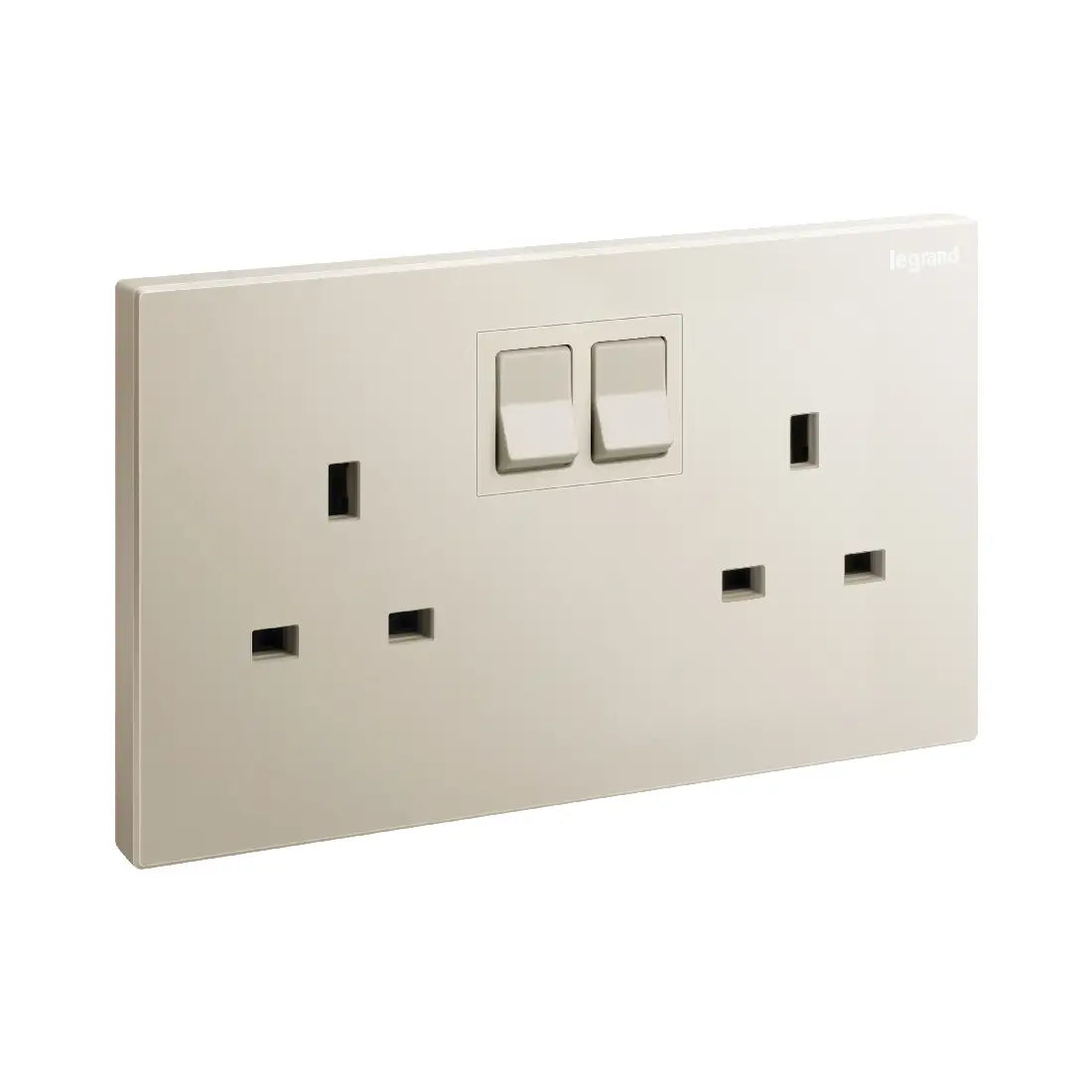

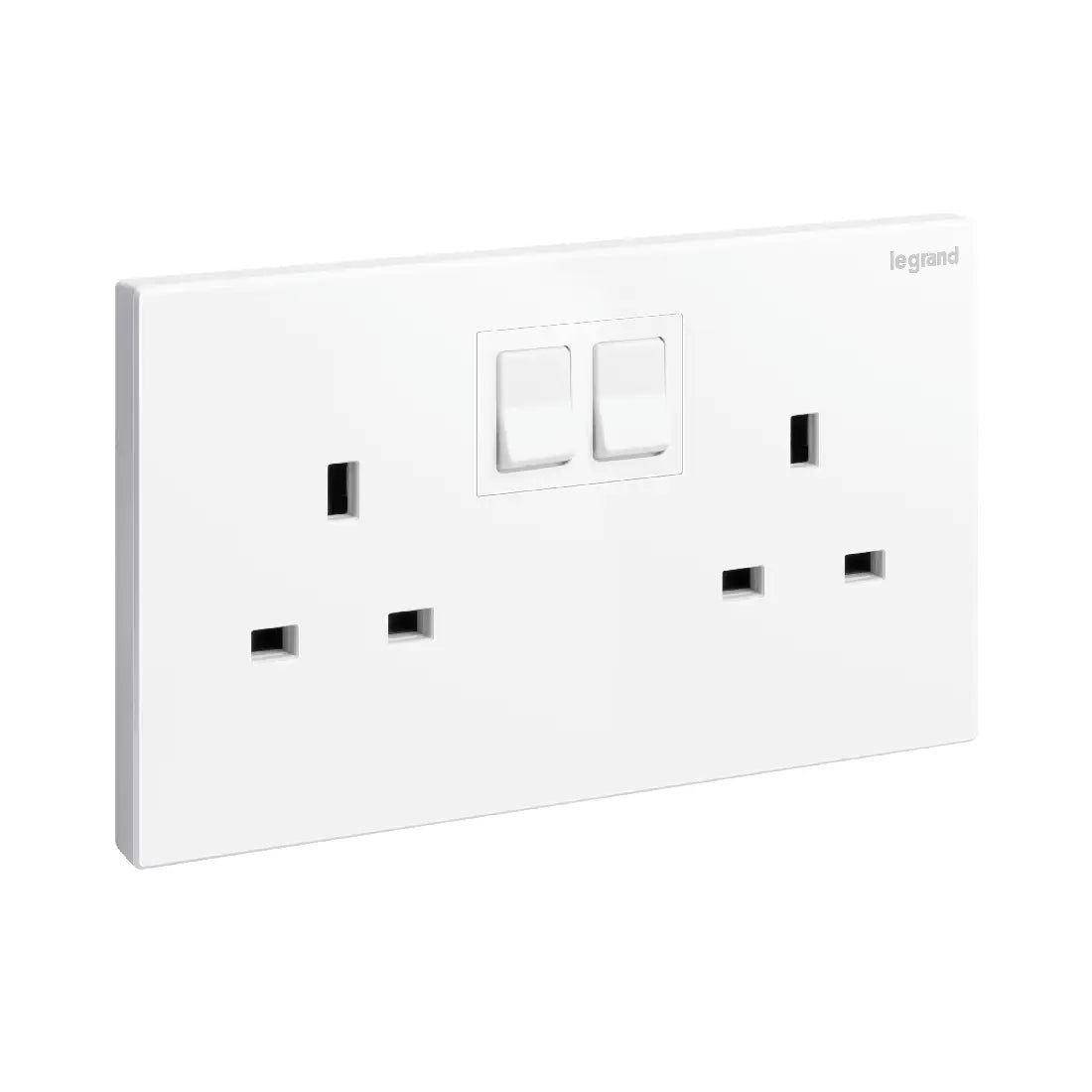

Legrand Galion 2 Gang 13A BS Switched Single Pole Socket Outlet With Power Indicator 282481
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switchsocket Outlet
Description
The Legrand 282481 is a high-quality 2-gang British Standard switched socket outlet from the Galion range, designed for flush-mounted installation. It features two individually controlled single-pole switches, each equipped with an LED power indicator for clear visual feedback. Built with halogen-free thermoplastic in a glossy white finish, it combines both safety and style. Rated at 13A, 250V AC, it is ideal for residential or light commercial environments. The socket includes safety shutters and supports cable sizes from 1 to 4 mm². Its compact dimensions (146×88×27.2 mm) and IP20 rating make it suitable for indoor use, ensuring both reliability and modern aesthetics.
( 282481, 282481-C, 282481-C1, 282481-C2, 282481-C3 )
| Brand | Legrand |
| Model | Galion |
| Number of active contacts (round) | 0 |
| Number of active contacts (flat) | 4 |
| Number of active contacts (square) | 0 |
| Assembly arrangement | Basic element with full cover plate |
| With complementary luminous signal | Yes |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| Number of socket outlets | 2 |
| Number of modules (module system) | 4 |
| Number of socket outlets switchable | 2 |
| Number of phases | 1 |
| Imprint/indication | Scannable symbol/barrier free |
| Connection type | Screwed terminal |
| With hinged lid | No |
| With enhanced contact protection | Yes |
| Color | White(282481), Black(282481-C), Rose Gold(282481-C1), Champagne(282481-C2), Dark Silver(282481-C3) |
| Metallic color | No |
| Transparent | No |
| Lockable | No |
| Eject-mechanism | No |
| Insulated mounting | No |
| With function lighting | Yes |
| With orientation lighting | No |
| Overvoltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | None |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Antimicrobial treatment | No |
| With on/off switch | Yes |
| Nominal current | 13 A |
| Nominal voltage | 250 V |
| Frequency | 50-60 Hz |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 146 mm |
| Device height | 88 mm |
| Device depth | 27.2 mm |
| Min. depth of built-in installation box | 25 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in Bluetooth speaker | No |
| Built-in depth | 15.2 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Power Delivery | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
| Connected object | No |
