Legrand Galion 2 Gang 13A BS Switched Single Pole Socket Outlet 282433
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switchsocket Outlet
Description
The Galion 2 Gang British Standard Switched Single Pole Socket Outlet (2x2P+E, 13A, 250V~) is a reliable and stylish power access solution designed for modern indoor environments. Sold complete under one catalog number and ready for installation, it features screw-type terminals for secure, long-lasting connections, clearly marked terminals for easy wiring, and a strip length indicator to prevent wire wastage. Designed with a honeycomb support frame, it ensures excellent stability and rigidity during installation. For safety, the sockets are equipped with built-in shutters to help prevent accidental contact-ideal for child protection. This socket outlet complies with British Standards and is delivered with paint and dust protection, along with screws for flush or surface mounting on plastic or metal boxes.
( 282433, 282433-C, 282433-C1, 282433-C2, 282433-C3 )
| Brand | Legrand |
| Model | Galion |
| Number of active contacts (flat) | 4 |
| With complementary luminous signal | No |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| Number of socket outlets switchable | 2 |
| Number of phases | 2 |
| Imprint/indication | Scannable symbol/barrier free |
| Connection type | Screwed terminal |
| With hinged lid | No |
| With enhanced contact protection | Yes |

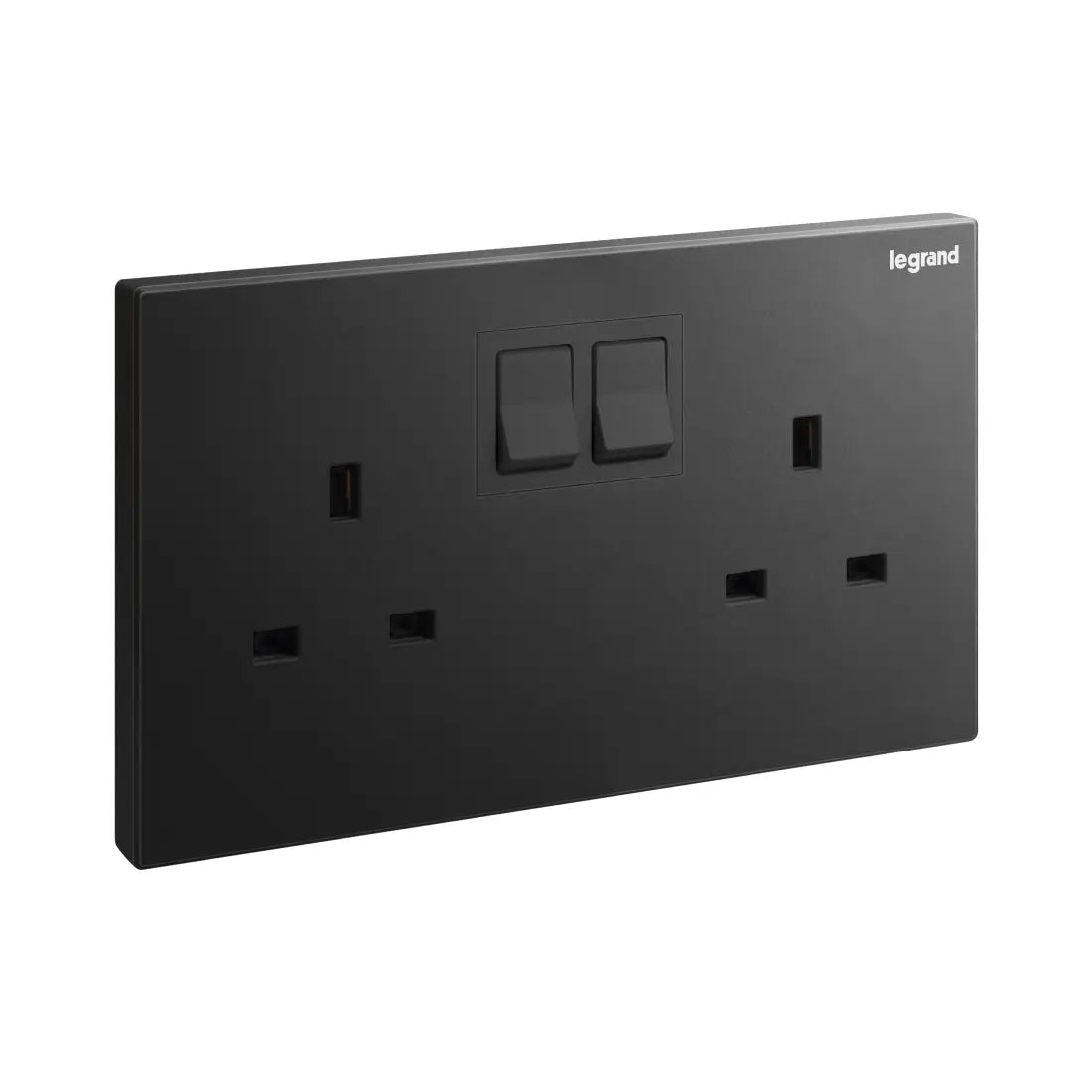

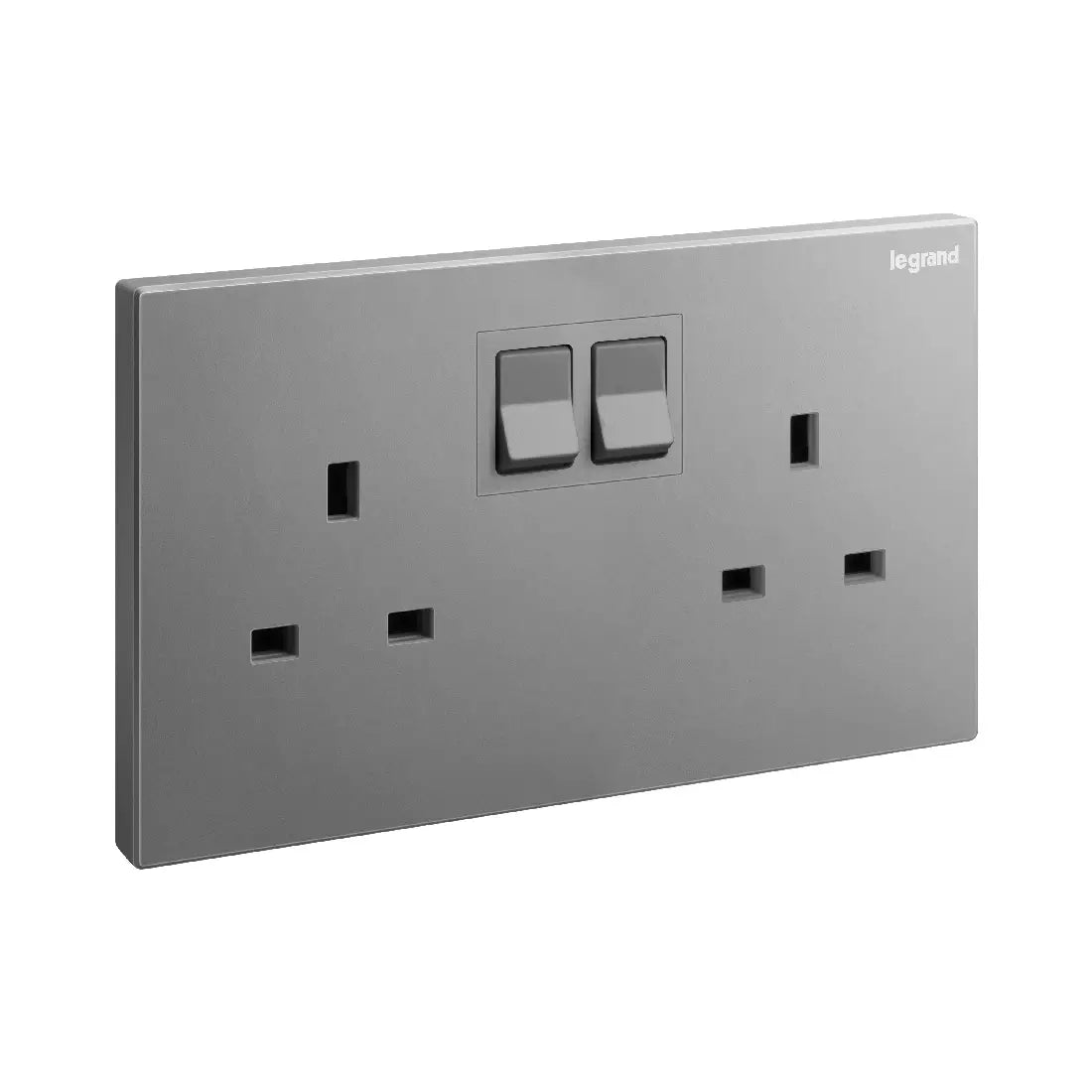

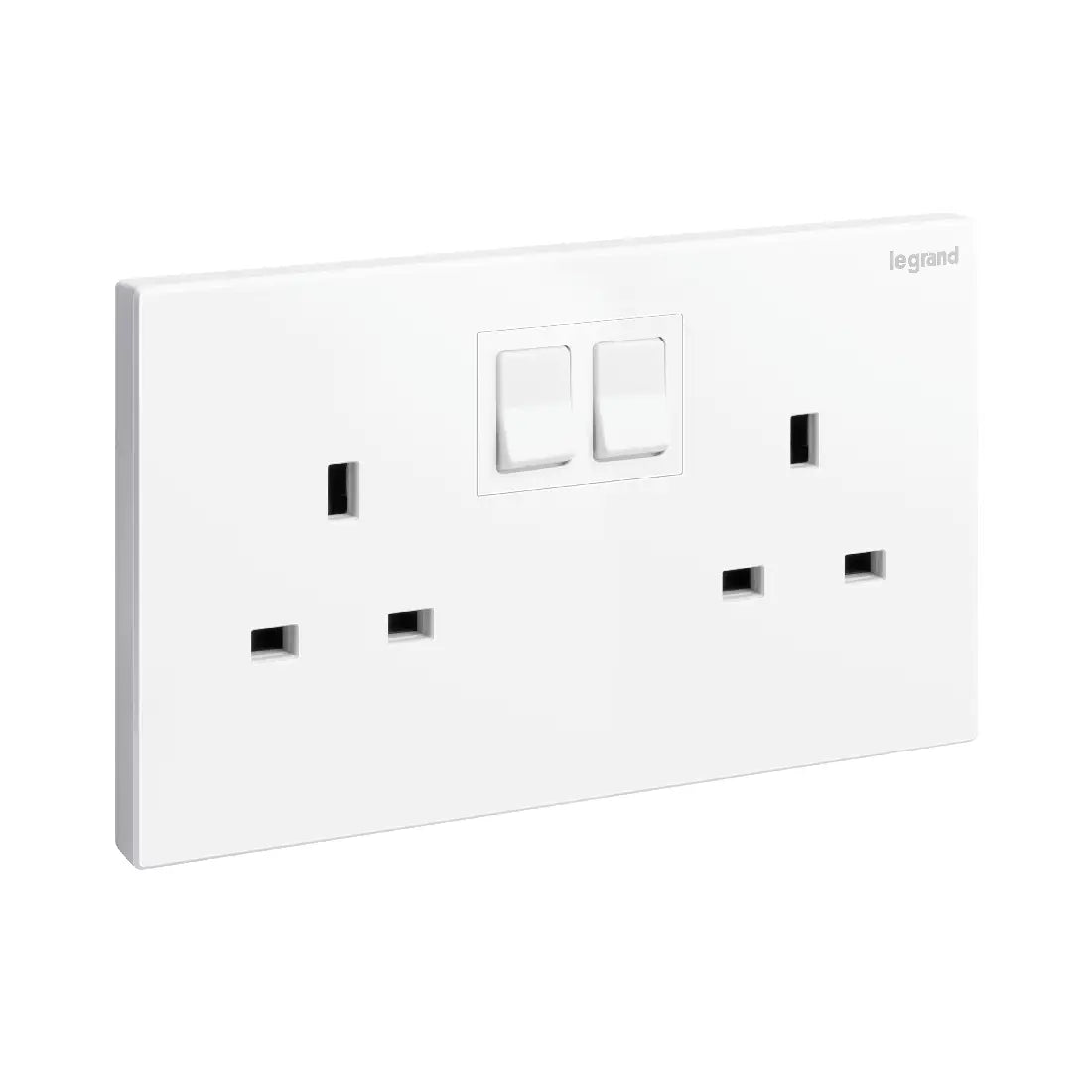

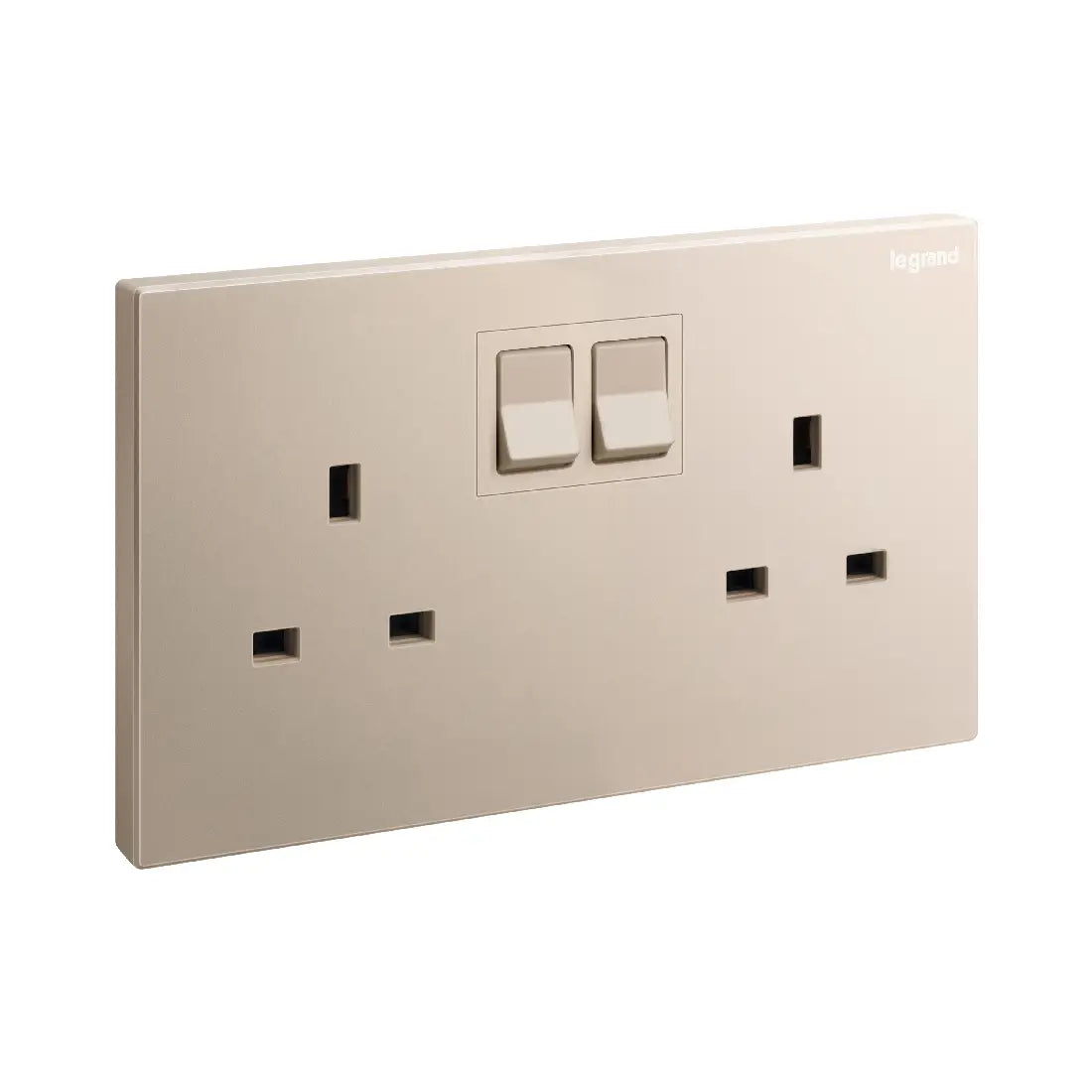

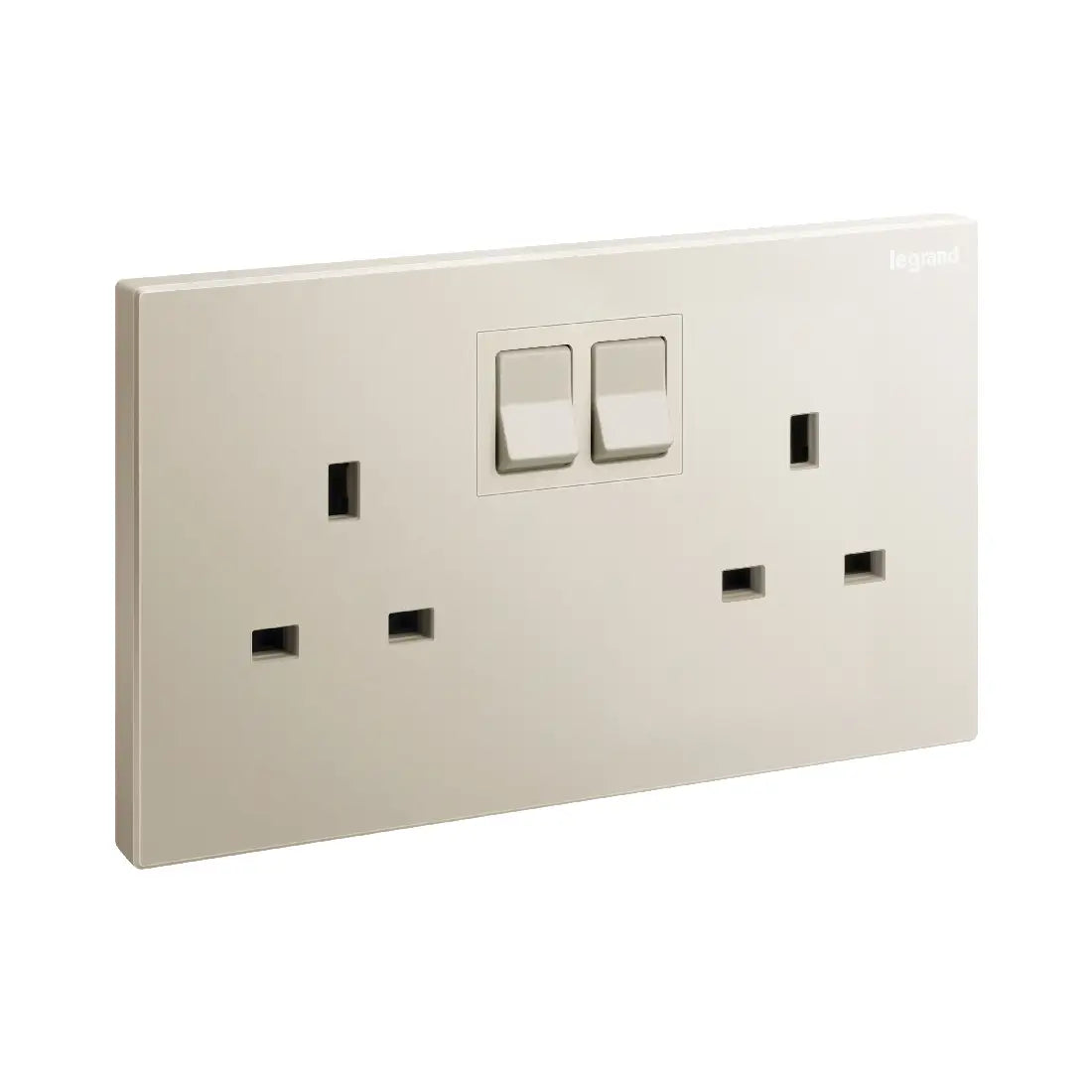

| Colour | White(282433), Black(282433-C), Rose Gold(282433-C1), Champagne(282433-C2), Dark Silver(282433-C3) |
| Metallic colour | No |
| Transparent | No |
| Lockable | No |
| Eject-mechanism | No |
| Insulated mounting | No |
| With function lighting | No |
| With orientation lighting | No |
| Overvoltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | No special power supply |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Antimicrobial treatment | No |
| With on/off switch | Yes |
| Nominal current | 13 A |
| Nominal voltage | 250 V |
| Frequency | 50-60 Hz |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 146 mm |
| Device height | 88 mm |
| Device depth | 27.2 mm |
| Min. depth of built-in installation box | 25 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in Bluetooth speaker | No |
| Built-in depth | 15.2 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Power Delivery | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
| Connected object | No |
