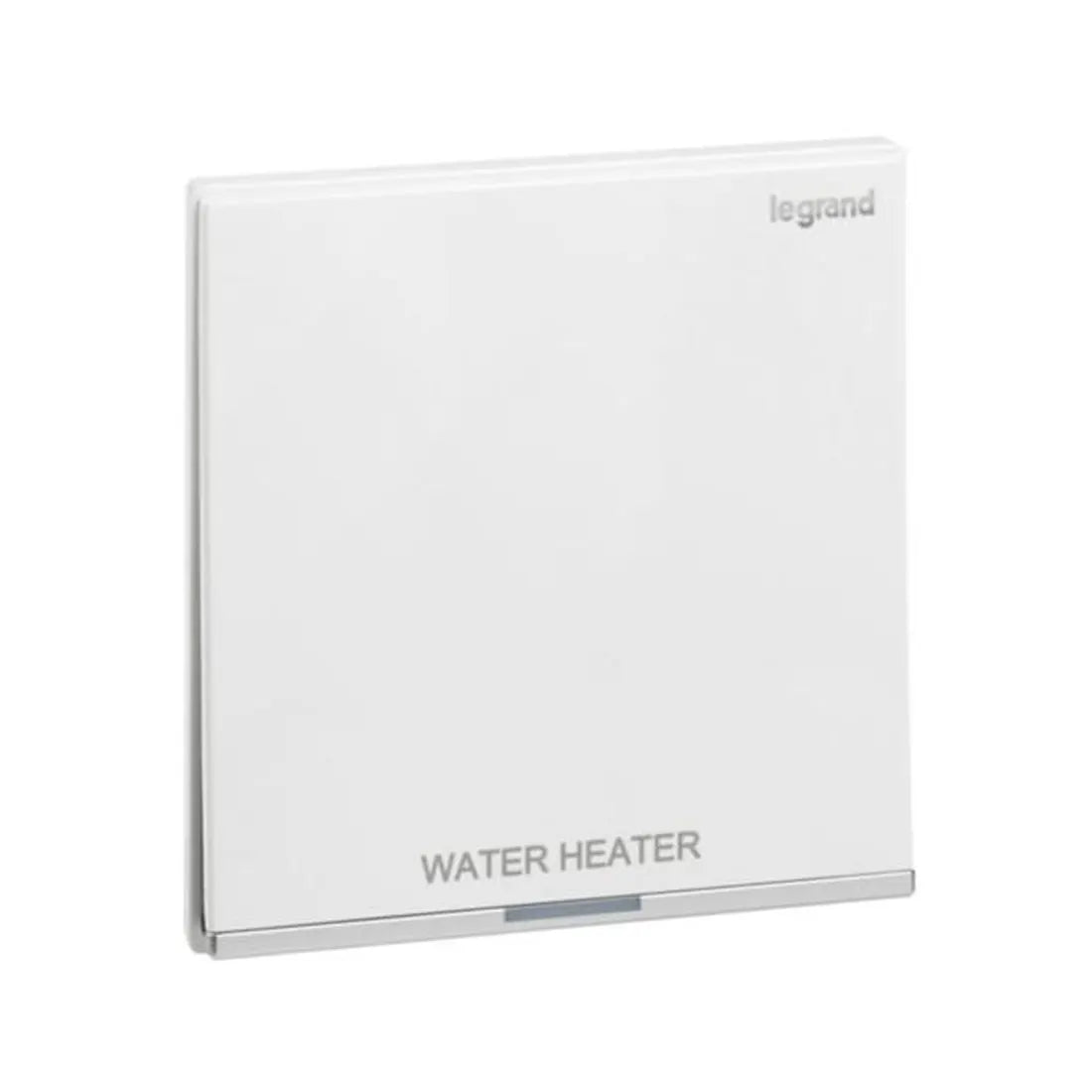

Legrand Galion 1 Gangs 1 Way 20AX Double Pole Switch with Water Heater Marking and Power Indicator 282414
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
The Legrand Galion 1 Gang 1 Way 20AX Double Pole Switch with Water Heater Marking and Power Indicator is a dependable and elegant solution for controlling water heaters, sold complete under one catalog number and ready to install. Designed for enhanced safety and performance, it features a double pole mechanism that ensures full isolation, screw-type terminals for strong electrical contact, clearly marked terminals for easy identification, and a strip length indicator to prevent wire wastage. Built with a sturdy honeycomb support frame, it offers stability and rigidity during installation. The switch showcases a modern full-plate rocker design complemented by a refined silver accent bar, perfectly matching the cover for a sleek and contemporary look. Equipped with a power indicator for user convenience, it comes with protective coverings against paint and dust, along with screws suitable for both flush-mounted and surface-mounted boxes, in either plastic or metal. Recommended for indoor use, the Legrand Galion switch combines functionality, durability, and style to deliver a superior switching experience.
( 282414, 282414-C, 282414-C1, 282414-C2, 282414-C3 )
| Brand | Legrand |
| Model | Galion |
| Application | Water Heater Control |
| Rated Current | 20AX |
| Rated Voltage | 250V~ AC |
| Frequency | 50–60Hz |
| Operation Type | Rocker Lever |
| Wiring System | Switch 2 × 1-pole |
| Number of Gangs | 1 |
| Number of Ways | 1 |
| Mounting Type | Flush-mounted |
| Fastening Type | Screw mounting |
| Terminals | Screw type with terminal marking indication |
| Terminal Capacity | 1–4 mm² (flexible or rigid cables) |
| Material | High-quality thermoplastic, halogen-free |
| Surface Finish | Lacquered |
| Frame Design | Honeycomb supporting frame for added stability |

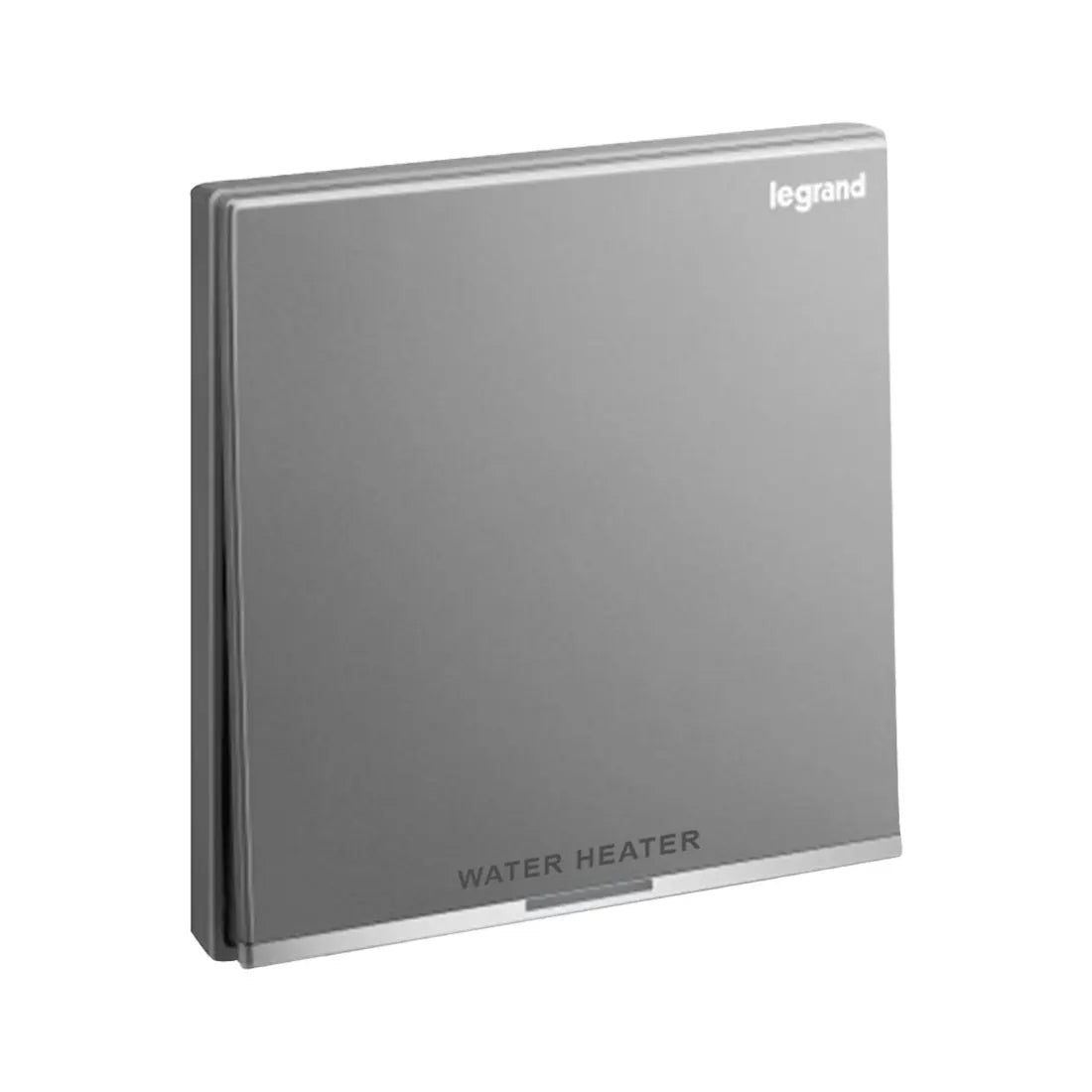

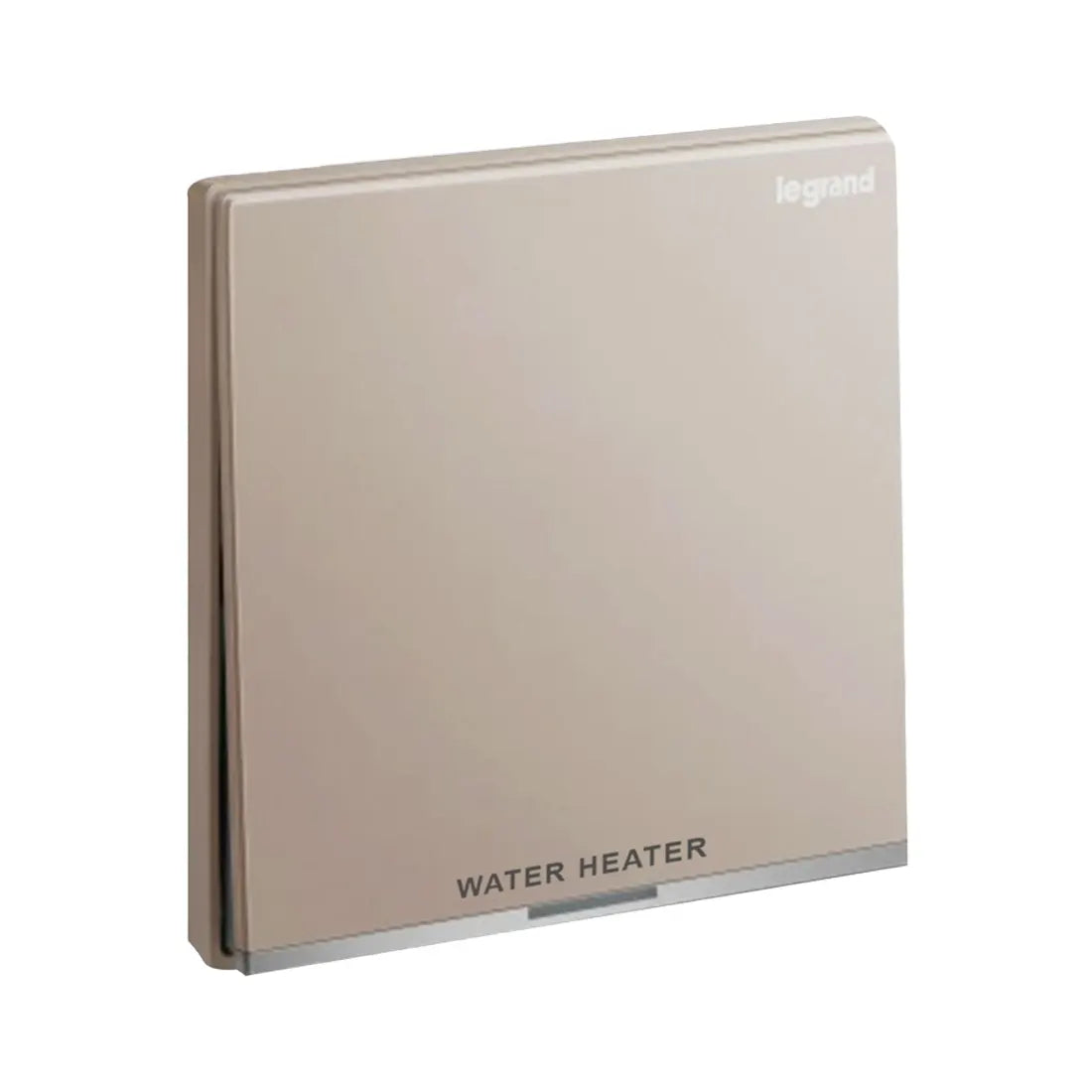

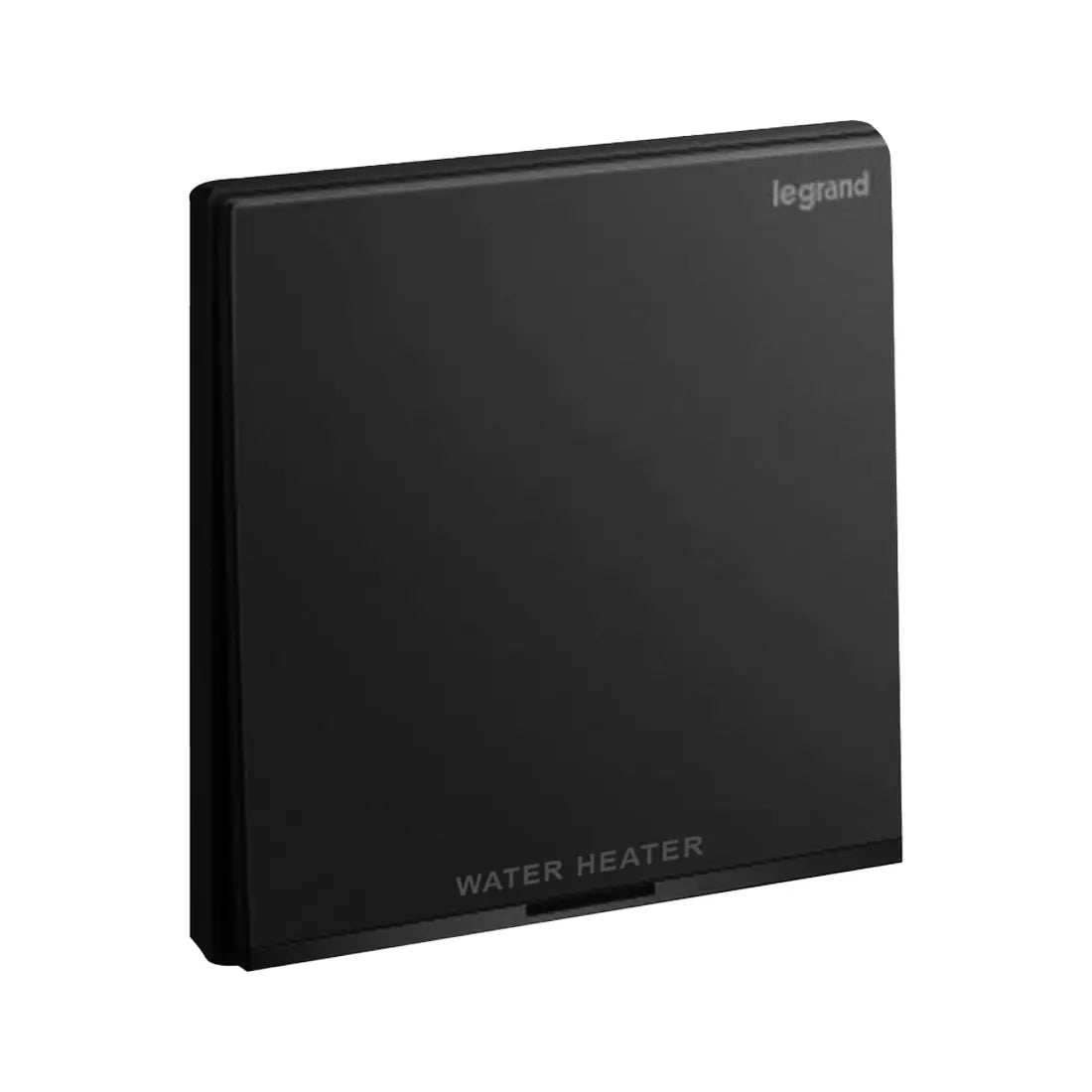

| Color | White(282414), Black(282414-C), Rose Gold(282414-C1), Champagne(282414-C2), Dark Silver(282414-C3) |
| Lighting Indicator | Yes (Power ON indicator) |
| Protection Rating | IP20 (Indoor use only) |
| Impact Resistance | IK04 |
| Dimensions | 86 mm (W) × 88 mm (H) × 38.4 mm (D) |
| Built-in Depth | 24 mm |
| Minimum Box Depth | 30 mm |
| Operating Temperature | -5°C to +50°C |
| Storage Temperature | -10°C to +70°C |
| Voltage Type | AC |
| Mounting Plate | Included |
| Accessories Provided | Mounting screws and dust/paint protection cover |
| Compatibility | Not compatible with Apple HomeKit, Google Assistant, or Amazon Alexa |
| Compliance | Designed for safe and reliable indoor electrical control |
