Legrand Galion 1 Gang TV Female Terminal Socket Outlet 282457
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : TV Socket
Description
This 1 gang TV socket outlet is equipped with a 9.5mm female connector and is sold as a complete unit under one catalog number, ready for easy installation. Designed for optimal signal performance with low attenuation (max 1dB), it supports star cabling—meaning one socket connects directly to an antenna, splitter, or multiswitch. The toolless installation and honeycomb supporting frame ensure stability, rigidity, and ease of setup. Delivered with paint and dust protection, along with screws suitable for flush- or surface-mounting in both plastic and metal boxes. Recommended for indoor use only, this socket outlet is a reliable solution for modern TV connectivity.
( 282457, 282457-C, 282457-C1, 282457-C2, 282457-C3 )
| Brand | Legrand |
| Model | Galion |
| Type of socket outlet | TV |
| DAB+ | No |
| Mounting method | Flush-mounted |
| Number of modules (module system) | 1 |
| Assembly arrangement | Basic element with full cover plate |
| Number of outlets | 1 |
| Suitable for cable modem | No |
| Through loss at 860 MHz | 1 dB |
| Type of fastening | Mounting with screw |

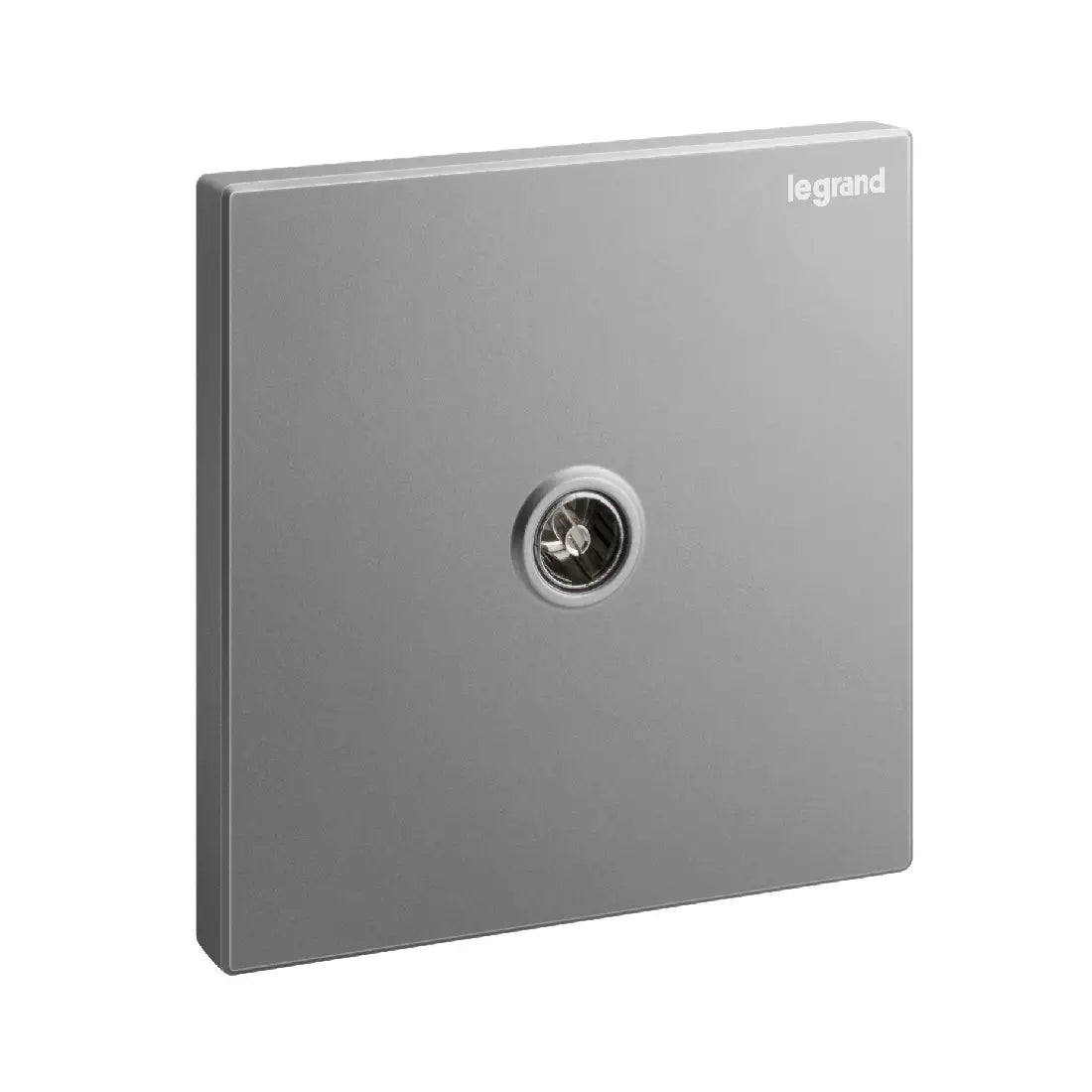

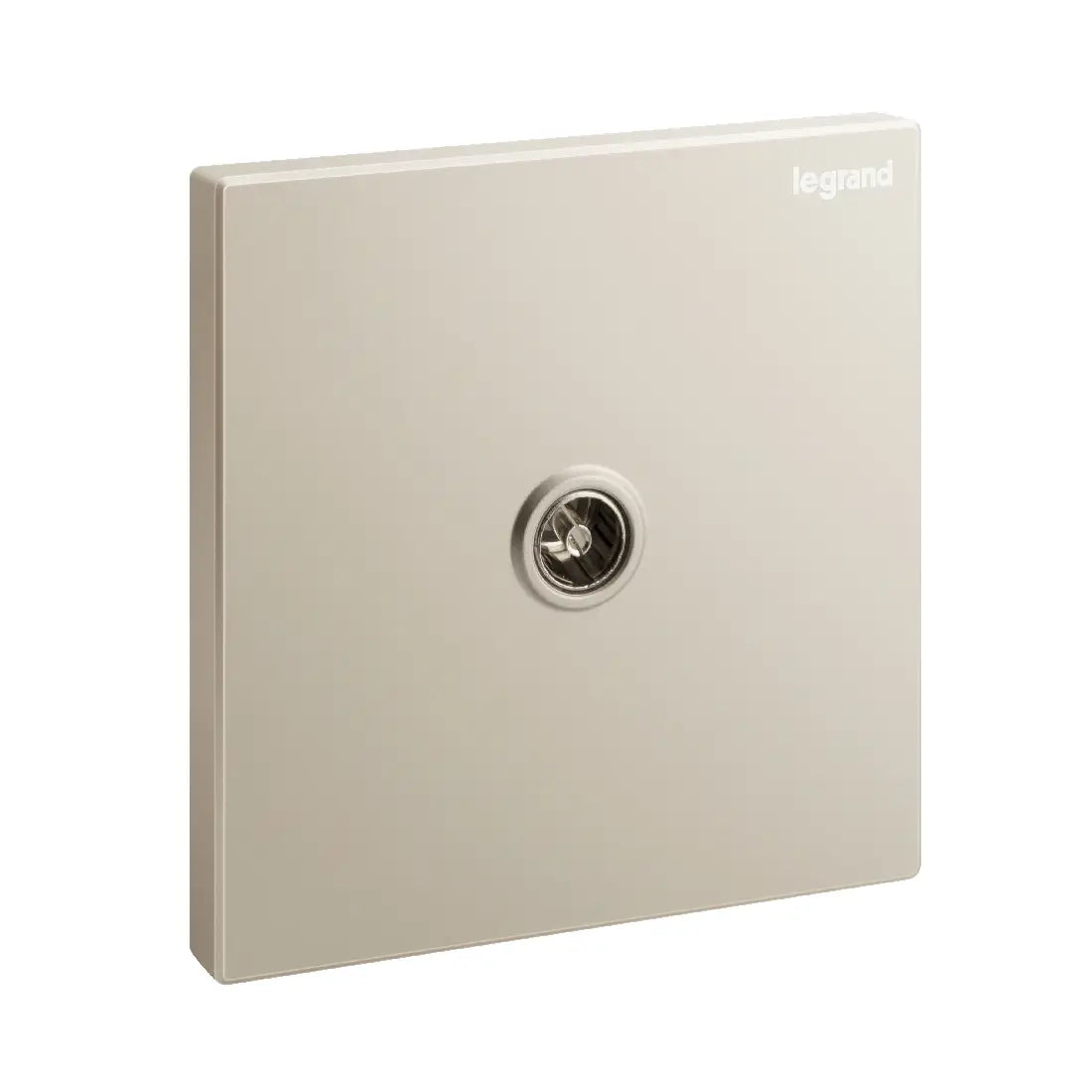

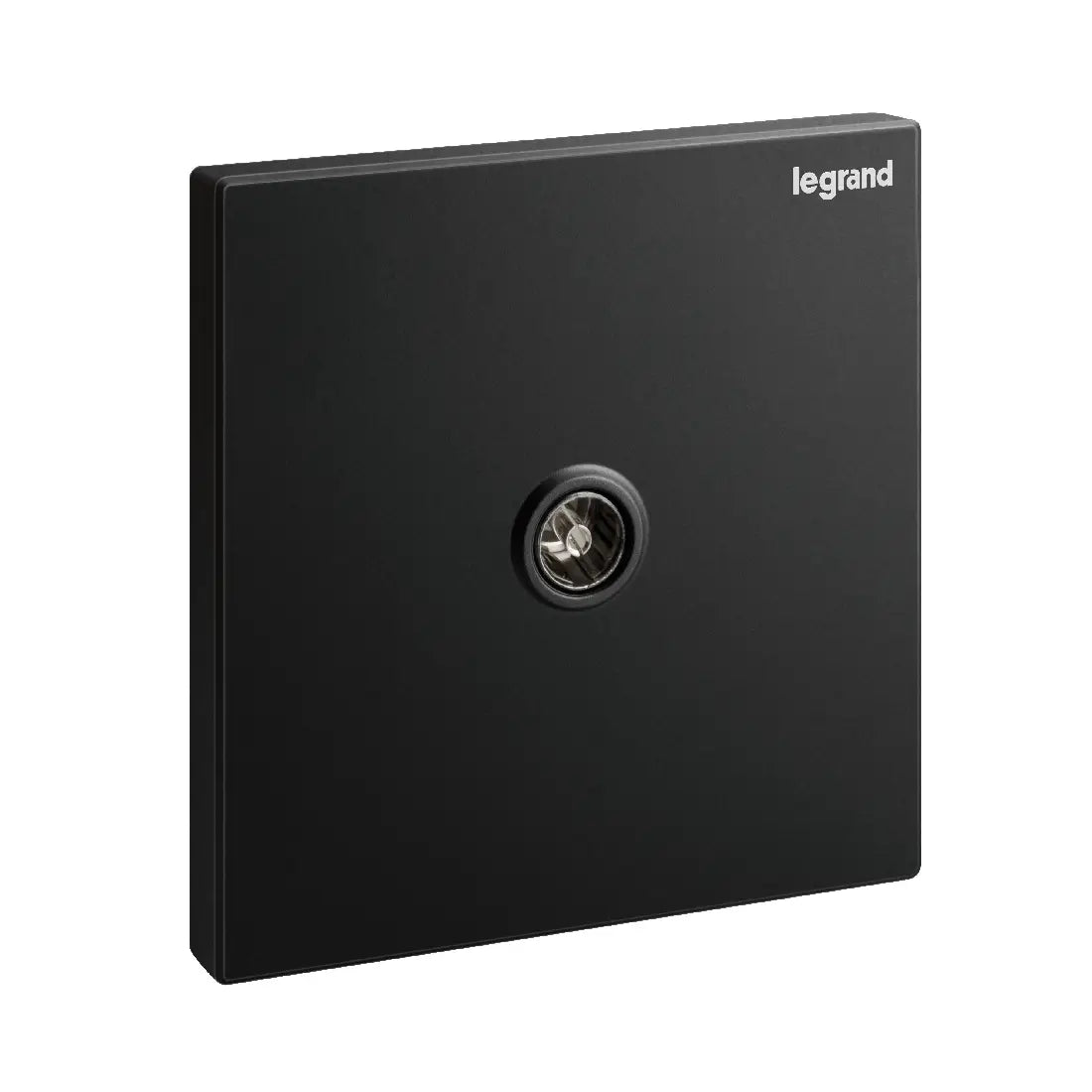

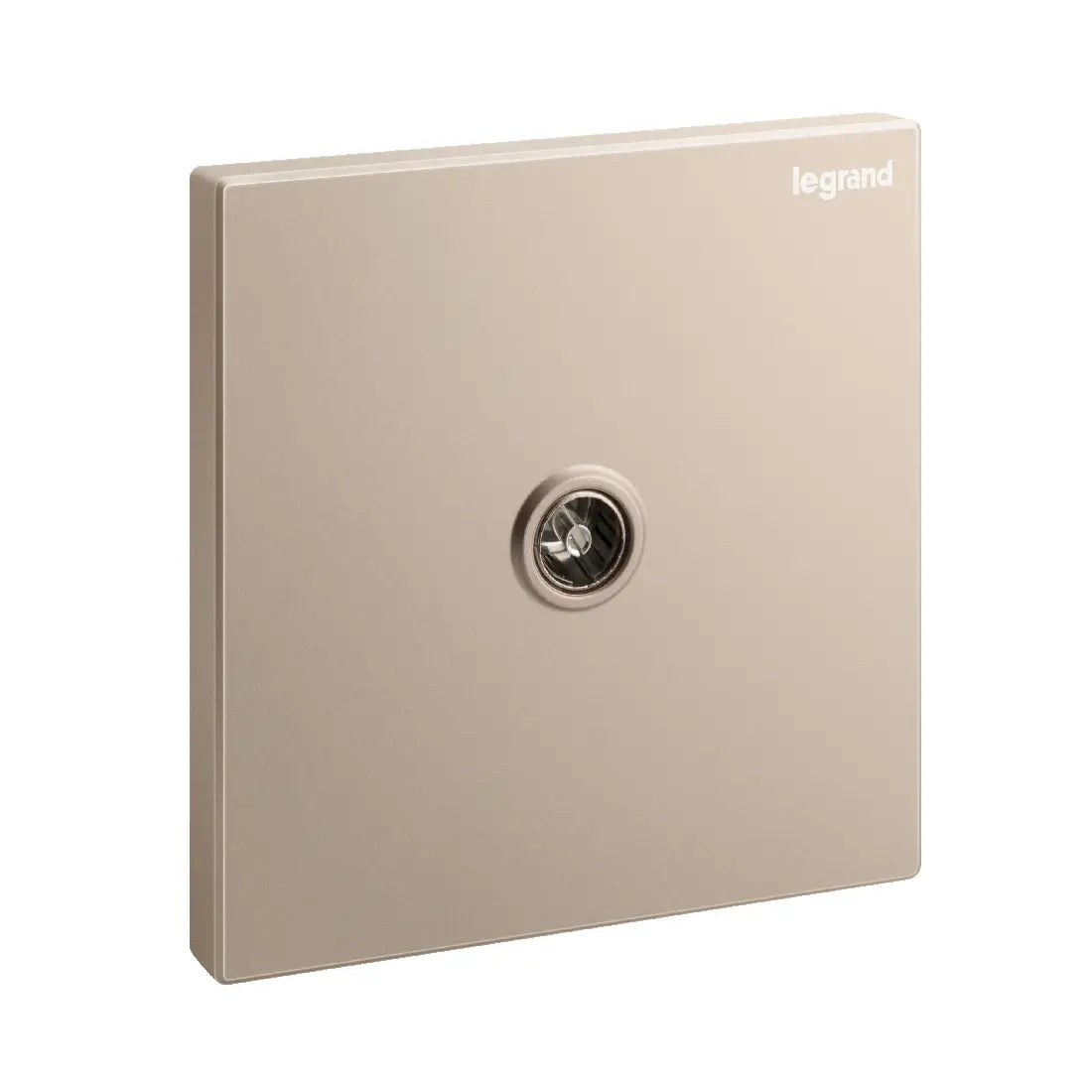

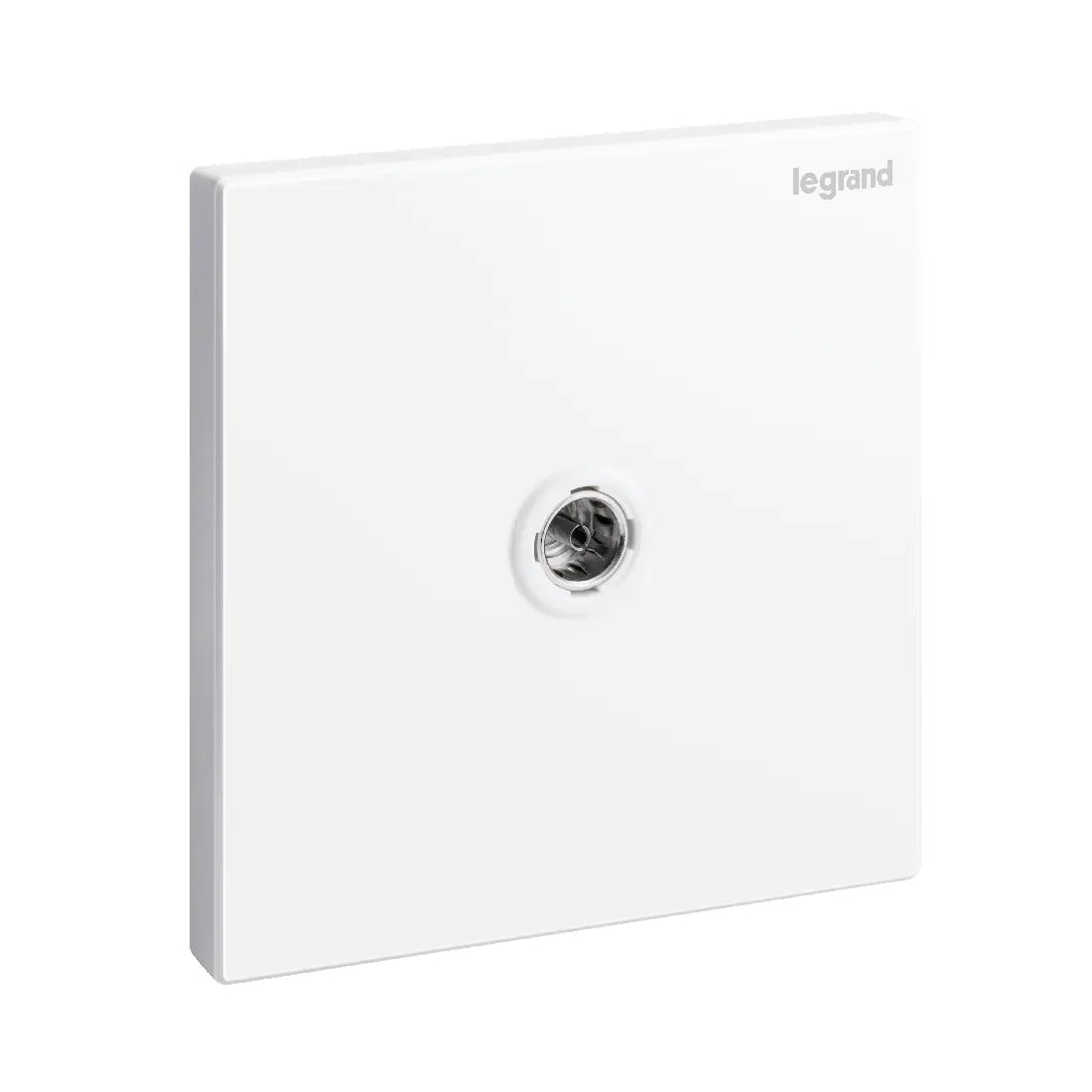

| Colour | White(282457), Black(282457-C), Rose Gold(282457-C1), Champagne(282457-C2), Dark Silver(282457-C3) |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 32 mm |
| Min. depth of built-in installation box | 22.8 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Terminal marking indication | No |
