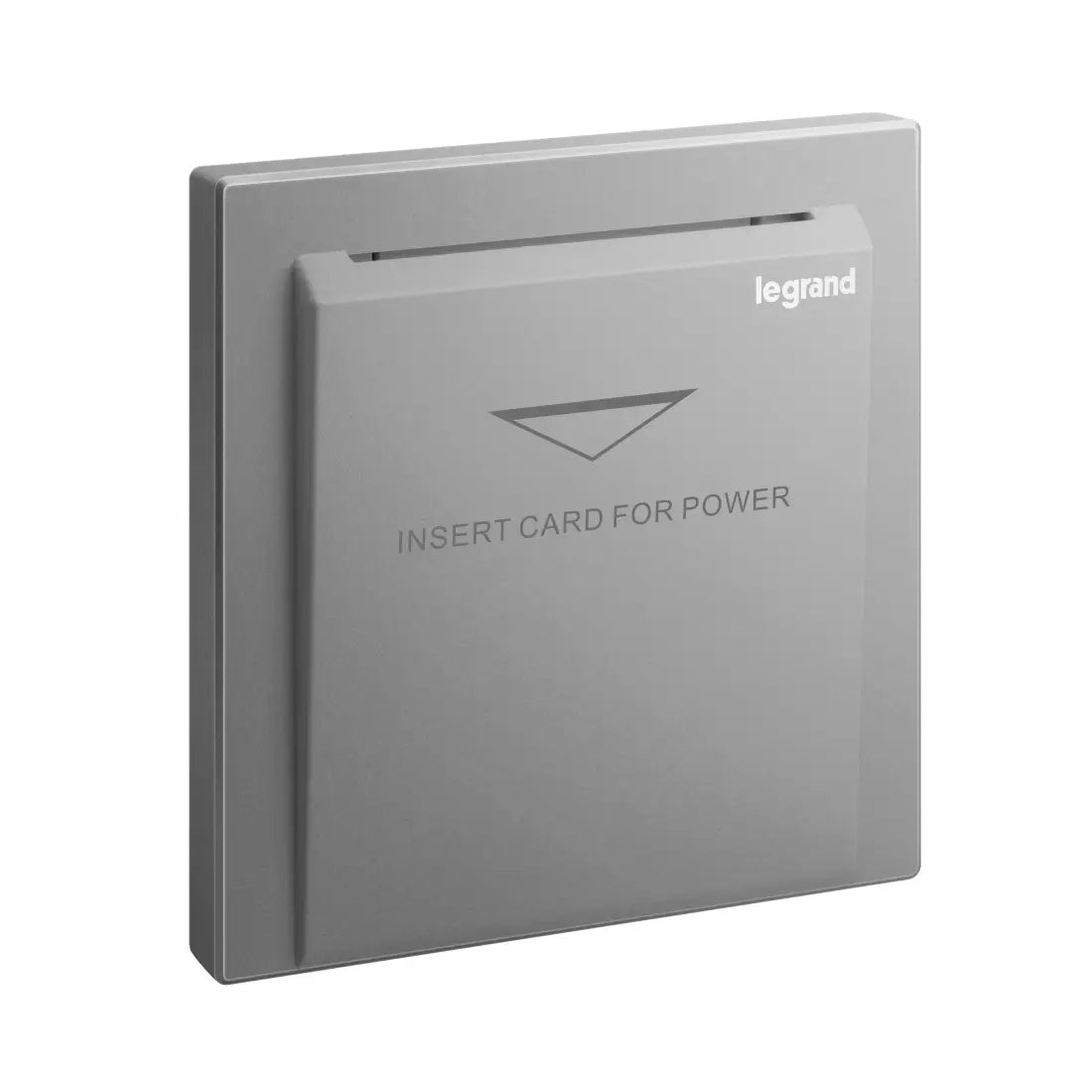

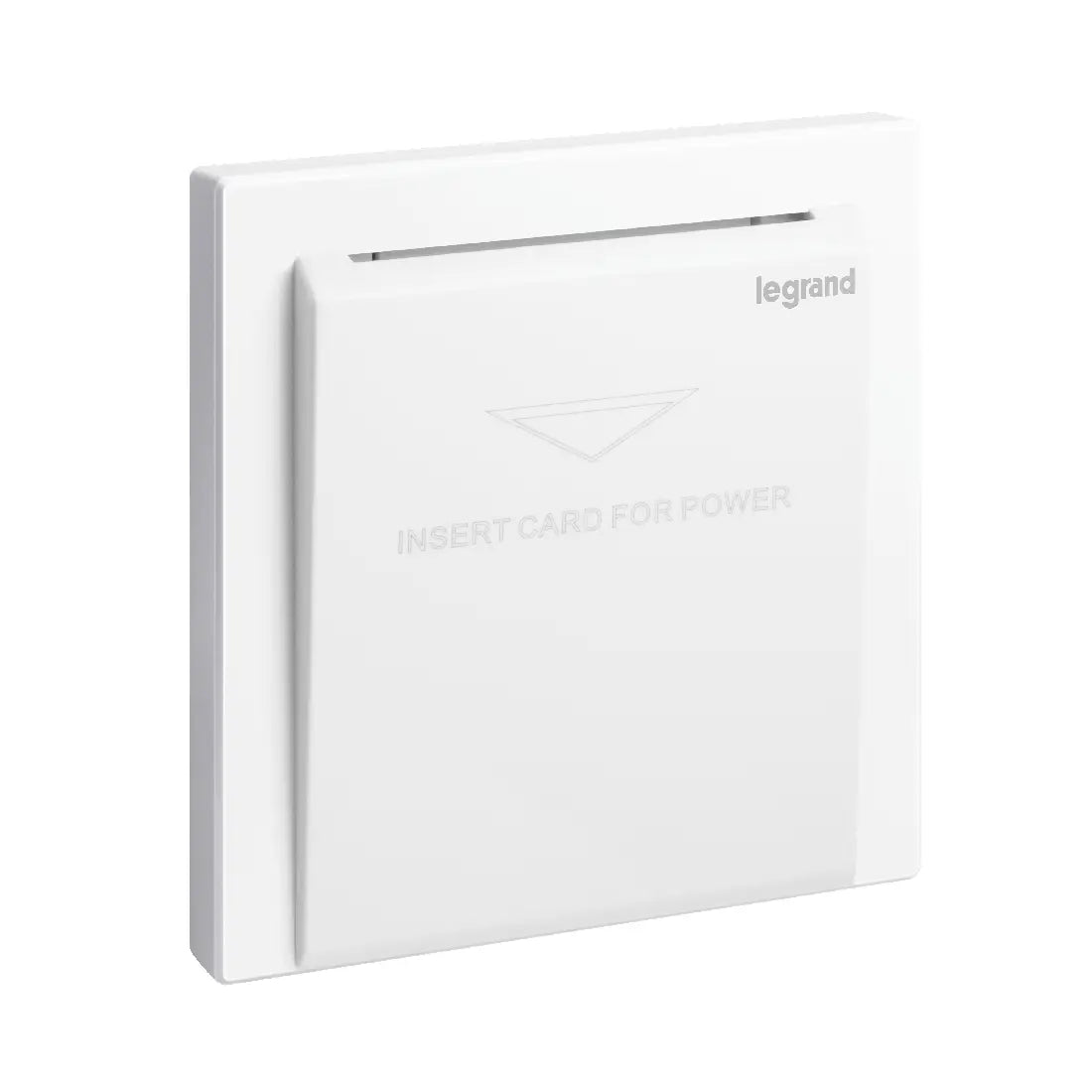

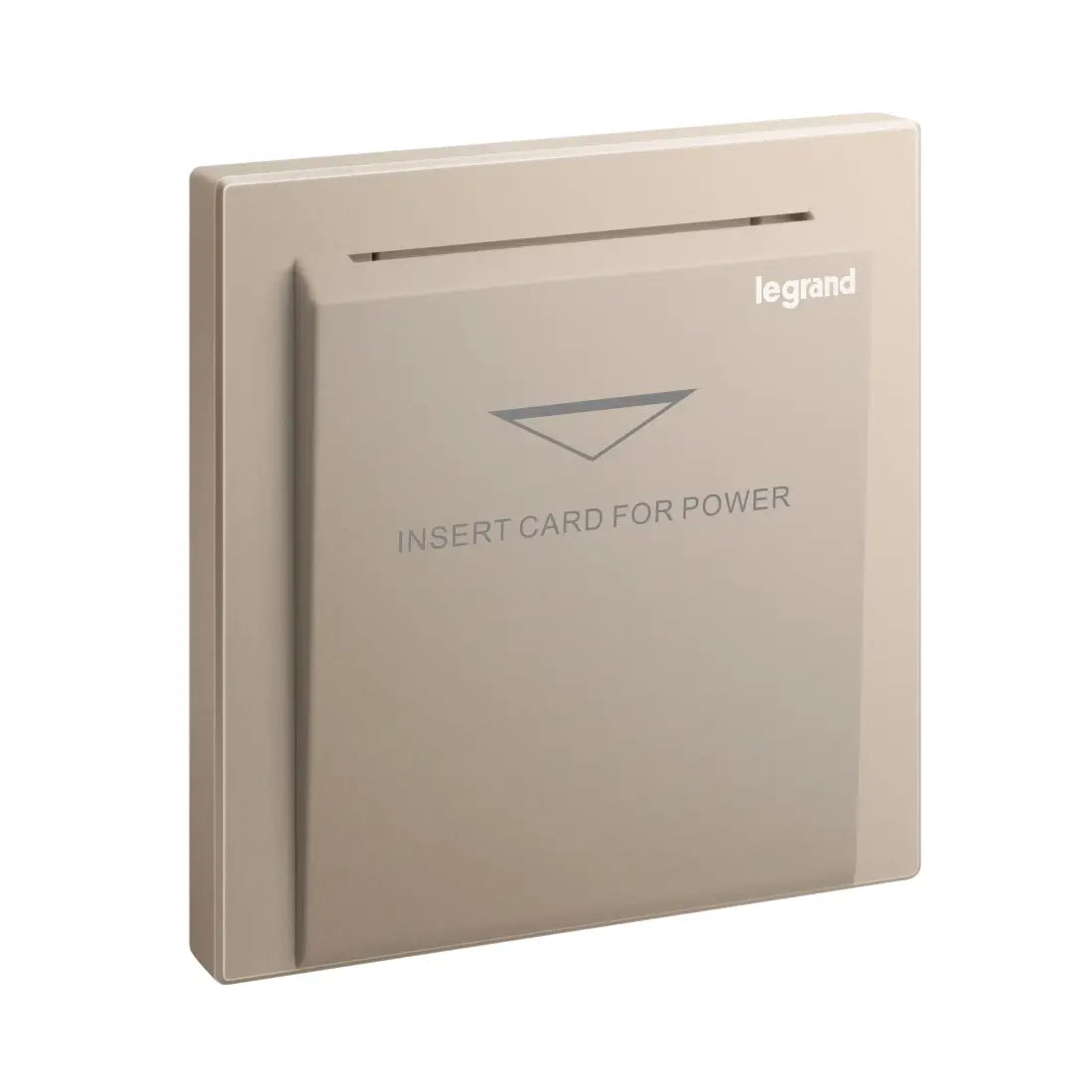

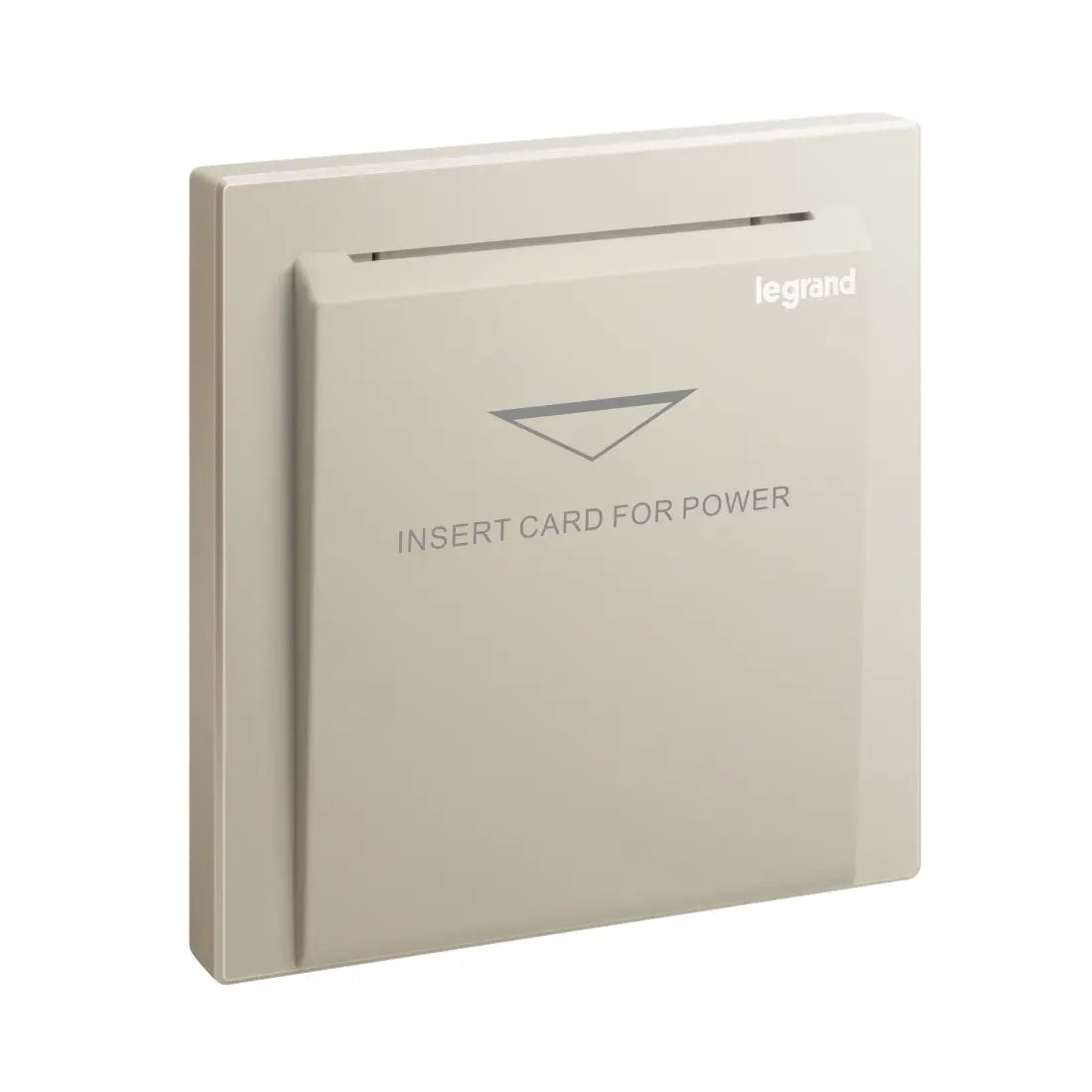

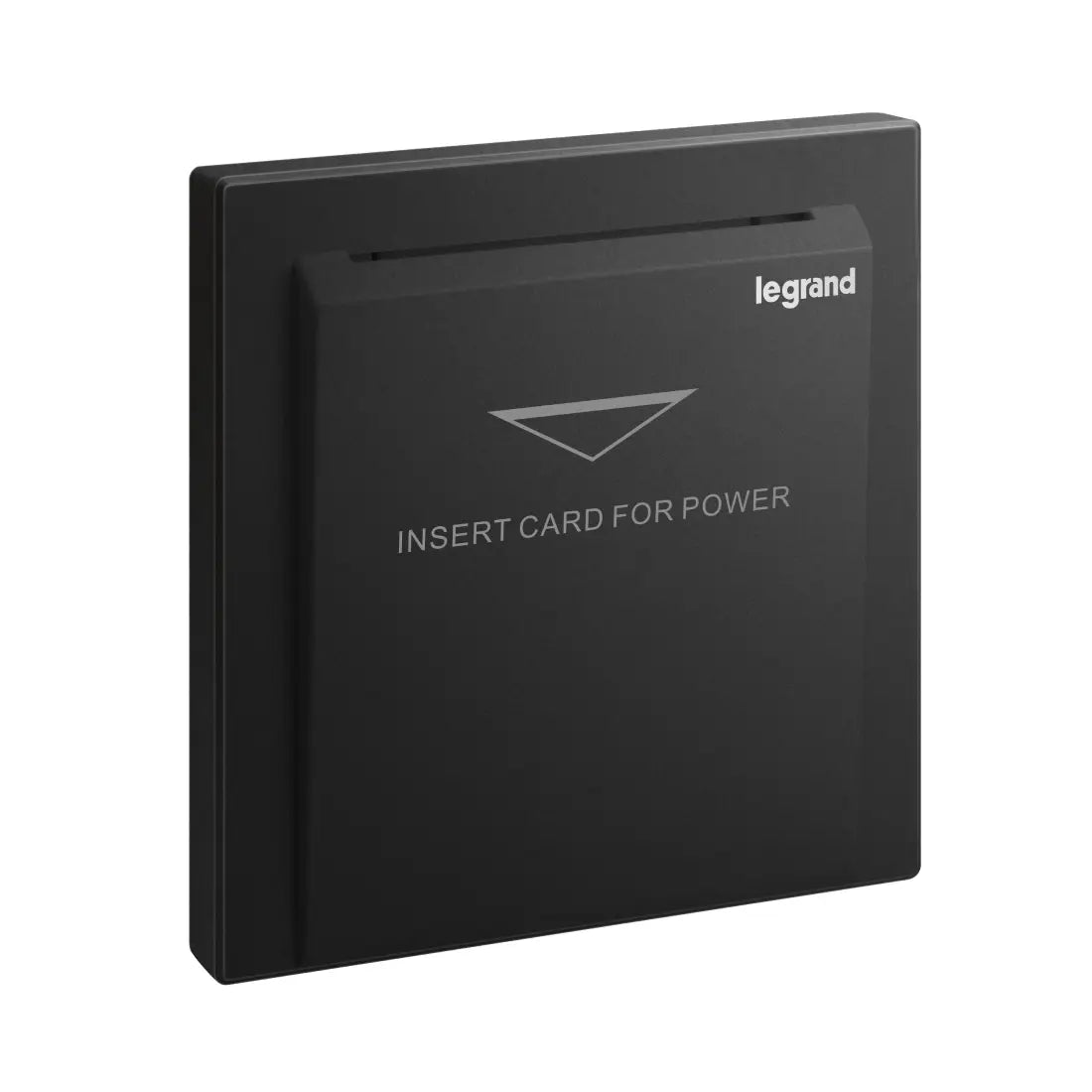

Legrand Galion 1 Gang RFID Keycard 230 Volts 282418
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Key Card Switch
Description
The Galion 1 Gang RFID Keycard Switch is an ideal energy control solution for modern hotel rooms, operating at 230V and rated at 16A, 240V~. Sold complete under one catalog number and ready to install, it features screw-type terminals for enhanced connectivity and clearly marked terminals for easy identification. Designed exclusively for indoor use, it includes a honeycomb design supporting frame that ensures installation stability and long-lasting durability. The sleek, modern silhouette seamlessly blends with contemporary interiors, offering a uniform and stylish hotel room experience. Delivered with paint and dust protection, along with screws suitable for flush or surface mounting on both plastic and metal boxes.
( 282418, 282418-C, 282418-C1, 282418-C2, 282418-C3 )
| Brand | Legrand |
| Model | Galion |
| Assembly arrangement | Control element |
| Light value memory | No |
| Applicable with button | No |
| Mounting method | Flush-mounted |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Colour | White(282418), Black(282418-C), Rose Gold(282418-C1), Champagne(282418-C2), Dark Silver(282418-C3) |
| Transparent | No |
| Nominal voltage | 230 V |
| Frequency | 50–60 Hz |
| Rated current | 16 A |
| Type of fastening | Mounting with screw |
| Min. depth of built-in installation box | 35 mm |
| Width | 86 mm |
| Height | 88 mm |
| Depth | 42.9 mm |
| Built-in depth | 28.3 mm |
| Degree of impact strength (IK) | IK04 |
| Degree of protection (IP) | IP20 |
| Operating / setting temperature | -5 to 45 °C |
| Storage temperature | -10 to 70 °C |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Stress test conformity (1000V) | Yes |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Connection type | Screwed terminal |
| Number of terminals | 3 |
| Terminals capacity | 1–4 mm² |
| Cable section | 1–4 mm² |
| Label space/information surface | No |
| Connected object | No |
