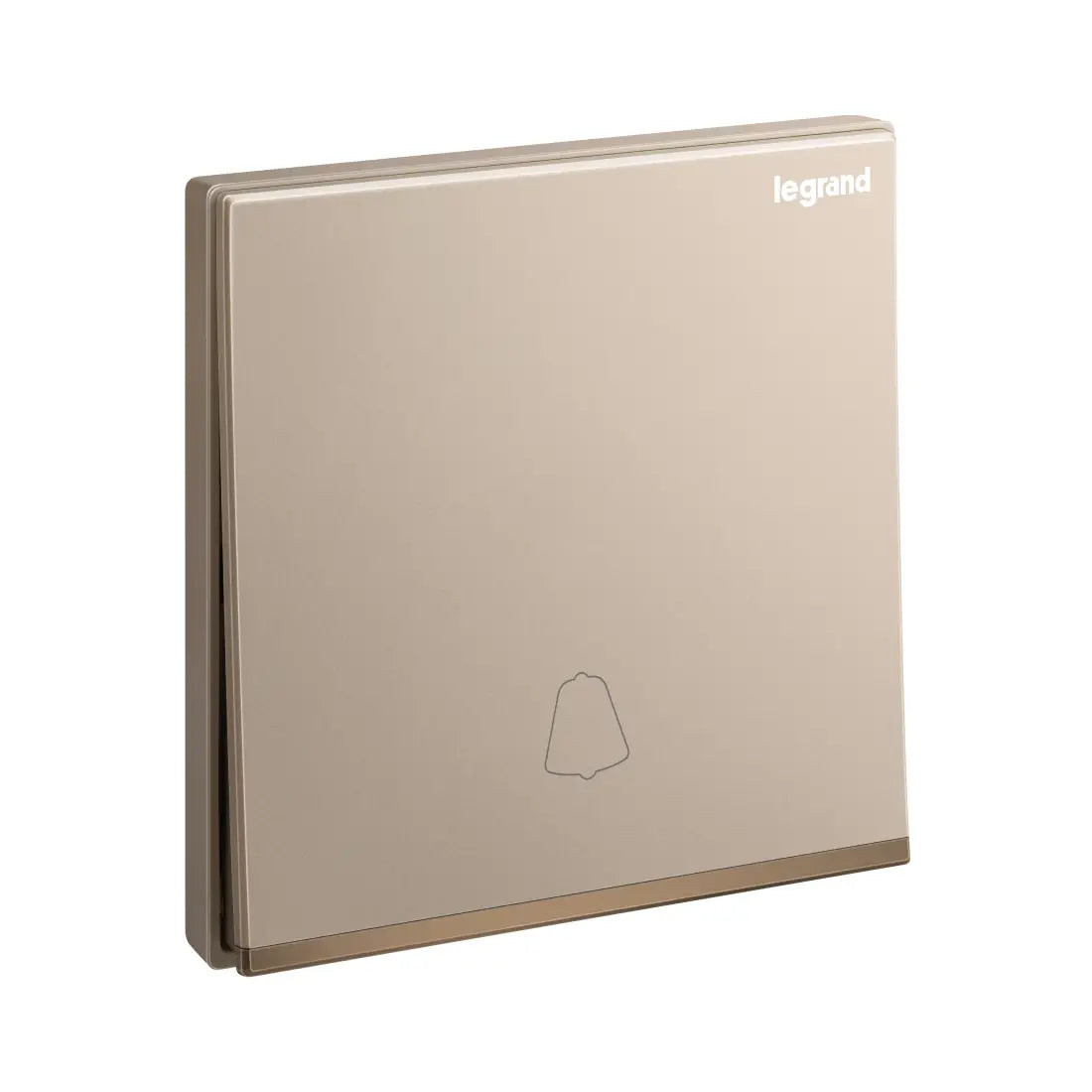

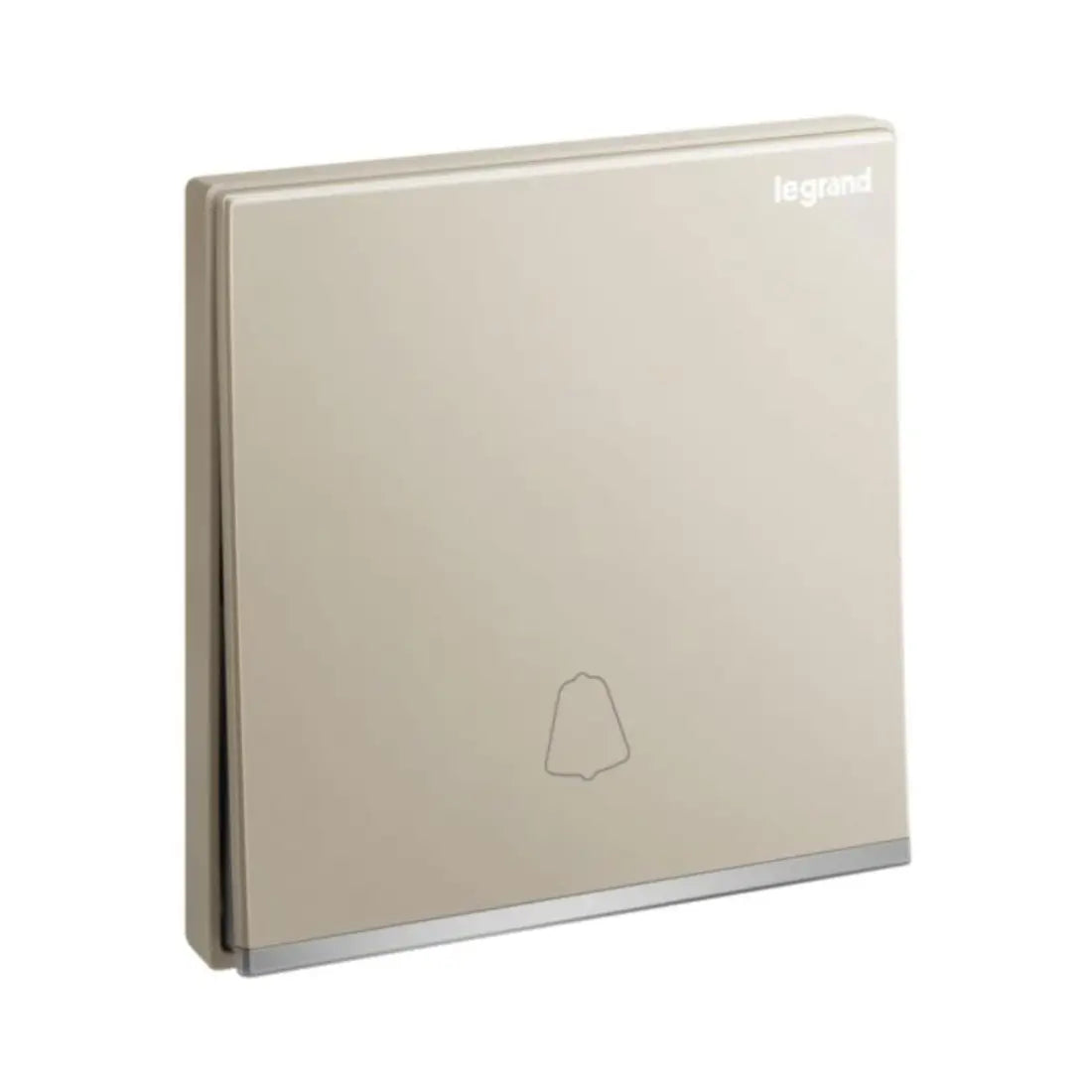

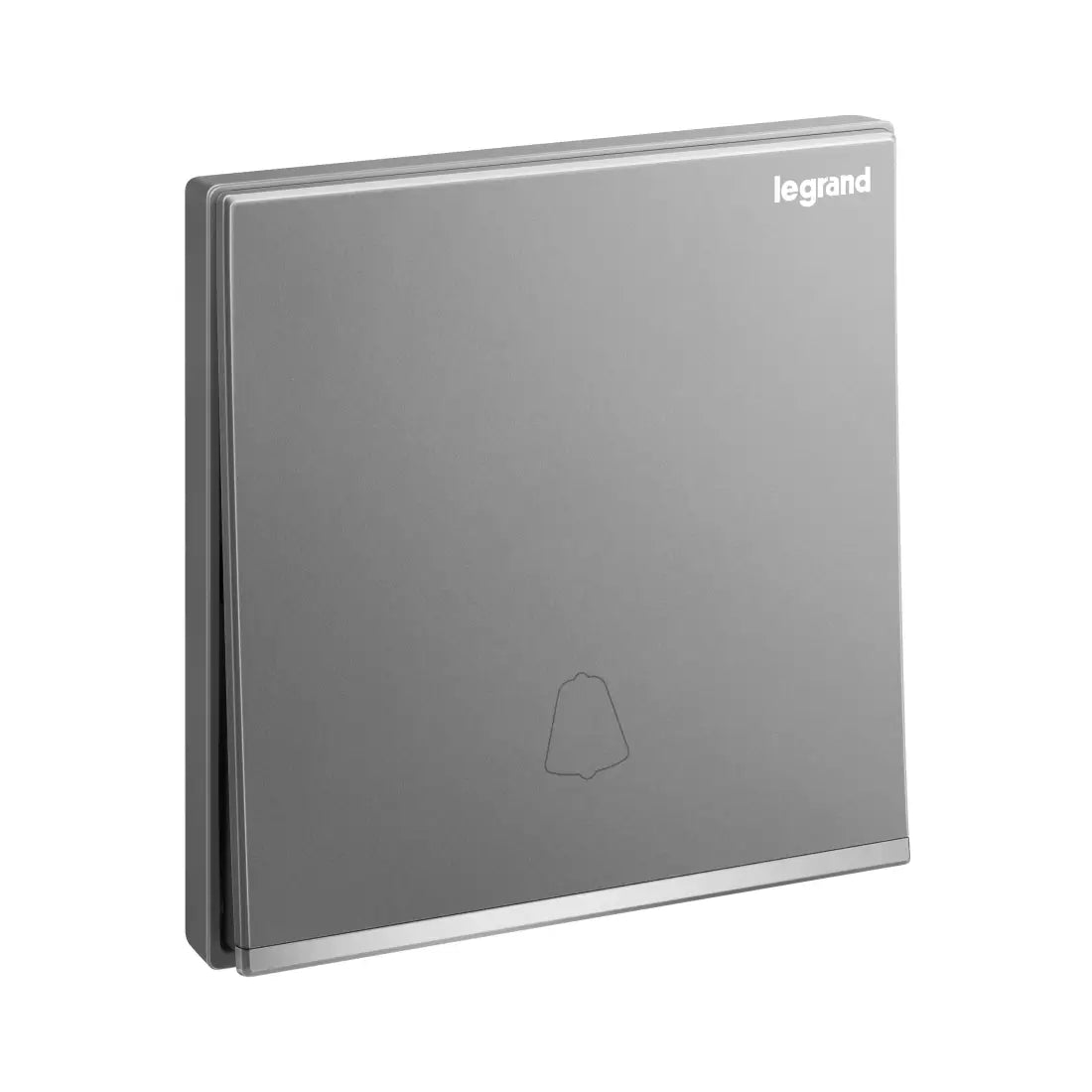

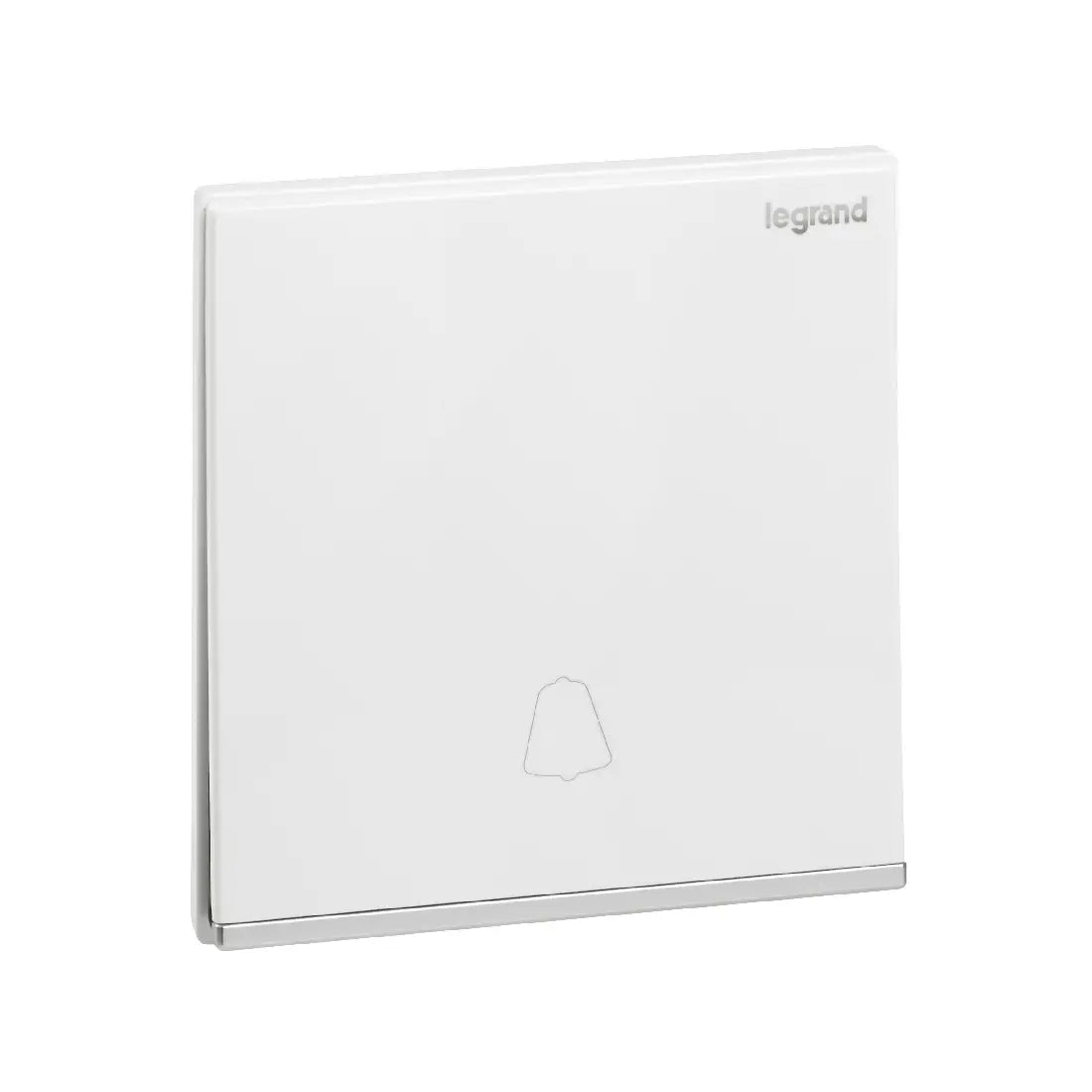

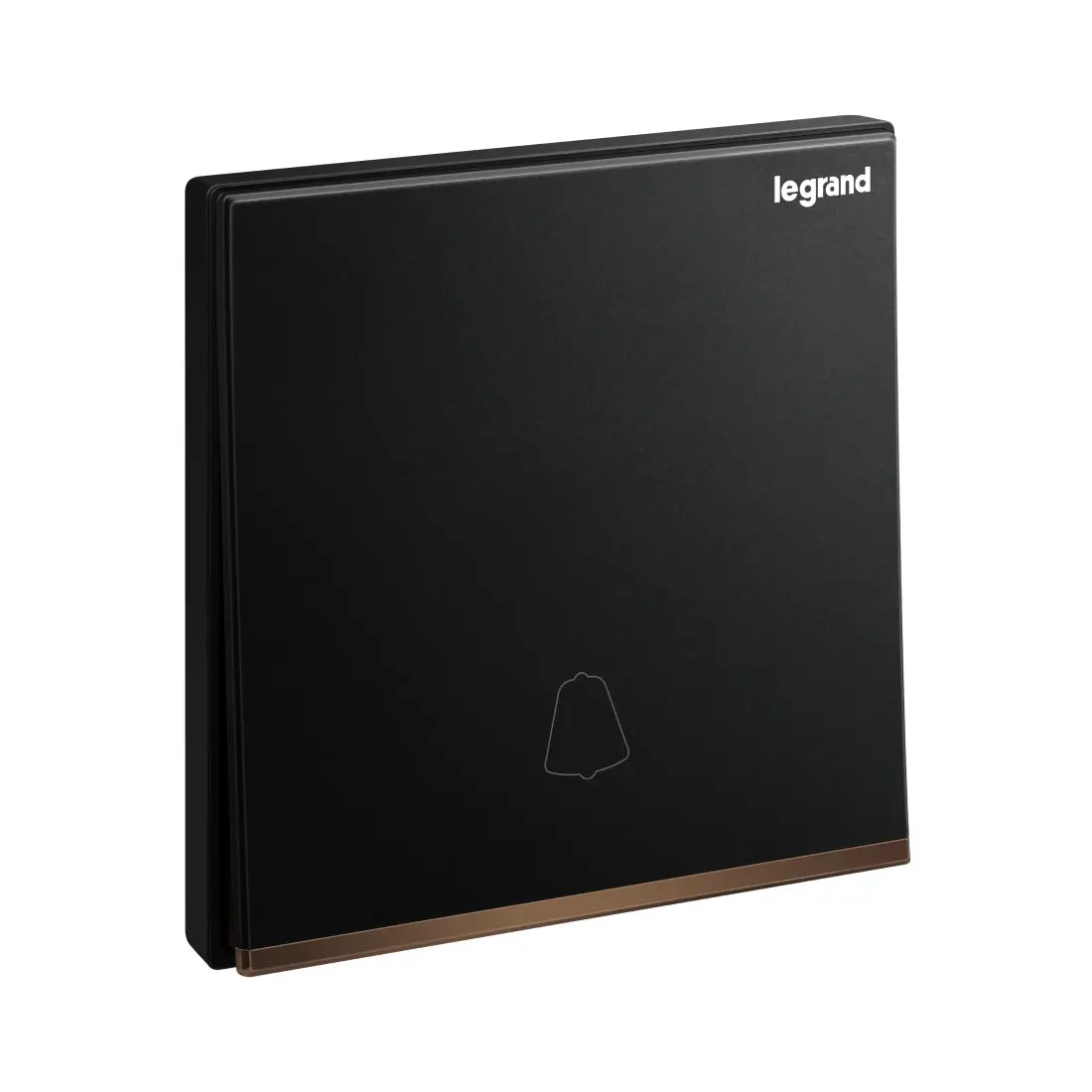

Legrand Galion 1 Gang Push Button 16A with Bell Marking 282411
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Bell Switches
Description
The Galion 1 Gang Push-Button Switch with Bell Marking (16AX, 250V~) is a stylish and practical solution for momentary control applications, such as doorbells. Sold as a complete unit under a single catalog number, it is ready to install and engineered for convenience. Featuring screw-type terminals for secure connections, clearly marked terminals for easy identification, and a strip length indicator to avoid wire wastage, it ensures a quick and efficient installation. The robust honeycomb design supporting frame adds stability and rigidity, while safety is enhanced by the absence of accessible electrical contacts under the rocker. With its modern full-plate rocker design and a silver bar detail that complements the cover, the switch adds a refined touch to any interior. Recommended for indoor use, the product comes with paint and dust protection and includes screws suitable for both flush-mounted and surface-mounted boxes, whether plastic or metal.
( 282411, 282411-C, 282411-C1, 282411-C2, 282411-C3 )
| Brand | Legrand |
| Model | Galion |
| Assembly arrangement | Basic element with complete housing |
| Model | Single push button |
| Method of operation | Rocker |
| Contactless type | No |
| Number of rockers | 1 |
| Number of poles | 1 |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| With lighting | No |
| With light source | No |
| With complementary luminous signal | No |
| Connection type | Screwed terminal |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | White(282411), Black(282411-C), Rose Gold(282411-C1), Champagne(282411-C2), Dark Silver(282411-C3) |
| Transparent | No |
| Label space/information surface | Yes |
| Imprint | Symbol "bell" |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 38.4 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 24 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
