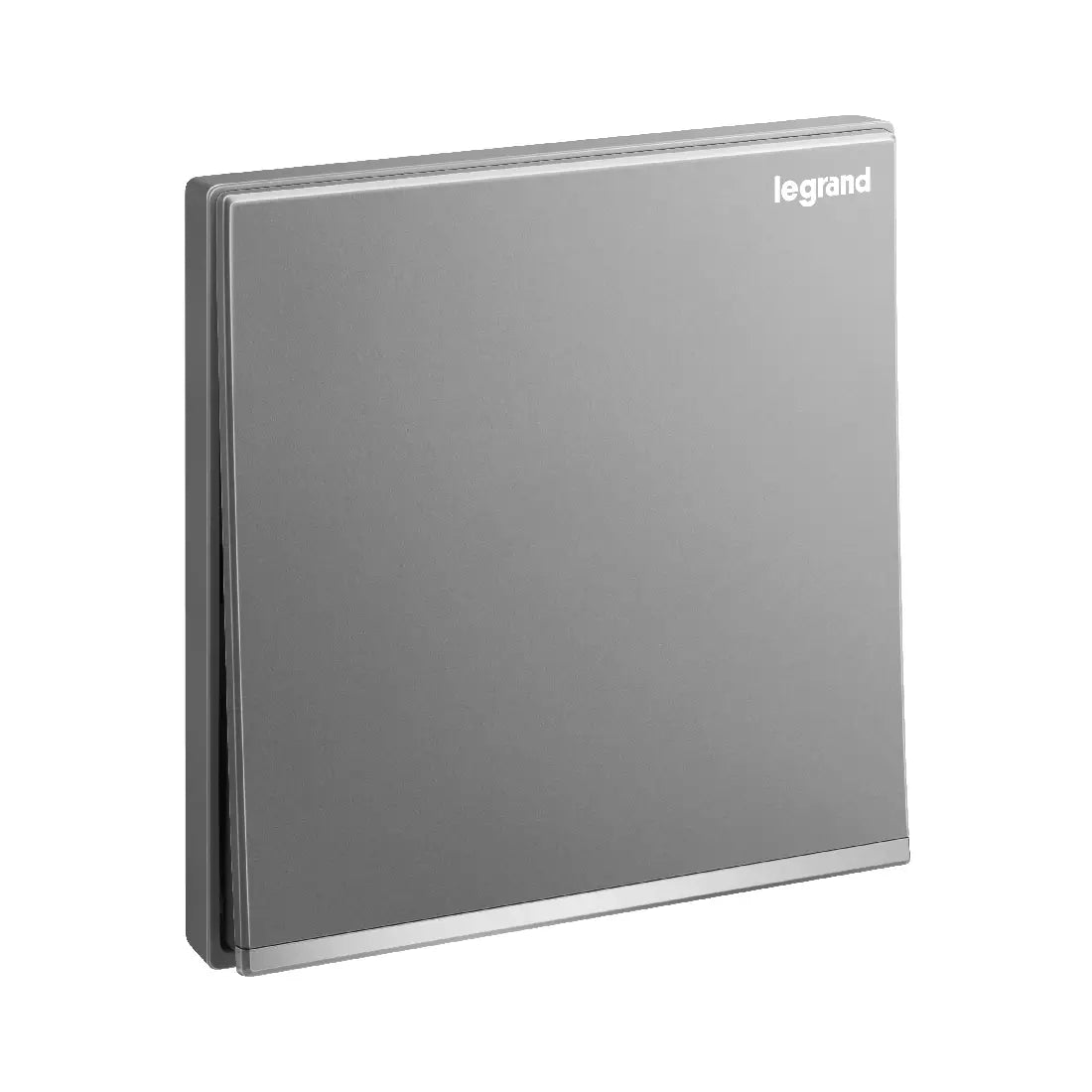

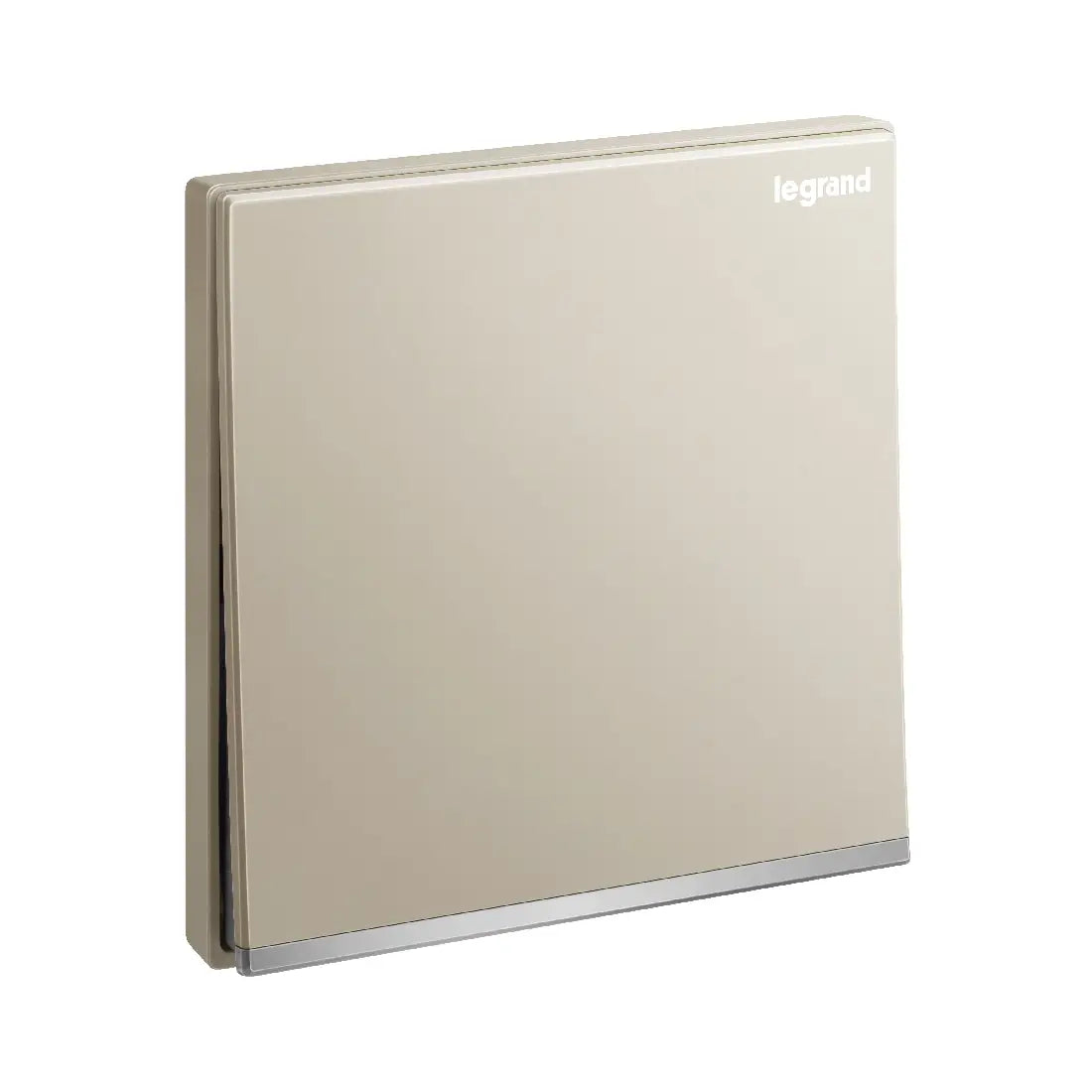

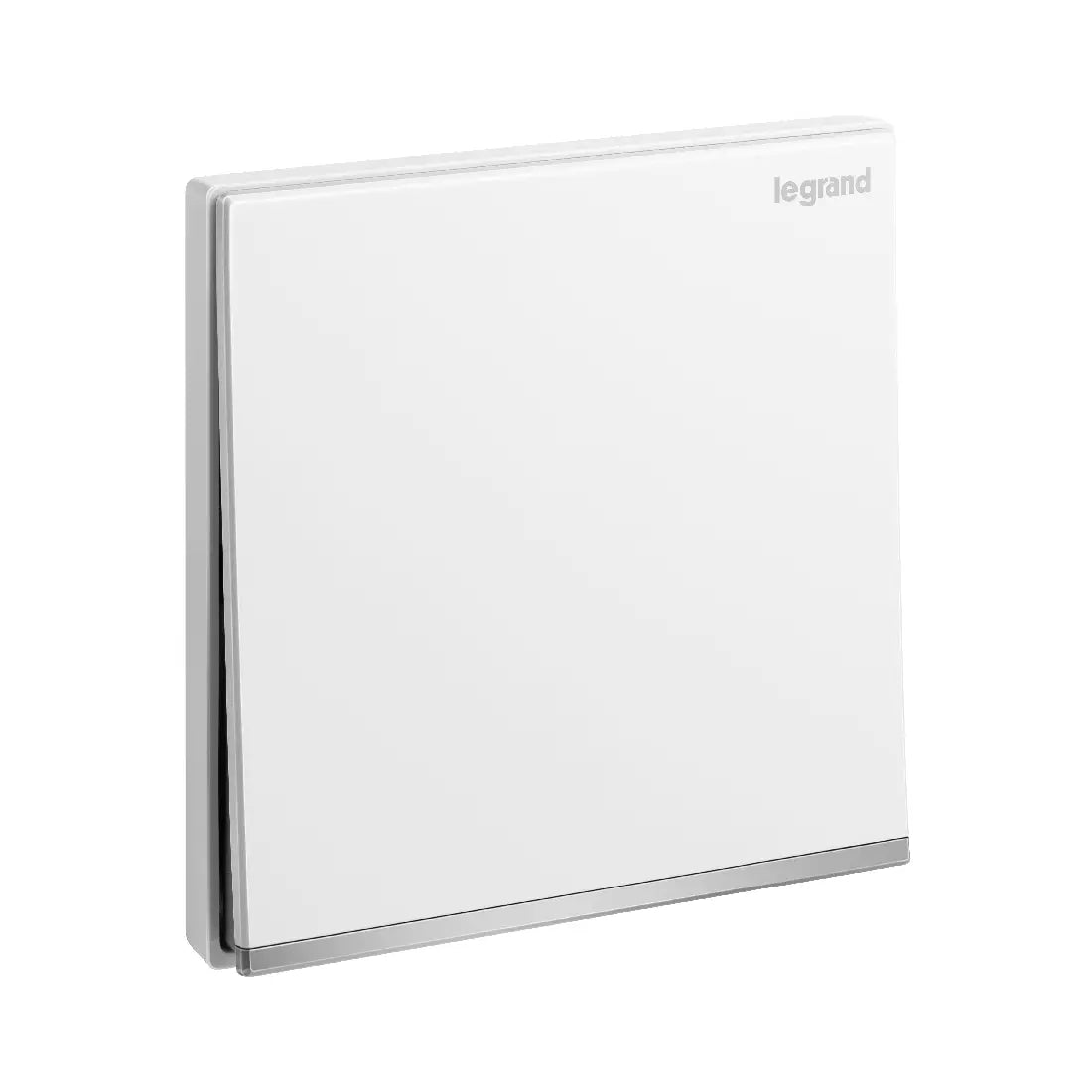

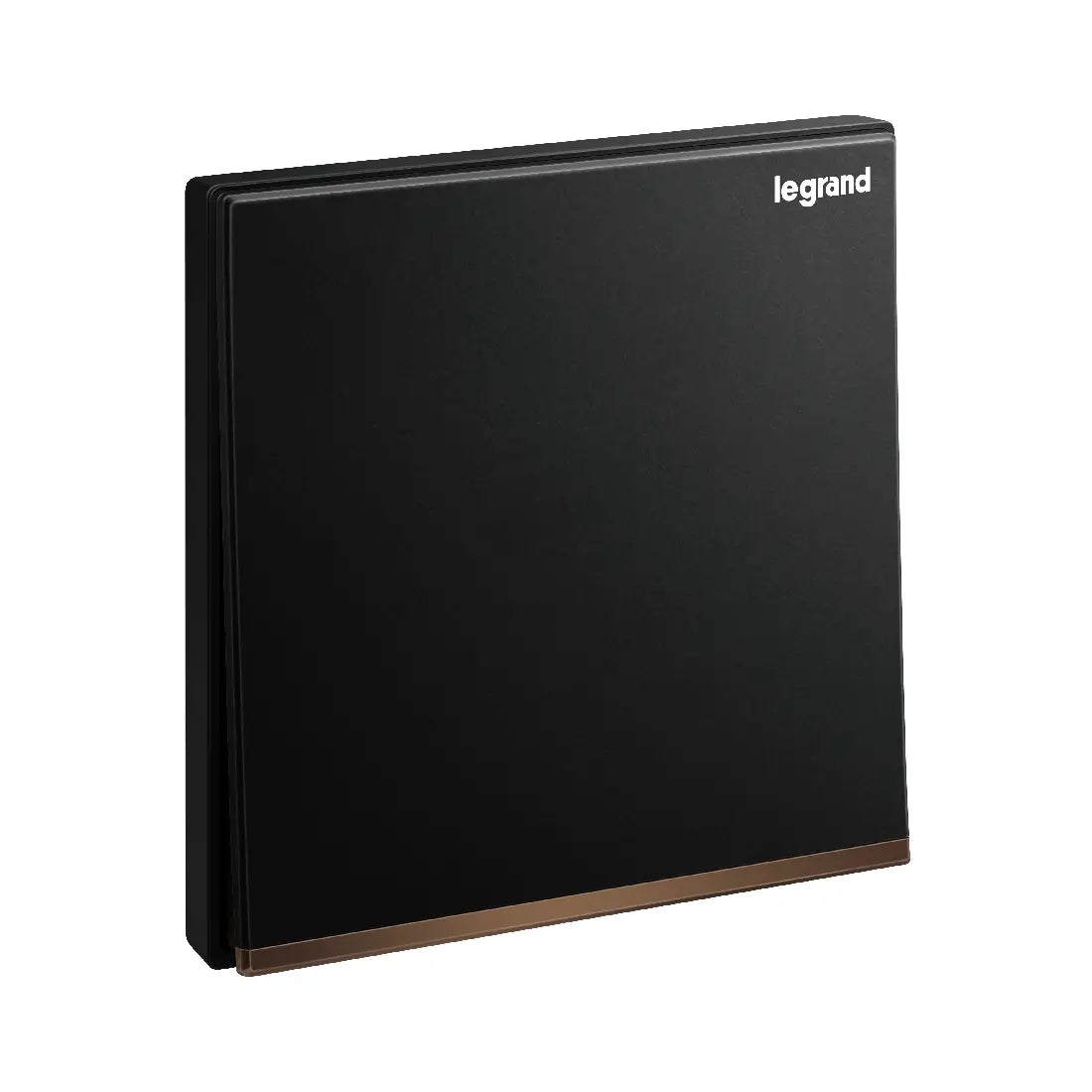

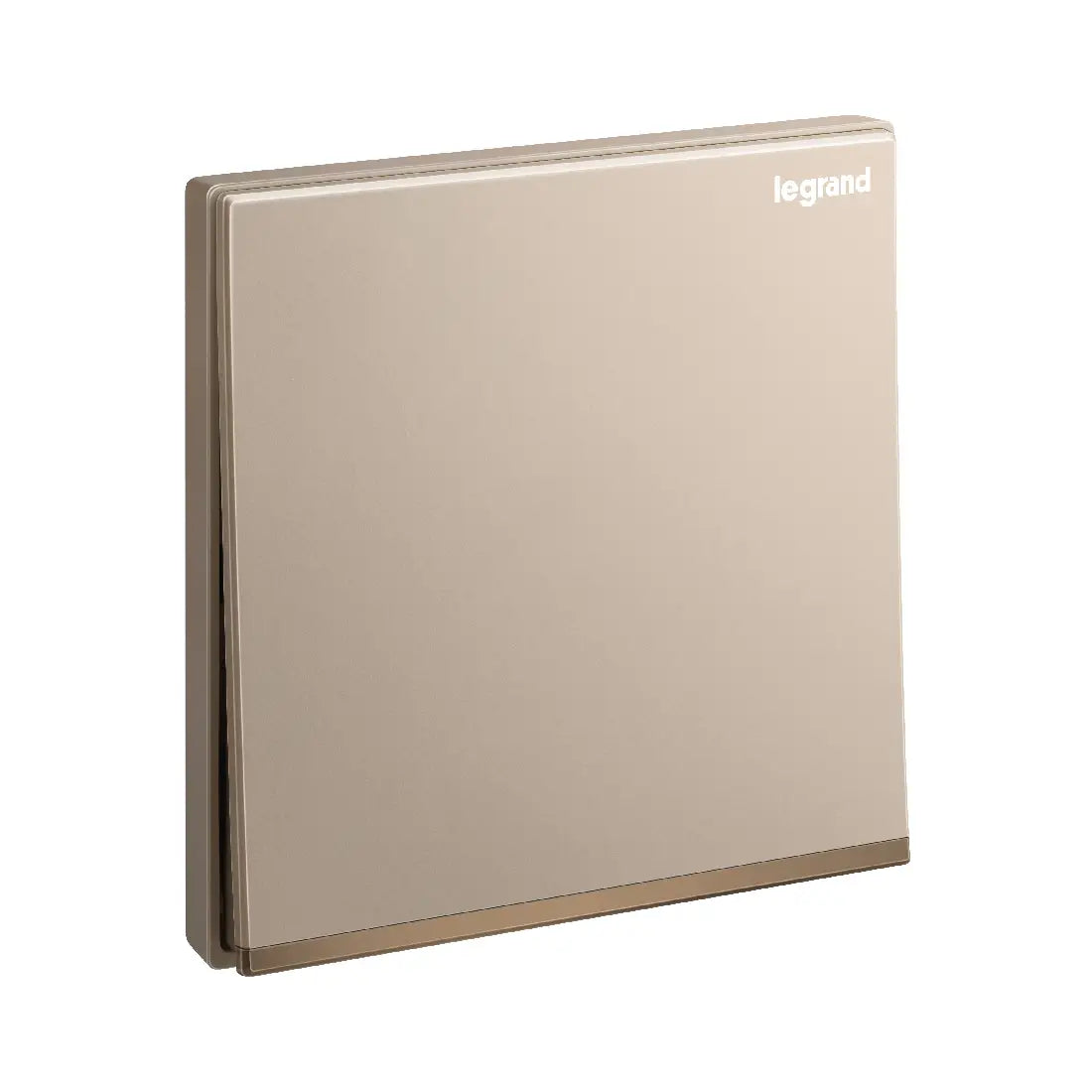

Legrand Galion 1 Gang Push Button 16A 282410
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : Push Button
Description
The Galion 1 Gang Push-Button (16AX, 250V~) is a modern and efficient solution for momentary control applications such as doorbells or relays. Sold complete under a single catalog number, it comes ready to install with user-friendly features including screw-type terminals for enhanced contact, clearly marked terminals for easy identification, and a strip length indicator to avoid wire wastage. Designed for indoor use, it features a robust honeycomb support frame for added stability and rigidity during installation. The safety-focused design ensures no accessible electrical contact under the rocker. With its sleek full-plate rocker and electroplated bar that seamlessly matches the cover color, this push-button switch adds a refined, modern touch to any interior. The product is delivered with paint and dust protection for a clean and professional finish.
( 282410, 282410-C, 282410-C1, 282410-C2, 282410-C3 )
| Brand | Legrand |
| Model | Galion |
| Assembly arrangement | Basic element with complete housing |
| Model | Single push button |
| Method of operation | Rocker |
| Contactless type | No |
| Number of rockers | 1 |
| Number of poles | 1 |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| With lighting | No |
| With light source | No |
| With complementary luminous signal | No |
| Connection type | Screwed terminal |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | White, Black, Rose Gold, Champagne, Dark Silver |
| Transparent | No |
| Label space/information surface | Yes |
| Imprint | None |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 38.4 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 24 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
