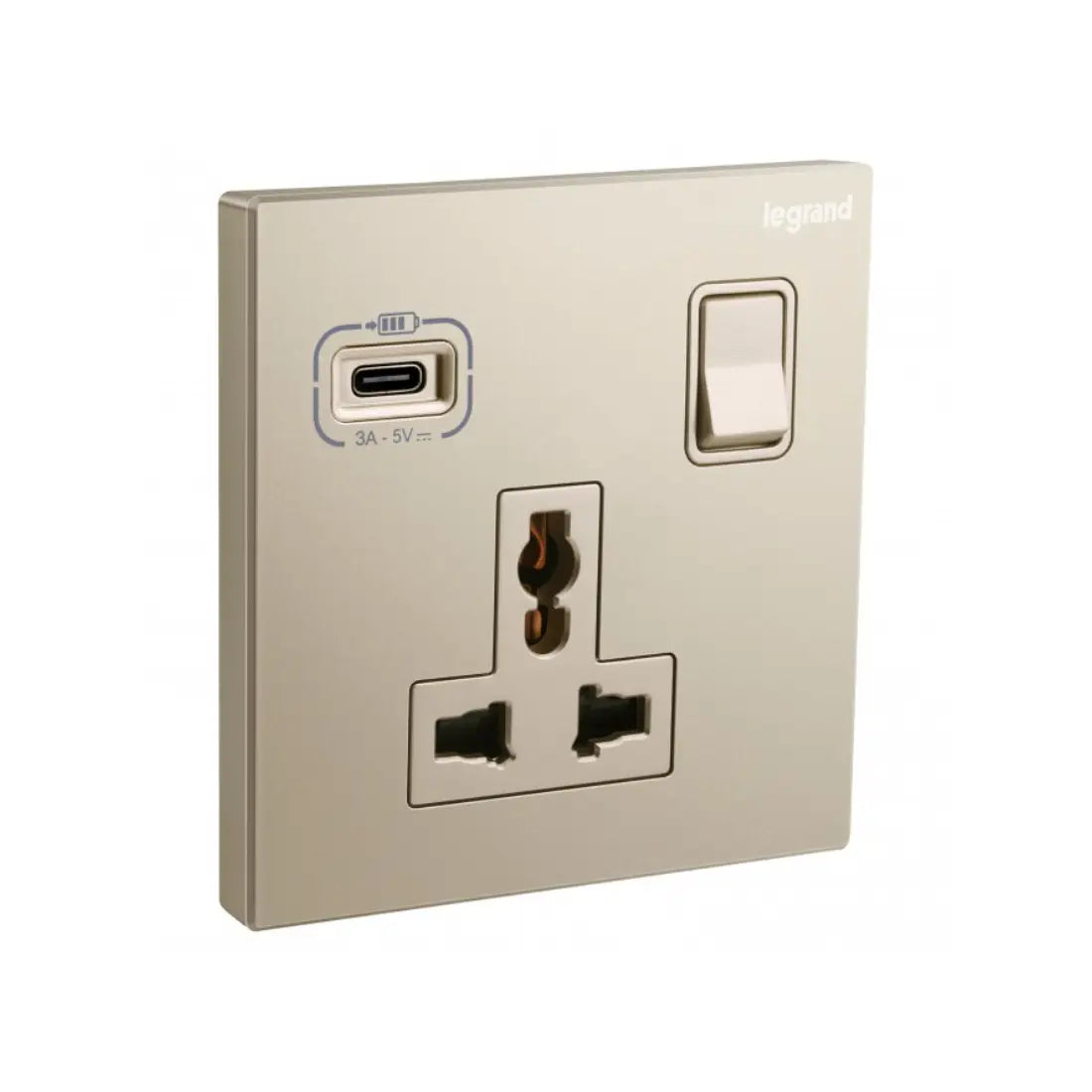

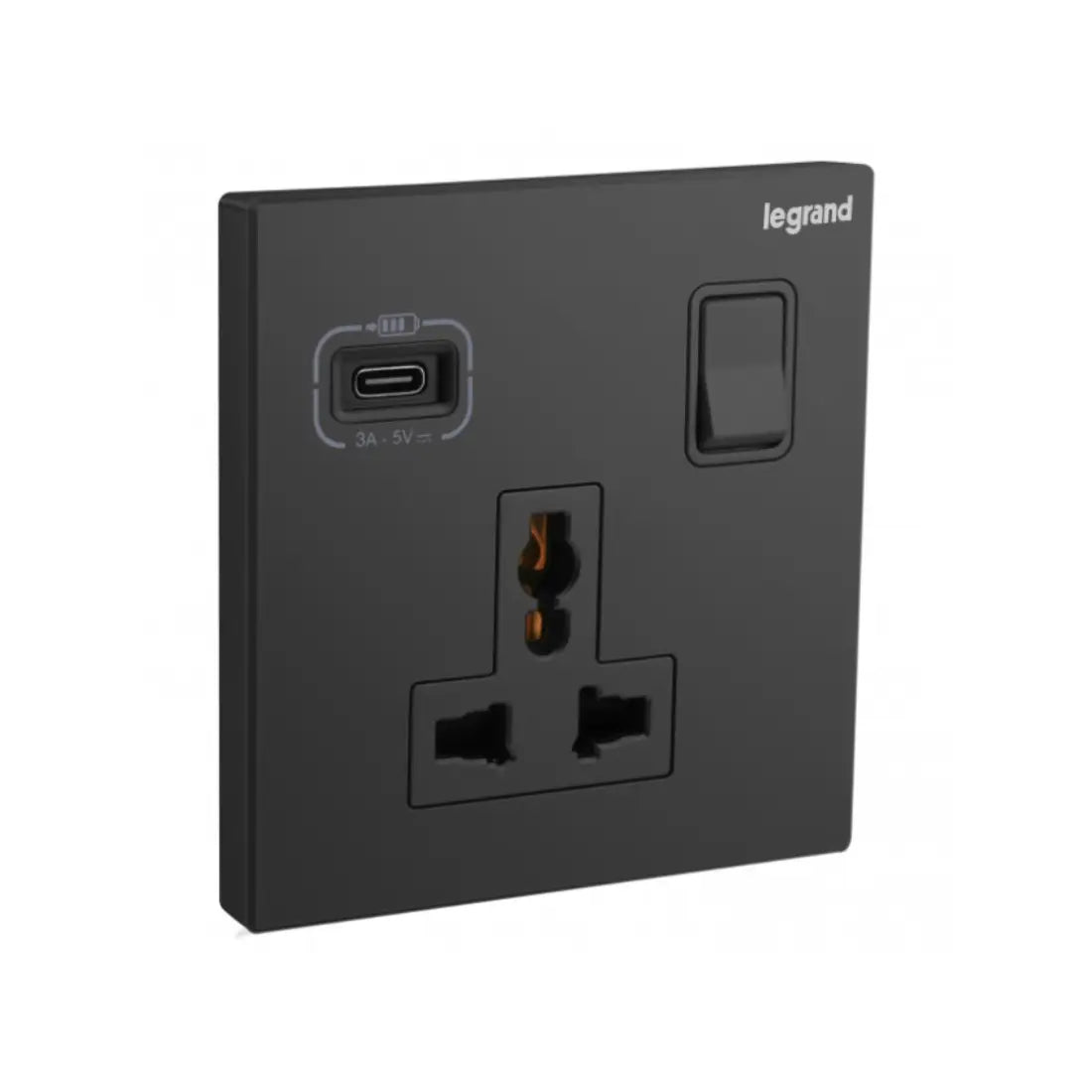

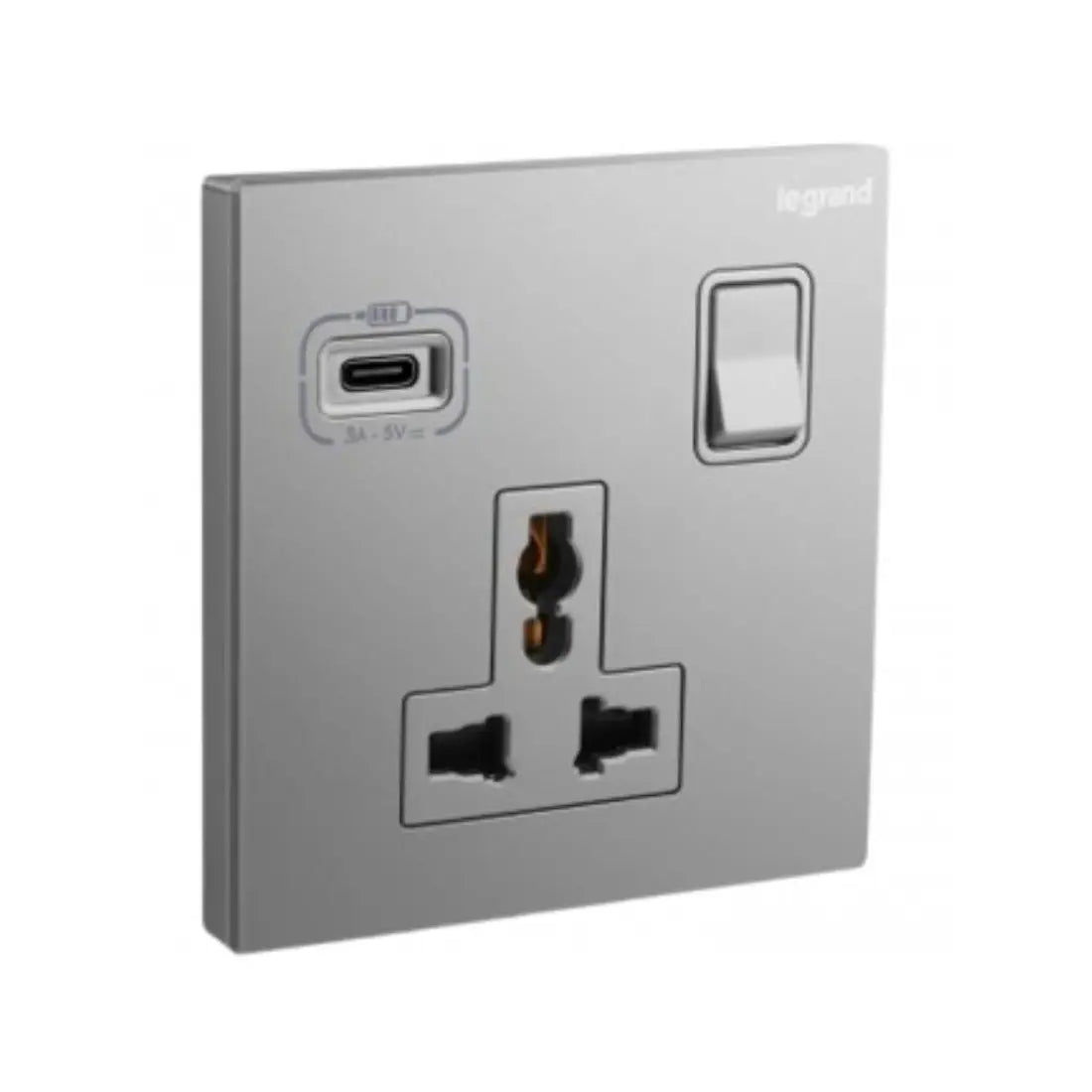

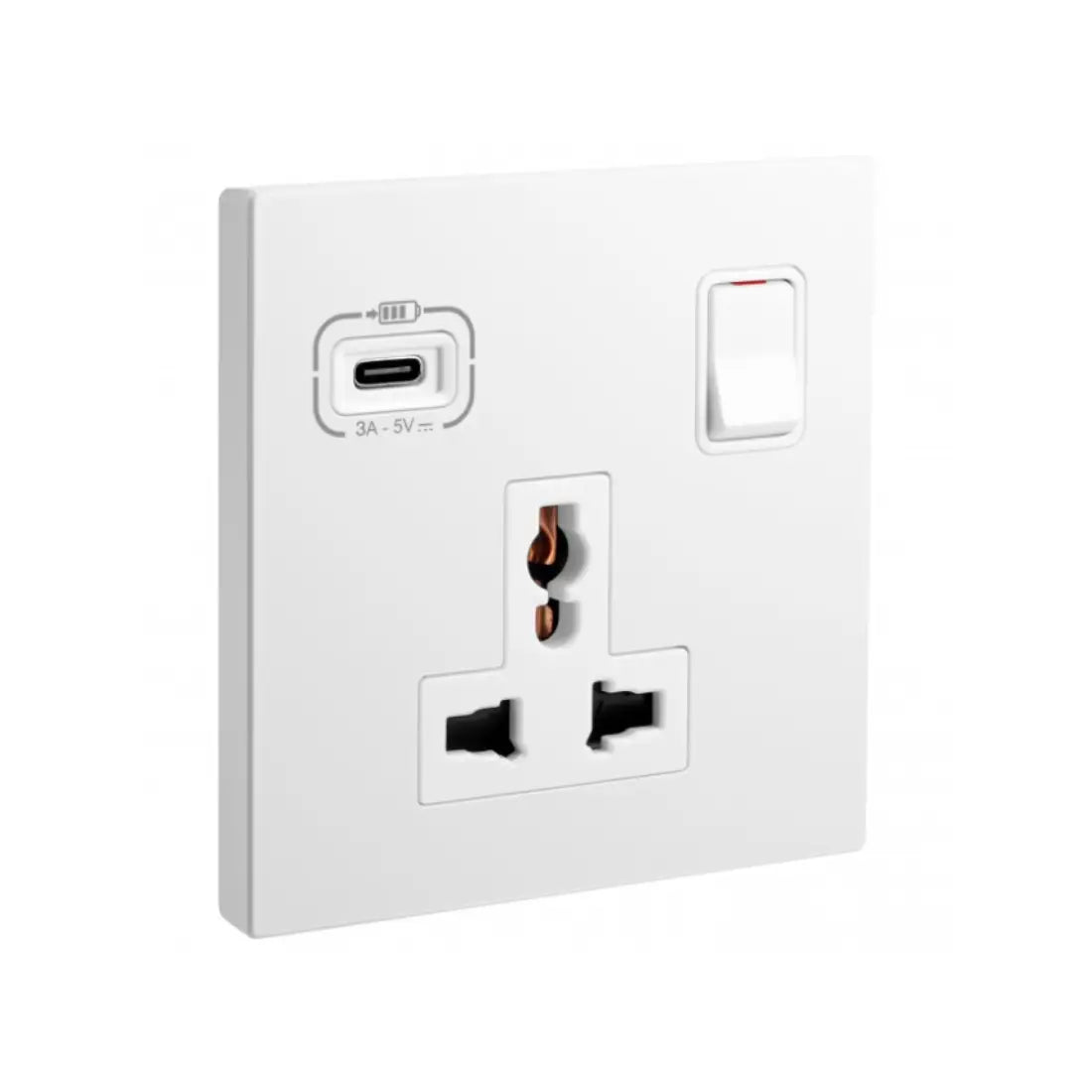

Legrand Galion 1 Gang Multistandard Switched with USB C 18W Charger 282485A
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switchsocket Outlet
Description
The Galion 1 Gang Multistandard Switched Socket with USB-C 18W Charger is a convenient two-in-one solution that combines a 2P+E multistandard 13A, 250V power outlet with an integrated USB Type-C fast charger delivering 18W—ideal for charging smartphones and tablets. Designed for easy installation, it comes complete under one catalog number and includes screw-type terminals for secure connections, marked terminals for easy identification, and a strip length indicator to avoid wire waste. The socket features safety shutters to enhance child protection and is delivered with paint and dust protection, along with screws suitable for both flush and surface mounting on plastic or metal boxes. Recommended for indoor use only, it offers a sleek, efficient upgrade for modern power and charging needs.
( 282485A, 282485A-C, 282485A-C1, 282485A-C2, 282485A-C3 )
| Brand | Legrand |
| Model | Galion |
| Concurrently switching neutral conductor | No |
| Assembly arrangement | Basic element with full cover plate |
| With complementary luminous signal | No |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 1 |
| Max. current rating of USB power supply | 3 A |
| Number of socket outlets | 3 |
| Number of modules (module system) | 2 |
| Number of socket outlets switchable | 1 |
| Number of phases | 1 |
| Imprint/indication | Other |
| Connection type | Screwed terminal |
| With hinged lid | No |
| With enhanced contact protection | No |
| Label space/information surface | Yes |
| Colour | White, Black, Rose Gold, Champagne, Dark Silver |
| Metallic colour | Yes |
| Transparent | No |
| Lockable | No |
| Eject-mechanism | No |
| Insulated mounting | Yes |
| With function lighting | No |
| With orientation lighting | No |
| Overvoltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | None |
| Mounting method | Flush-mounted |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Antimicrobial treatment | No |
| With loop through function | No |
| Number of loop throughs | 0 |
| With on/off switch | Yes |
| Colour of switch operator | Black |
| Rotated central insert | No |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Frequency | 50-50 Hz |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 8 mm |
| Device depth | 20.7 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in Bluetooth speaker | No |
| For heavy conditions according to VDE | No |
| Compliant with UK Building Regulations Part M | Yes |
| Built-in depth | 20.7 mm |
| Operating / setting temperature | 0–35 °C |
| Storage temperature | -10–70 °C |
| Voltage type | AC |
| Power Delivery | Yes |
| USB Output Power | 18 W |
| Terminal marking indication | Yes |
| Prewired | No |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
| Connected object | No |
