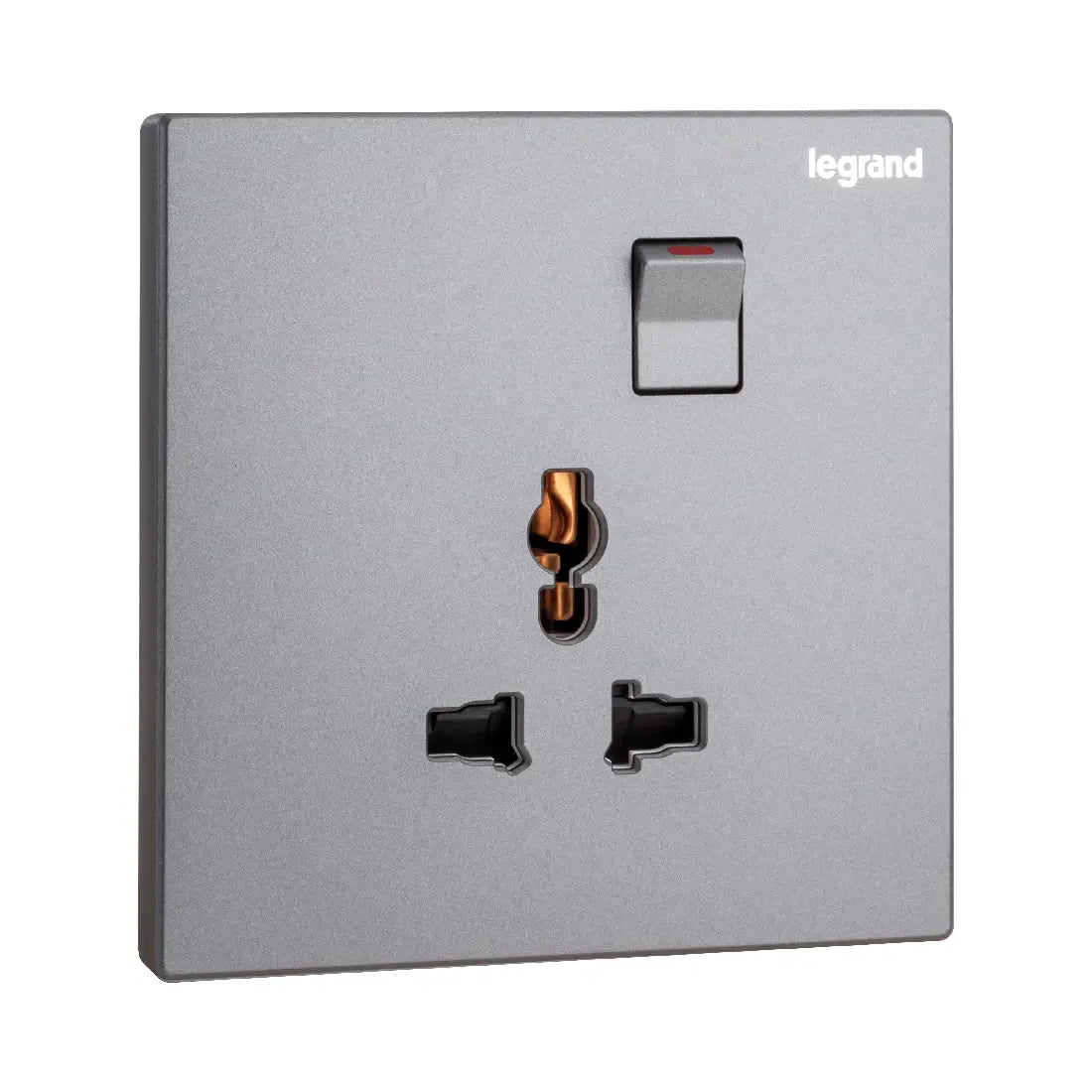

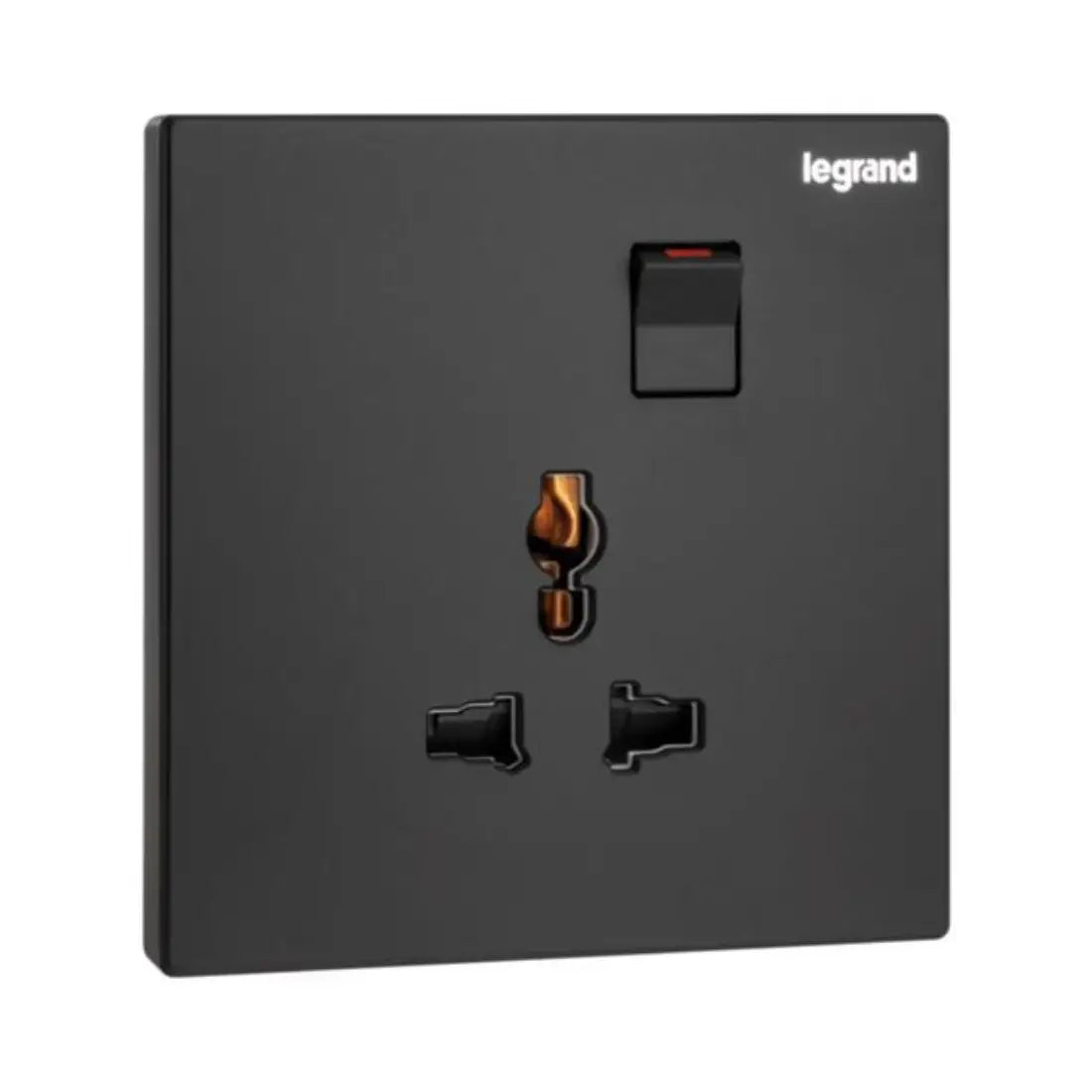

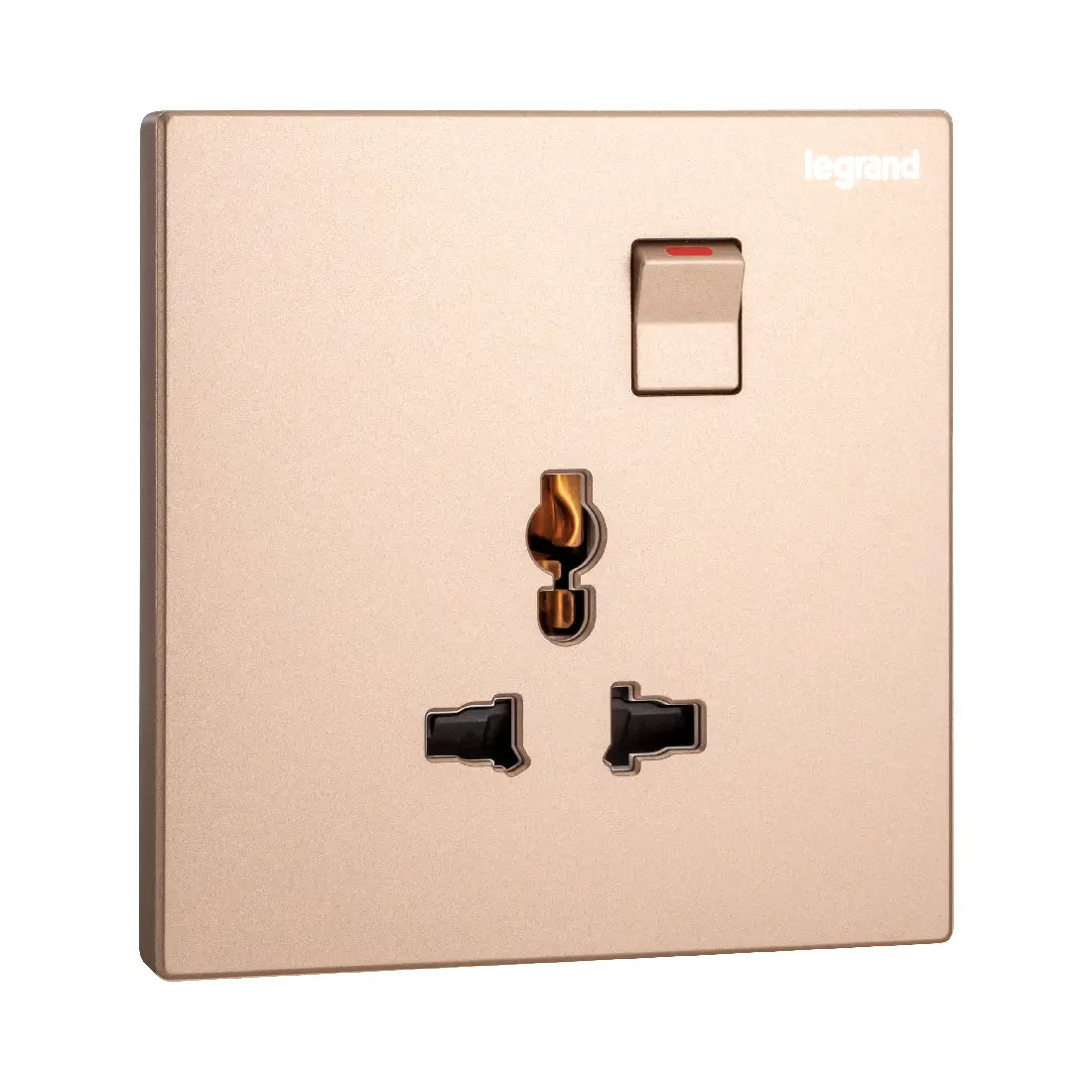

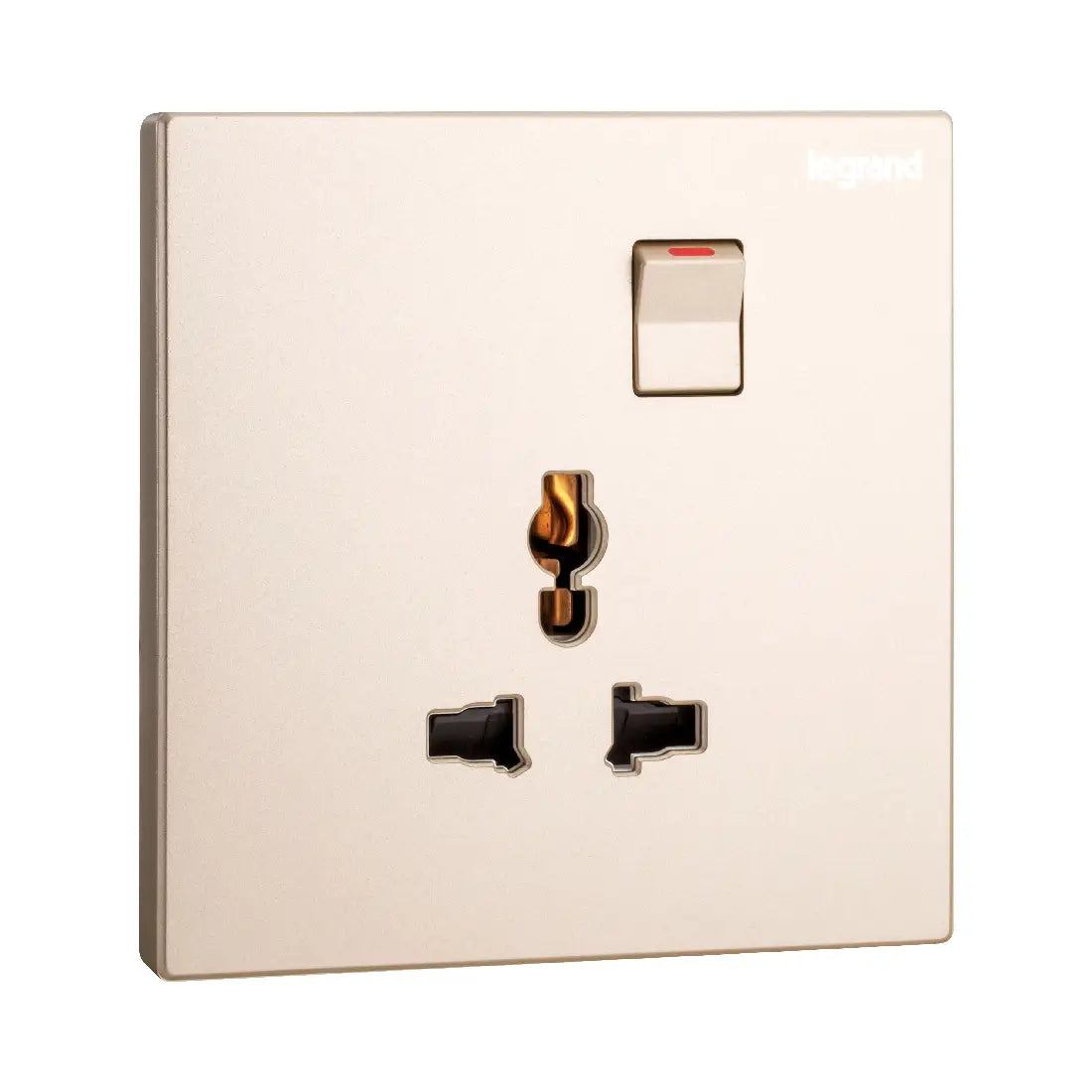

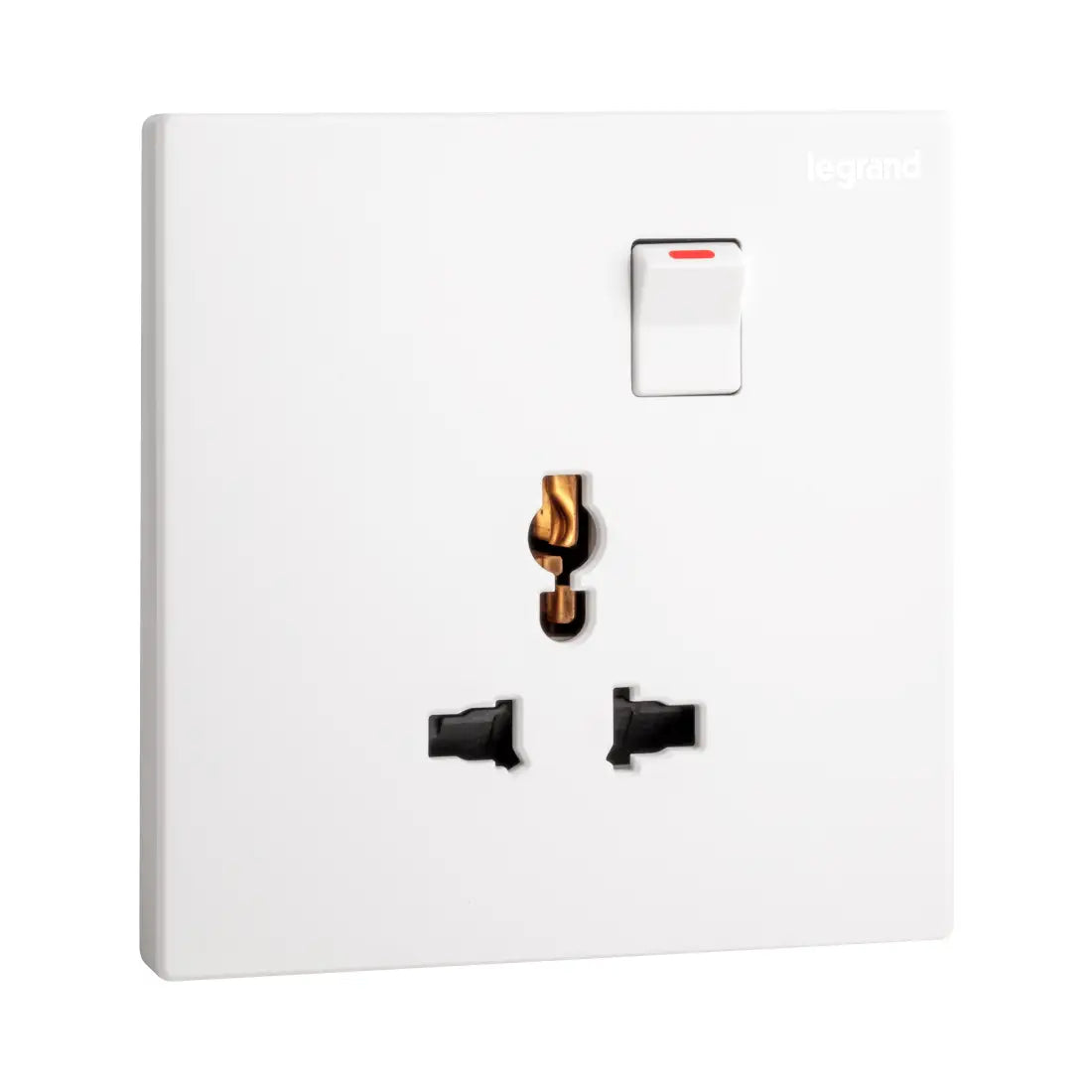

Legrand Galion 1 Gang Multistandard Switched Socket Outlet 282434
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switchsocket Outlet
Description
The 1 Gang Multistandard Switched Socket Outlet 2P+E is a versatile and reliable power solution designed to support multiple international plug types, rated at 15A, 127V~ and 16A, 250V~. Sold as a complete unit under one catalog number, it features screw-type terminals for secure and enhanced connections, marked terminals for easy identification, and a strip length indicator to reduce wire waste. Its honeycomb design supporting frame ensures structural stability during installation, while integrated safety shutters provide added child protection. The product is recommended for indoor use only and comes with paint and dust protection covers, along with screws suitable for flush or surface mounting on plastic or metal boxes.
( 282434, 282434-C, 282434-C1, 282434-C2, 282434-C3 )
| Brand | Legrand |
| Model | Galion |
| With complementary luminous signal | No |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| Number of socket outlets switchable | 1 |
| Number of phases | 2 |
| Imprint/indication | Scannable symbol/barrier-free |
| Connection type | Screwed terminal |
| With hinged lid | No |
| With enhanced contact protection | Yes |
| Colour | White(282434), Black(282434-C), Rose Gold(282434-C1), Champagne(282434-C2), Dark Silver(282434-C3) |
| Metallic colour | No |
| Transparent | No |
| Lockable | No |
| Eject mechanism | Yes |
| Insulated mounting | No |
| With function lighting | No |
| With orientation lighting | No |
| Overvoltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Antimicrobial treatment | No |
| With on/off switch | Yes |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Frequency | 50–60 Hz |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 41.2 mm |
| Minimum depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in Bluetooth speaker | No |
| Built-in depth | 29.3 mm |
| Operating/setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Power Delivery | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
| Assembly arrangement | Basic element with full cover plate |
| Connected object | No |
