Legrand Galion 1 Gang Intermediate Switch 16AX 282413
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Intermediate Switch
Description
The Galion 1 Gang Intermediate Switch (16AX, 250V~) is a reliable and elegant solution for complex lighting control configurations, allowing intermediate switching between two 2-way switches. Sold as a complete unit under a single catalog number, it is ready to install and designed for convenience and durability. Featuring screw-type terminals for enhanced contact, marked terminals for easy identification, and a strip length indicator to avoid wire wastage, this switch ensures a smooth installation process. Built with a honeycomb support frame for added stability and rigidity, it also includes a safety design with no accessible electrical contact under the rockers. Its modern full-plate rocker, paired with a sleek silver bar detail, complements the cover color for a refined look. Recommended for indoor use only, the product comes with paint and dust protection, along with screws suitable for flush-mounted or surface-mounted boxes, whether plastic or metal.
( 282413, 282413-C, 282413-C1, 282413-C2, 282413-C3 )
| Brand | Legrand |
| Model | Galion |
| Wiring system | Intermediate switch |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Lacquered |
| Surface finishing | Matt |

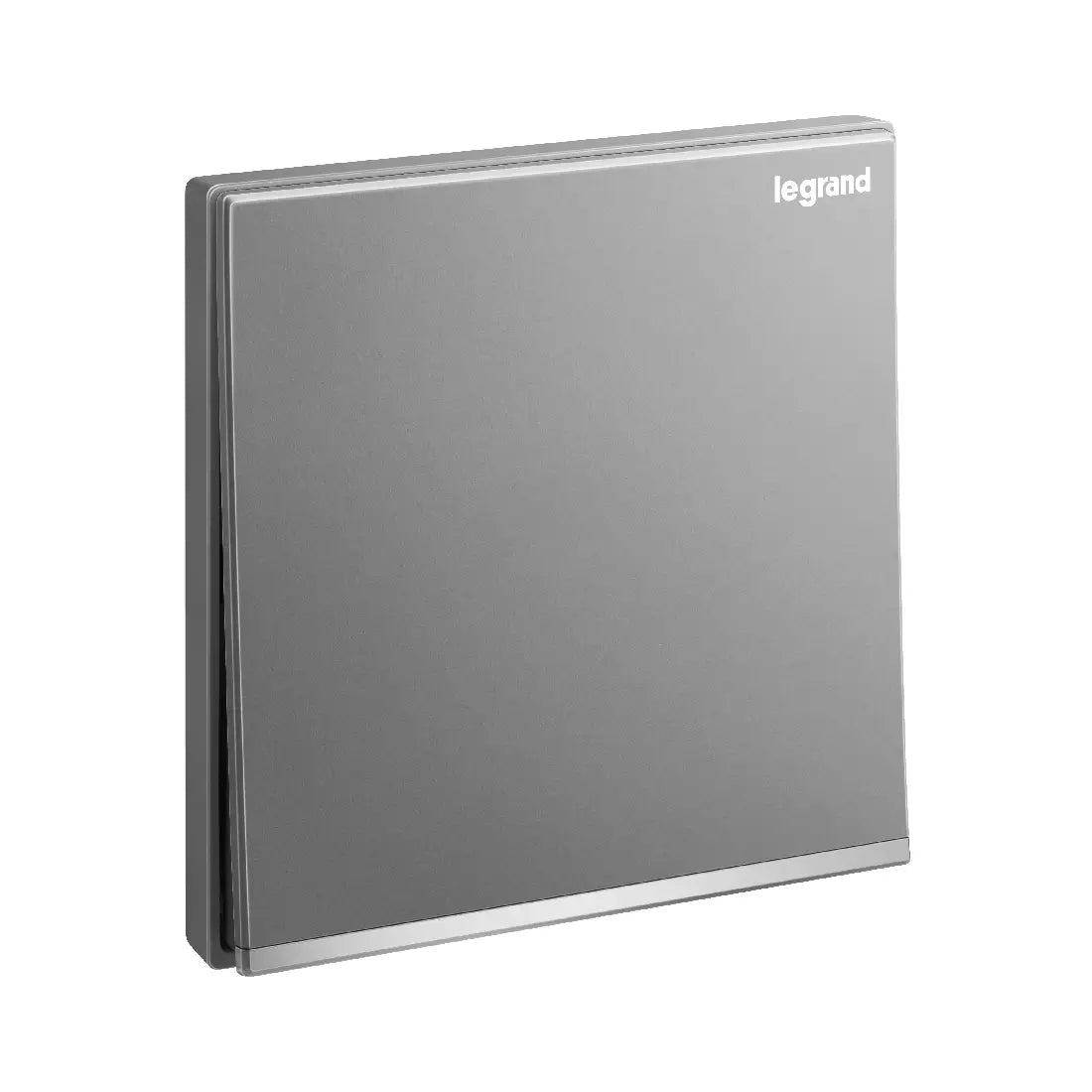

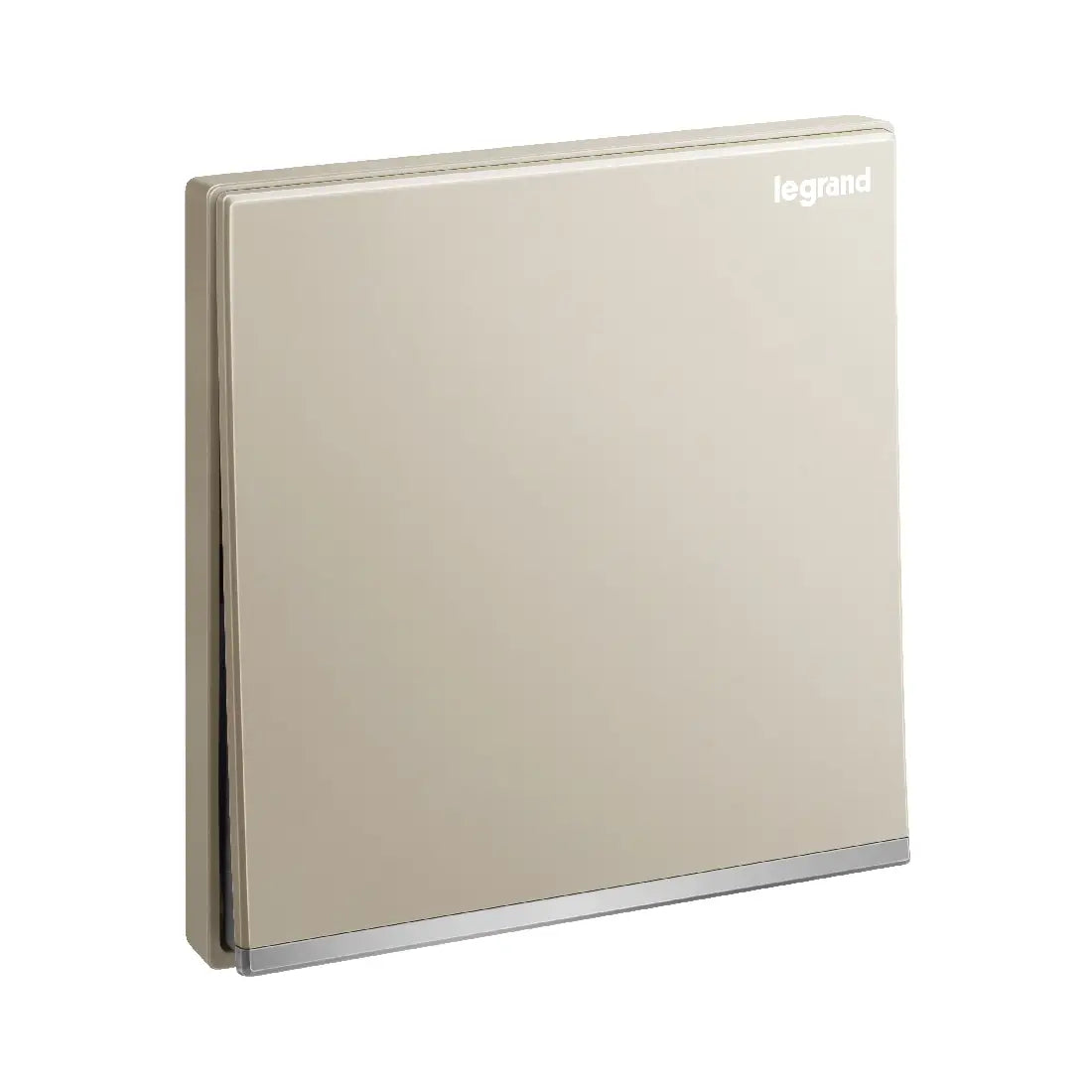

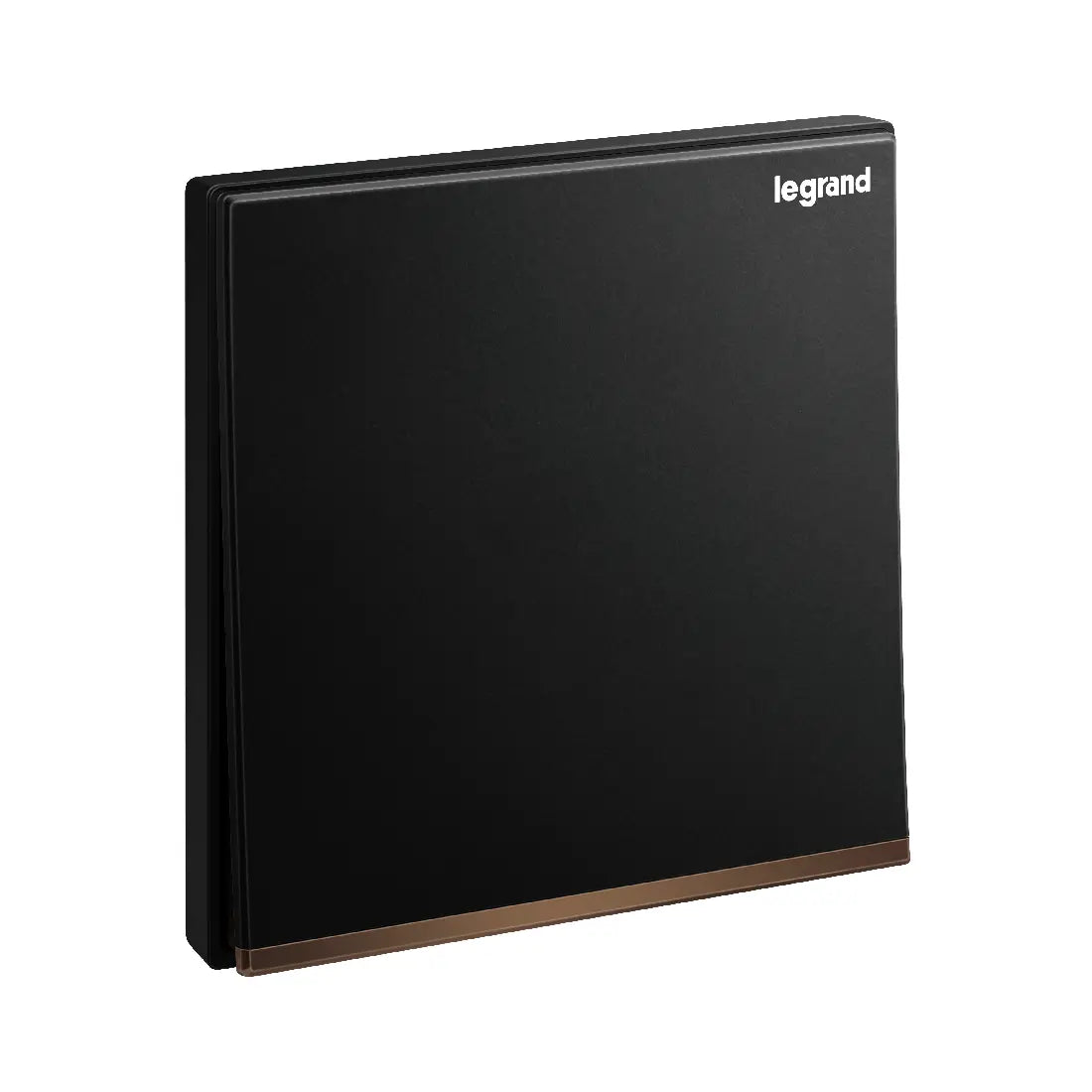

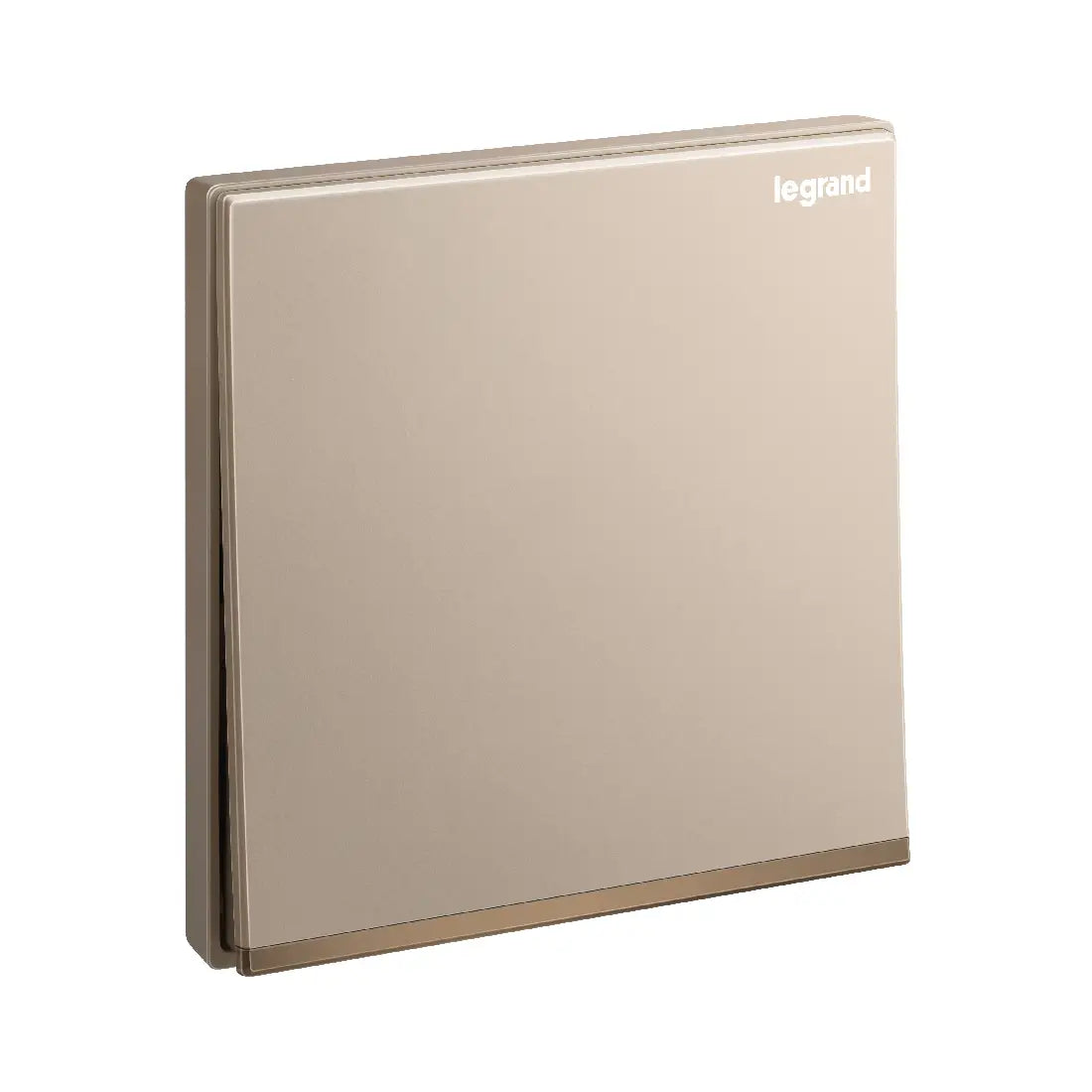

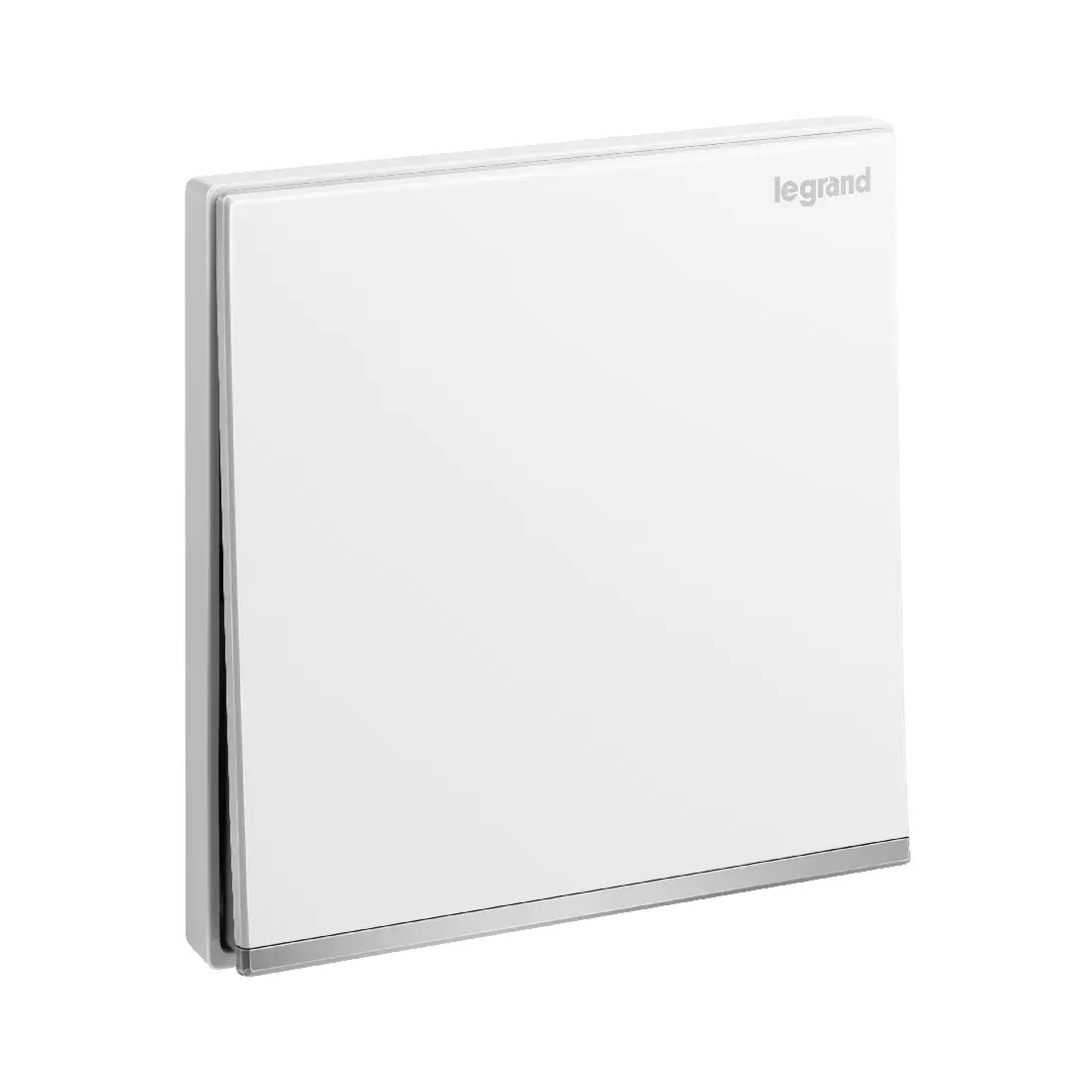

| Colour | White(282413), Black(282413-C), Rose Gold(282413-C1), Champagne(282413-C2), Dark Silver(282413-C3) |
| Lighting | No |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 37.3 mm |
| Built-in depth | 27.9 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
