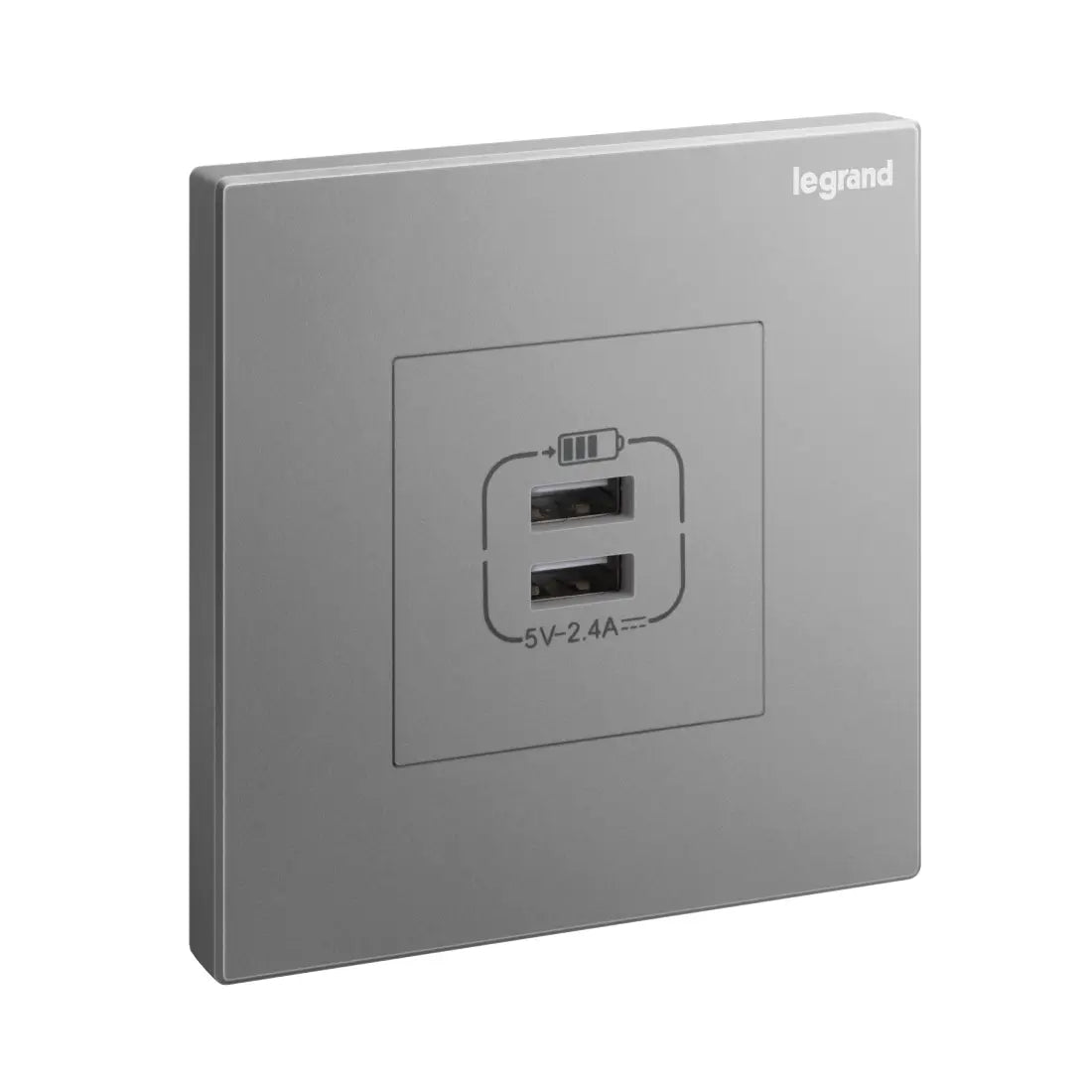

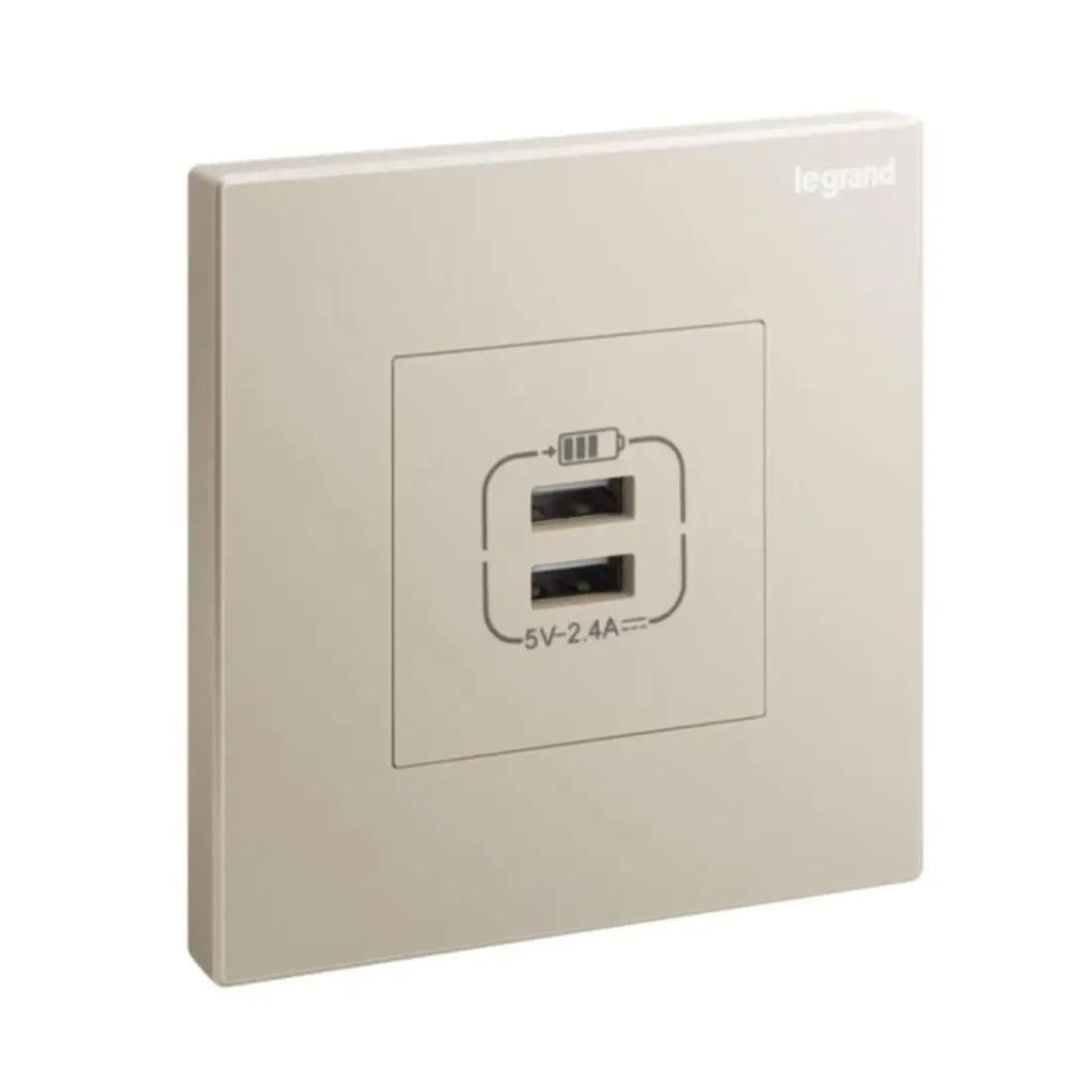

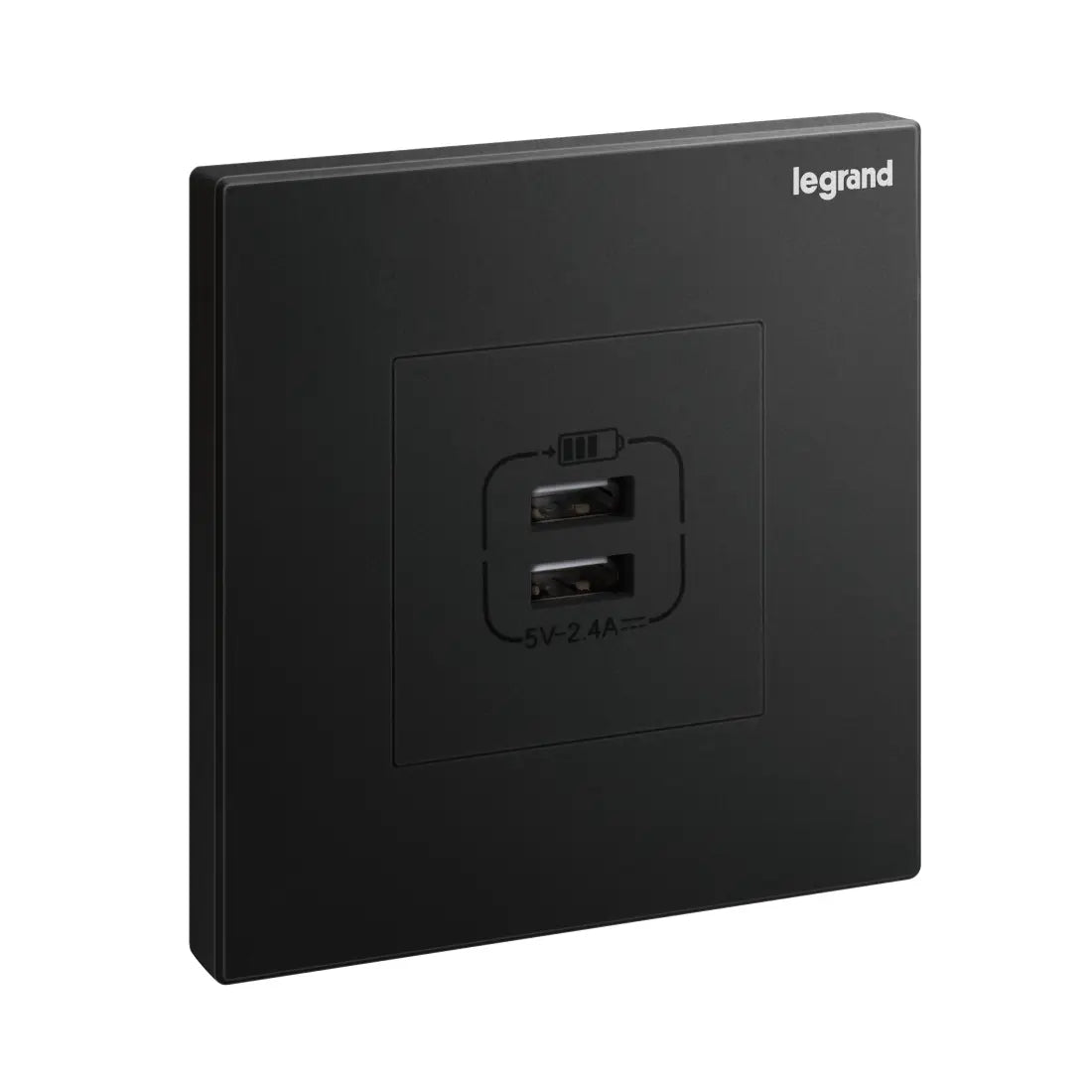

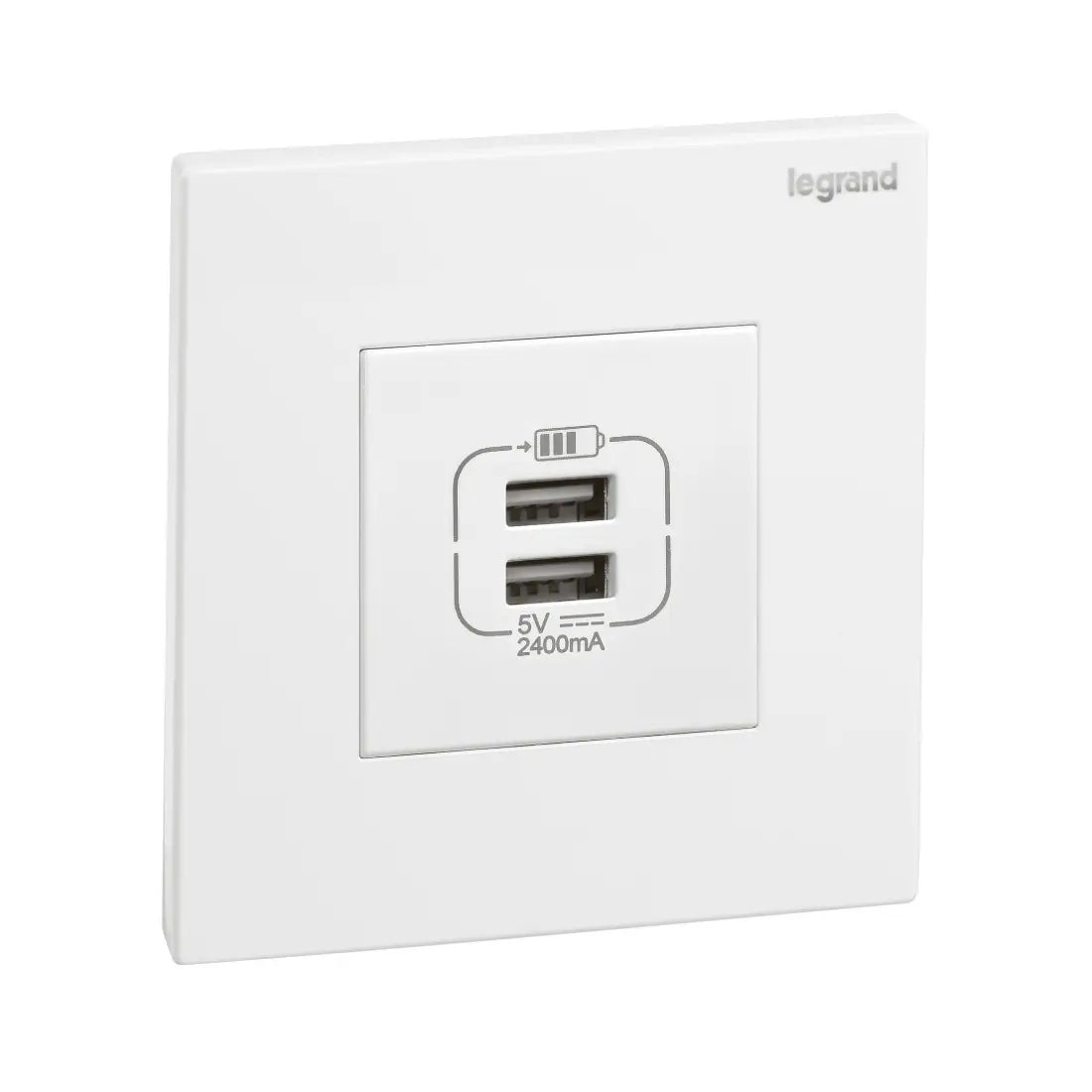

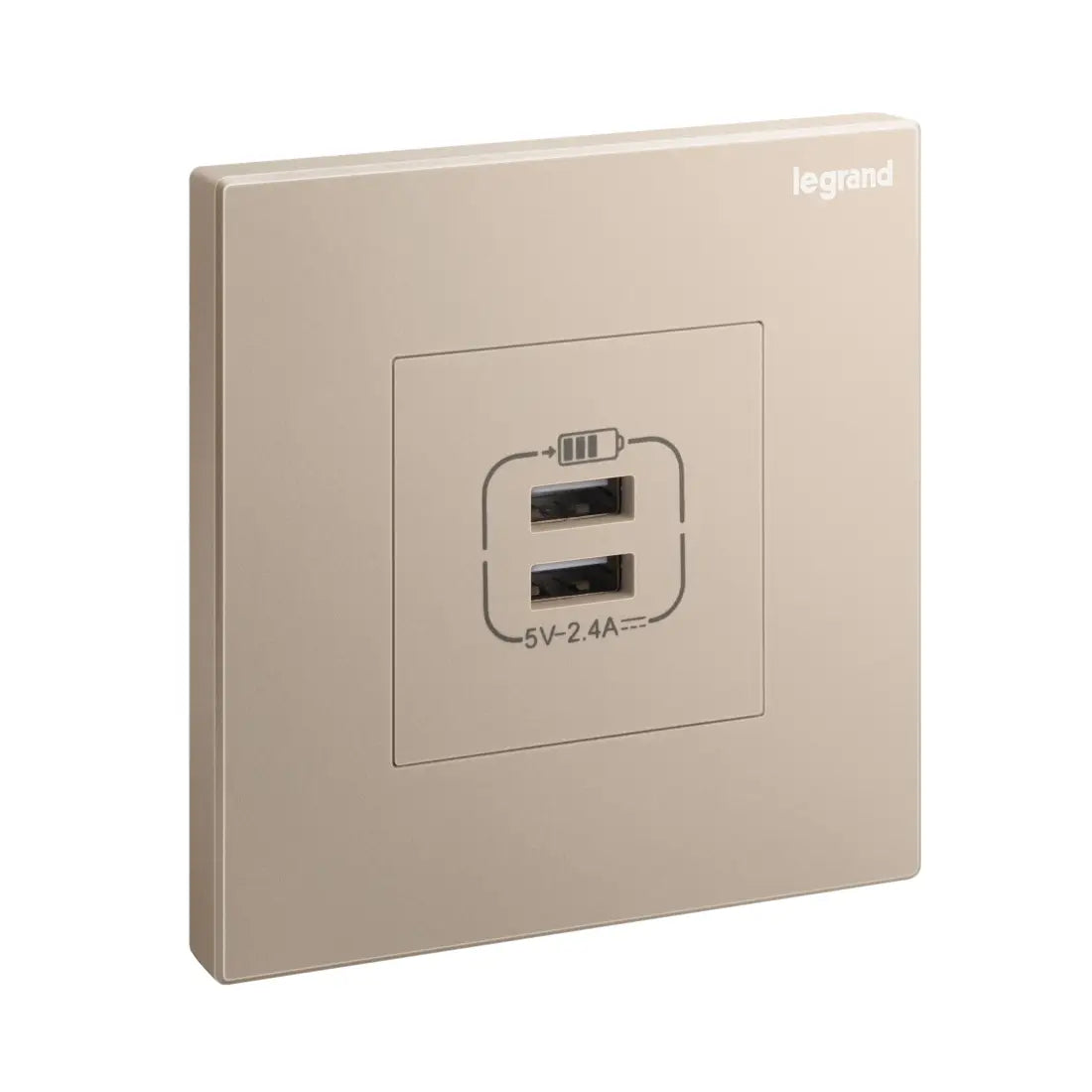

Legrand Galion 1 Gang Double USB 2.4A Type A USB Chargers 282447
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : USB Charger
Description
The Legrand Galion 2-gang shaver socket outlet is designed for safe and convenient grooming appliance use, offering dual output voltages of 110V and 230V (Input: 230V~, Output: 2x2P, 115V~ and 230V~, 20VA). Sold as a complete unit under one catalog number, it is ready for immediate installation. The socket features screw-type terminals for enhanced electrical contact, clearly marked terminals for quick identification, and a strip length indicator to prevent wire waste. Its honeycomb design supporting frame adds rigidity and stability during installation. Built-in safety shutters enhance child protection, while paint and dust protection ensure the product arrives clean and ready to use. Delivered with screws compatible with both flush- and surface-mounting boxes in plastic or metal. Recommended for indoor use only, this shaver socket outlet is ideal for modern bathrooms in residential and hospitality spaces.
( 282447, 282447-C, 282447-C1, 282447-C2, 282447-C3 )
| Brand | Legrand |
| Model | Galion |
| Number of ports USB-A | 2 |
| Number of ports USB-C | 0 |
| Operating voltage | 100–240 V |
| Frequency | 50–60 Hz |
| Max. output current | 3000 mA |
| Connection type | Screwed terminal |
| Mounting method | Flush-mounted |
| Colour | White(282447), Black(282447-C), Rose Gold(282447-C1), Champagne(282447-C2), Dark Silver(282447-C3) |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 40 mm |
| Min. depth of built-in installation box | 30 mm |
| Suitable for degree of protection (IP) | IP40 |
| Degree of impact strength (IK) | IK02 |
| Antimicrobial treatment | No |
| Built-in depth | 30.9 mm |
| Operating / setting temperature | -5 to 45 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Power Delivery | No |
| USB Output Power | 12 W |
| Standby consumption | 0.4 mA |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Stress test conformity (1000V) | Yes |
| Halogen free | Yes |
| Number of terminals | 2 |
| Terminals capacity | 1–4 mm² |
