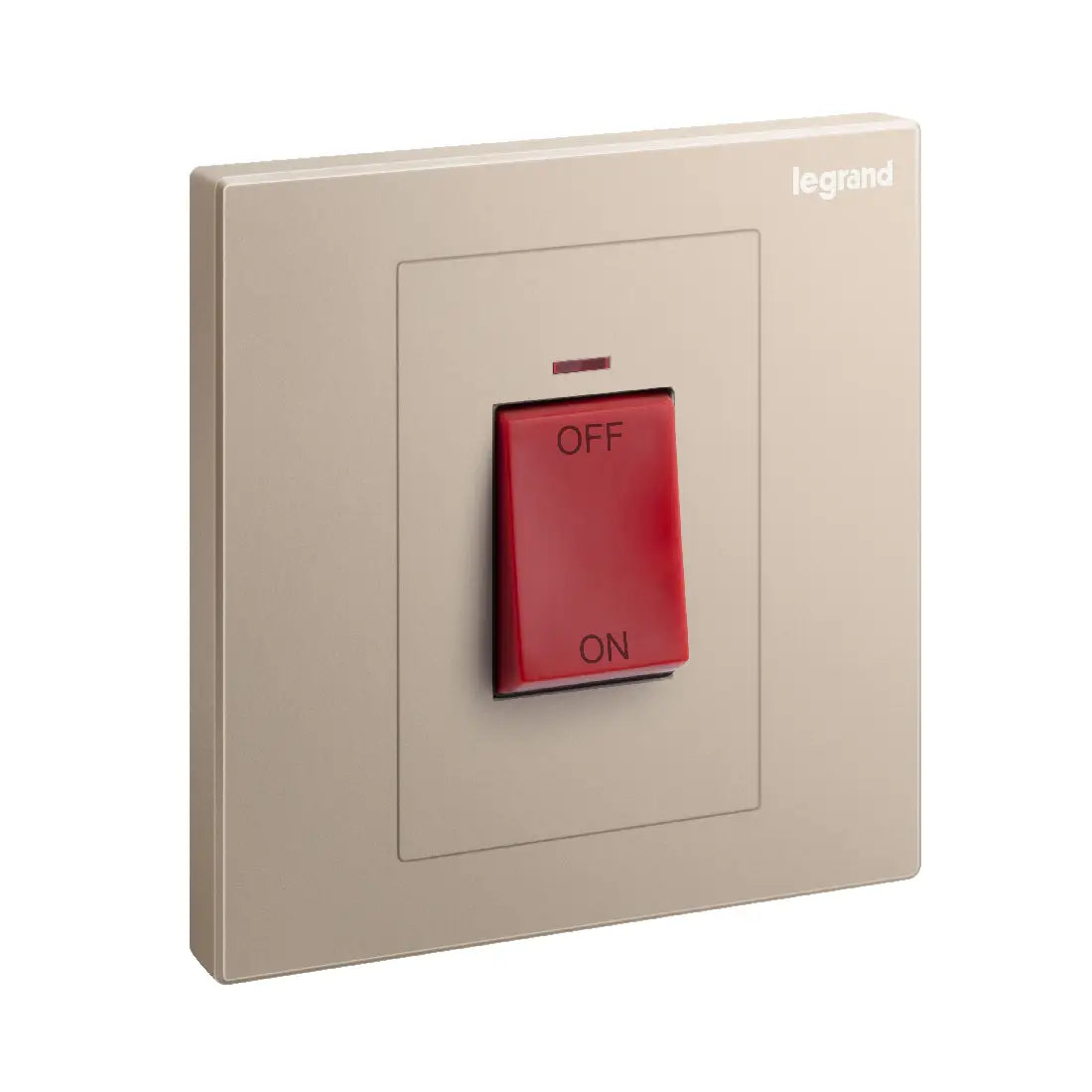

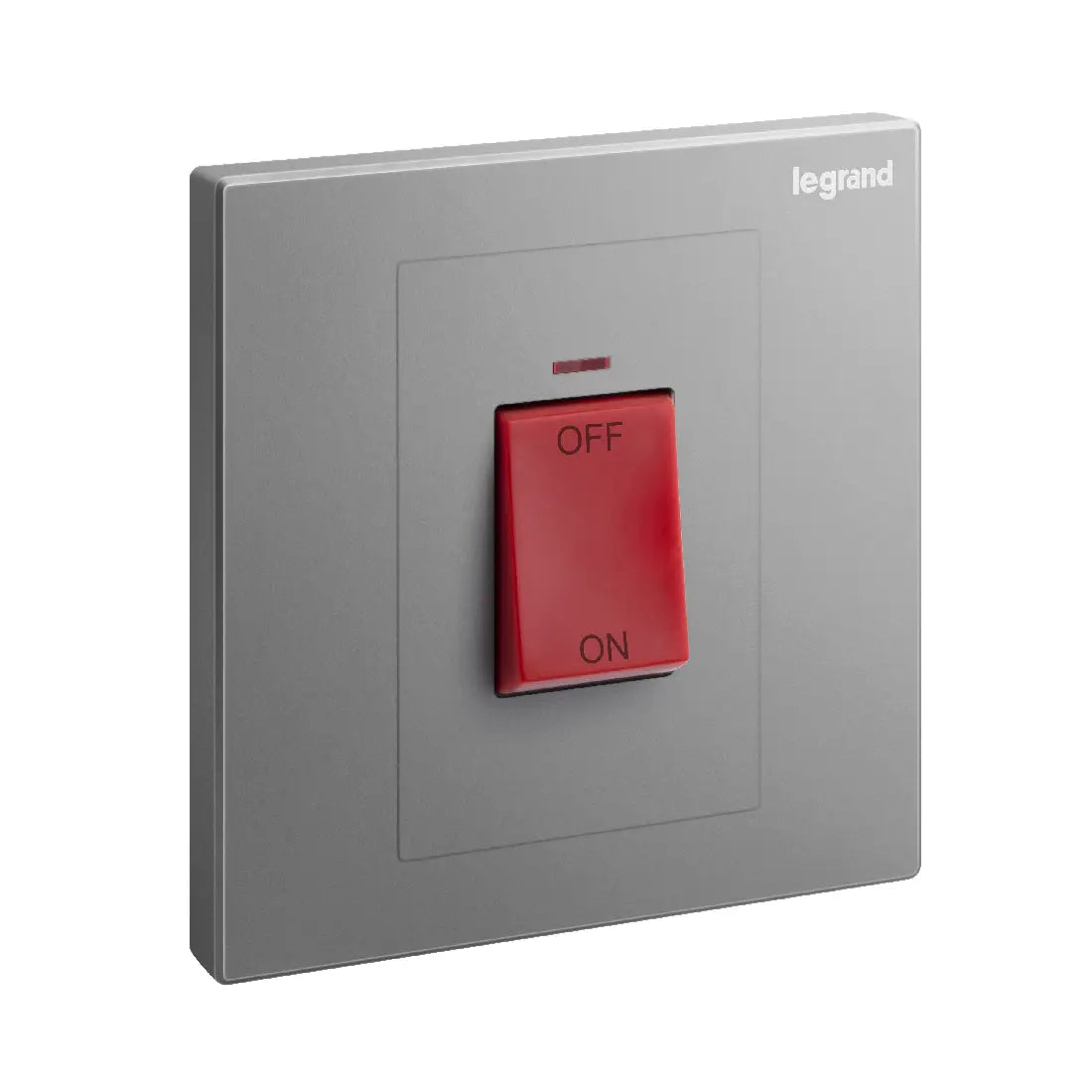

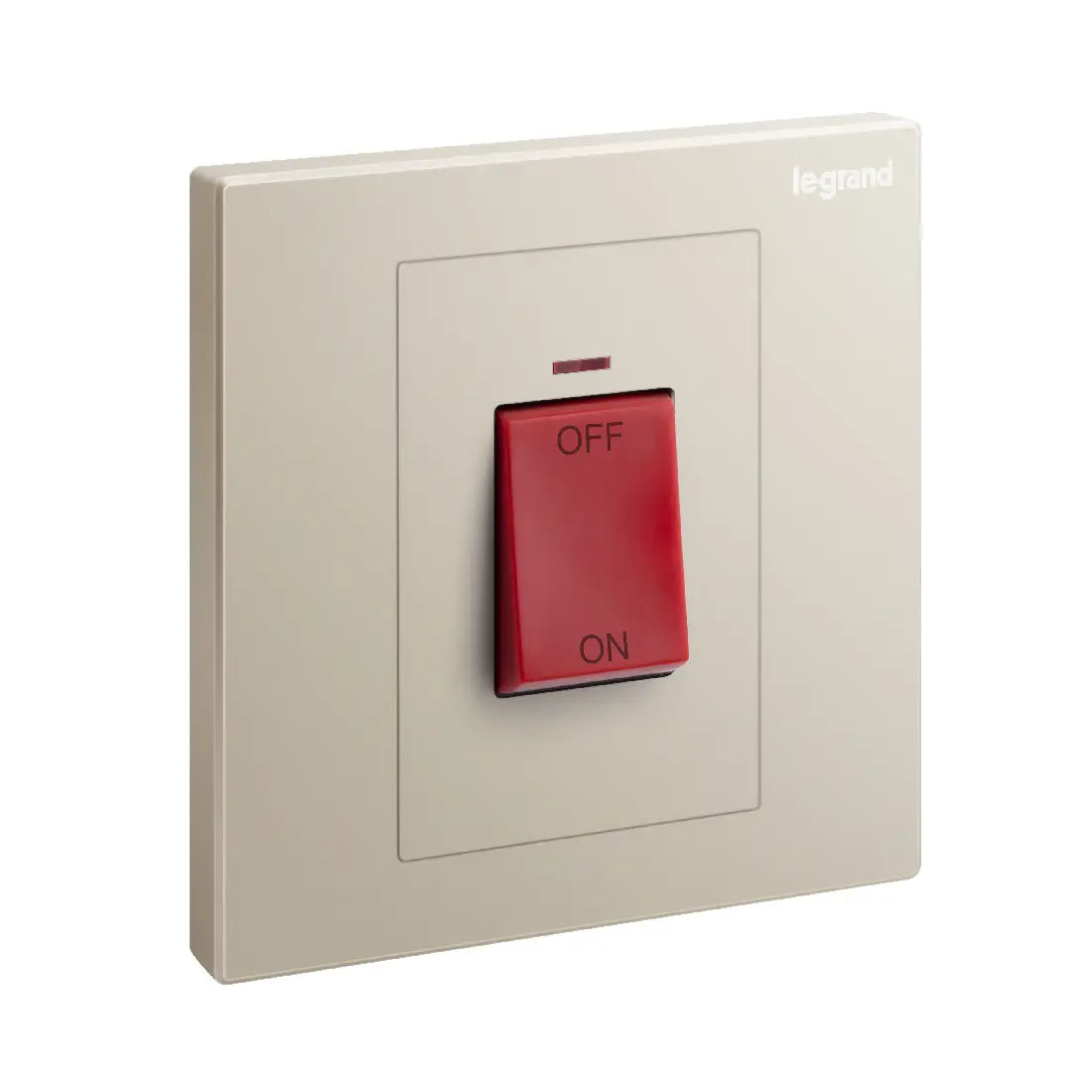

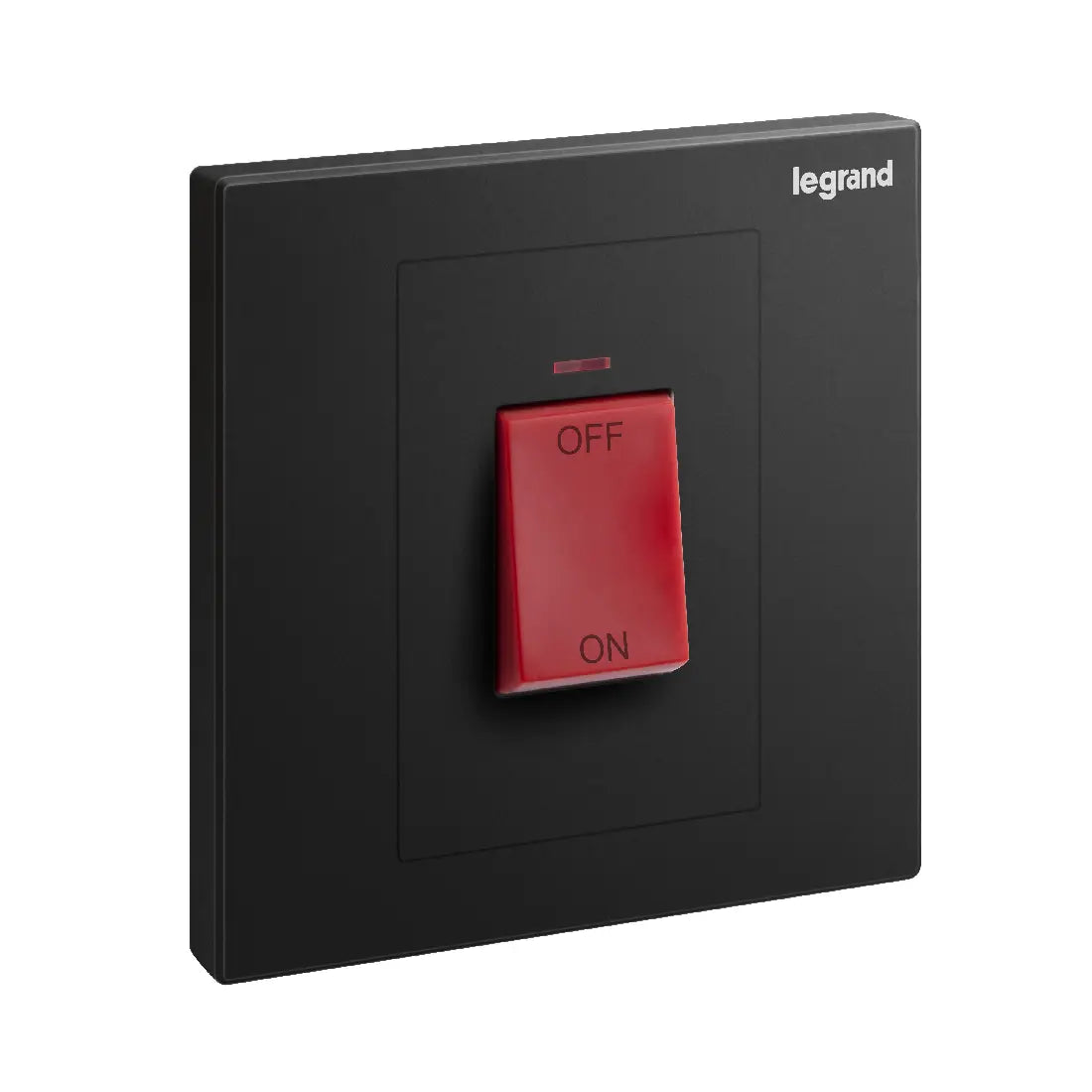

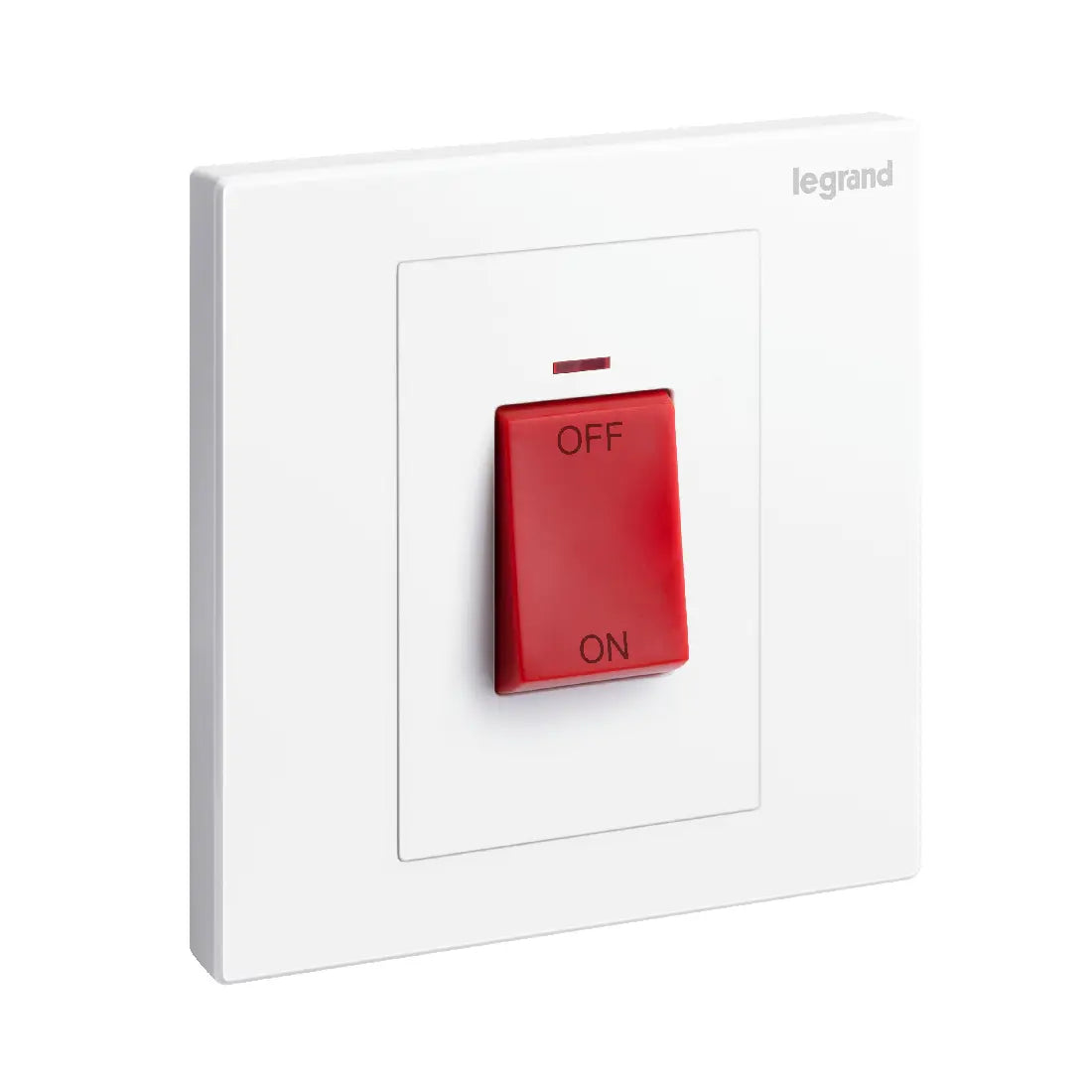

Legrand Galion 1 Gang Double Pole 45A Switch with Red Power Indicator and Red Rocker 282427
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Rocker Switch
Description
The Galion 1 Gang Double Pole 45A Switch (250V~) is a high-performance switching solution designed for controlling heavy electrical loads with safety and style. Sold complete under one catalog number and ready to install, this unit features two earth terminals and screw-type terminals that accept wires up to 10mm² for secure, enhanced connections. Clearly marked terminals and a strip length indicator ensure easy, error-free installation with minimal wire wastage. The honeycomb support frame provides added stability and rigidity, while the switch’s compliance with British Standards guarantees safety and reliability. Featuring a striking red rocker and red power indicator, it adds both visibility and a bold design touch. Recommended for indoor use only, the switch is delivered with paint and dust protection and includes screws suitable for flush-mounted or surface-mounted boxes, whether plastic or metal.
( 282427, 282427-C, 282427-C1, 282427-C2, 282427-C3 )
| Brand | Legrand |
| Model | Galion |
| Wiring system | Switch 2x1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Colour | White(282427), Black(282427-C), Rose Gold(282427-C1), Champagne(282427-C2), Dark Silver(282427-C3) |
| Colour of switch operator | Red |
| Lighting | Yes |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 45 A |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | Yes |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 34 mm |
| Built-in depth | 20.2 mm |
| Min. depth of built-in installation box | 30 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
