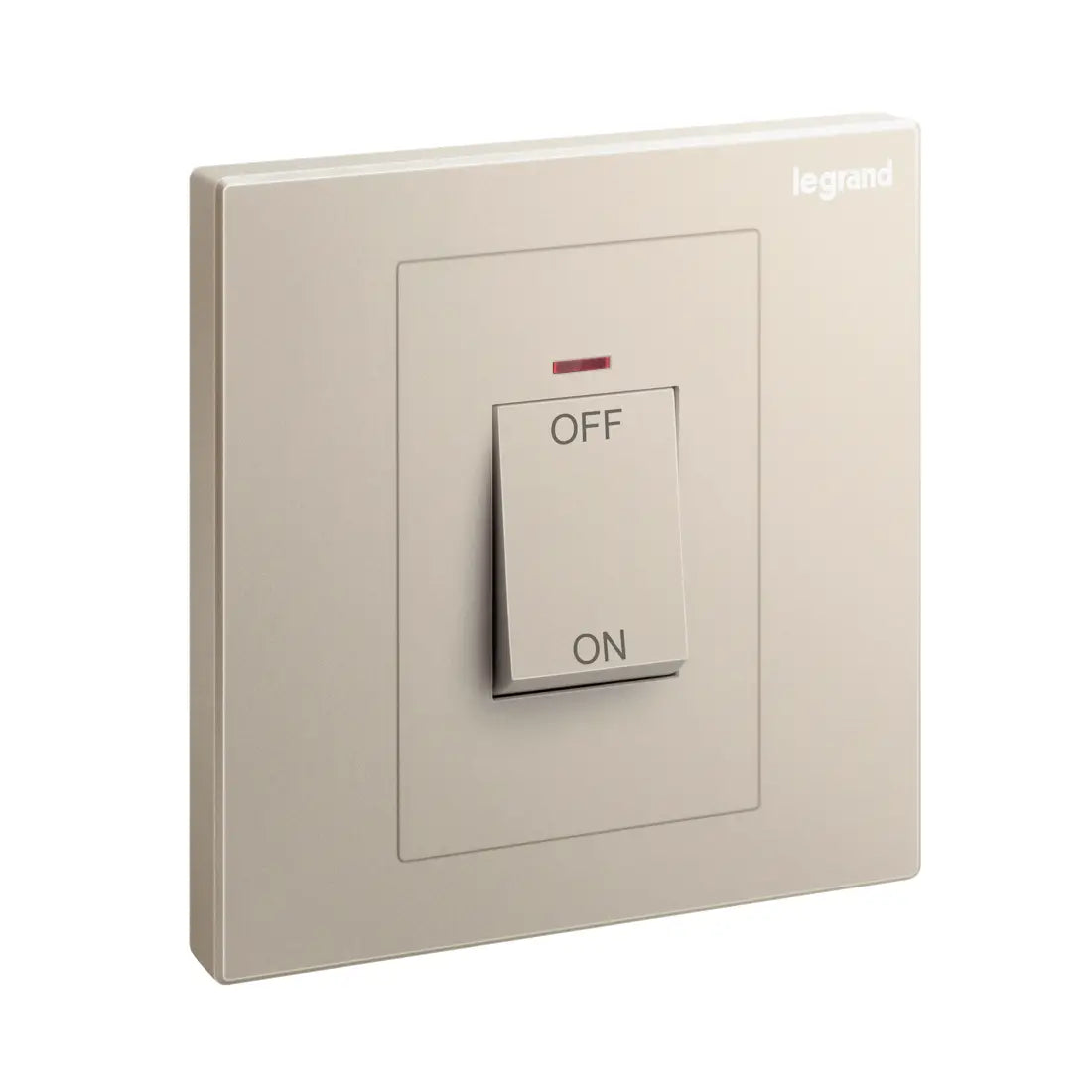

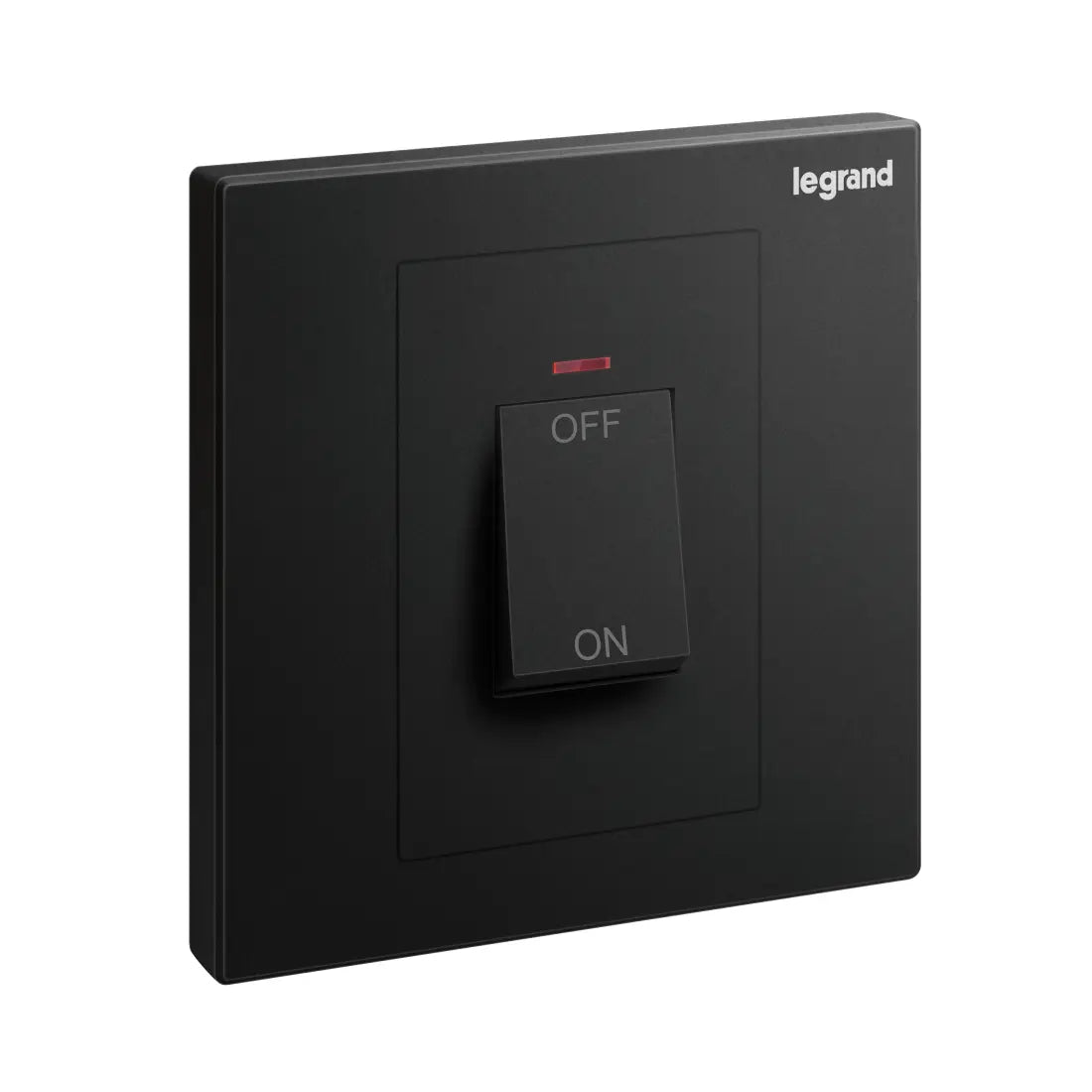

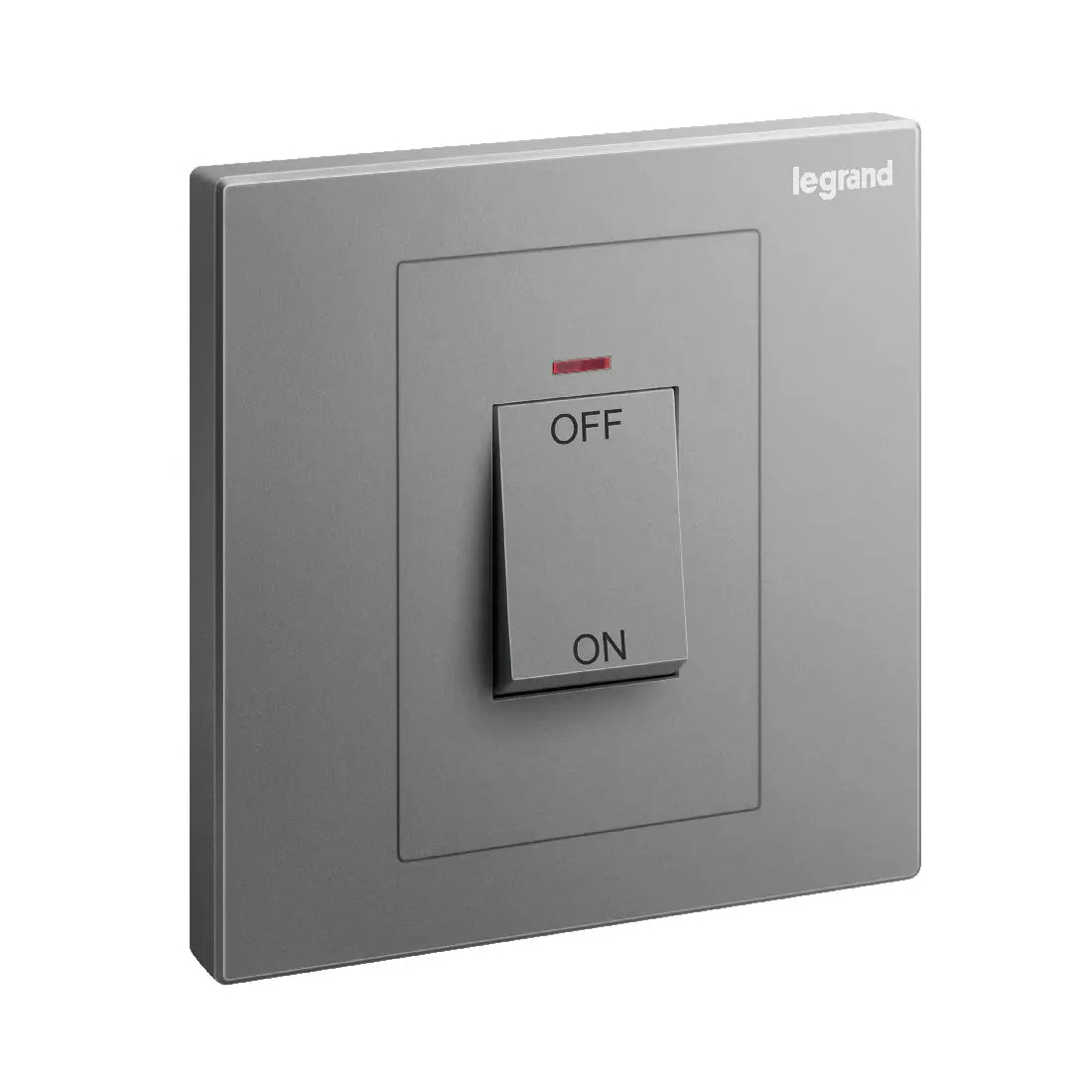

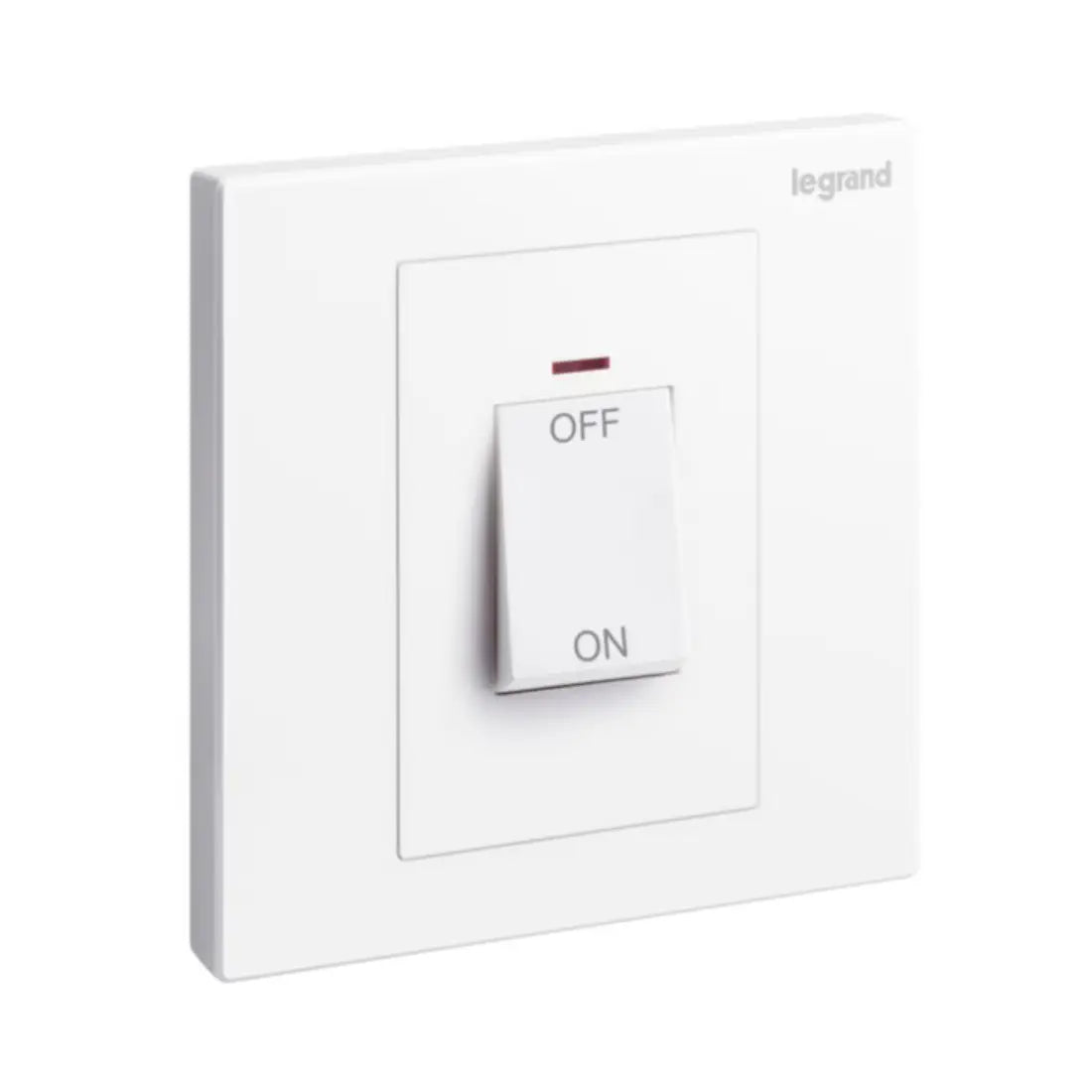

Legrand Galion 1 Gang Double Pole 45A Switch with Red Power Indicator 282426
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Double Pole Switch
Description
The 1 Gang Double Pole 45A Switch with Red Power Indicator is a high-capacity switching solution rated at 45A, 250V~, designed for safe and efficient control of heavy electrical loads. It is sold complete under one catalog number and ready to install, featuring two earth terminals and screw-type terminals that accept wires up to 10mm² for enhanced contact security. Clearly marked terminals and a strip length indicator ensure quick and accurate installation without wire waste. Built on a honeycomb design supporting frame for added stability and rigidity, this switch complies with British Standards for heavy-load applications. Recommended for indoor use only, it is delivered with paint and dust protection, along with screws suitable for flush or surface mounting on plastic or metal boxes—offering durability, safety, and professional-grade performance.
( 282426, 282426-C, 282426-C1, 282426-C2, 282426-C3 )
| Brand | Legrand |
| Model | Galion |
| Wiring system | Switch 2x1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Colour | White(282426), Black(282426-C), Rose Gold(282426-C1), Champagne(282426-C2), Dark Silver(282426-C3) |
| Lighting | Yes |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 45 A |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | Yes |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 34 mm |
| Built-in depth | 20.2 mm |
| Min. depth of built-in installation box | 30 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50–60 Hz |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
