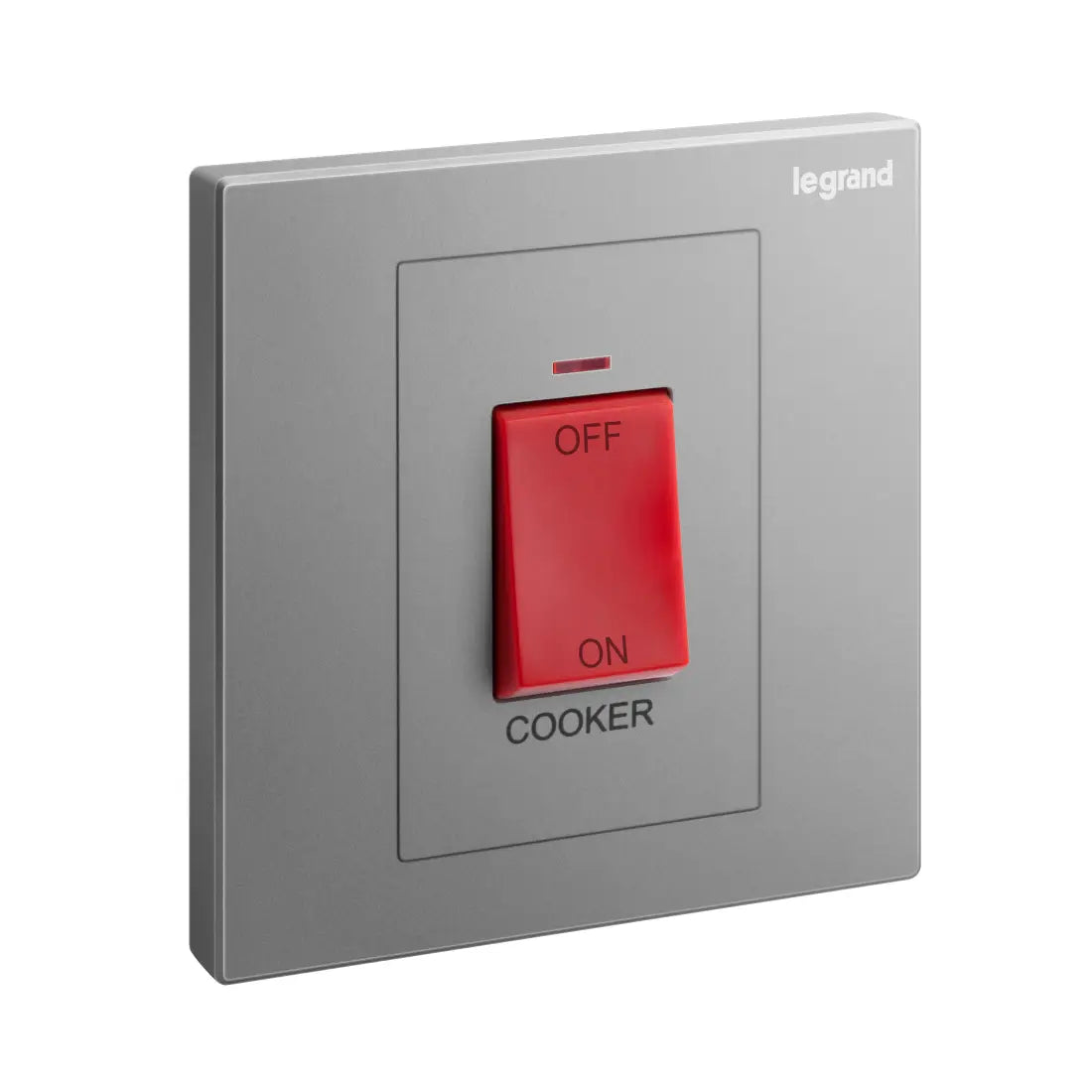

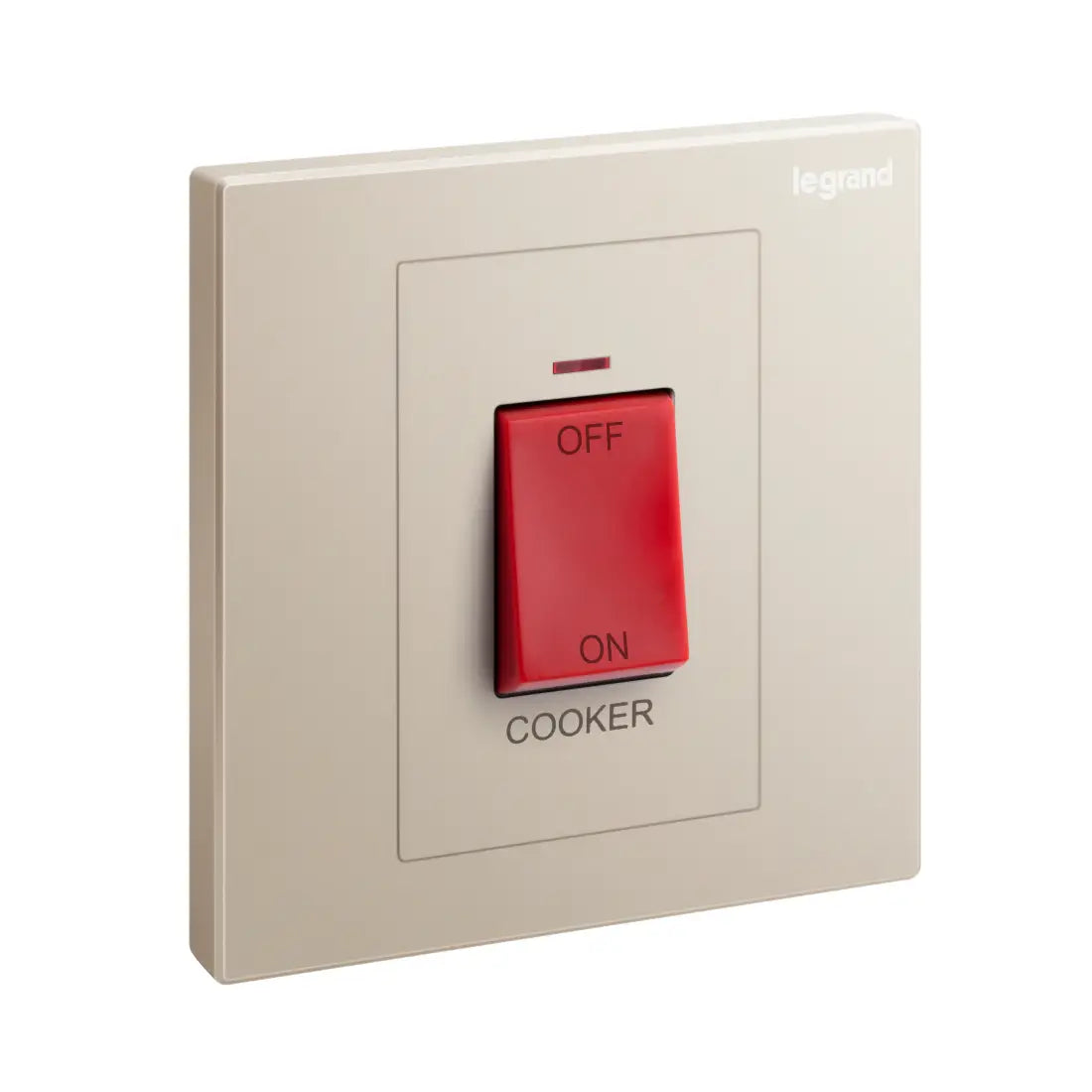

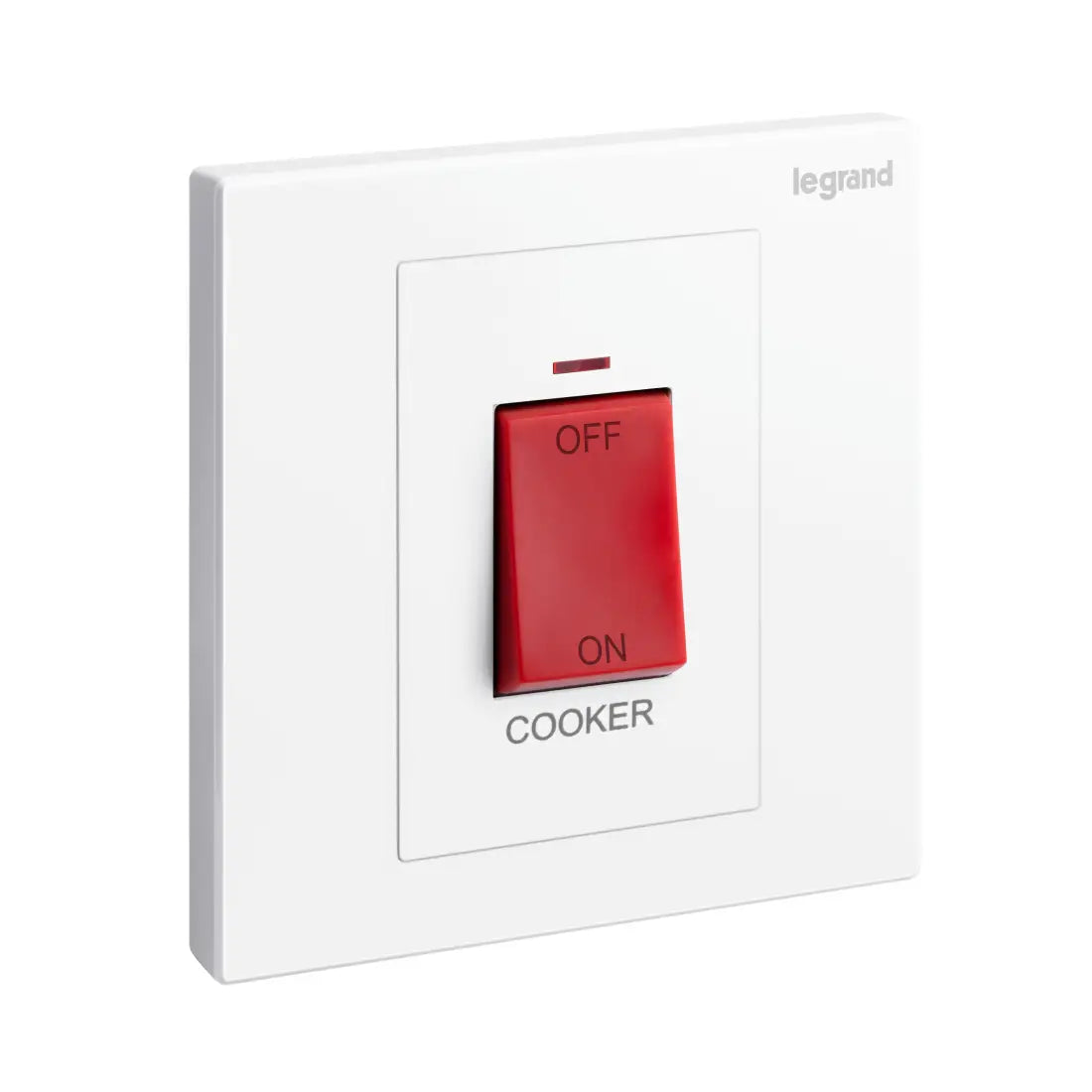

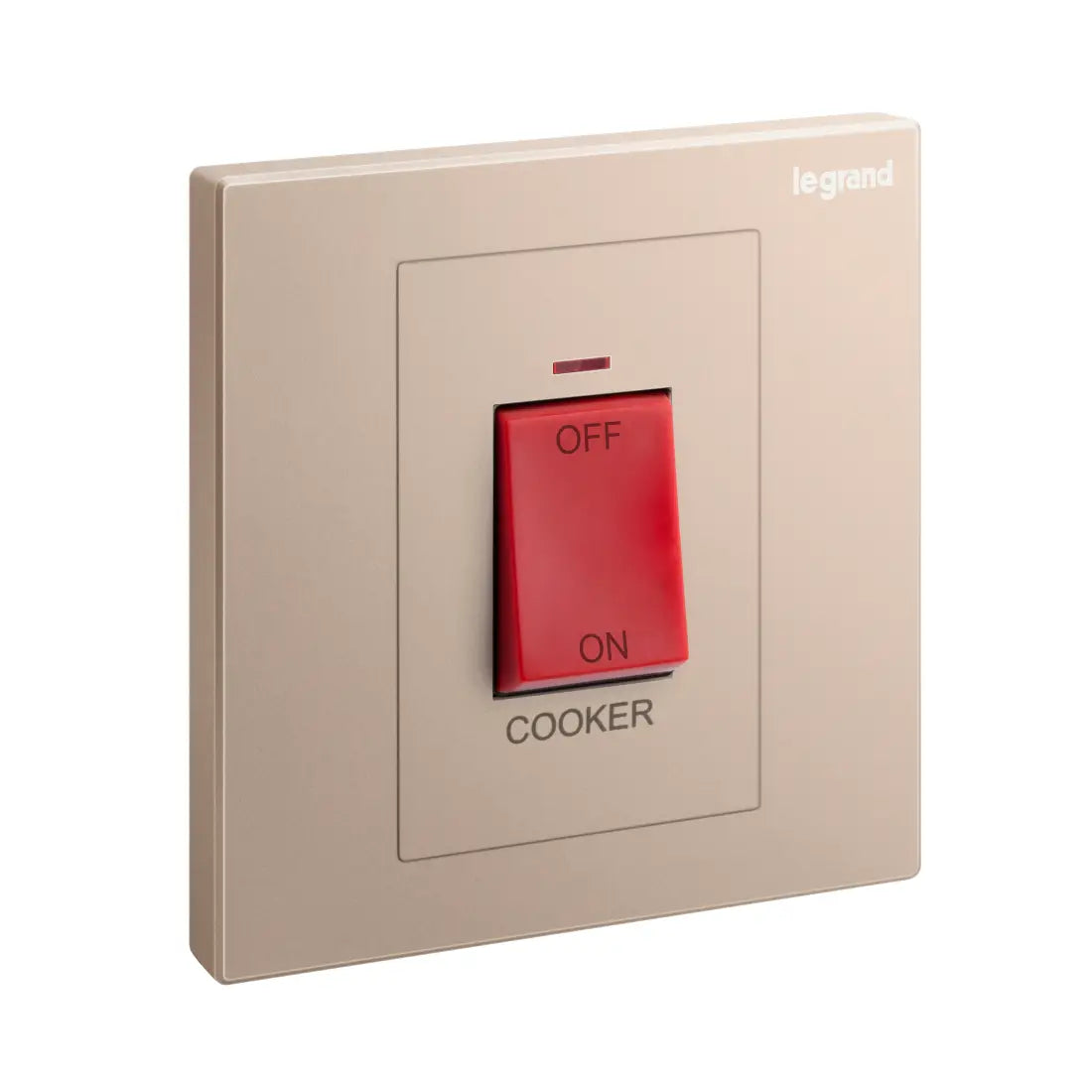

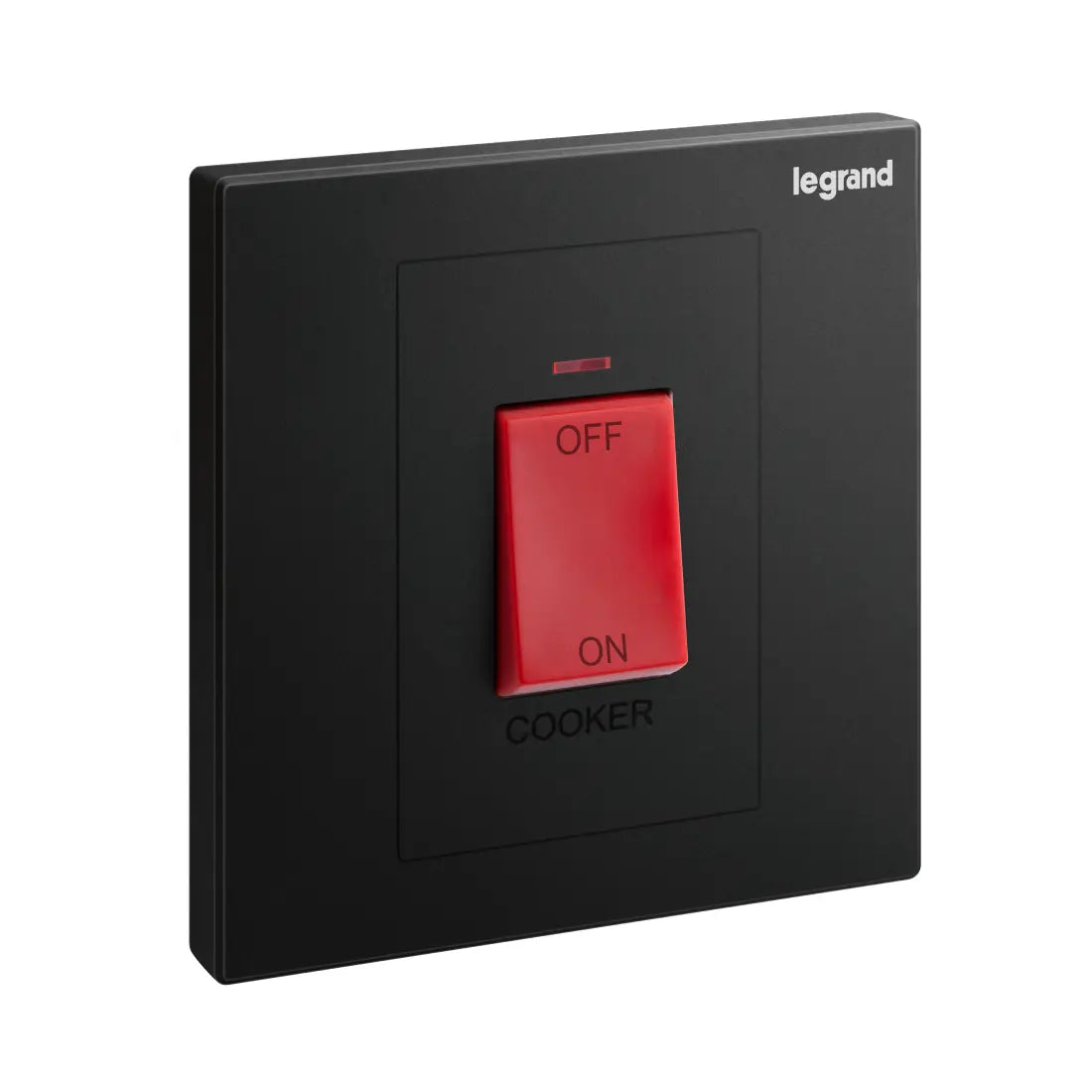

Legrand Galion 1 Gang Double Pole 45A Switch with Cooker Marking, Red Indicator and Red Rocker 282428
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Cooker Marking Switch
Description
The Galion 1 Gang Double Pole 45A Switch with Cooker Marking, featuring a red rocker and red indicator, is designed for safe and efficient control of heavy-load appliances such as cookers. Rated at 45A, 250V~, this switch includes two earth terminals and screw terminals that support wires up to 10mm², ensuring secure and reliable connections. It comes with clearly marked terminals and a strip length indicator to reduce wiring errors and waste. Built on a robust honeycomb design supporting frame for enhanced stability, the unit complies with British Standards for high-load switching. Sold complete under one catalog number and ready to install, it is recommended for indoor use only and includes paint and dust protection, along with screws suitable for flush or surface mounting on plastic or metal boxes.
(282428, 282428-C, 282428-C1, 282428-C2, 282428-C3)
| Brand | Legrand |
| Model | Galion |
| Wiring system | Switch 2x1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | White, Black, Rose Gold, Champagne, Dark Silver |
| Colour of switch operator | Red |
| Lighting | Yes |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 45 A |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | Yes |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 34 mm |
| Built-in depth | 20.2 mm |
| Min. depth of built-in installation box | 30 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50–60 Hz |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
