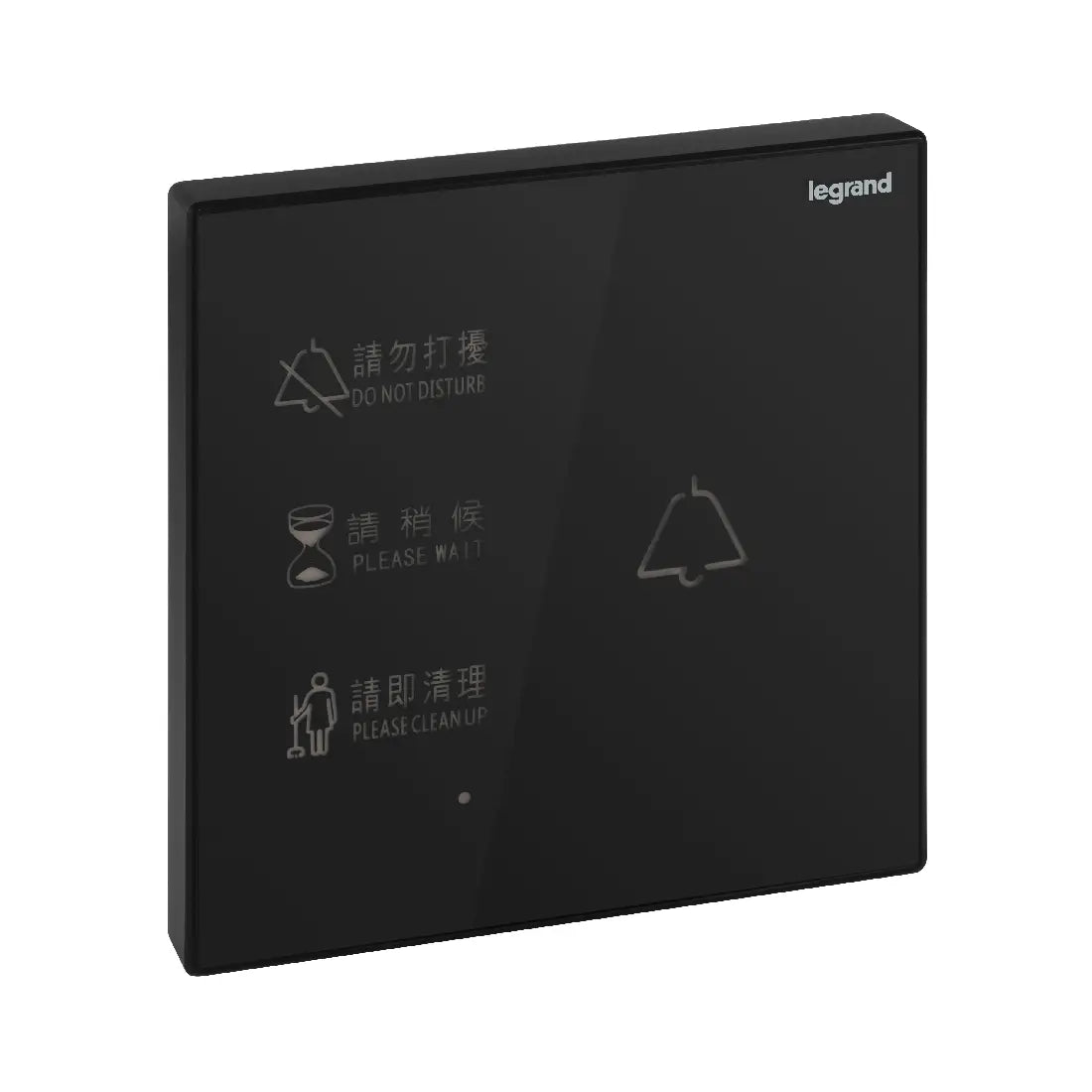

Legrand Galion 1 Gang Do Not Disturb and Make Up My Room Indicator and Bell Push Button 282417
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Bell Switches
Description
The 1 Gang "Do Not Disturb" & "Make Up My Room" Indicator with Bell Push-Button is a practical and elegant solution for hospitality and residential applications, rated at 3A, 250V~. It is sold complete under one catalog number and ready to install, featuring screw-type terminals for secure connections and clearly marked terminals for easy identification. Designed for indoor use, it includes a robust honeycomb supporting frame for enhanced stability during installation. The product also features paint and dust protection and is delivered with screws suitable for both flush or surface-mounting on plastic or metal boxes. A reliable and user-friendly interface that enhances guest communication with style and clarity.
| Brand | Legrand |
| Model | Galion |
| Assembly arrangement | Basic element with complete housing |
| Method of operation | Rocker |
| Contactless type | No |
| Number of rockers | 2 |
| Number of poles | 1 |
| Nominal voltage | 230 V |
| Rated current | 3 A |
| With lighting | No |
| With light source | No |
| With complementary luminous signal | No |
| Connection type | Screwed terminal |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | Black |
| Transparent | No |
| Label space/information surface | Yes |
| Imprint | Other |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 37.6 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 28.5 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50–60 Hz |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
