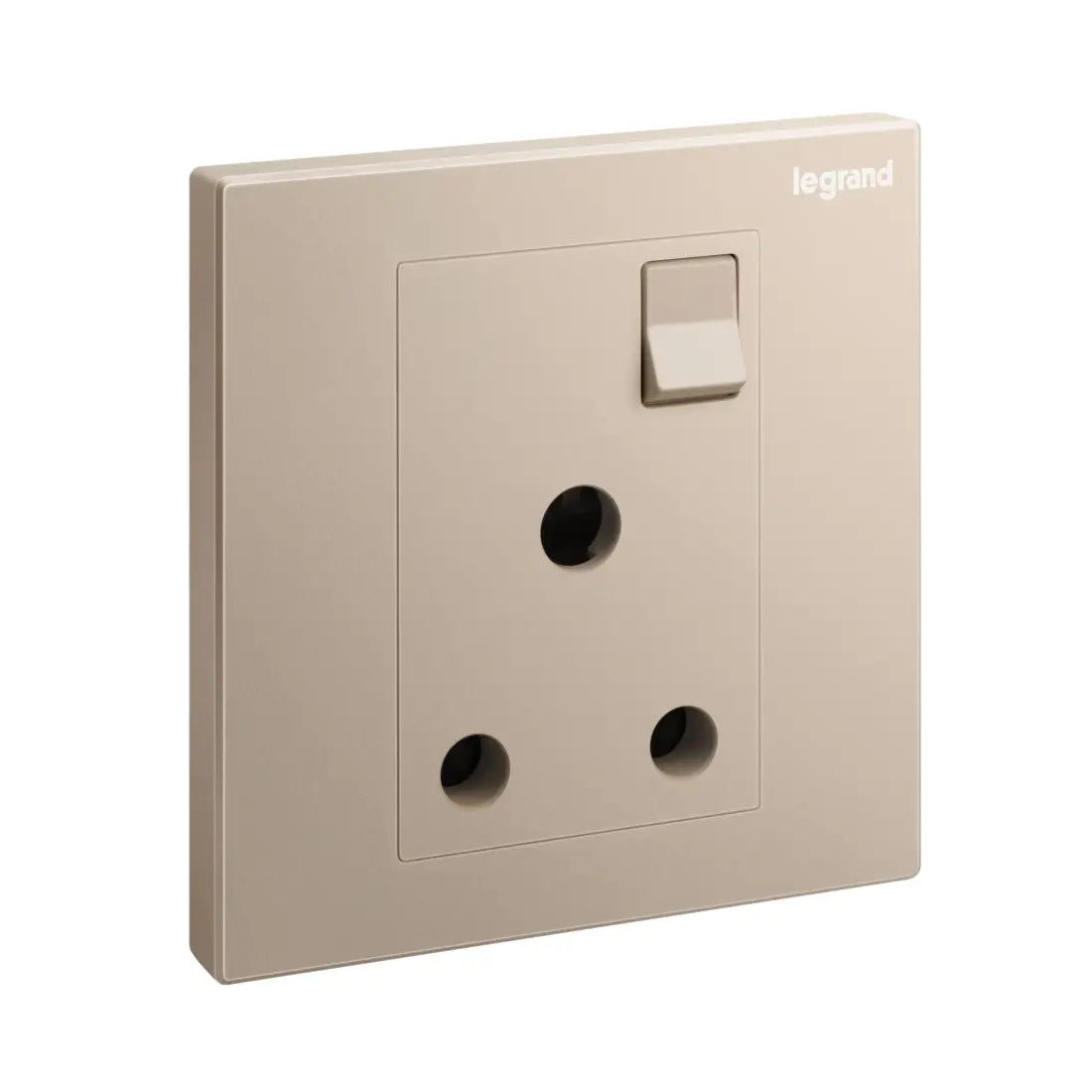

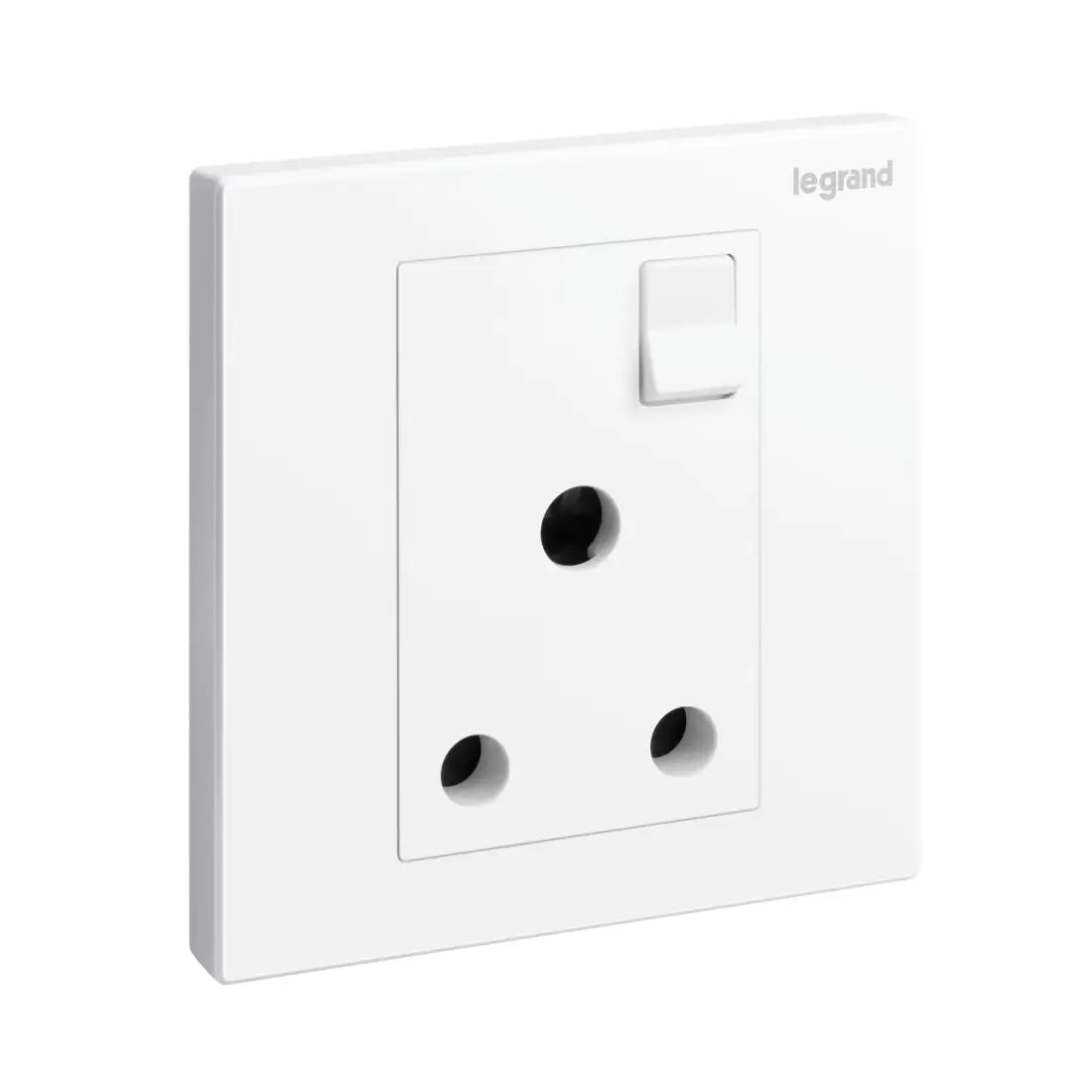

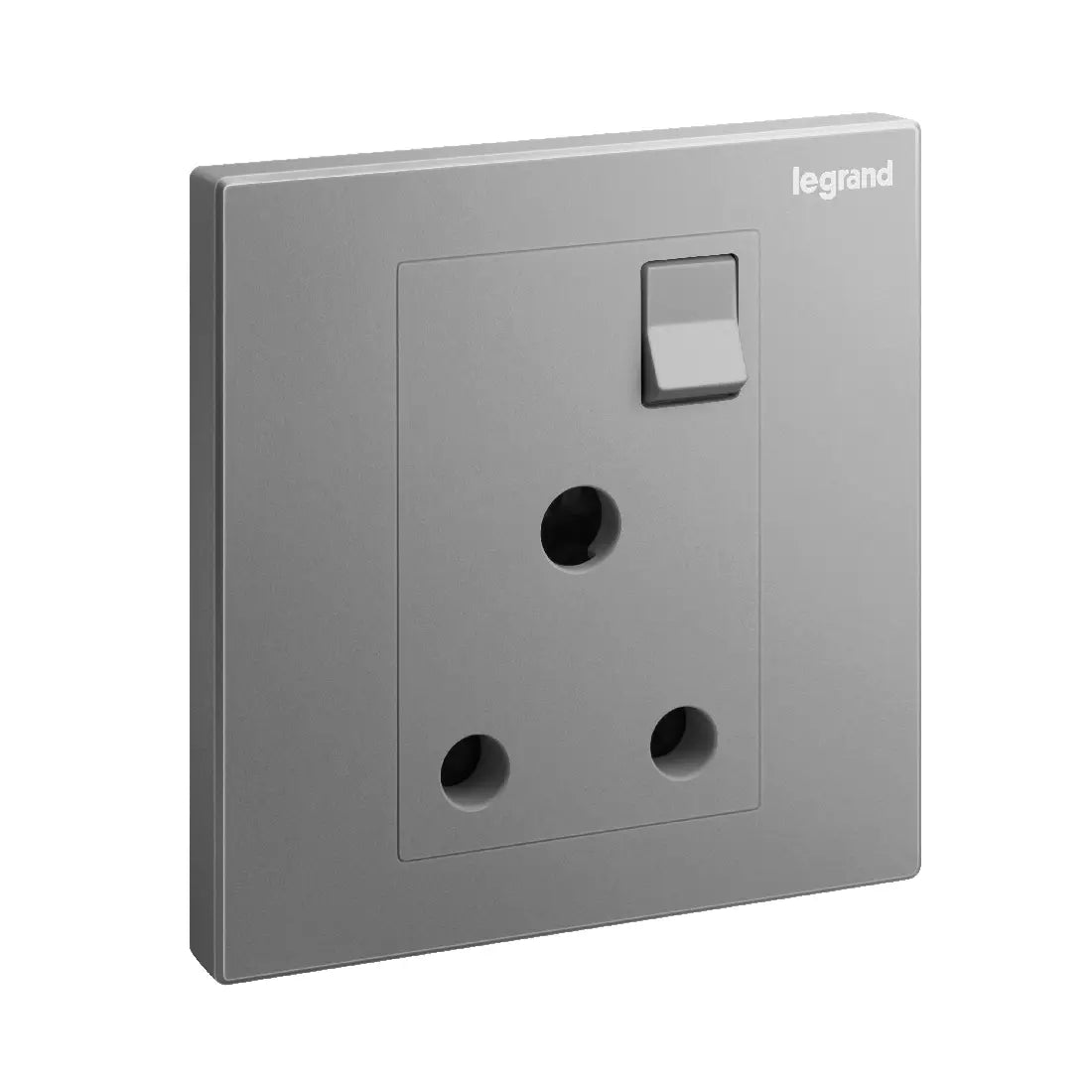

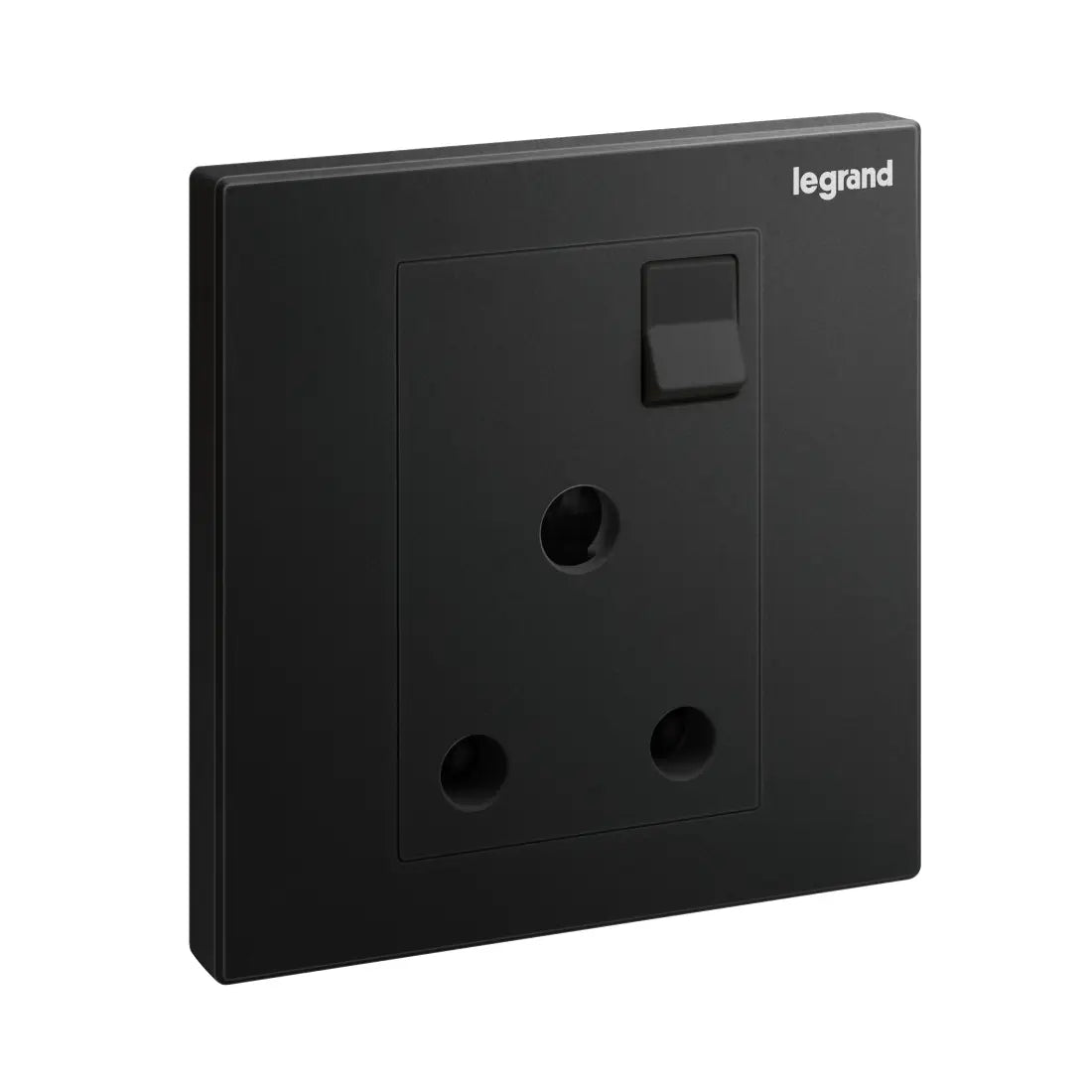

Legrand Galion 1 Gang 5A BS Switched Single Pole Socket Outlet 282438
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Legrand
Type : Switchsocket Outlet
Description
This 1 Gang BS Switched Single Pole Socket Outlet (2P+E, 5A, 250V~) is a complete unit sold under one catalog number and ready for installation. Designed for safe and reliable use, it features screw-type terminals for secure connections, clearly marked terminals for easy identification, and a strip length indicator to minimize wire waste. The honeycomb design supporting frame ensures stability and rigidity during installation, while built-in safety shutters enhance child protection. It is delivered with paint and dust protection, along with screws suitable for flush or surface mounting in both plastic and metal boxes. Recommended for indoor use only, this socket outlet offers a practical and safe solution for residential and commercial environments.
( 282438, 282438-C, 282438-C1, 282438-C2, 282438-C3 )
| Brand | Legrand |
| Model | Galion |
| Protective contact | Round |
| Number of active contacts (round) | 2 |
| With complementary luminous signal | No |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| Number of socket outlets switchable | 1 |
| Number of phases | 2 |
| Imprint/indication | Scannable symbol/barrier free |
| Connection type | Screwed terminal |
| With hinged lid | No |
| With enhanced contact protection | Yes |
| Colour | White(282438), Black(282438-C), Rose Gold(282438-C1), Champagne(282438-C2), Dark Silver(282438-C3) |
| Metallic colour | No |
| Transparent | No |
| Lockable | No |
| Eject-mechanism | Yes |
| Insulated mounting | No |
| With function lighting | No |
| With orientation lighting | No |
| Over voltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | No special power supply |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Antimicrobial treatment | No |
| With on/off switch | Yes |
| Colour of switch operator | Other |
| Nominal current | 5 A |
| Nominal voltage | 250 V |
| Frequency | 50–60 Hz |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 29.9 mm |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in Bluetooth speaker | No |
| Built-in depth | 18.2 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Power Delivery | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
| Cover | Central cover plate |
| Connected object | No |
