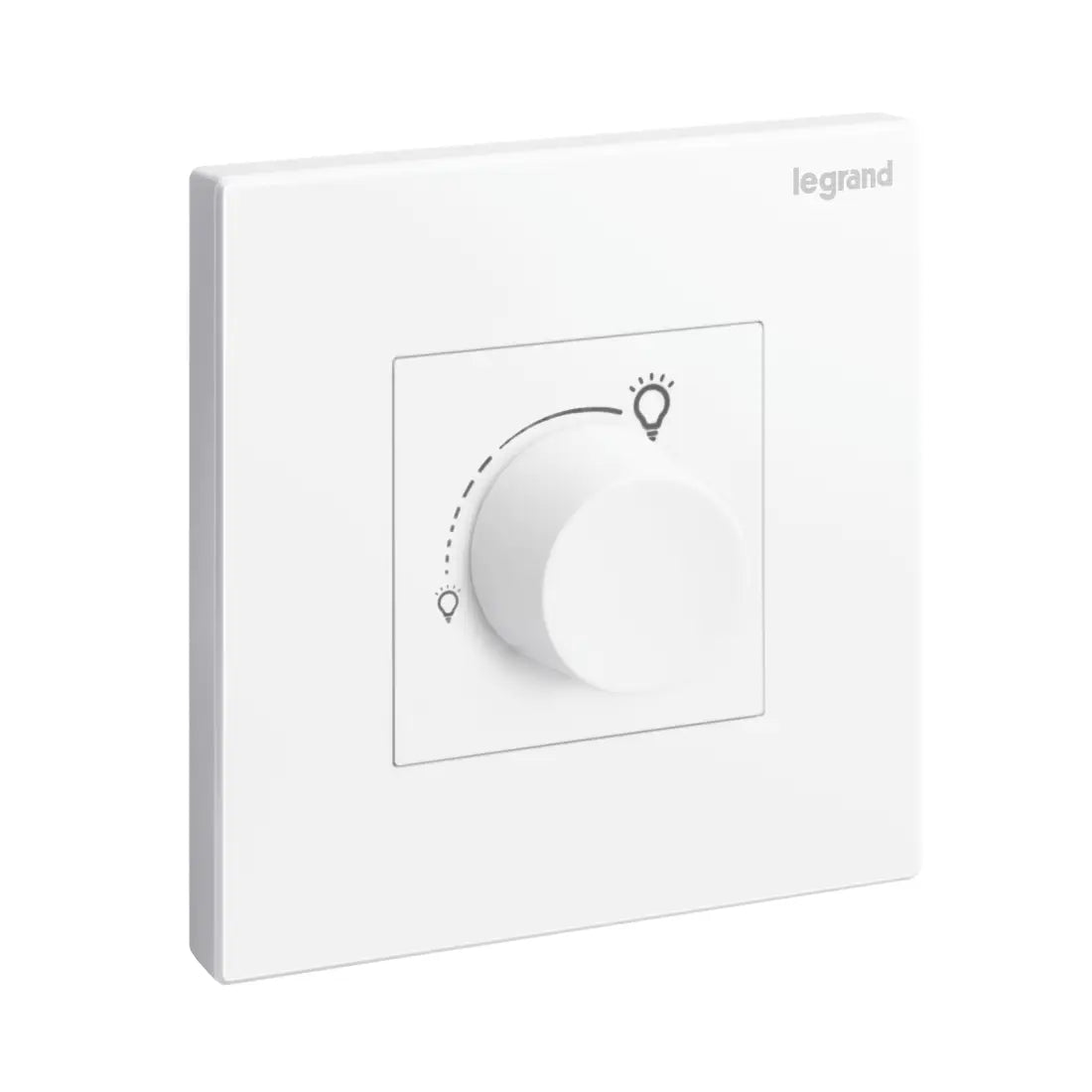

Legrand Galion 1 Gang 5 to 300 Watts Incandescent or 5 to 75 Watts LED Rotary Dimmer 100-240 Volts 50/60Hz 282419
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Dimmer Switch
Description
The 1 Gang Universal Dimmer Switch operates from 100V~ to 250V~, 50/60Hz, and supports a wide range of lighting loads—5W to 75W for dimmable LED and fluocompact lamps, and 5W to 300W for halogen and incandescent lamps. Sold complete under one catalog number and ready to install, it features screw-type terminals with clear markings for secure and easy connections. The robust honeycomb frame provides enhanced stability, while built-in overvoltage and short-circuit protection ensure reliable performance. Designed for indoor use and retrofit-friendly, it functions without a neutral wire and includes a memory level feature that gradually restores the last set brightness when turned on. Its rotary-shaped knob ensures comfortable grip and smooth dimming control. It can also be paired with one or more push-buttons for ON/OFF or dimming operation. Delivered with dust protection and mounting screws for both flush or surface-mounted boxes (plastic or metal), this dimmer is a versatile, safe, and user-friendly solution for modern lighting control.
( 282419, 282419-C, 282419-C1, 282419-C2, 282419-C3 )
| Brand | Legrand |
| Model | Galion |
| Assembly arrangement | Basic element with complete housing |
| Method of operation | Turn/push button |
| Number of modules (module system) | 2 |
| App control via Bluetooth | No |
| Dimming phase cut-on (leading edge) | Yes |
| Dimming phase cut-off (trailing edge) | Yes |
| Serial dimmer | No |
| Type of load | Universal and LED Retrofit |
| Substation input | No |
| Light value memory | No |
| Applicable with button | Yes |
| Applicable with movement sensor | No |
| Applicable with presence indicator | No |
| Applicable with time switch/timer | No |
| Applicable with transmission button | No |
| Applicable with infrared button | No |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |

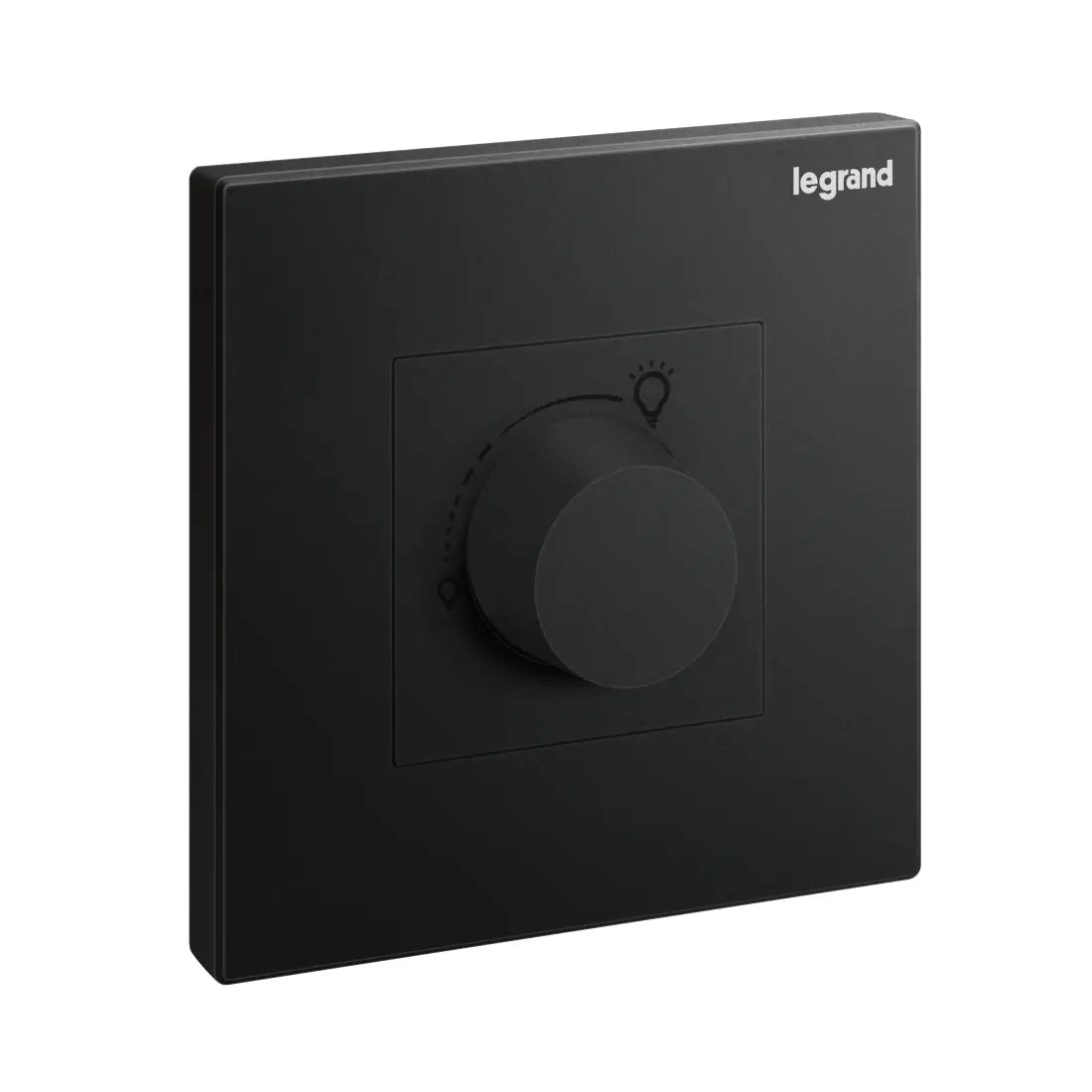

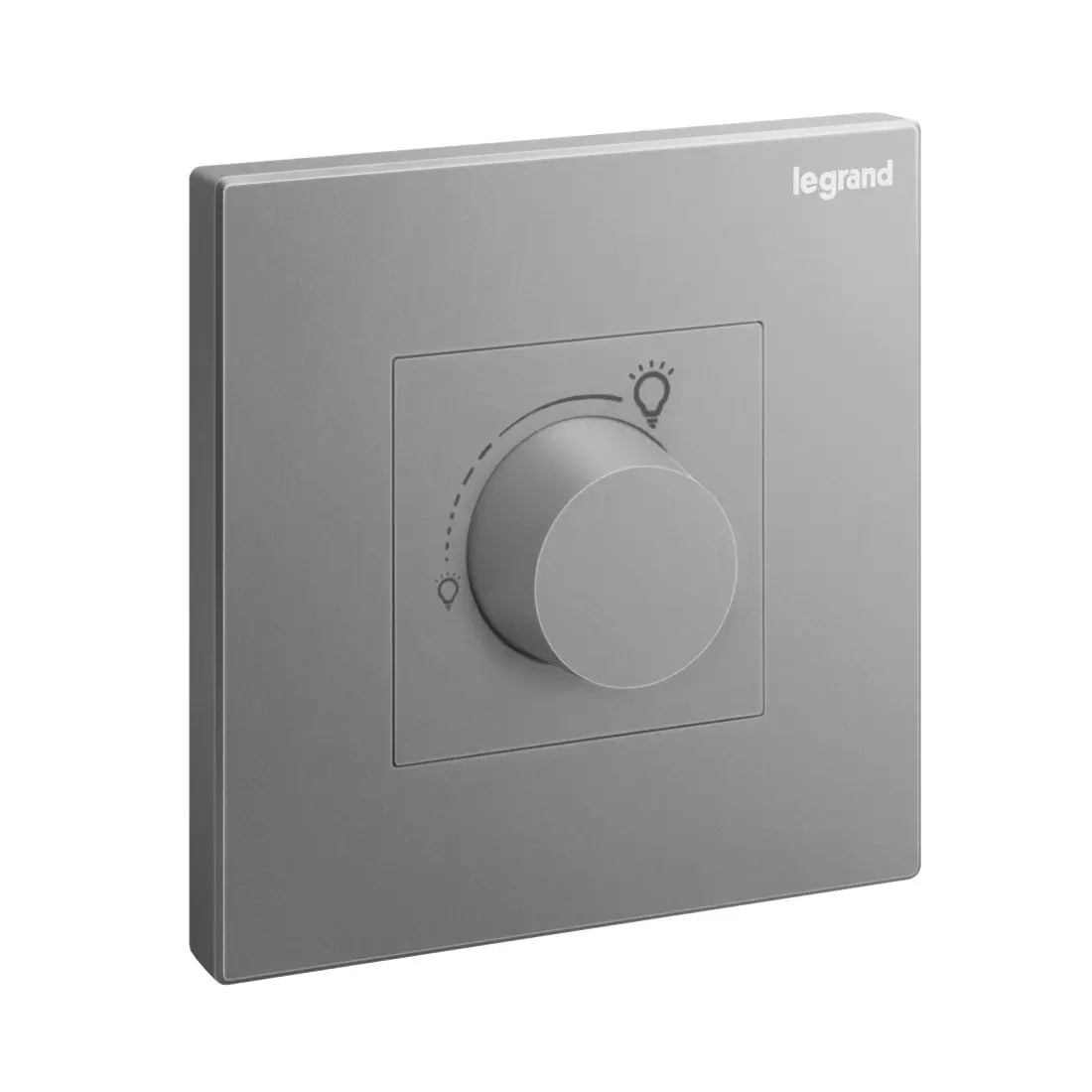

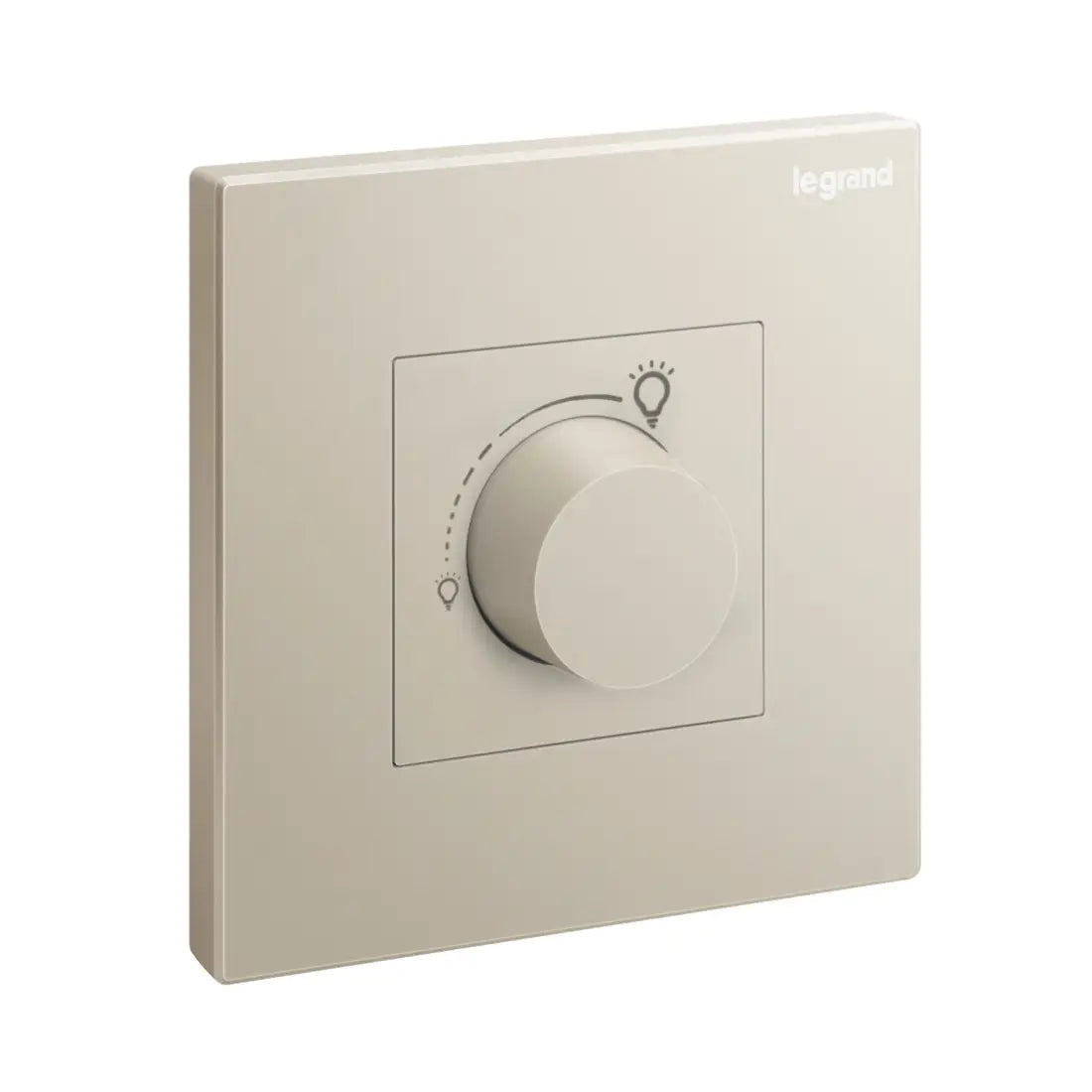

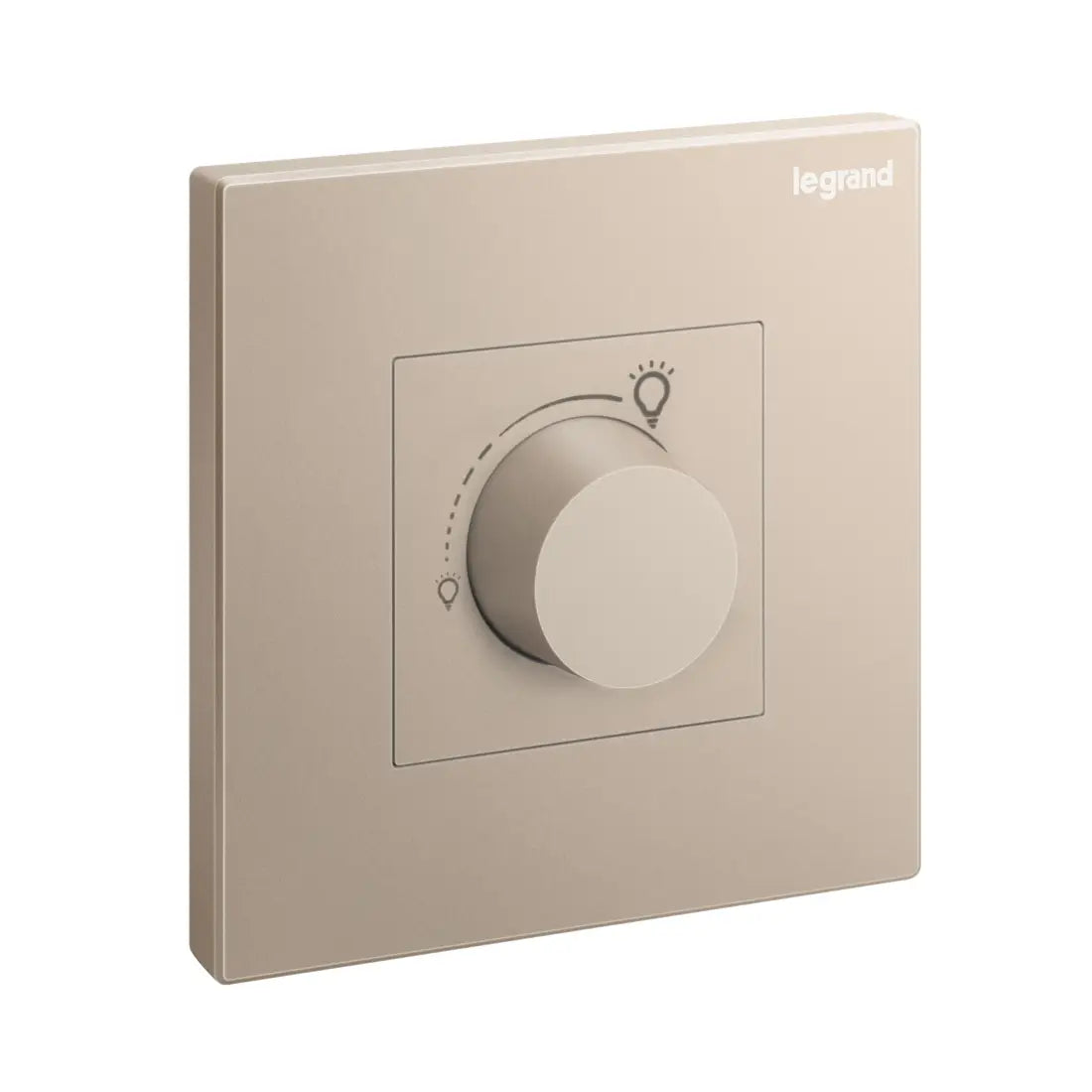

| Colour | White(282419), Black(282419-C), Rose Gold(282419-C1), Champagne(282419-C2), Dark Silver(282419-C3) |
| Transparent | No |
| Suitable for degree of protection (IP) | IP40 |
| Degree of impact strength (IK) | IK02 |
| Nominal voltage | 100–240 V |
| Frequency | 50–60 Hz |
| Nominal power resistive load | 5–300 W |
| Connection type | Screwed terminal |
| Cable section | 1–6 mm² |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 32 mm |
| Min. depth of built-in installation box | 40 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 32.6 mm |
| Operating / setting temperature | -5 to 45 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Mandatory neutral | No |
| Terminal marking indication | No |
| Stress test conformity (1000V) | Yes |
| Antimicrobial treatment | No |
| Terminals capacity | 1–6 mm² |
