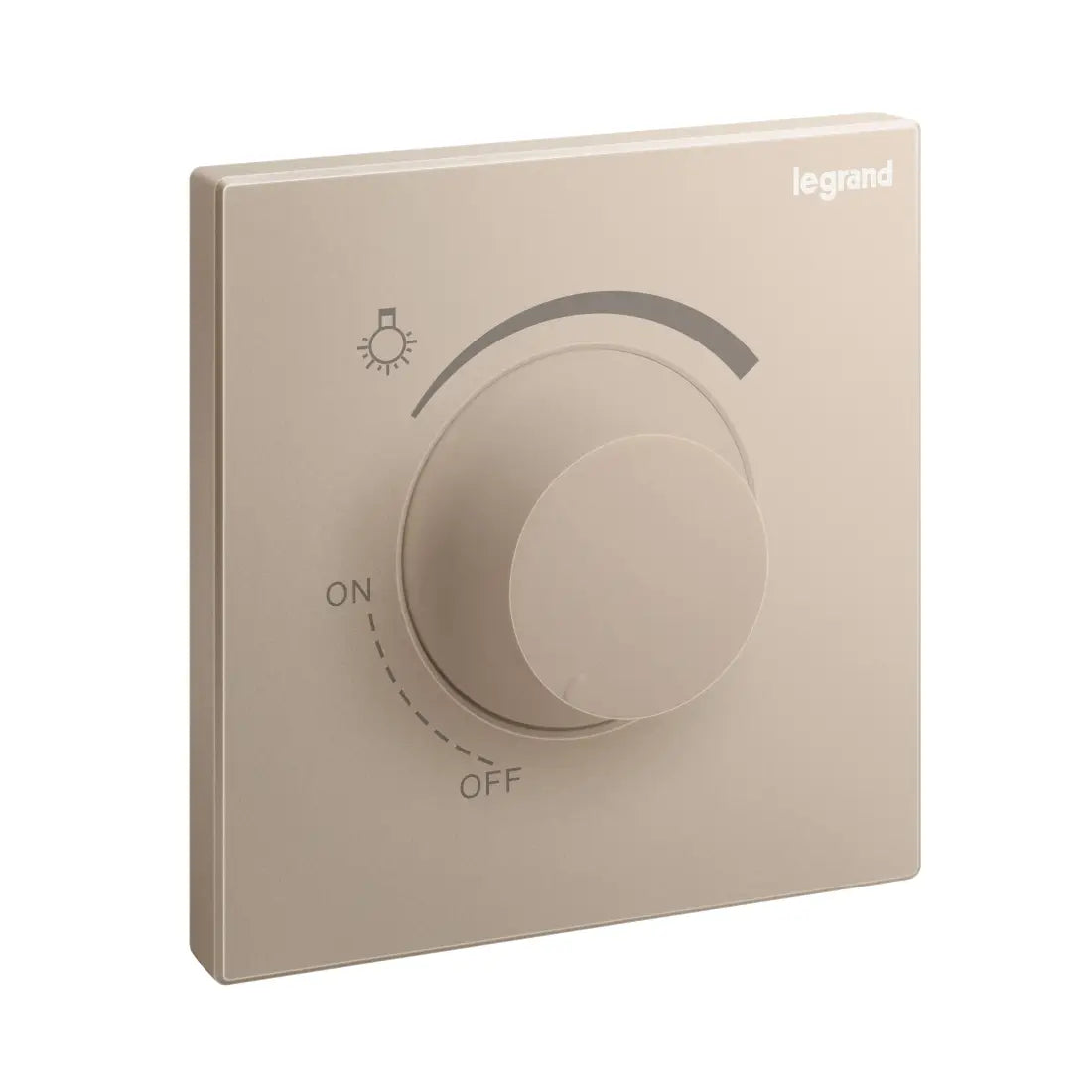

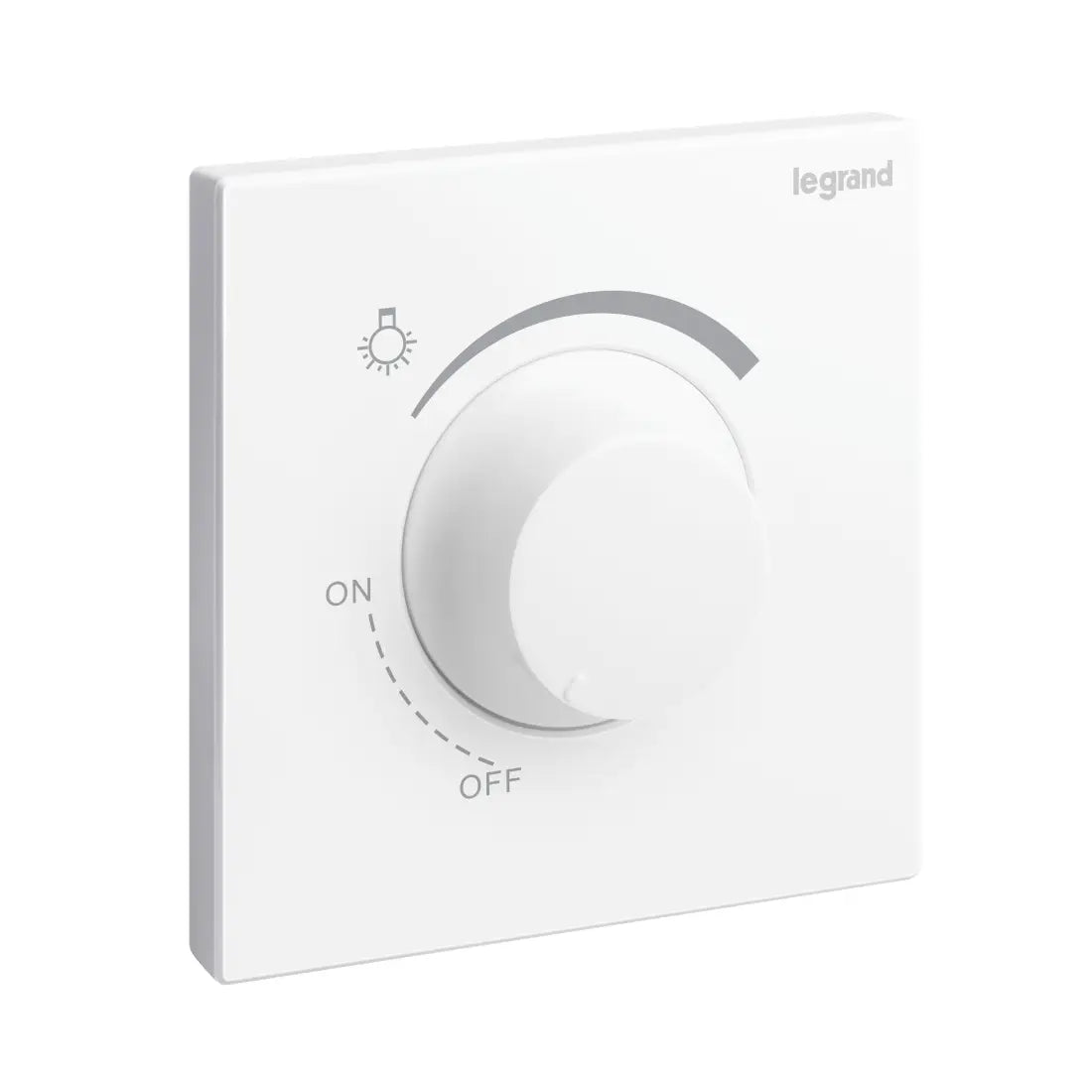

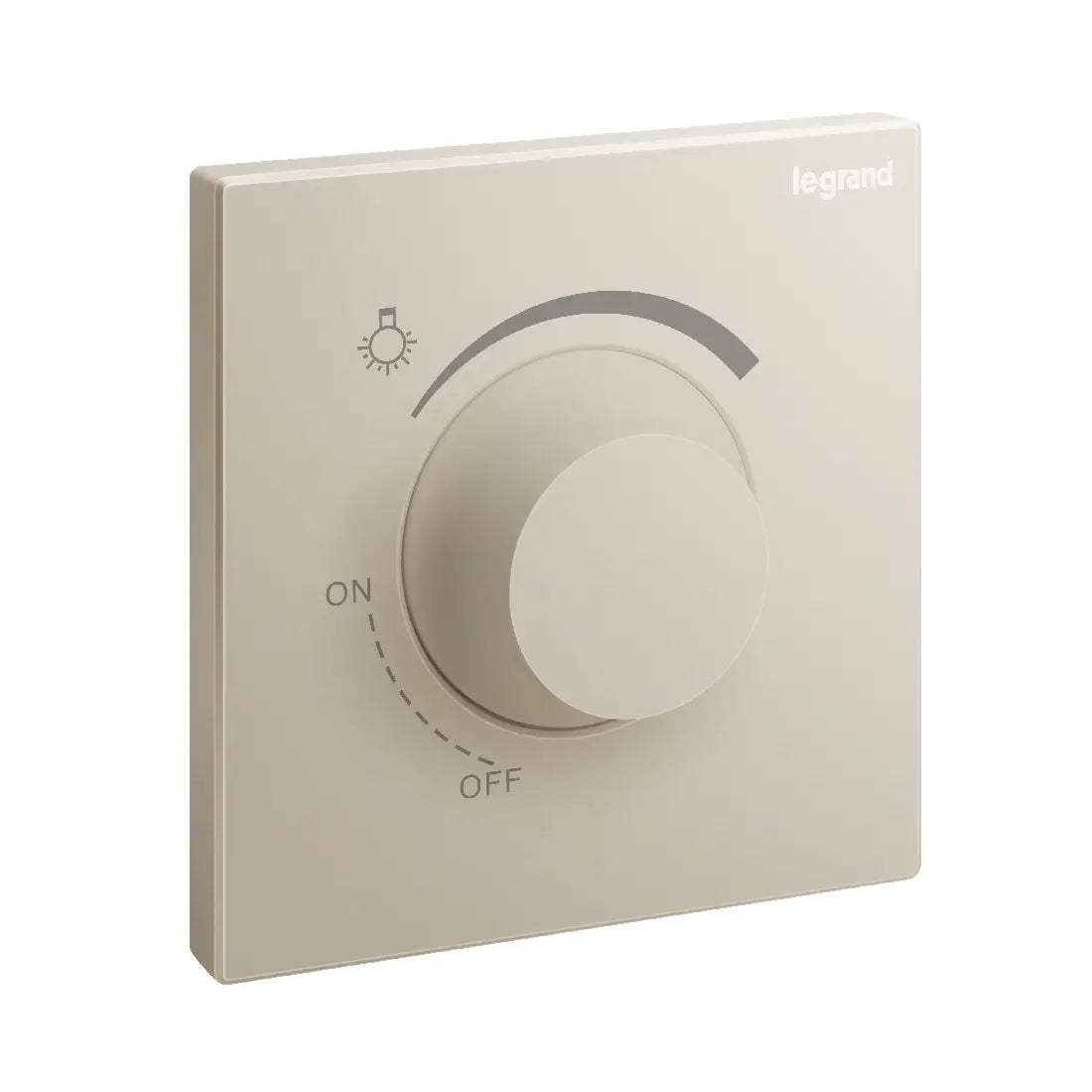

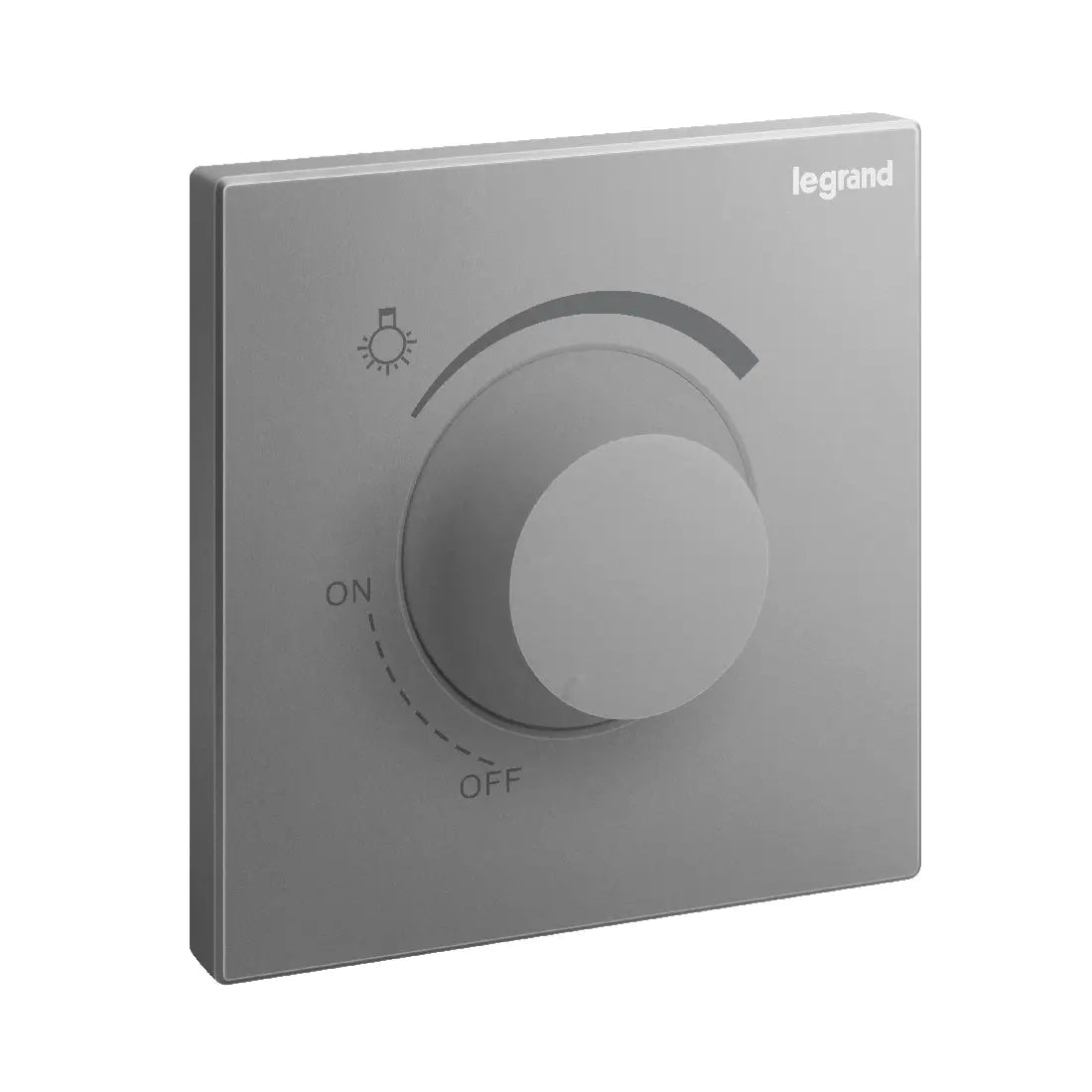

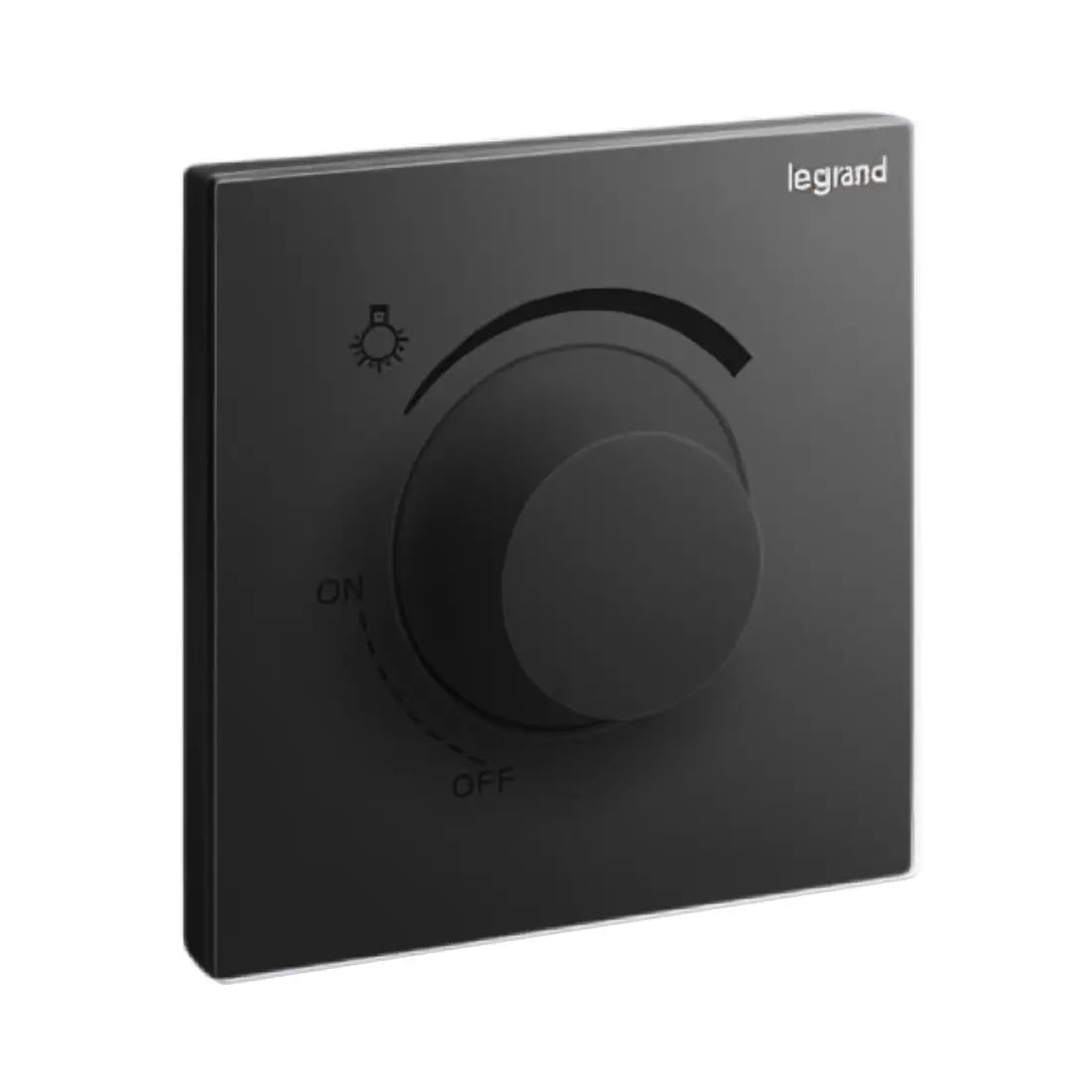

Legrand Galion 1 Gang 40 to 500 Watts Incandescent Dimmer 230 Volts 282420
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Dimmer Switch
Description
The 1 Gang 40–500W Incandescent Dimmer – 230V~ is designed for smooth and reliable dimming control of incandescent loads ranging from 40 to 500 watts. Operating at 230V~, it features screw-type terminals for secure connections, clearly marked terminals for easy identification, and a strip length indicator to prevent wire waste. Built with a honeycomb design supporting frame, it ensures enhanced stability and durability during installation. The rotary-shaped knob provides a comfortable grip for precise dimming control. Recommended for indoor use only, the product is sold complete under one catalog number and comes ready to install, including paint and dust protection, as well as mounting screws for both flush or surface-mounted boxes in plastic or metal.
( 282420, 282420-C, 282420-C1, 282420-C2, 282420-C3 )
| Brand | Legrand |
| Model | Galion |
| Assembly arrangement | Basic element |
| Method of operation | Turn button |
| Number of modules (module system) | 2 |
| App control via Bluetooth | No |
| Dimming phase cut-on (leading edge) | Yes |
| Dimming phase cut-off (trailing edge) | Yes |
| Serial dimmer | No |
| Type of load | Resistive load |
| Substation input | No |
| Light value memory | No |
| Applicable with button | Yes |
| Applicable with movement sensor | No |
| Applicable with presence indicator | No |
| Applicable with time switch/timer | No |
| Applicable with transmission button | No |
| Applicable with infrared button | No |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | White(282420), Black(282420-C), Rose Gold(282420-C1), Champagne(282420-C2), Dark Silver(282420-C3) |
| Transparent | No |
| Suitable for degree of protection (IP) | IP40 |
| Degree of impact strength (IK) | IK02 |
| Nominal voltage | 200–240 V |
| Frequency | 50–60 Hz |
| Nominal power resistive load | 40–500 W |
| Connection type | Screwed terminal |
| Cable section | 1–4 mm² |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 30 mm |
| Min. depth of built-in installation box | 40 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 27.7 mm |
| Operating / setting temperature | -5 to 45 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Mandatory neutral | No |
| Terminal marking indication | No |
| Stress test conformity (1000V) | Yes |
| Antimicrobial treatment | No |
| Terminals capacity | 1–4 mm² |
