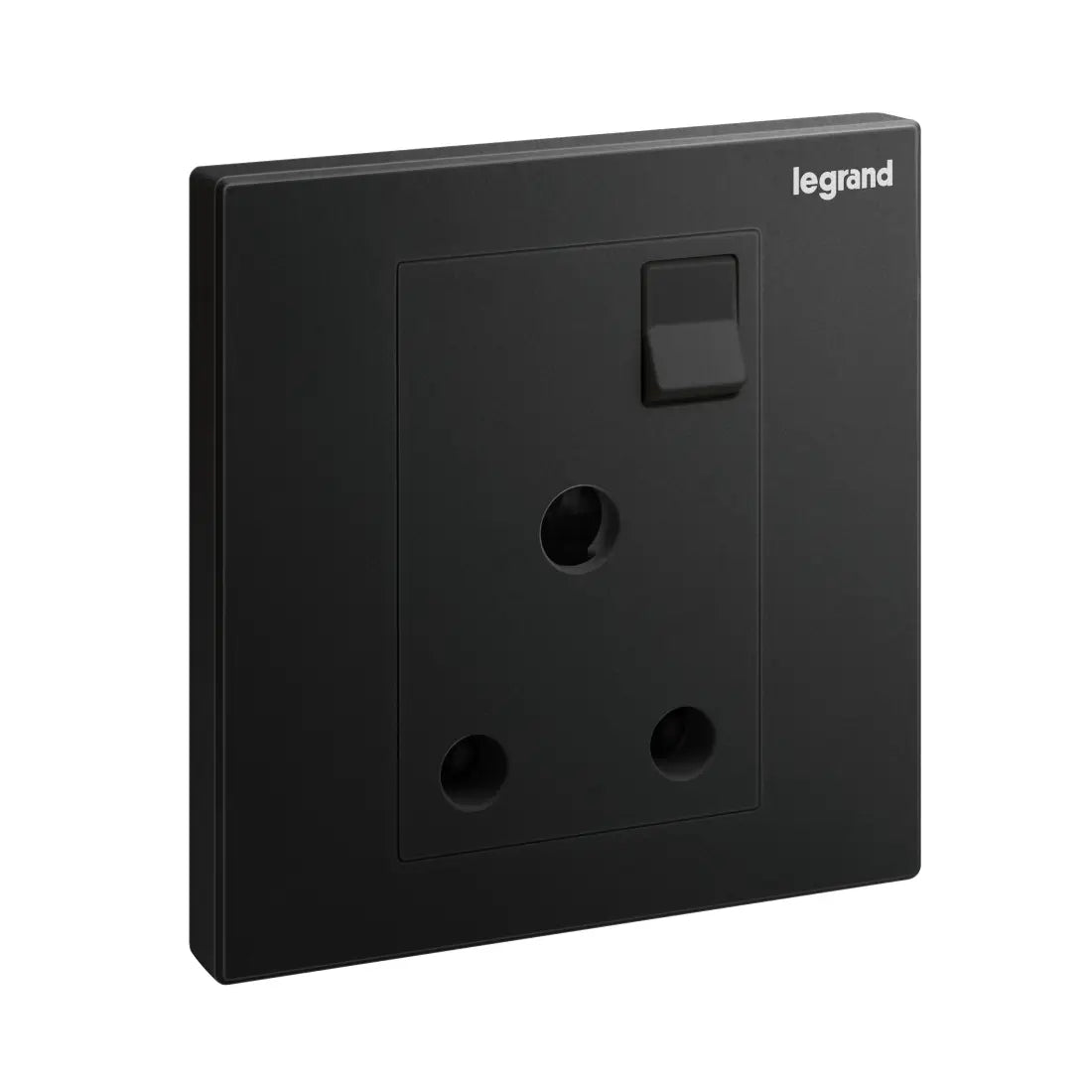

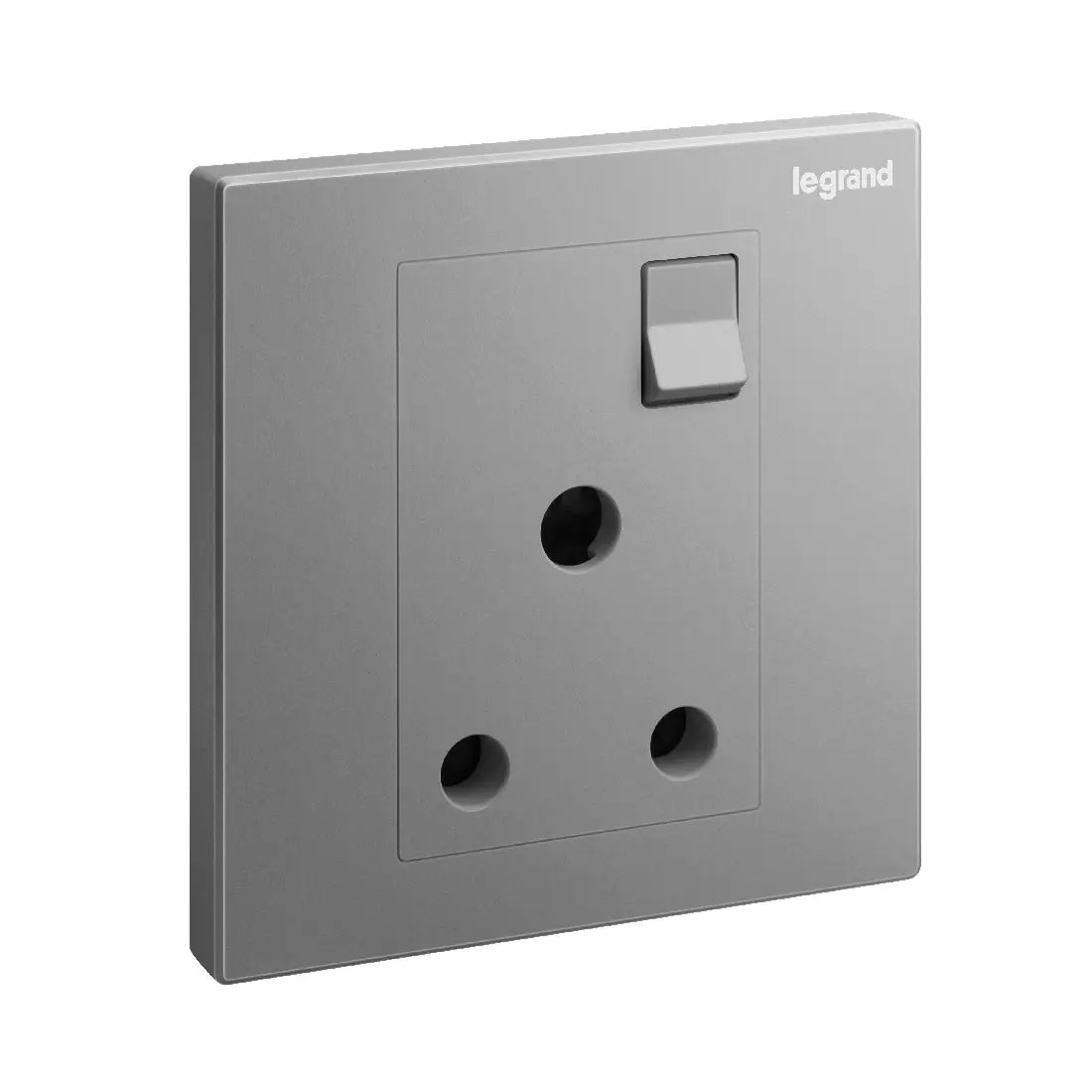

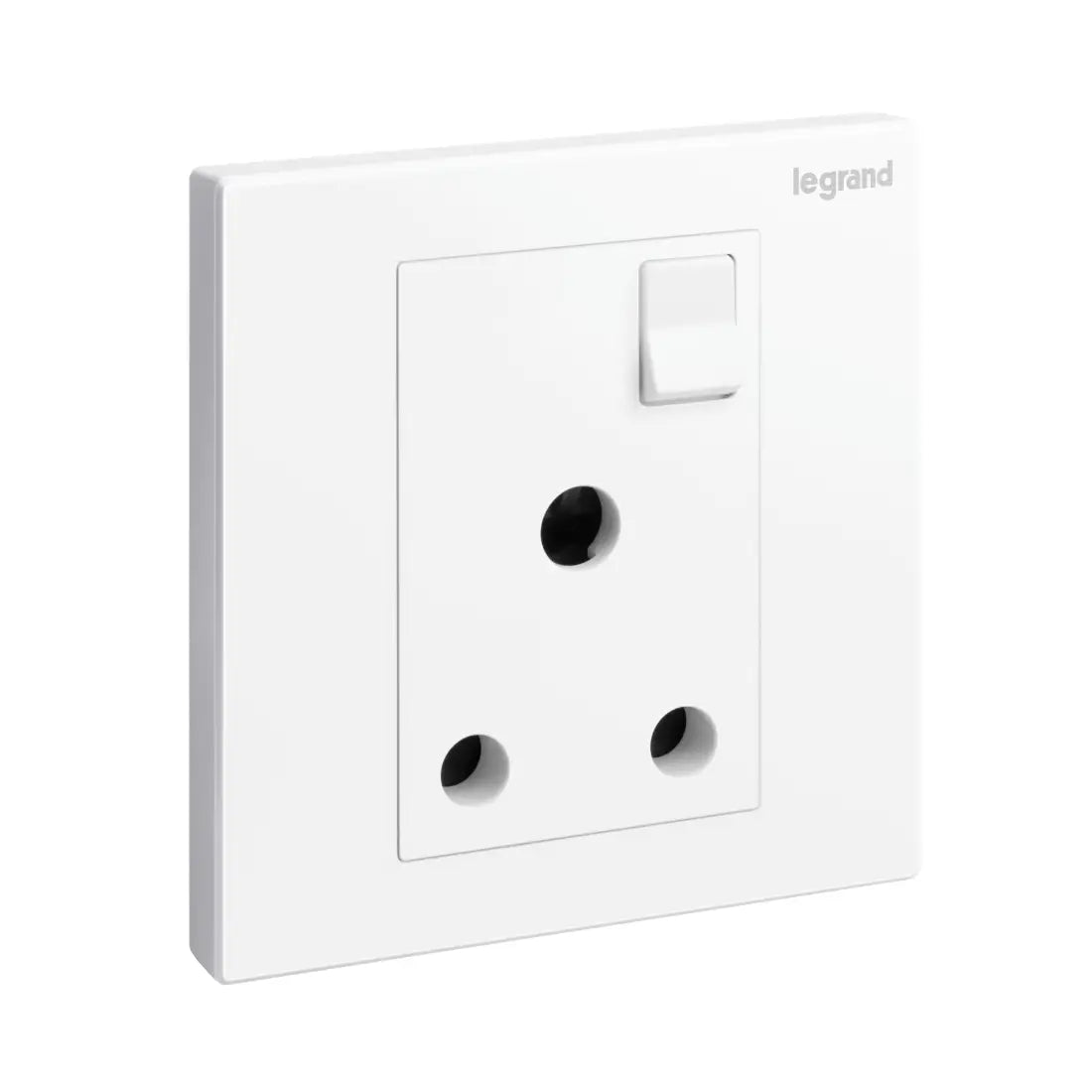

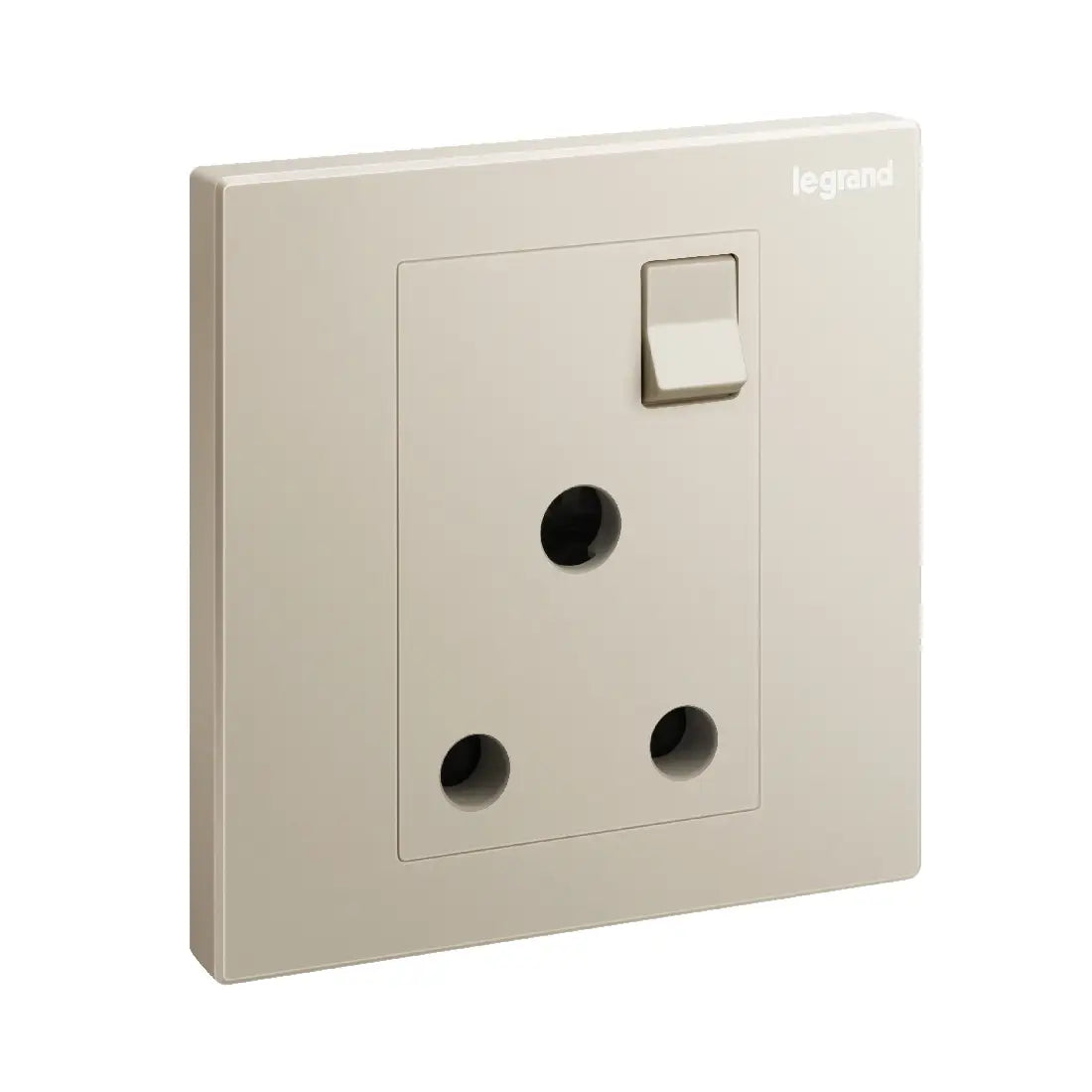

Legrand Galion 1 Gang 15A BS Switched Single Pole Socket Outlet 282437
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switchsocket Outlet
Description
The Galion 1 Gang British Standard Switched Single Pole Socket Outlet (15A, 2P+E, 250V~) offers safety, performance, and easy installation for residential or commercial use. Sold complete under one catalog number and ready to install, it features screw-type terminals for secure connections and marked terminals for easy identification. A strip length indicator helps reduce wire waste, and the integrated safety shutters enhance child protection. Designed for indoor use, the product includes a honeycomb-design supporting frame for added stability and durability. Delivered with paint and dust protection, along with screws suitable for both flush-mounting and surface-mounting on plastic or metal boxes.
( 282437, 282437-C, 282437-C1, 282437-C2, 282437-C3 )
| Brand | Legrand |
| Model | Galion |
| Protective contact | Round |
| Number of active contacts (round) | 2 |
| With complementary luminous signal | No |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| Number of socket outlets switchable | 1 |
| Number of phases | 2 |
| Imprint/indication | Scannable symbol/barrier free |
| Connection type | Screwed terminal |
| With hinged lid | No |
| With enhanced contact protection | Yes |
| Colour | White(282437), Black(282437-C), Rose Gold(282437-C1), Champagne(282437-C2), Dark Silver(282437-C3) |
| Metallic colour | No |
| Transparent | No |
| Lockable | No |
| Eject-mechanism | Yes |
| Insulated mounting | No |
| With function lighting | No |
| With orientation lighting | No |
| Overvoltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Special power supply | No special power supply |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Lacquered |
| Surface finishing | Matt |
| Antimicrobial treatment | No |
| With on/off switch | Yes |
| Nominal current | 15 A |
| Nominal voltage | 250 V |
| Frequency | 50–60 Hz |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 36.5 mm |
| Min. depth of built-in installation box | 30 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in Bluetooth speaker | No |
| Built-in depth | 24.6 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Power Delivery | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1–4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1–4 mm² |
| Connected object | No |
