Legrand Galion 1 Gang 13A British Standard Switched Single Pole Socket Outlet 282432
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switchsocket Outlet
Description
The Galion 1 Gang Switched Single Pole Socket Outlet (13A, 2P+E, 250V~) is a reliable and safe solution built to British Standards for everyday power needs. Sold as a complete unit under a single catalog number and ready to install, this socket features screw-type terminals for secure, long-lasting connections, marked terminals for easy wiring, and a strip length indicator to prevent wire wastage. Designed for indoor use, it includes a sturdy honeycomb support frame that enhances stability during installation. For added safety, it is equipped with built-in safety shutters to protect against accidental contact-ideal for homes with children. The socket is delivered with paint and dust protection and comes with screws suitable for both flush-mounted or surface-mounted boxes, in plastic or metal.
( 282432, 282432-C, 282432-C1, 282432-C2, 282432-C3 )
| Brand | Legrand |
| Model | Galion |
| Concurrently switching neutral conductor | No |
| Protective contact | Flat |
| Number of active contacts (round) | 0 |
| Number of active contacts (flat) | 2 |
| Number of active contacts (square) | 0 |
| With complementary luminous signal | No |
| Number of ports USB-A | 0 |
| Number of ports USB-C | 0 |
| Number of modules (module system) | 2 |
| Number of socket outlets switchable | 1 |
| Number of phases | 1 |
| Imprint/indication | Scannable symbol/barrier free |
| Connection type | Screwed terminal |
| With hinged lid | No |
| With enhanced contact protection | Yes |

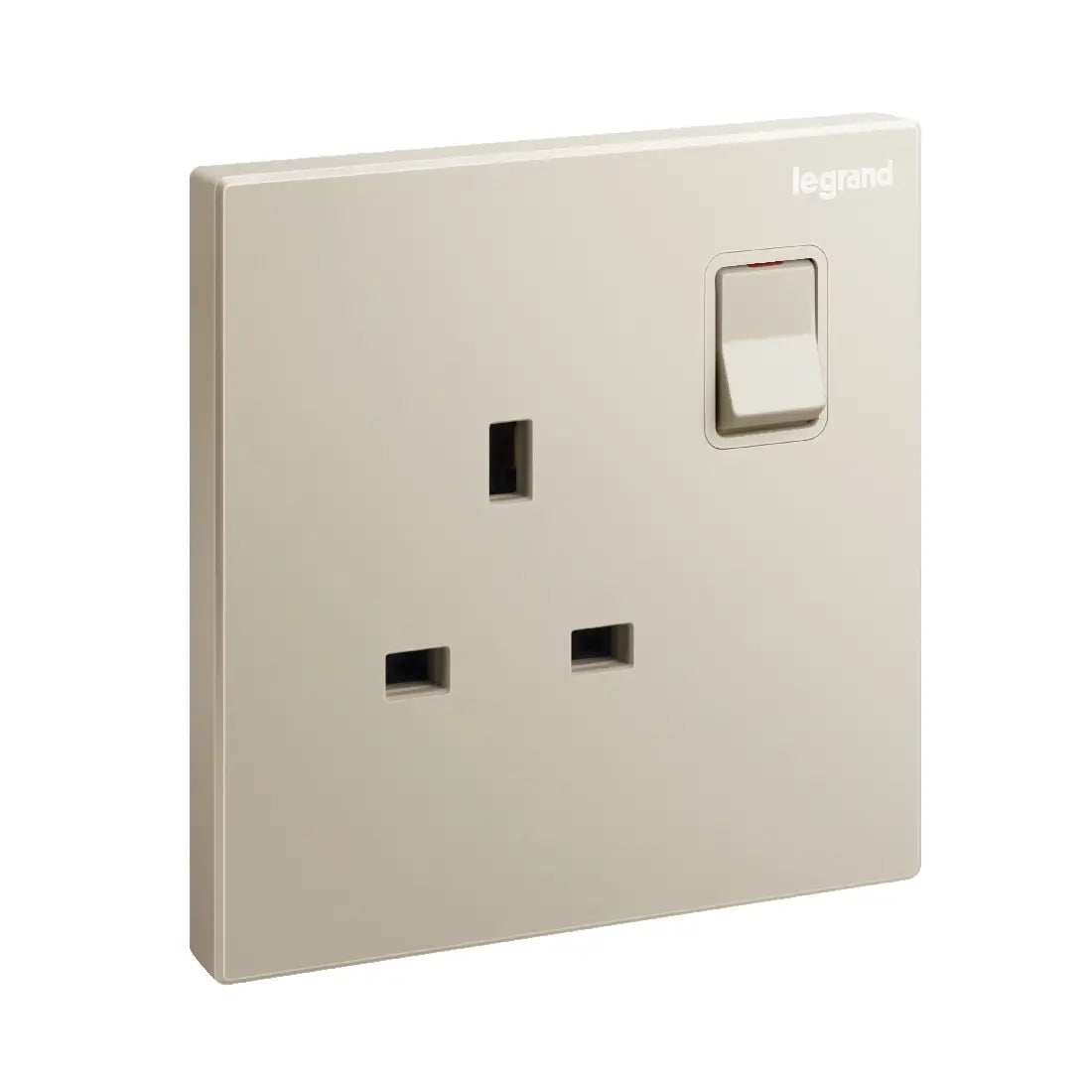

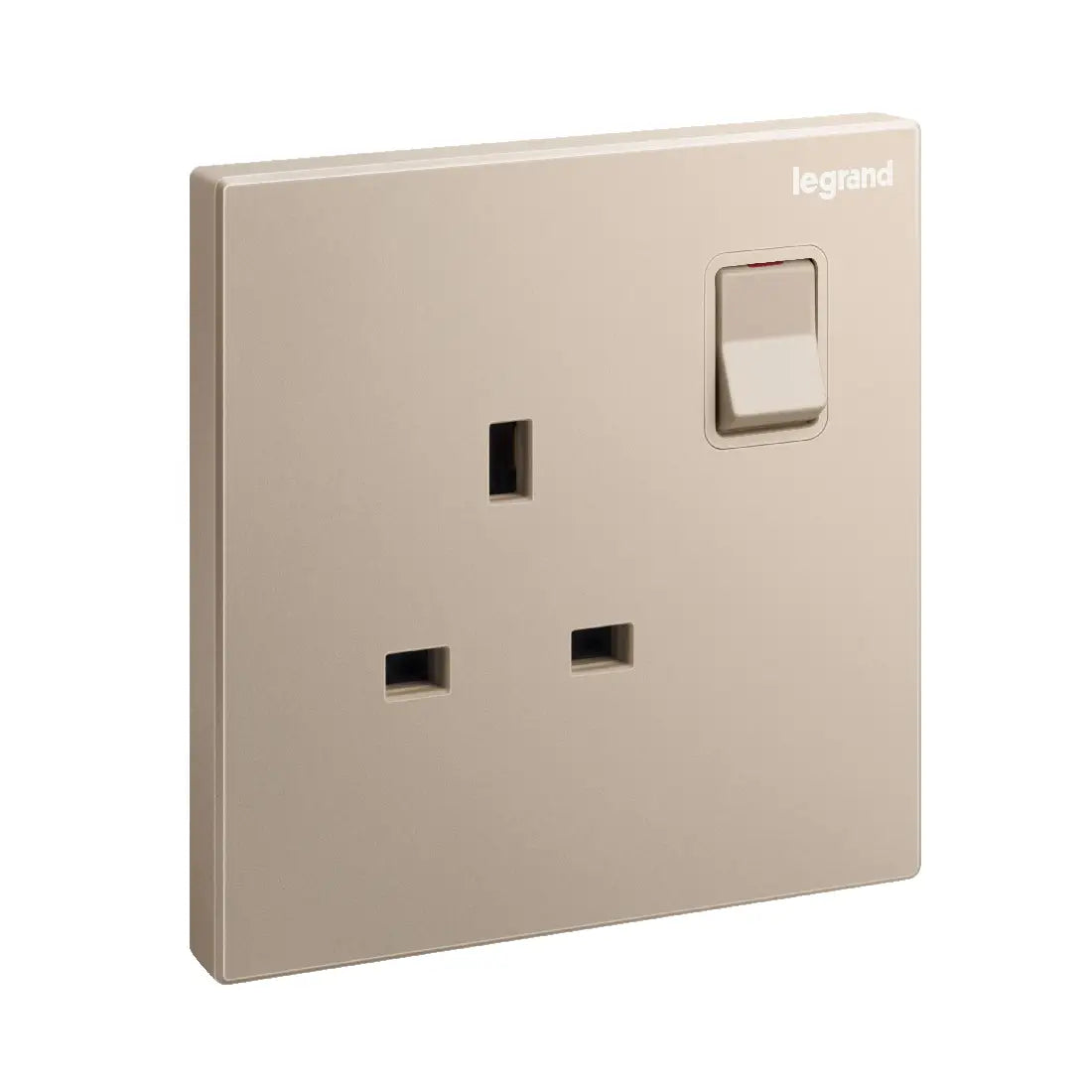

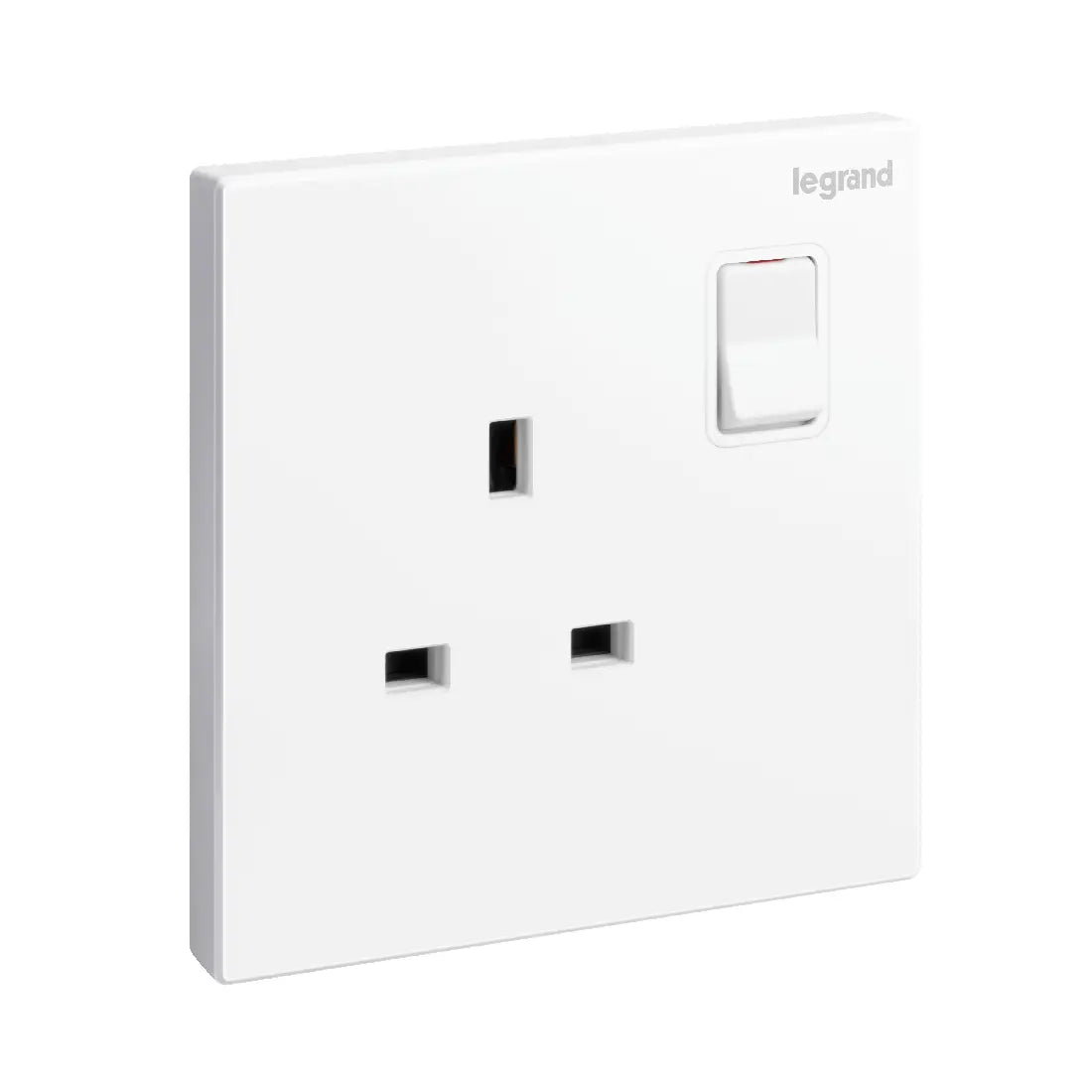

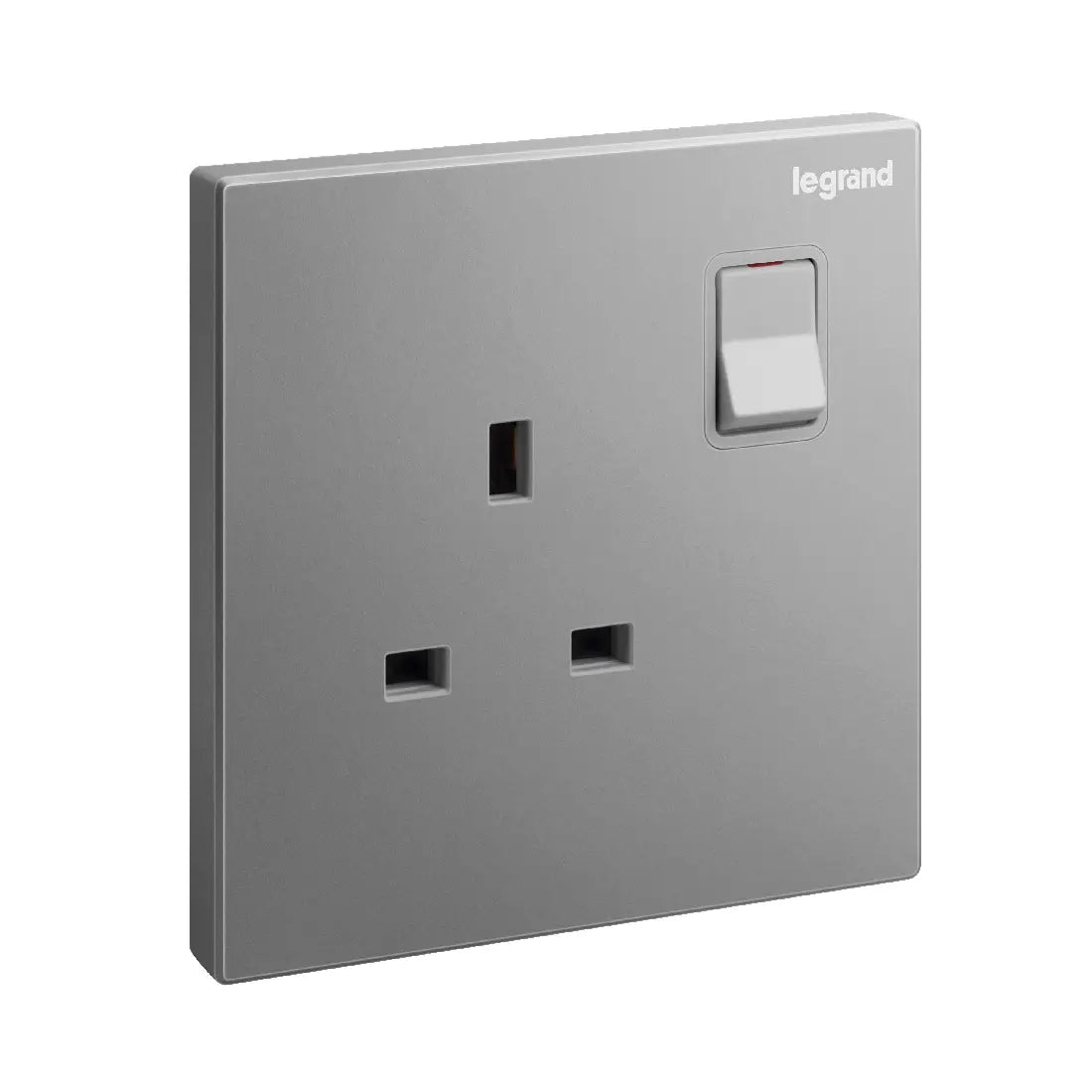

| Colour | White(282432), Black(282432-C), Rose Gold(282432-C1), Champagne(282432-C2), Dark Silver(282432-C3) |
| Metallic colour | No |
| Transparent | No |
| Lockable | No |
| Eject mechanism | No |
| Insulated mounting | No |
| With function lighting | No |
| With orientation lighting | No |
| Overvoltage protection | No |
| Fault current protection | No |
| With miniature fuse | No |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Lacquered |
| Antimicrobial treatment | No |
| With on/off switch | Yes |
| Nominal current | 13 A |
| Nominal voltage | 250 V |
| Frequency | 50-60 Hz |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 29.6 mm |
| Min. depth of built-in installation box | 25 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| With Wi-Fi signal repeater | No |
| With built-in Bluetooth speaker | No |
| Built-in depth | 18 mm |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Power Delivery | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
| Assembly arrangement | Basic element with full cover plate |
| Connected object | No |
