Legrand Galion 1 Gang 1 Way Double Pole Switch 20A with Amber LED Power Indicator and Earth Terminal 282408
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Push Button
Description
This 1 Gang 1 Way Double Pole Switch (20A, 250V~) with amber LED power indicator and earth terminal is a complete, ready-to-install solution designed for reliable and safe operation of heavy electrical loads. It features screw-type terminals for secure connections, marked terminals for easy identification, and a strip length indicator to reduce wire waste during installation. The robust honeycomb design support frame ensures rigidity and durability, while its compliance with British Standards guarantees performance for demanding applications. With a sleek full-plate rocker and electroplated bar that blends seamlessly with the cover, it adds a modern touch to any interior. Recommended for indoor use only, this product is delivered with paint and dust protection and includes screws suitable for flush-mounted or surface-mounted boxes, whether plastic or metal.
( 282408, 282408-C, 282408-C1, 282408-C2, 282408-C3 )
| Brand | Legrand |
| Model | Galion |
| Wiring system | Switch 2x1-pole |
| Method of operation | Rocker lever |
| Assembly arrangement | Basic element with full cover plate |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Flush-mounted |
| Type of fastening | Screw mounting |
| With mounting plate | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Lacquered |

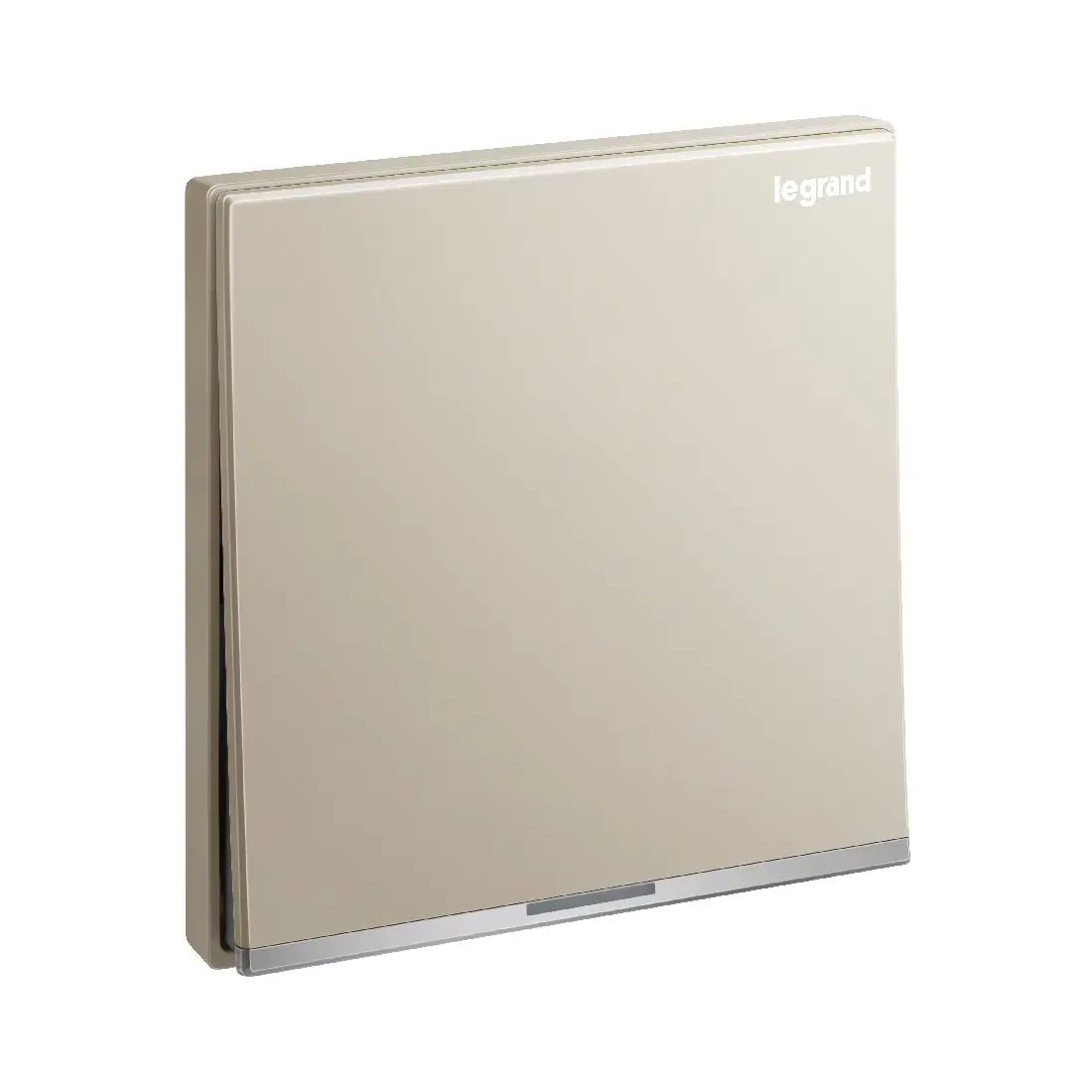

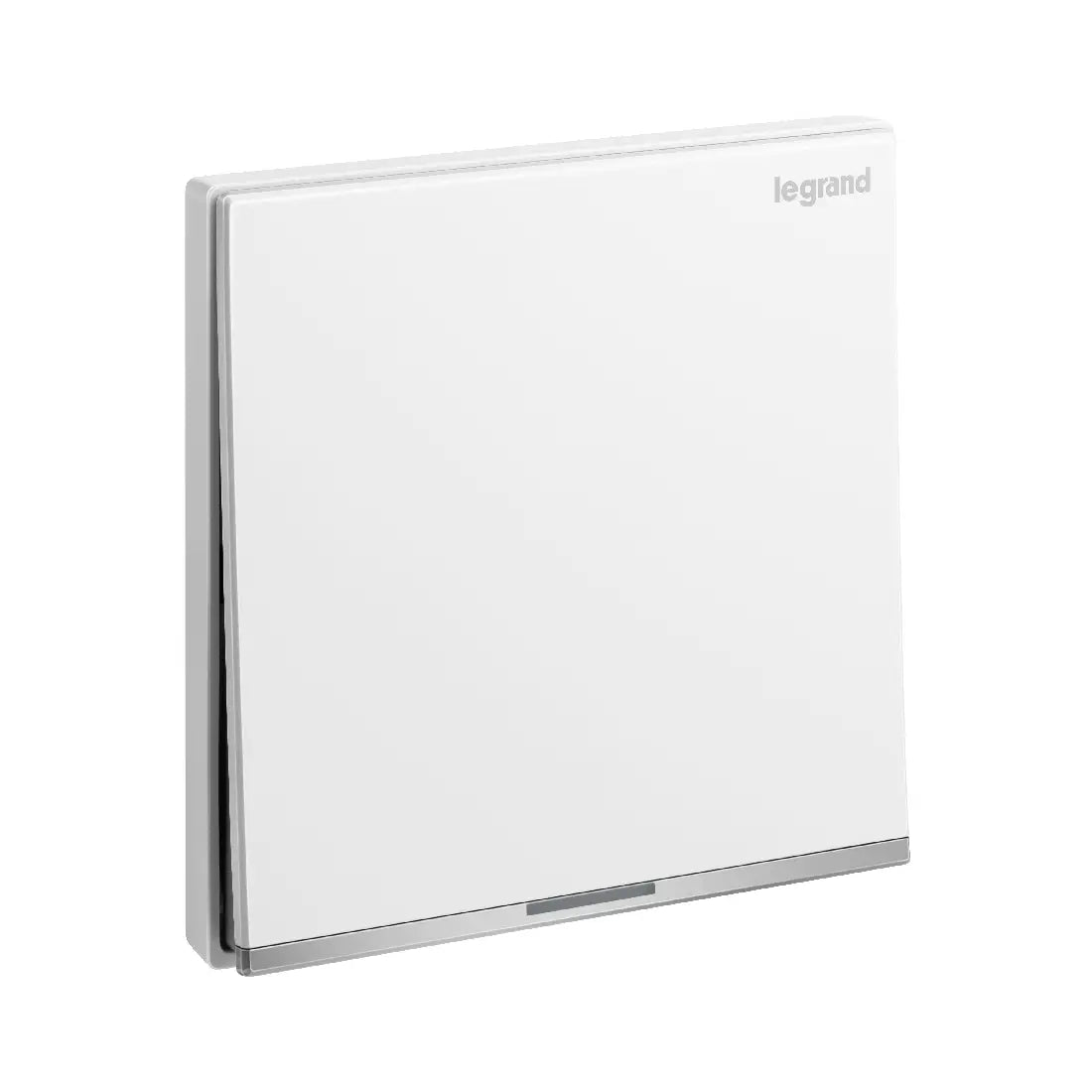

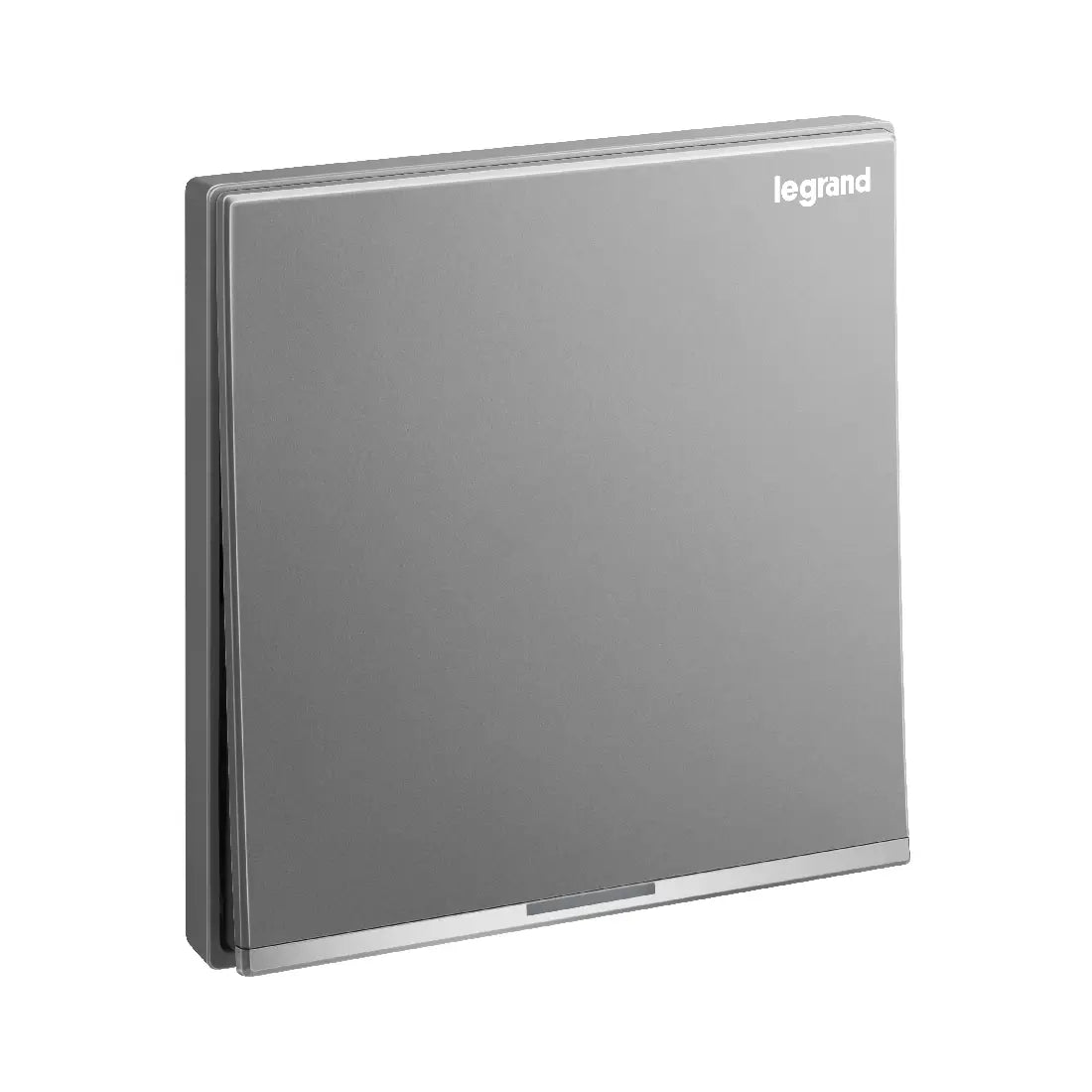

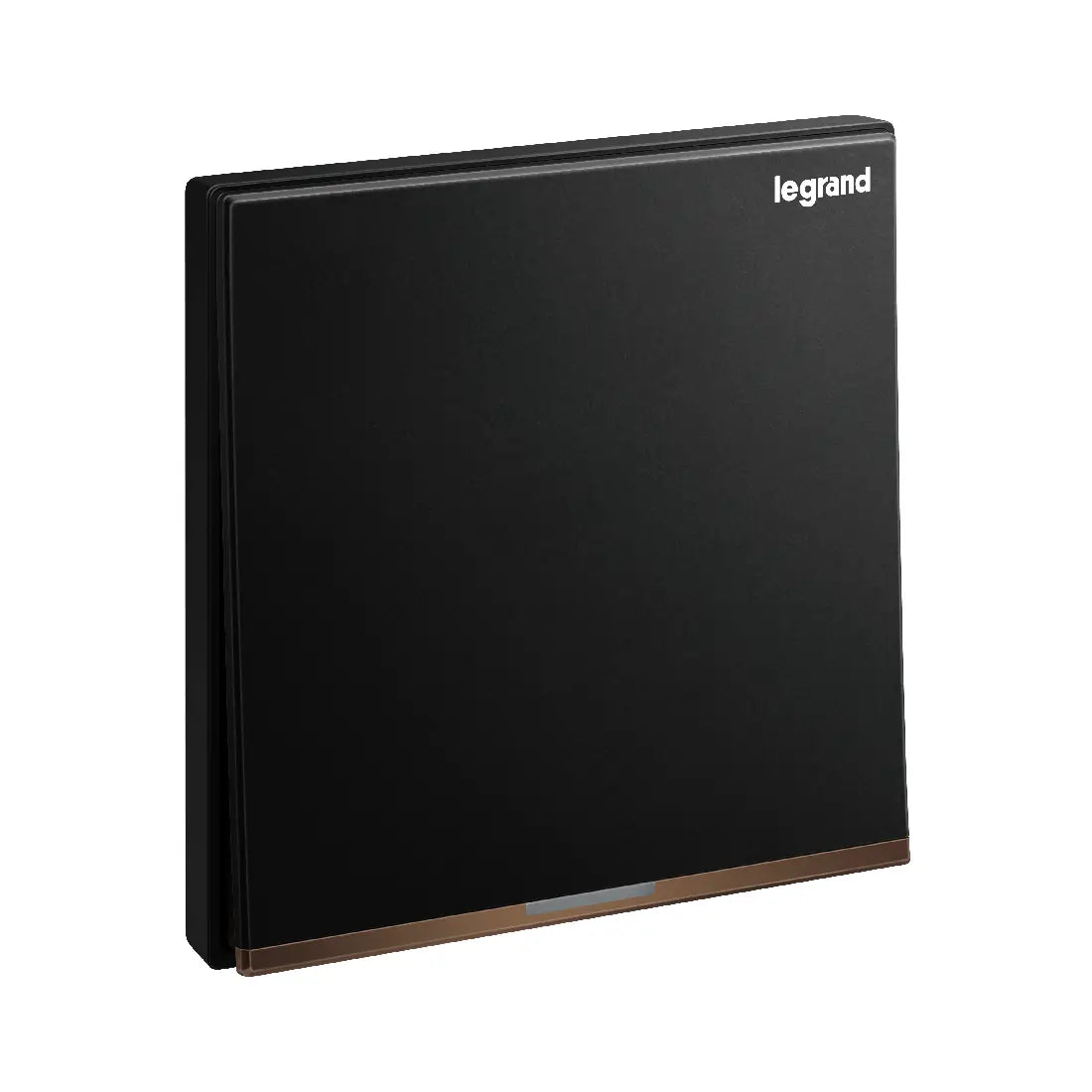

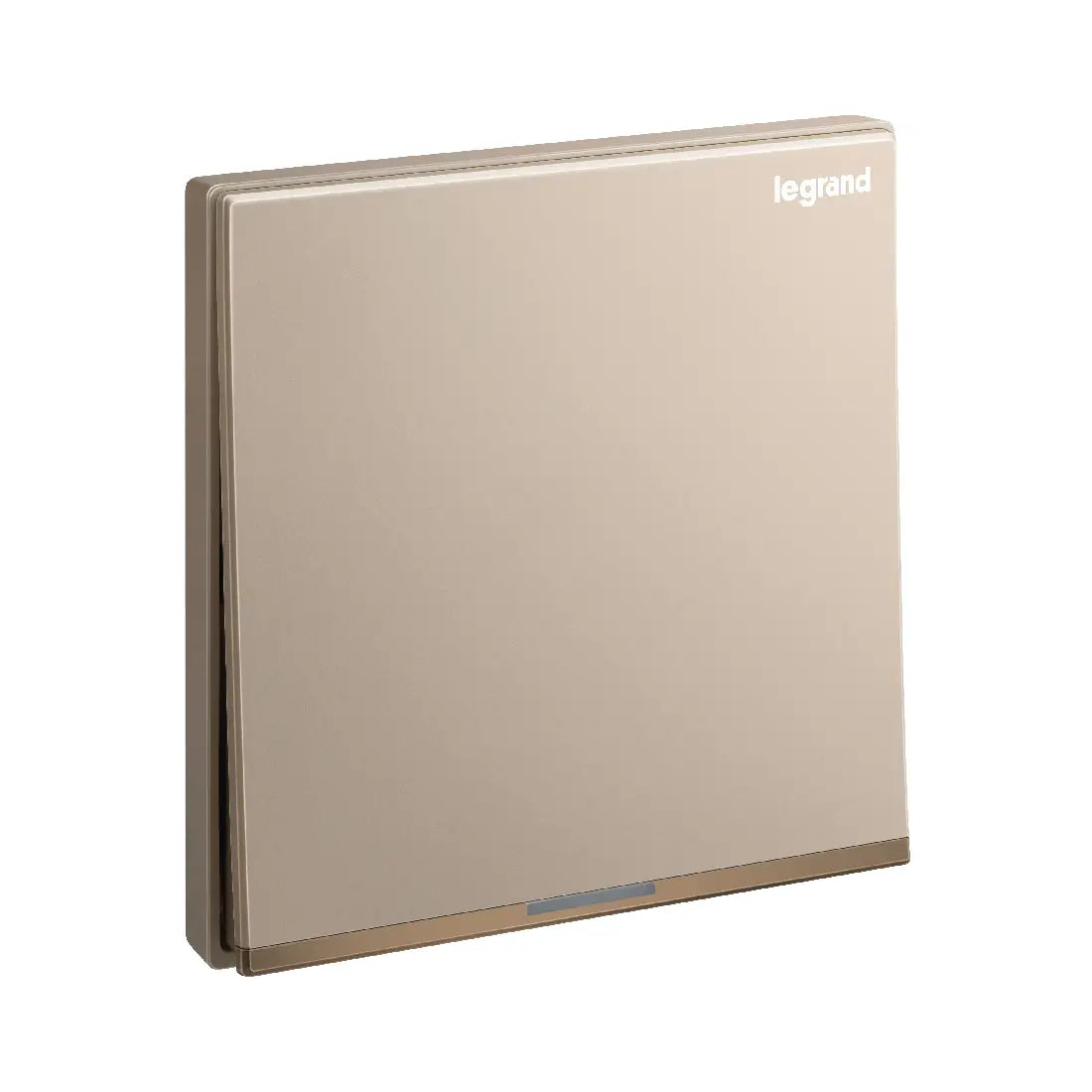

| Colour | White(282408), Black(282408-C), Rose Gold(282408-C1), Champagne(282408-C2), Dark Silver(282408-C3) |
| Lighting | Yes |
| Suitable for degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Nominal voltage | 250 V |
| Rated current | 20 A |
| Connection type | Screwed terminal |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 86 mm |
| Device height | 88 mm |
| Device depth | 38.4 mm |
| Built-in depth | 24 mm |
| Min. depth of built-in installation box | 30 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5 to 50 °C |
| Storage temperature | -10 to 70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | No |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1-4 mm² |
