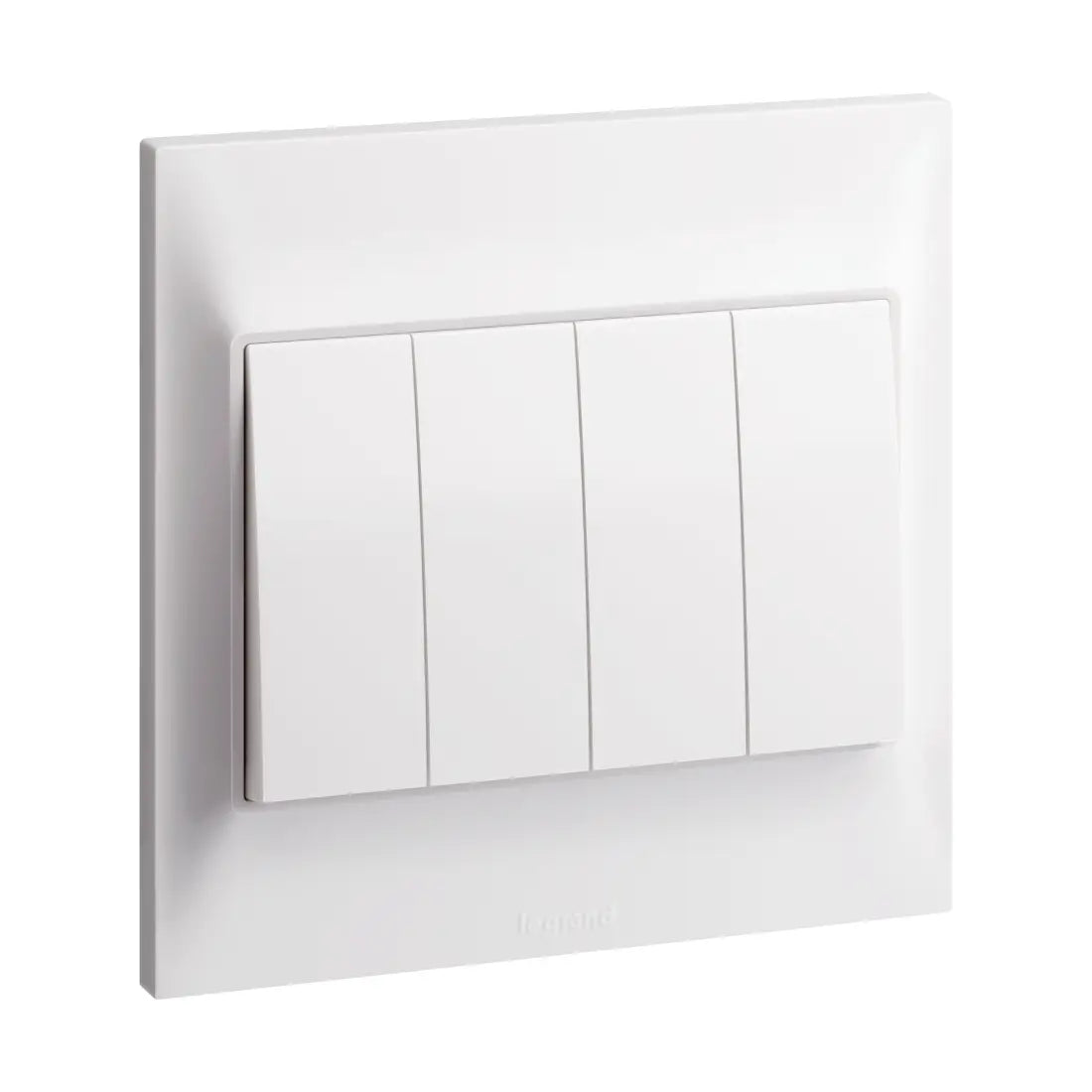

Legrand Belanko S 4 Gang 2 Way Switch 16AX
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Legrand
Type : Switch
Description
The 4G 2W 10AX is a four-gang, two-way electrical switch designed to control the flow of electricity to two separate circuits or devices. "4G" indicates the unit has four individual switches grouped together in one frame, allowing control over multiple points. "2W" means each switch can operate in a two-way configuration—ideal for controlling a single circuit from two different locations, such as at either end of a hallway. The "10AX" rating signifies that the switch is suitable for inductive and resistive loads with a maximum current capacity of 10 amperes, making it compatible with most lighting and standard electrical applications.

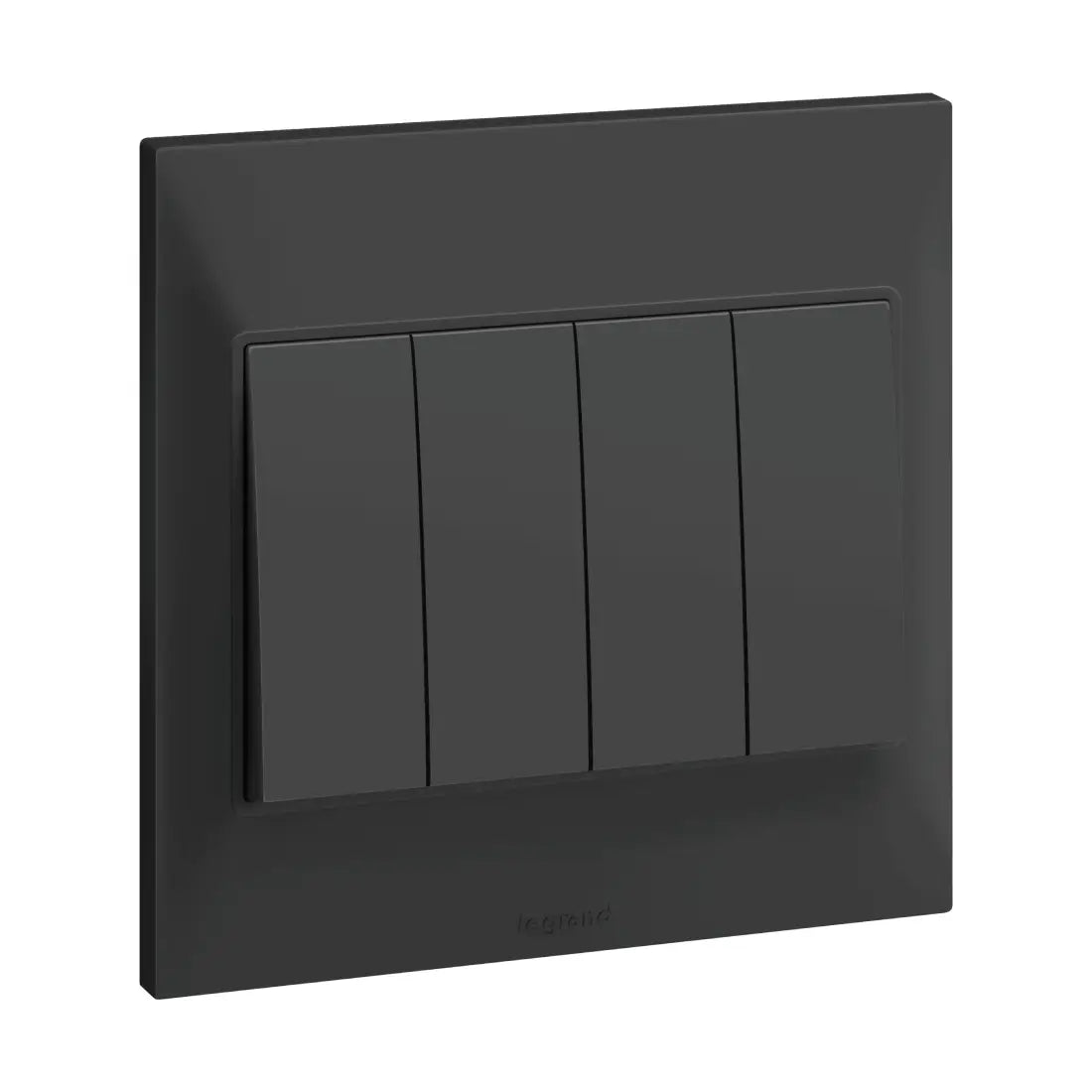

Available Color : White (617607), Anthracite (617707)
| Brand | Legrand |
| Series | Belanko S |
| Color | White (617607), Anthracite (617707) |
| Material | Plastic |
| Material quality | Thermoplastic |
| Nominal voltage | 250 V |
| Rated current | 16 A |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 33.6 mm |
| Built-in depth | 20.5 mm |
| Min. depth of built-in installation box | 35 mm |
| Terminals capacity | 1-4 mm² |
| Cable section | 1-4 mm² |
