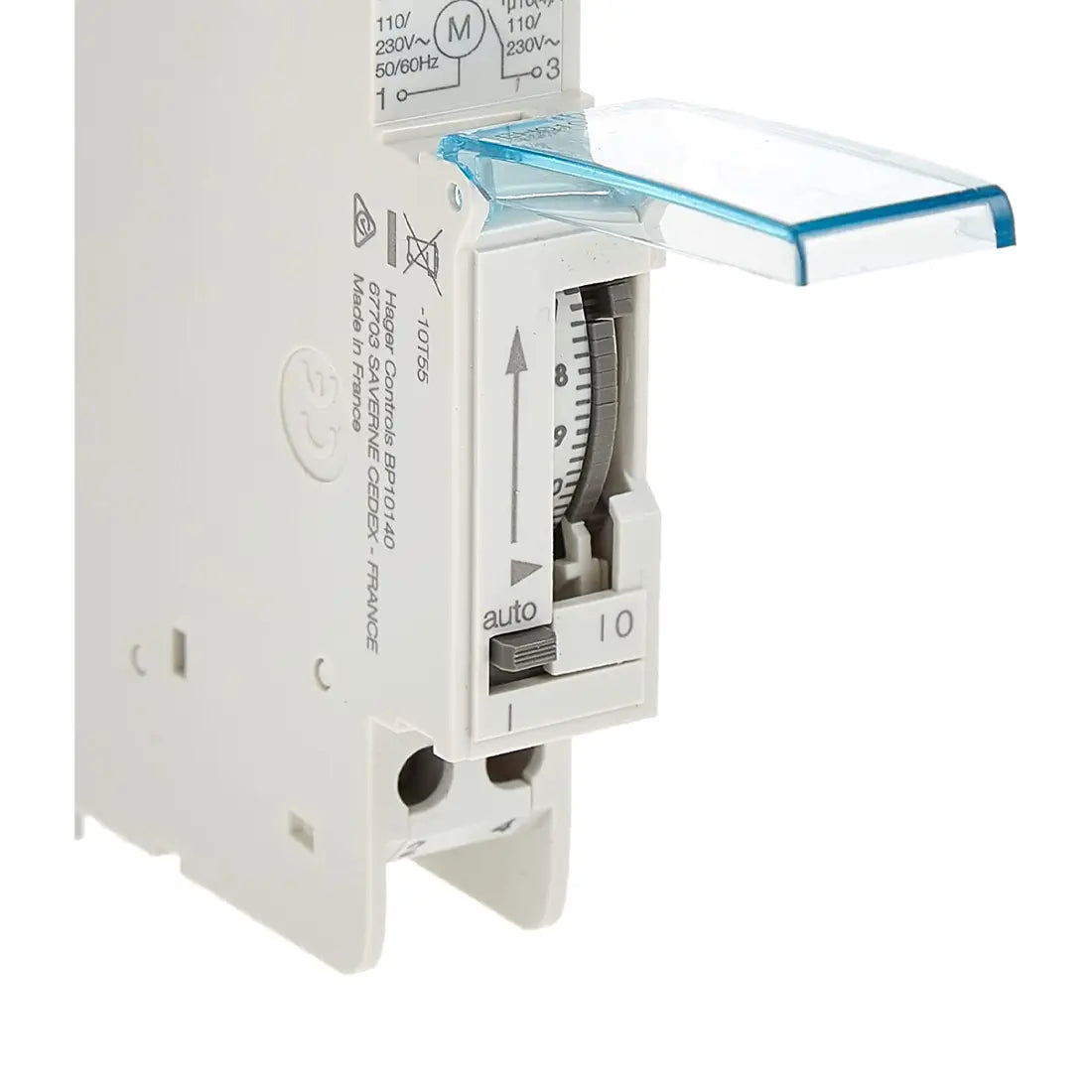

Hager EH010 Daily Time Switch 1 Channel, 16A, 1 Module
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: nqcart
Brand : Hager
Type : Time Switch
Description
Architecture
Fixing mode : Din-Rail
Configuration
Switch mode : NO contact
Main electrical features
Frequency : 50 Hz
Voltage
Supply voltage : 230V AC
Dimensions
Depth of installed product : 60 mm
Height of installed product : 80 mm
Width of installed product : 18 mm
Dimensions (W x H x D) : 18 x 80 x 60 mm
Power
Power consumed : 0,5 VA
Power consumption (operation) : 0,5 VA
Total power loss under IN : 1 W
Power dissipation per coil : 0,5 W
Capacity
Breaking capacity : 16A 250V AC1
Number of modules : 1
Incandescent bulbs control
Max. power with incandescent lamps : 900 W
Installation, mounting
Mounting type : din-Rail
Connection
Connection cross-sect. flexible conductor : 1 / 6mm²
Connection cross-sect. rigid cable : 1,5 / 10mm²
Type of connection : with screw
Number of contacts : 1
Type of contacts : 1 changeover
Type of connection : with screw terminals
Settings
Summer / Winter time change : manual
Shortest switching time : 15 mn
Type of programming : analog
Programming cycle : 24H
Setting : Setting via day dial
Equipment
Number of channels : 1
Supply failure reserve : without
Use
Cycle : daily
Safety
Protection index IP : IP20
Use conditions
Operating temperature : -10…55 °C
Working accuracy : 1
| Brand | Hager |
| Type | Time Switch |
| Model | EH010 |
| Connection cross-sect. flexible conductor | 1 / 6mm² |
| Connection cross-sect. rigid cable | 1,5 / 10mm² |
| Type of connection | with screw |
| Number of contacts | 1 |
| Type of contacts | 1 changeover |
| Type of connection | with screw terminals |
