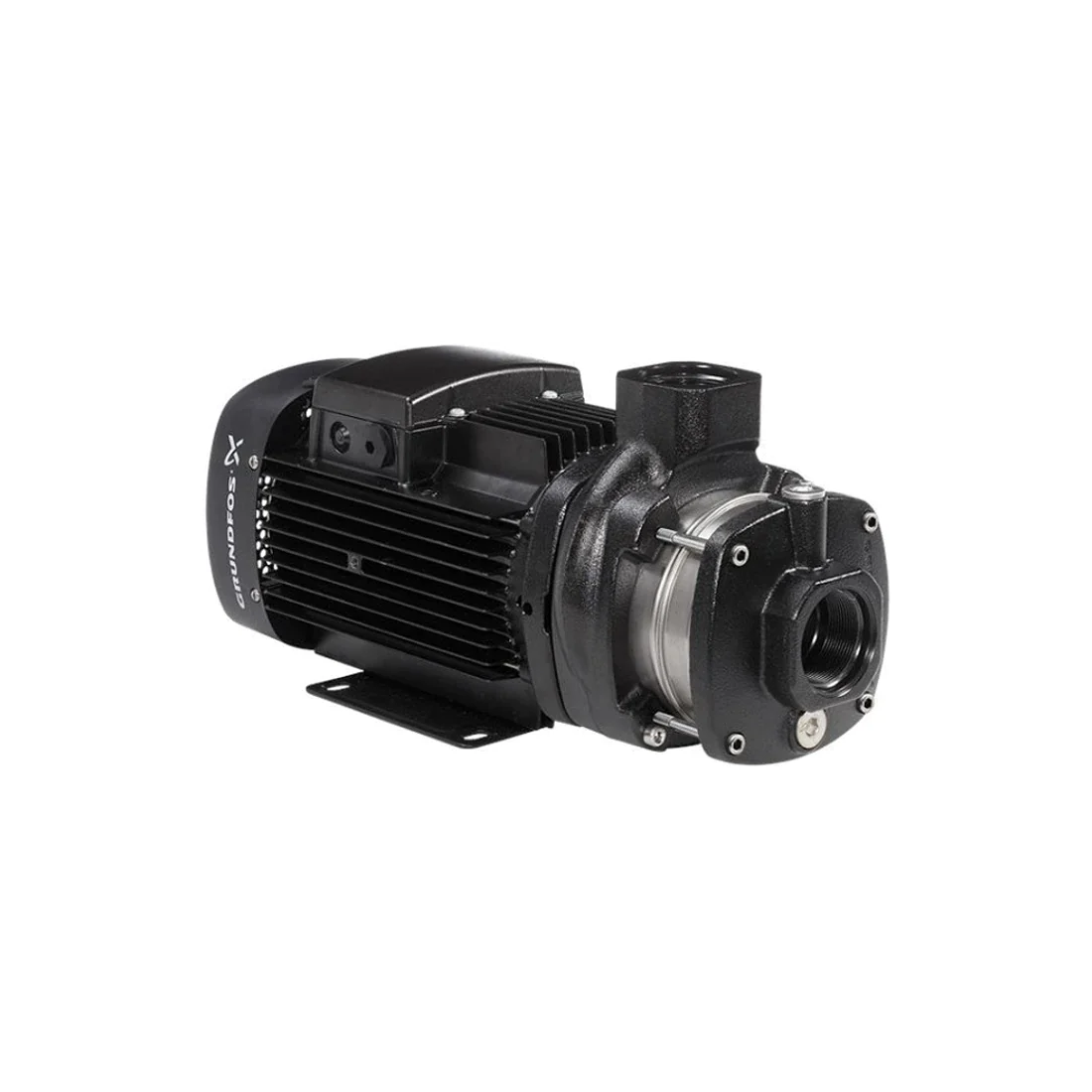

Grundfos Water Pump Horizontal Multistage Centrifugal 3HP 3Phase, CM10-3, 96806946

AED 4,100.00

(Price Includes VAT)

Shop logo

Sold by: nqcart

Free delivery inside Dubai on all orders with no order limit. Pay in 4 interest-free installments for Dubai orders using Tabby.
Cash on delivery payment method icon
Cash on Delivery
7 Days Returnable icon
7 Days Returnable
15+ Years Of Trust icon
15+ Years Of Trust
15+ Branches icon
15+ Branches
Installation Available in Dubai, For More Details WhatsApp Us
1 Year service warranty available , (Warranty Not Covered - Unauthorized repairs or modifications. Improper installation and lack of maintenance. Damage resulting from misuse, abuse, or accidents.)
Warranty seal - Grundfos Water Pump Horizontal Multistage Centrifugal 3HP 3Phase, CM10-3, 96806946 1 Year Warranty Learn More

Brand : Grundfos

Type : Water Pumps

Collections

Description

A reliable, quiet and compact horizontal end-suction pump. The modular pump design makes it easy to make customized solutions. Suitable for Commercial air conditioning, Commercial & Domestic water pressure boosting, District heating, Irrigation, Desalination, Industrial heating, Industrial cleaning process, Industrial & Community water supply.
  • Grundfos 3.0 HP Water Pump
  • End Suction Close Coupled Multistage
  • IP55 rated enclosure.
  • Temperature range: 20 to 90℃
  • Rated Speed: 2910 rpm.
  • Maximum ambient temperature: 55
  • Maximum operating pressure: 10 bar
  • Max pressure at stated temp: 6 bar / 90℃ 10 bar / 40
Specifications
Manufacturer Grundfos
Model CM10-3
Product Name CM 10-3 A-R-A-E-AVBE F-A-A-N
Model ID 96806946
Color Black
Material Cast Iron & Stainless steel
Impellers 3
Inlet size 1½"
Outlet size 1½"
Max Operating pressure 10 Bar
Frequency 50Hz
Phase Single Phase (220-240V)
Enclosure class (IEC 34-5) IP55
Rated power - P2 2.2kW
Rated current 8.30/4.80 A
Rated speed 2880-2910 rpm
Power In Hp 3 HP
Gross weight 35.5 kg
Warranty 1 Year
