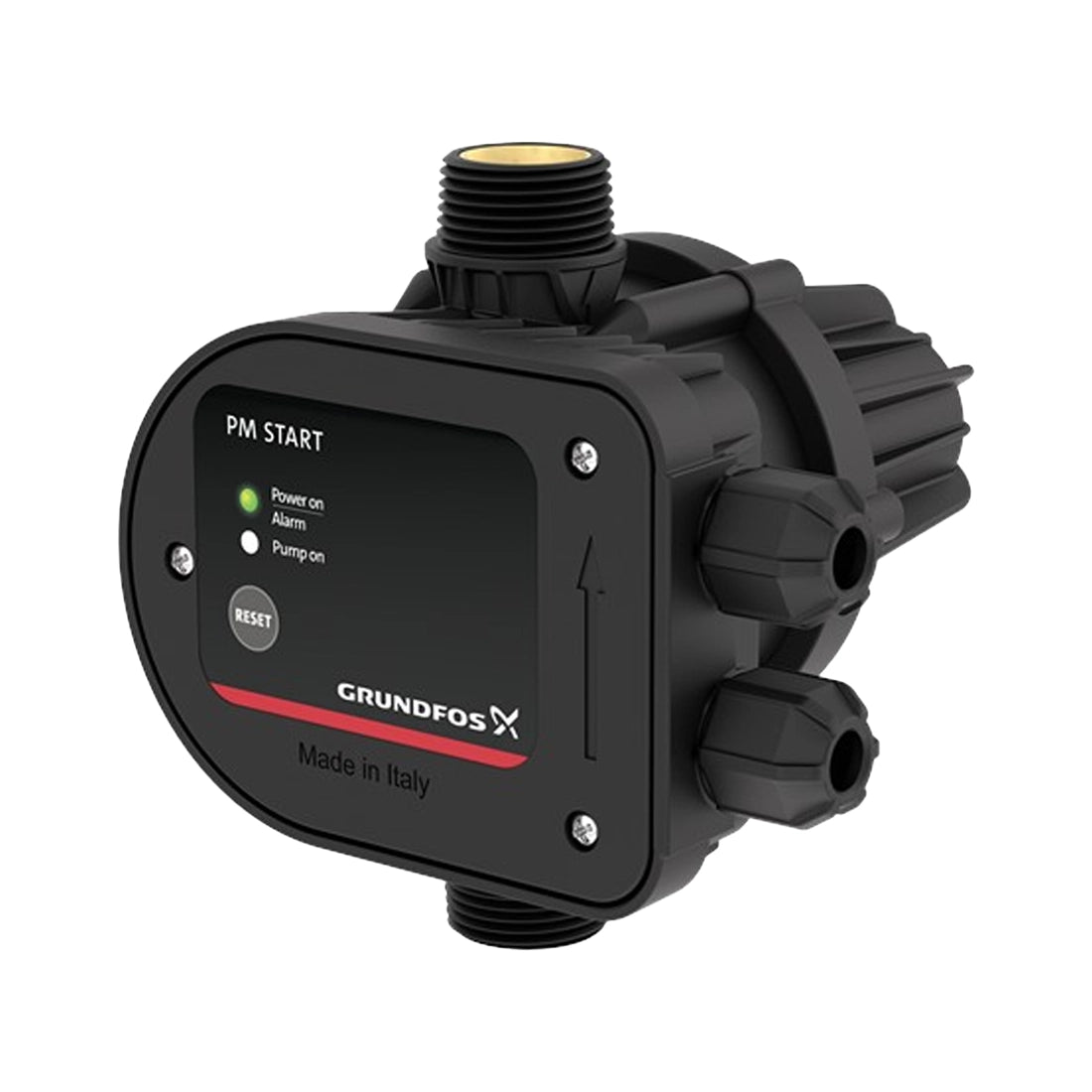

Grundfos Automatic Pressure Control Kit 1.5Bar PM START 92867630
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Grundfos
Type : Automatic Water Pressure Kit
Description
The Grundfos PM START 92867630 is a reliable automatic pressure management device designed to control the start and stop operation of water supply pumps. Suitable for both Grundfos and compatible third-party pumps, it provides a simple and efficient solution for maintaining consistent water pressure in domestic and light commercial water supply systems.

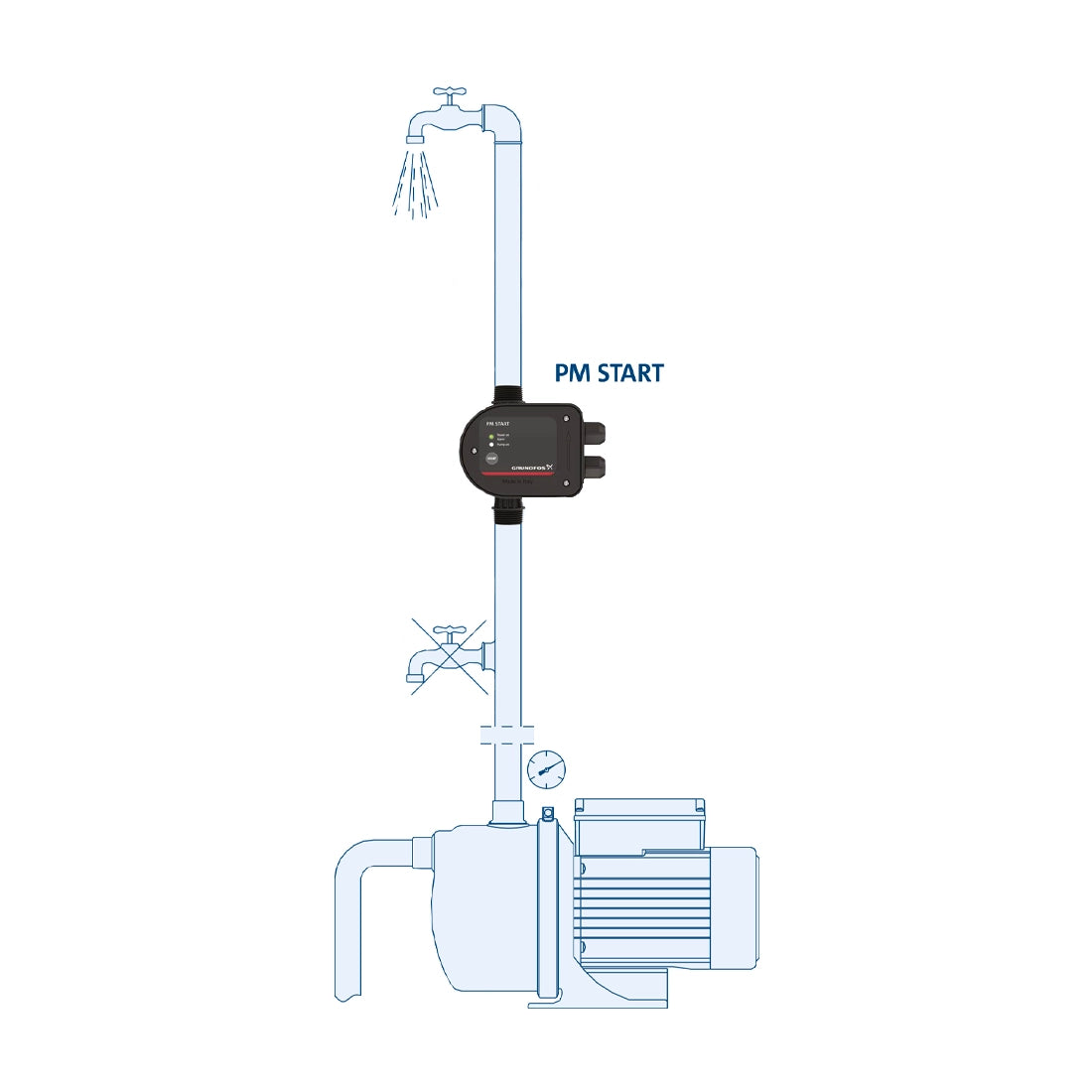

The PM START automatically starts the pump when system pressure drops to 1.5 bar and keeps it running as long as water demand is present. It also offers built-in dry-running protection, safeguarding the pump from damage in case of water shortage. Following a power outage, the unit automatically resumes normal operation once power is restored.
Key Features
- Automatic pump start and stop control
- Fixed start pressure of 1.5 bar
- Integrated dry-running protection
- Automatic restart after power failure
- Built-in non-return valve
- Suitable for Grundfos and other water supply pumps
- Compact and easy-to-install design
- Durable brass valve construction
-
IP65-rated enclosure for enhanced protection
Applications
- Residential water supply systems
- Pressure boosting applications
- Garden irrigation systems
- Small commercial water installations
- Automatic pump control systems
| Brand | Grundfos |
| Product Name | PM START |
| Product Number | 92867630 |
| Application | Automatic Pump Pressure Control |
| Start Pressure | 1.5 Bar |
| Adjustable Start Pressure | No |
| Minimum Flow Rate | 1 m³/h |
| Maximum Operating Pressure | 10 Bar |
| Number of Pumps | 1 |
| Return Valve | Yes |
| Connection Type | G Thread |
| Connection Size | 1 Inch |
| Valve Material | Brass |
| Pumped Liquid | Water |
| Liquid Temperature Range | 0°C to 60°C |
| Ambient Temperature Range | 0°C to 50°C |
| Maximum Input Power (P1) | 1500 W |
| Rated Voltage | 1 × 220–240 V |
| Frequency | 50/60 Hz |
| Rated Current | 10 A |
| Enclosure Protection | IP65 |
| Dry-Running Protection | Pressure Switch |
| Power Plug | No Plug |
| Connector Type | No Plug |
| Approvals | CE, WEEE |
| Net Weight | 0.87 kg |
| Gross Weight | 1.10 kg |
| Shipping Volume | 0.006 m³ |
| Compatible Pump Series | Grundfos CMB, CM, JP |
