Giffex FDD 1.25-250 Female Quick Disconnect, Crimp, PVC Insulated Terminal 100 pcs - Red
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: nqcart
Brand : Giffex
Type : Wire Terminal
Description
- Molded PVC Insulation extends beyond the sleeve to ensure complete insulation between the wire and terminal. Color-coded to easily find the size for your wire gauge.
- These solderless crimp terminals are tin plating for corrosion resistance. No Soldering Crimp installation for quick, dependable connections every time.
- Grooved barrels for maximum wire holding strength and minimizes the likelihood of pullouts. Chamfered or funnel barrel openings for easy wire insertion.
Advantages:
- The insulation of the terminals protects from direct contact with conductive parts and adjoining connections
- Easy and quick mounting
- High quality and reliability
- Long exploitation period
- Variety of options for terminals
Functions:
- Connecting multicore conductors without welding
- Mounting of multicore conductors in terminals
- Thermoregulators, circuit breakers, and other electrical devices
Application:
- Automotive industry
- Mechanical engineering
- Electricity distribution networks
Mounting: By mechanical pressing using crimping pliers via mechanical pressing of the terminal and the cable

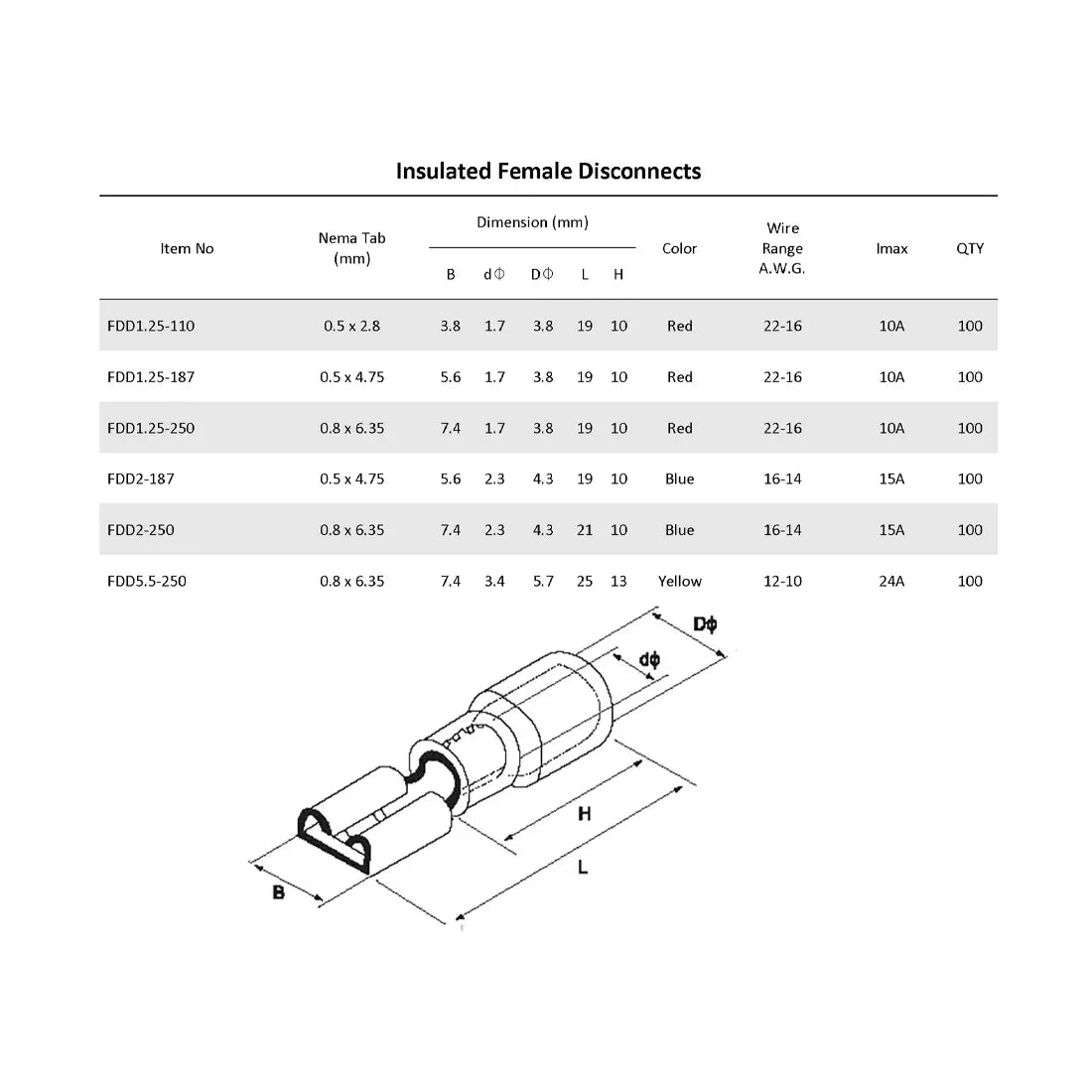

| Brand | Giffex |
| Type | Wire Terminal |
| Model | FDD 1.25-250 |
| Color | Red |
| Qty per pack | 100 pcs |
| PVC Insulated Terminal | Yes |
| Nema Tab (mm) | 0.8 x 6.35 |
| Wire Range A.W.G | 22-16 |
| Imax | 10A |
