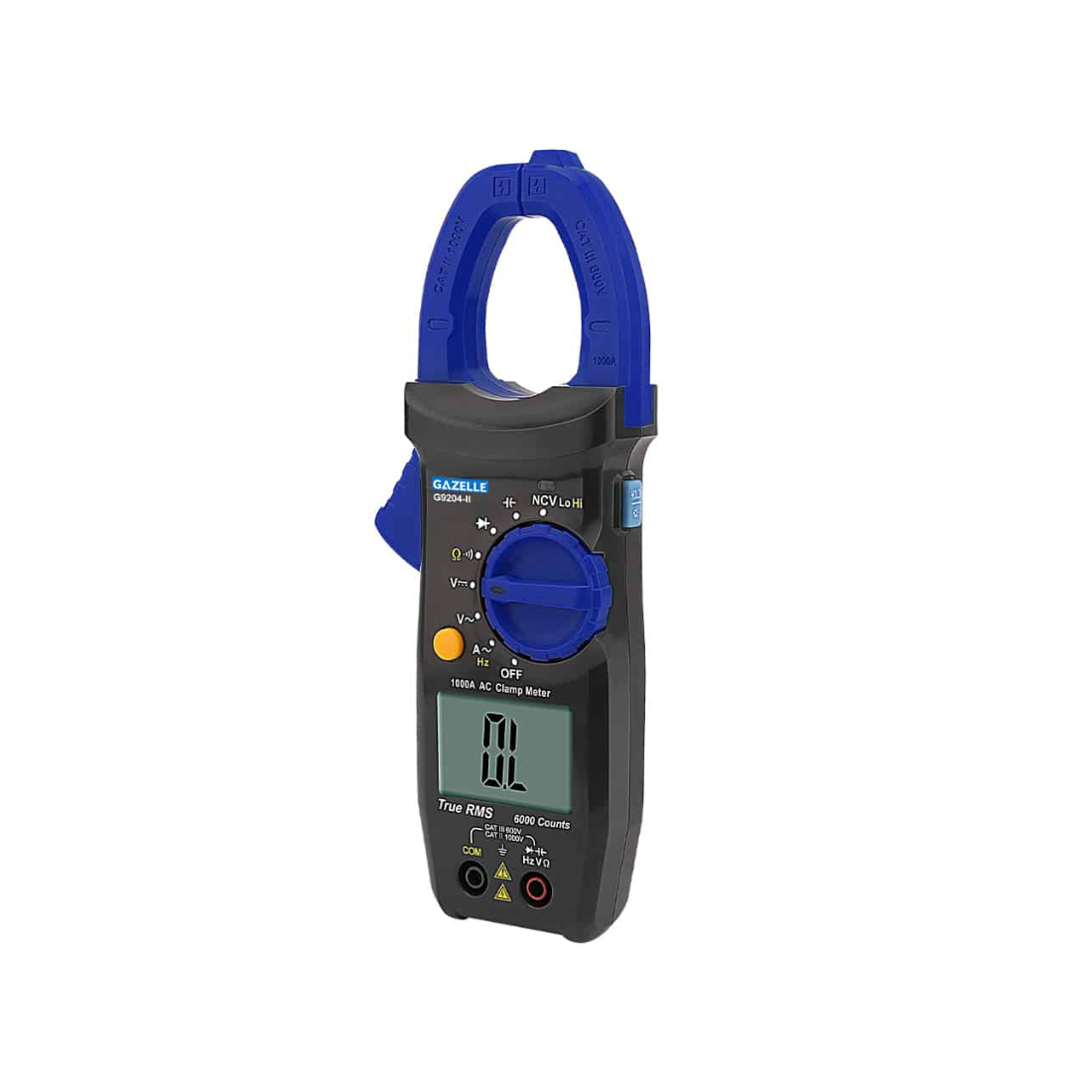

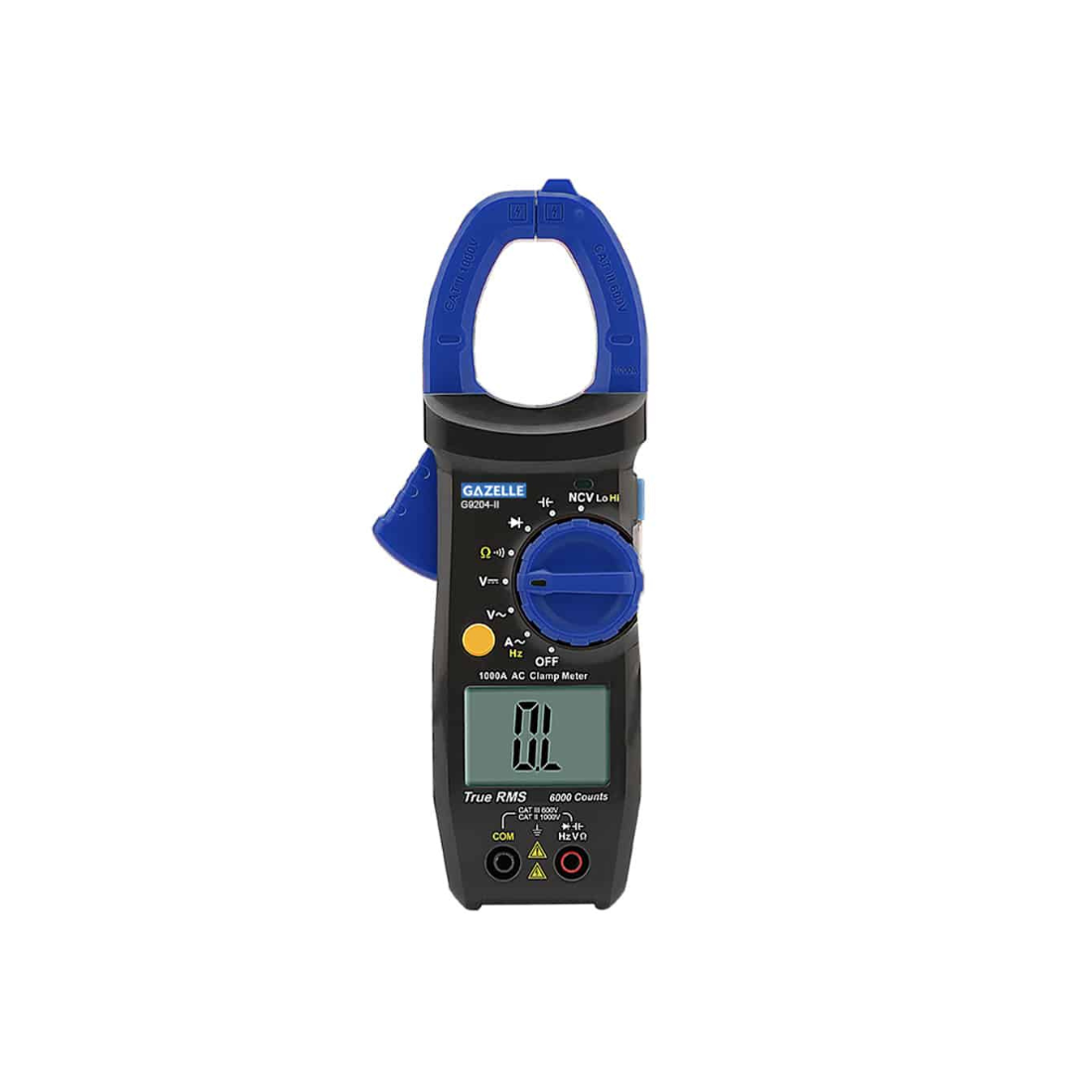

Gazelle True RMS Digital Clamp Meter 1000A G9204-II
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Sold by: Marketplace
Brand : Gazelle
Type : Digital Clamp Meter
Description
Gazelle G9204-II 1000A True RMS Digital Clamp Meter is a good choice for measuring AC current. Dual-mode NCV allows users to detect active voltages without touching a metal surface. The high-frequency response range is suitable for other measurement applications. This meter is CE/UKCA approved and has a CATII 1000V/CATIII 600V safety rating with 1000V overload protection.
Features
- True RMS
- 1000V AC/DC voltage measurement
- 60MΩ resistance measurement
- Large LCD with backlight
- ACA frequency measurement: 20H～10kHz
- 1000V overload protection
- NCV (High/Low dual-mode)
| Brand | Gazelle |
| Type | True RMS Digital Clamp Meter |
| Model | G9204-II |
| Color | Blue |
| AC Current | 1000A |
| AC Voltage | 1000V |
| Jaw Capacity | 33mm |
| Safety Rating | CAT II 1000V, CAT III 600V |
| DC Voltage | 1000V |
| Resistance | 60MΩ |
| Frequency | 20Hz-10khz |
| Capacitance | 6mF |
| Display Count | 6000 |
| Input Impedance for DCV | ≥10MΩ |
