Gazelle Phase Sequence And Motor Rotation Indicator G9303

Gazelle Phase Sequence And Motor Rotation Indicator G9303

Name: Gazelle Phase Sequence And Motor Rotation Indicator G9303
Brand: Gazelle
Price: 556.5 AED
Availability: OutOfStock

AED 556.50

(Price Inclusive of VAT)

Marketplace

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Gazelle

Collections:Gazelle Tools

Type:Phase Rotation Tester

Description

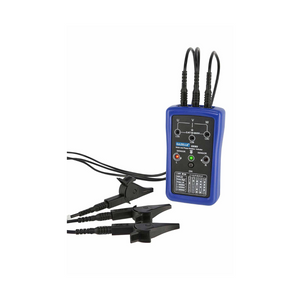

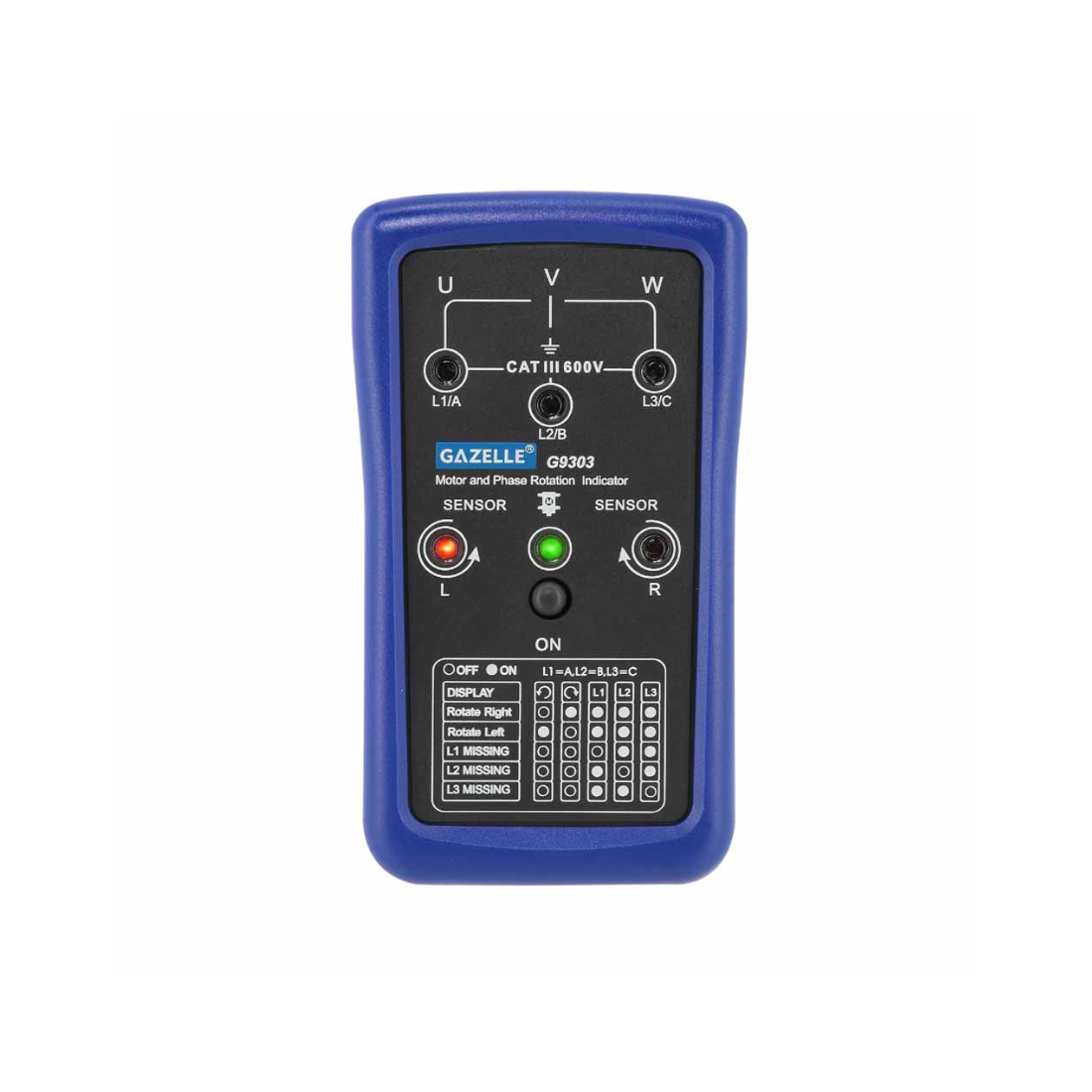

Gazelle G9303 Phase Sequence And Motor Rotation Indicator provides motor rotation and rotating field display using non-contact sensing. Designed for industrial and commercial applications, the G9303 also allows you to measure three-phase rotations using the included test leads for direct connection testing. The included test probes have a variable clamping range for safe direct contact testing. Non-contact detection is ideal for use when the engine is running.

Features

CAT III 600V safety rating with double insulation

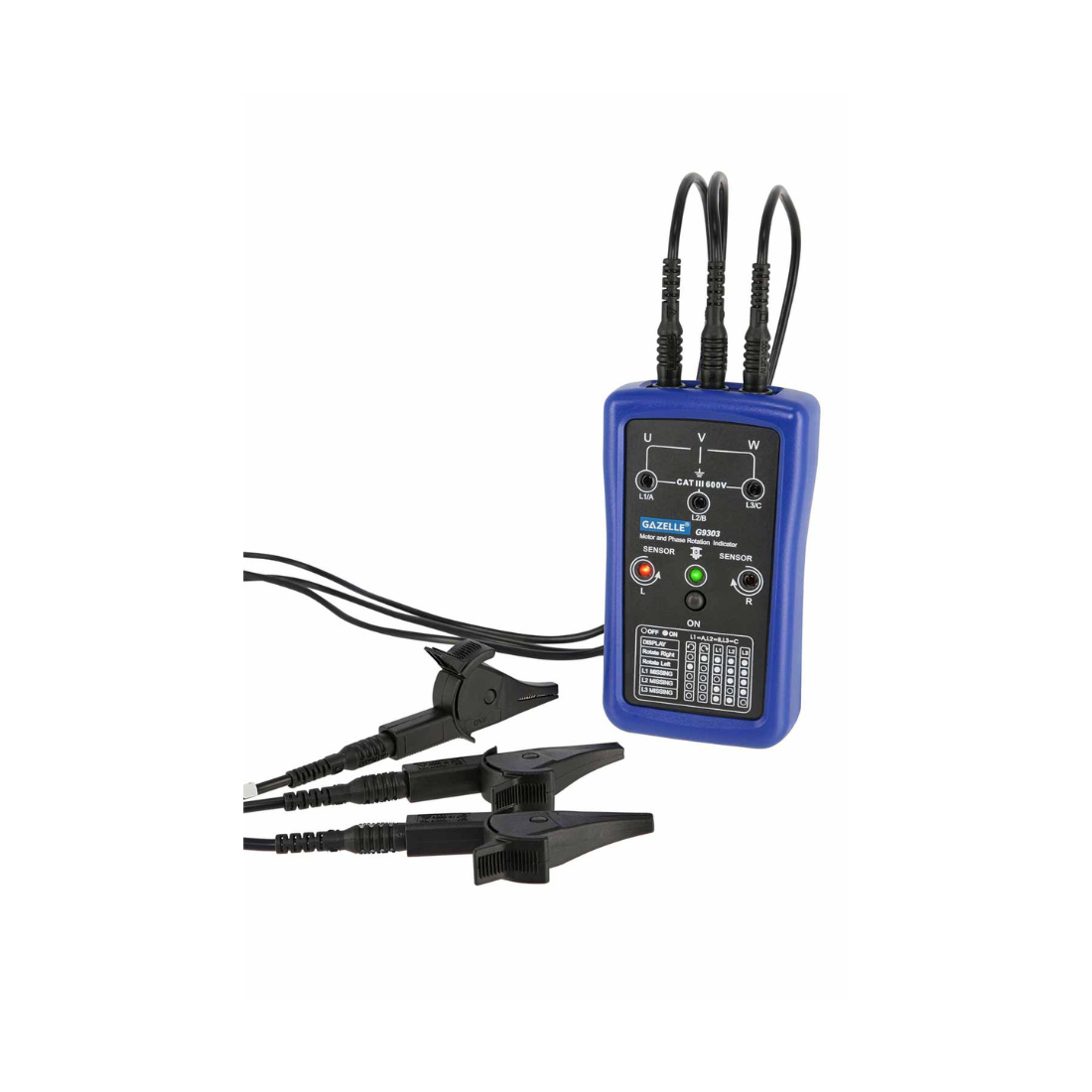

Includes three test leads with an alligator clip for direct-to-cable phase sequence testing

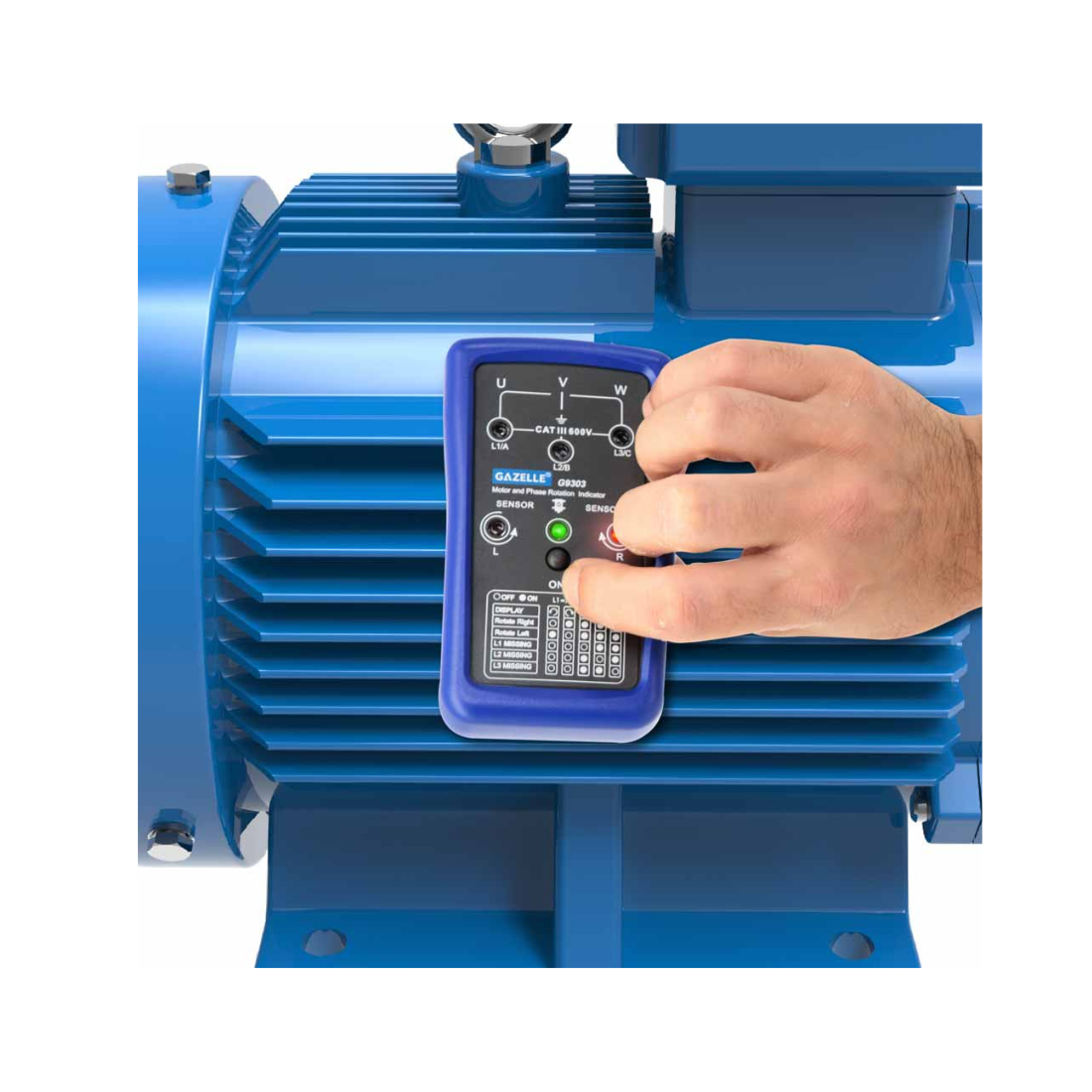

Easy to use contact-less detection ideal for use in running motor
Can give a quick identification of Right rotation or Left Rotation
Double-insulated safety rated and CE-certified product

Specifications

Brand : Gazelle

Type : Phase Rotation Tester

Model : G9303

Color : Blue

AC Voltage : 90V-600V

Frequency (Hz) : 15Hz-400Hz

Working Current (A) : <3mA

Phase Sequence Indication : LED

Missing Phase Indication : LED

Motor Rotation Indication : LED

Power : 9V Battery

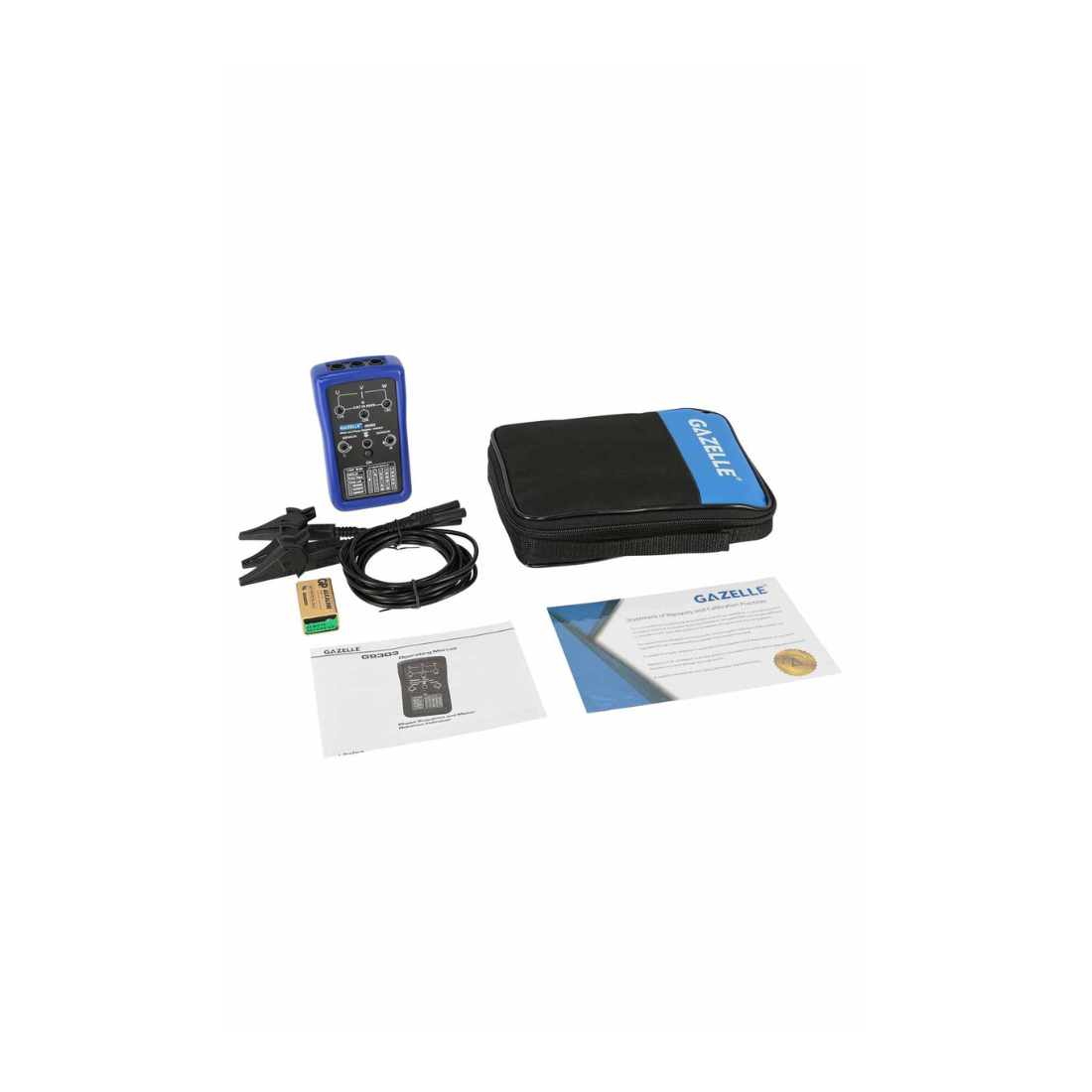

Items Included : Operating Manual, Test Leads - 3pcs, Alligator Clips - 3pcs, Carrying Bag, 9V Battery
