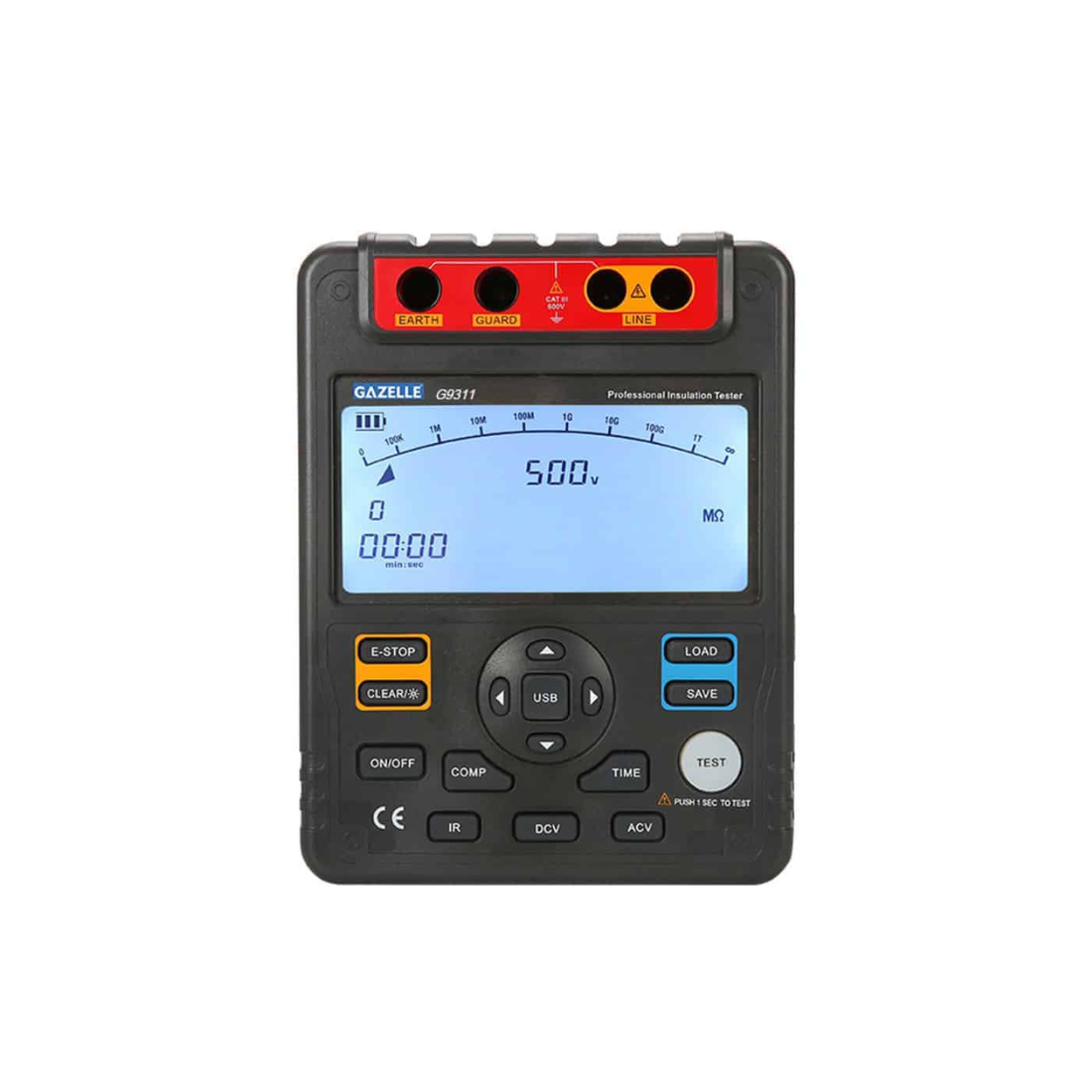

Gazelle Insulation Resistance Tester 5 KV G9311
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Sold by: Marketplace
Brand : Gazelle
Type : Insulation Tester
Description
Gazelle G9311 Insulation Resistance Tester can measure the insulation resistance of large transformers, generators, high voltage motors, and more. It can also measure PI, DAR, and other important specifications. The measured data can then be analyzed using PC software. It can generate test voltages up to 5 kV.
Features
- Large 9999 display with 30-segment analog bar graph
- PI/DAR measurements and continuous measurement mode
- Comparison, upper and lower limit functions with 18-group data storage
- Auto power off, backlight, and low battery & range indications
- Auto current discharge and high-voltage output alarm
- Power adapter, USB interface, and PC software
- Time measurement mode, auto measure within 15 minutes
| Brand | Gazelle |
| Type | Insulation Resistance Tester |
| Model | G9311 |
| Insulation Resistance | 0.1MΩ-1000GΩ |
| Test Voltages | 100V-5kV |
| AC Voltage | 600 V |
| DC Voltage | 600 V |
| Power | 1.5V battery (LR14) x 8 |
| Short-circuit current | >3.0mA |
| Dimensions | 202x155x94mm |
| Weight | 2 kg |

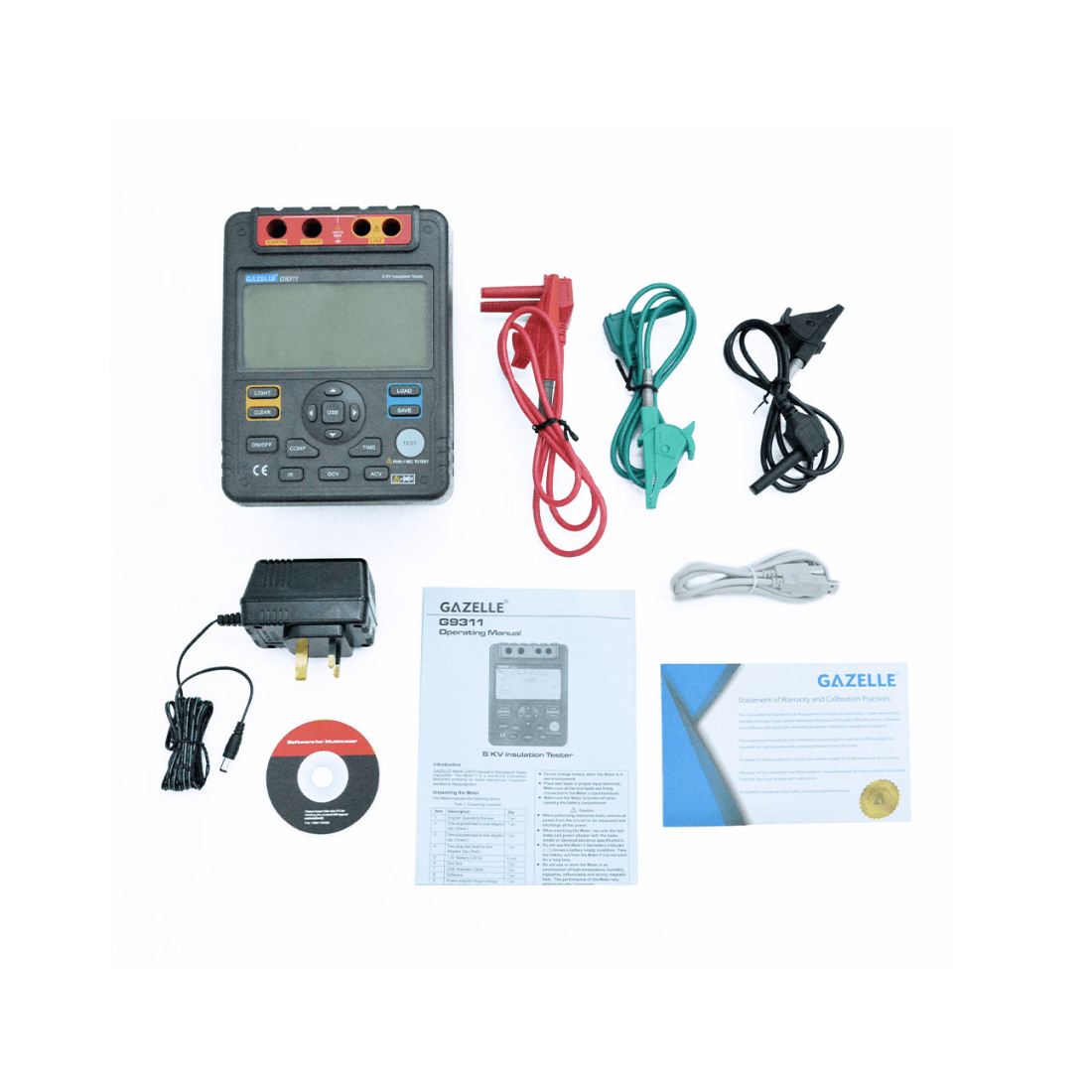

| Items Included | 2 pcs. 1 Plug Test Lead to 1 Alligator Clip, 1 pc. 2 Plugs Test Lead to 1 Alligator Clip, Batteries, USB Cable, PC Software CD, Power Adaptor |
