Gazelle Insulation Resistance Tester 2.5 KV G9310
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Sold by: Marketplace
Brand : Gazelle
Type : Insulation Tester
Description

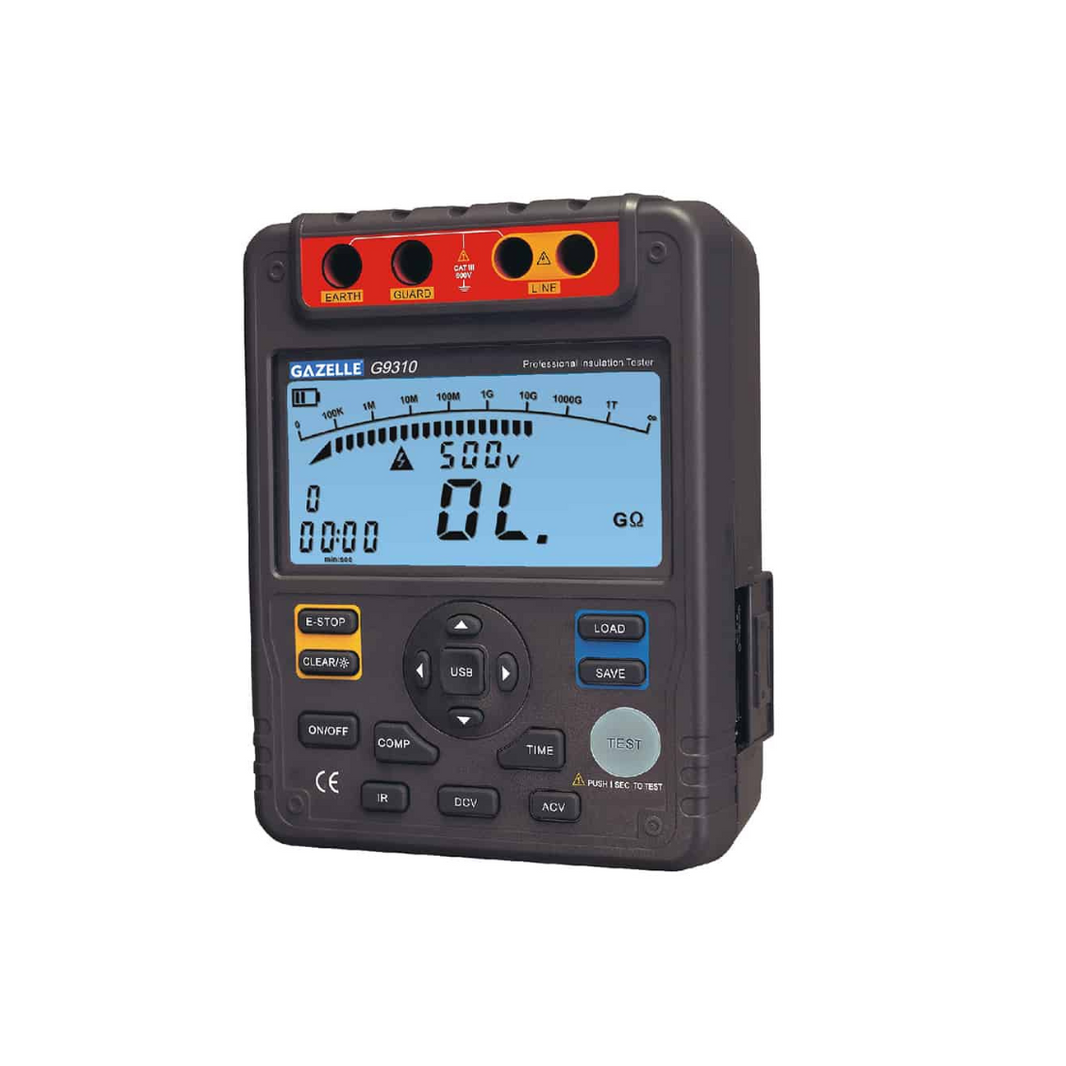

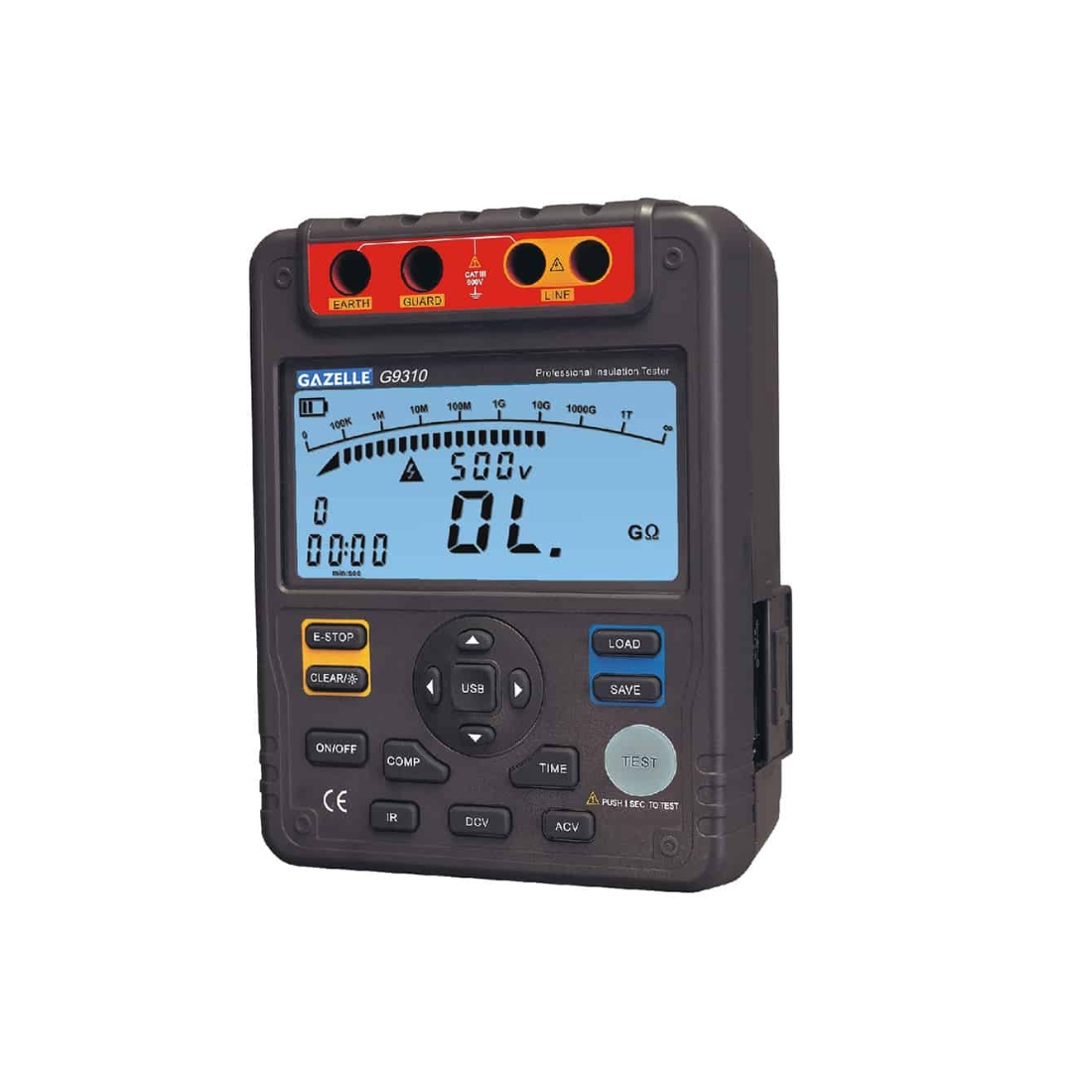

Gazelle G9310 Insulation Resistance Tester is a device used to measure the insulation resistance of electrical systems and components. Insulation resistance is a crucial parameter in electrical systems to ensure the safety and reliability of equipment. 2.5 KV is the maximum test voltage to apply.
Features
- Large 9999 display with 30-segment analog bar graph
- PI/DAR measurements and continuous measurement mode
- Comparison, upper and lower limit functions with 18-group data storage
- Auto power off, backlight, and low battery & range indications
- Auto current discharge and high-voltage output alarm
- Power adapter, USB interface, and PC software
- Time measurement mode, auto measure within 15 minutes
| Brand | Gazelle |
| Type | Insulation Resistance Tester |
| Model | G9310 |
| Insulation Resistance | 0.1 MΩ – 100 GΩ |
| Test Voltages | 100 V – 2.5 kV |
| AC Voltage | 600 V |
| DC Voltage | 600 V |
| Power | 1.5V battery (LR14) x 8 |
| Short-circuit current | <1.8 mA |
| Dimensions | 202 x 155 x 94 mm |
| Weight | 1.8 kg |

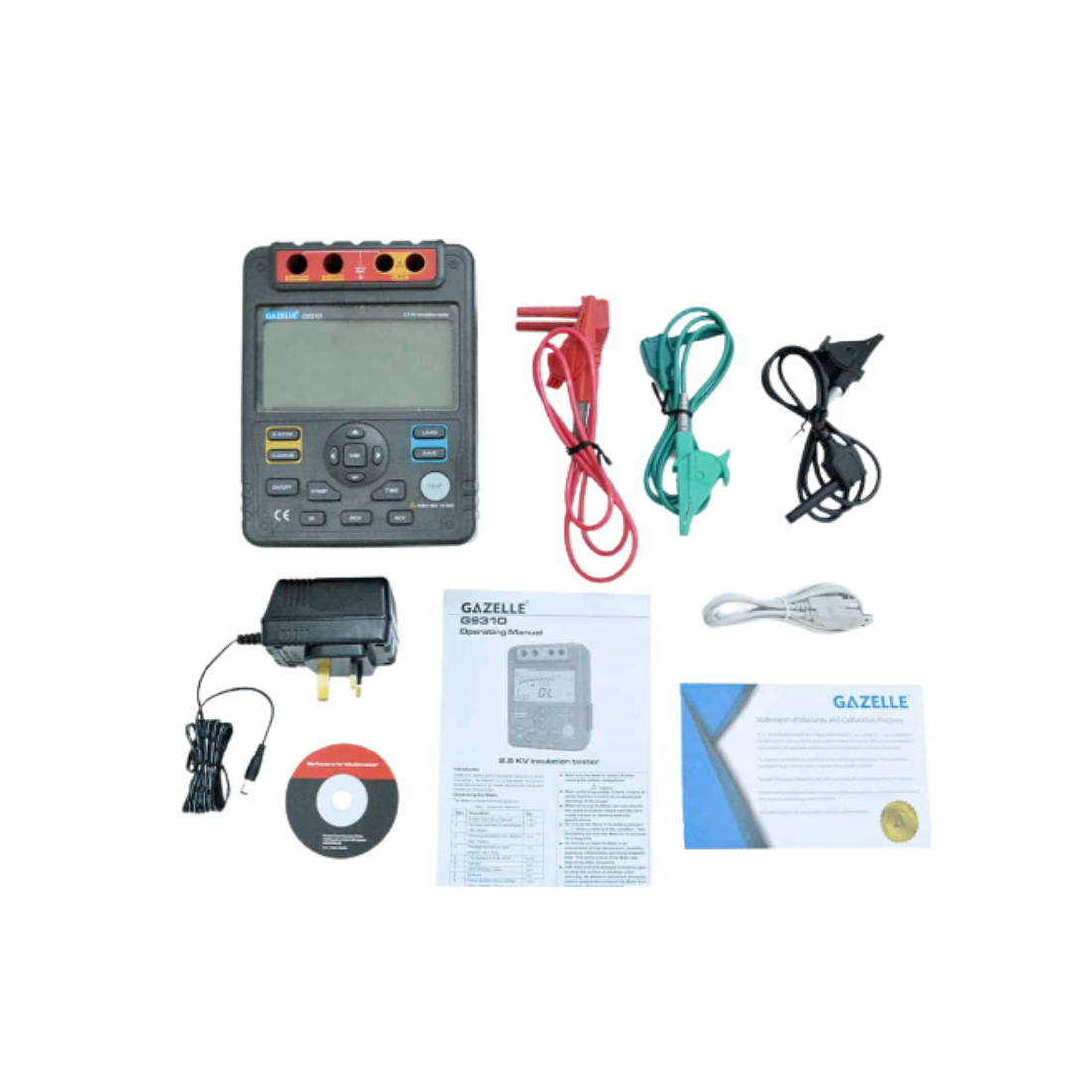

| Items Included | 2 pcs. 1 Plug Test Lead to 1 Alligator Clip, 1 pc. 2 Plugs Test Lead to 1 Alligator Clip, Batteries, USB Cable, PC Software CD, Power Adaptor |
