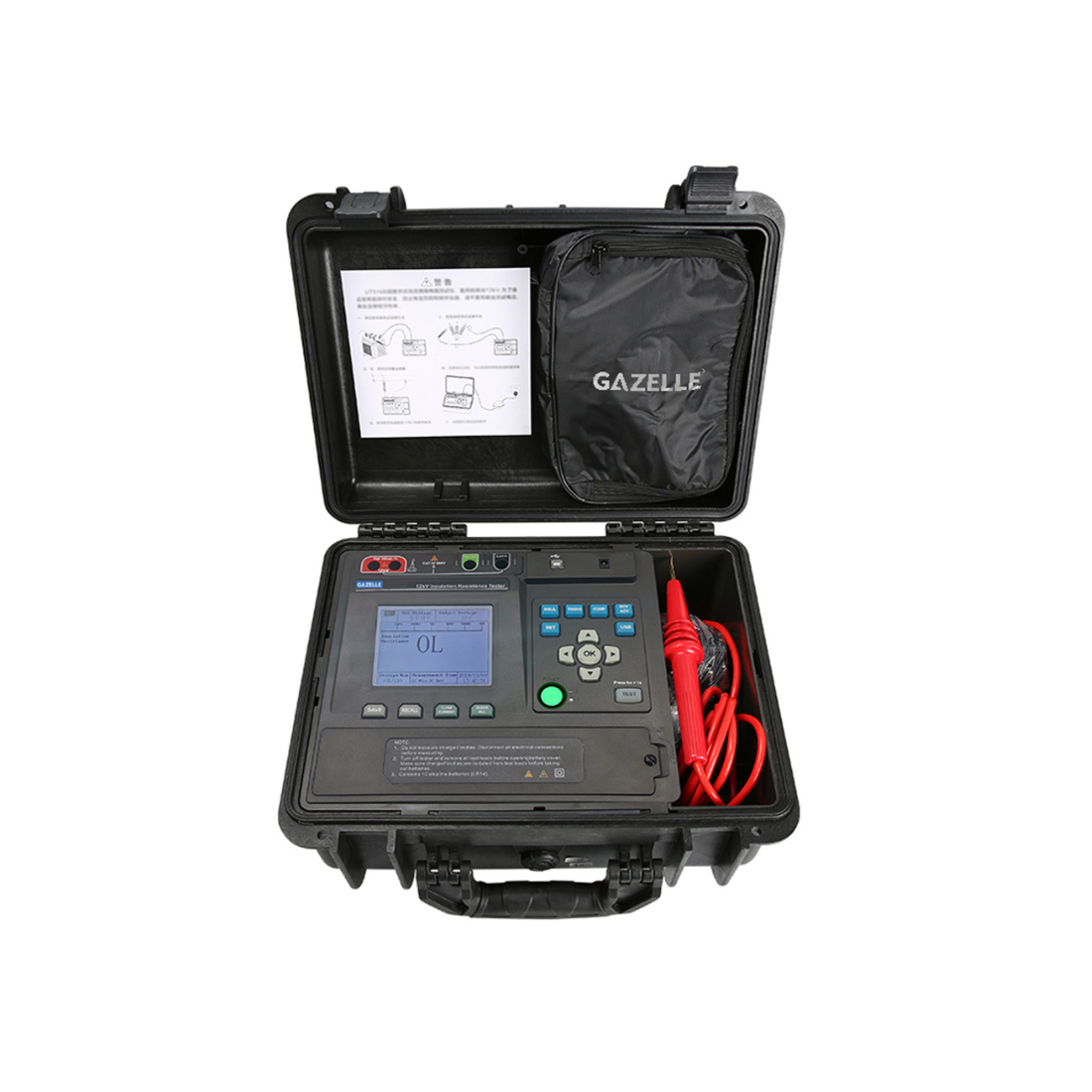

Gazelle Insulation Resistance Tester 12 KV G9312

Gazelle Insulation Resistance Tester 12 KV G9312

Regular price AED 6,562.50
(Price Inclusive of VAT)
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Collections:Gazelle Tools
Type:Insulation Tester

    Gazelle G9312 Insulation Resistance Tester is a high voltage digital insulation resistance tester with 6 ranges: 500V, 1000V, 2500V, 5000V, 10000V, and 12000V. Fine adjustment of the voltage is possible. with 10% increments in each range (except 12000 V). Test data can be saved in the tester's memory and transferred to a PC via the special USB cable, or transferred to a PC in real time. The high-performance and easy-operation tester is widely used in the measurement and maintenance of power devices and power circuits.

    • Large 9999 display with 30-segment analog bar graph
    • PI/DAR measurements
    • Comparison, upper and lower limit functions
    • Continuous measurement mode
    • Auto power off and auto current discharge
    • USB interface and PC software with 18-group data storage
    • Low battery and over-range indications

    Brand : Gazelle

    Type : Insulation Resistance Tester

    Model : G9311

    Insulation Resistance : 0.5MΩ-10TΩ

    Test Voltages : 500V-12kV

    AC Voltage : 30-750V

    DC Voltage : 30 - 1000 V

    Power : 1.5V alkaline batteries (LR14) X 10

    Dimensions : 410x342x204mm

    Weight : 6.6kg

    Items Included : User Manual, Test Leads, USB Cable, Power Adaptor, 1.5V Batteries
