Gazelle Digital Multimeter Palm Size 10A G9101
(Price Includes VAT)
Sold by: Marketplace
Brand : Gazelle
Type : Digital Multimeter
Description

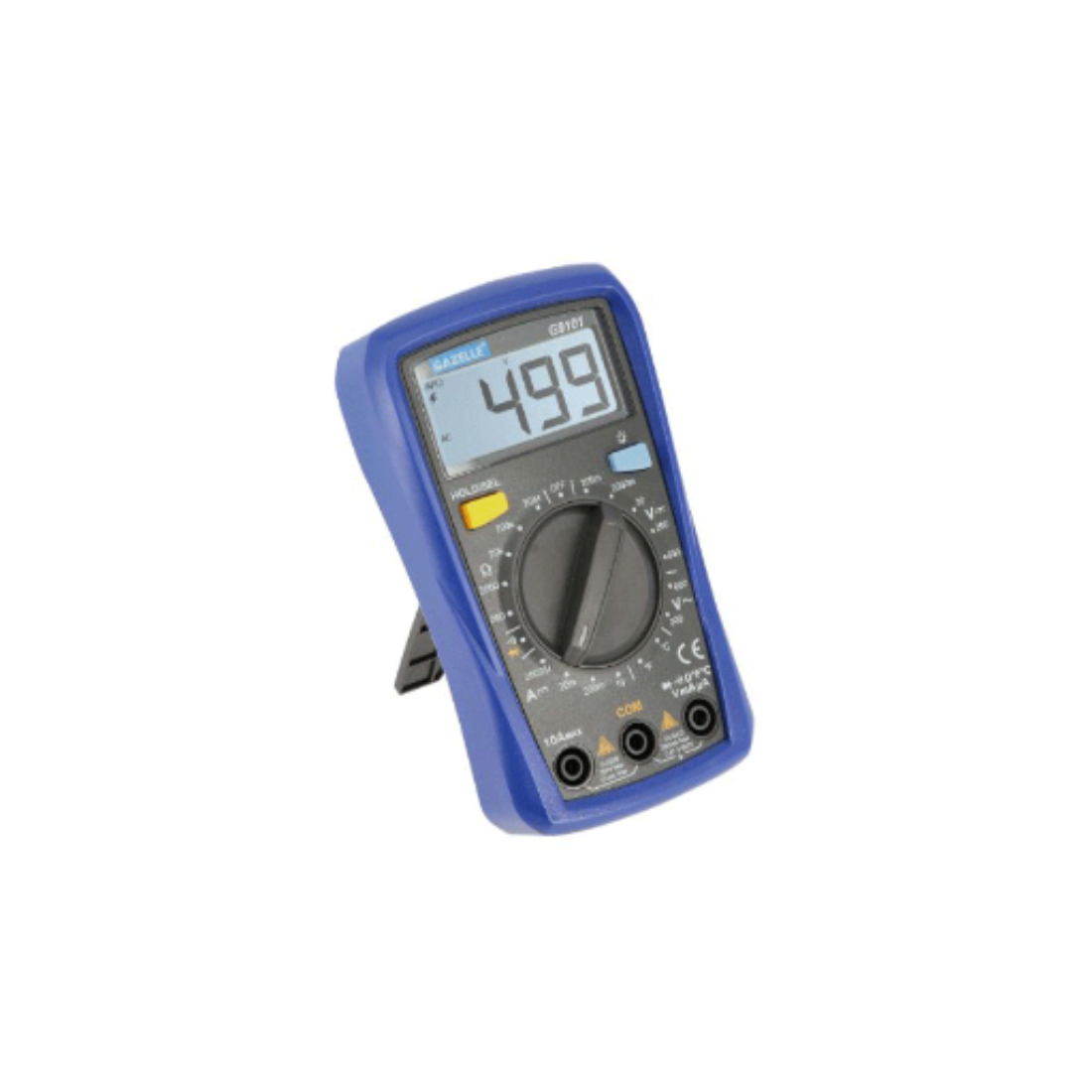

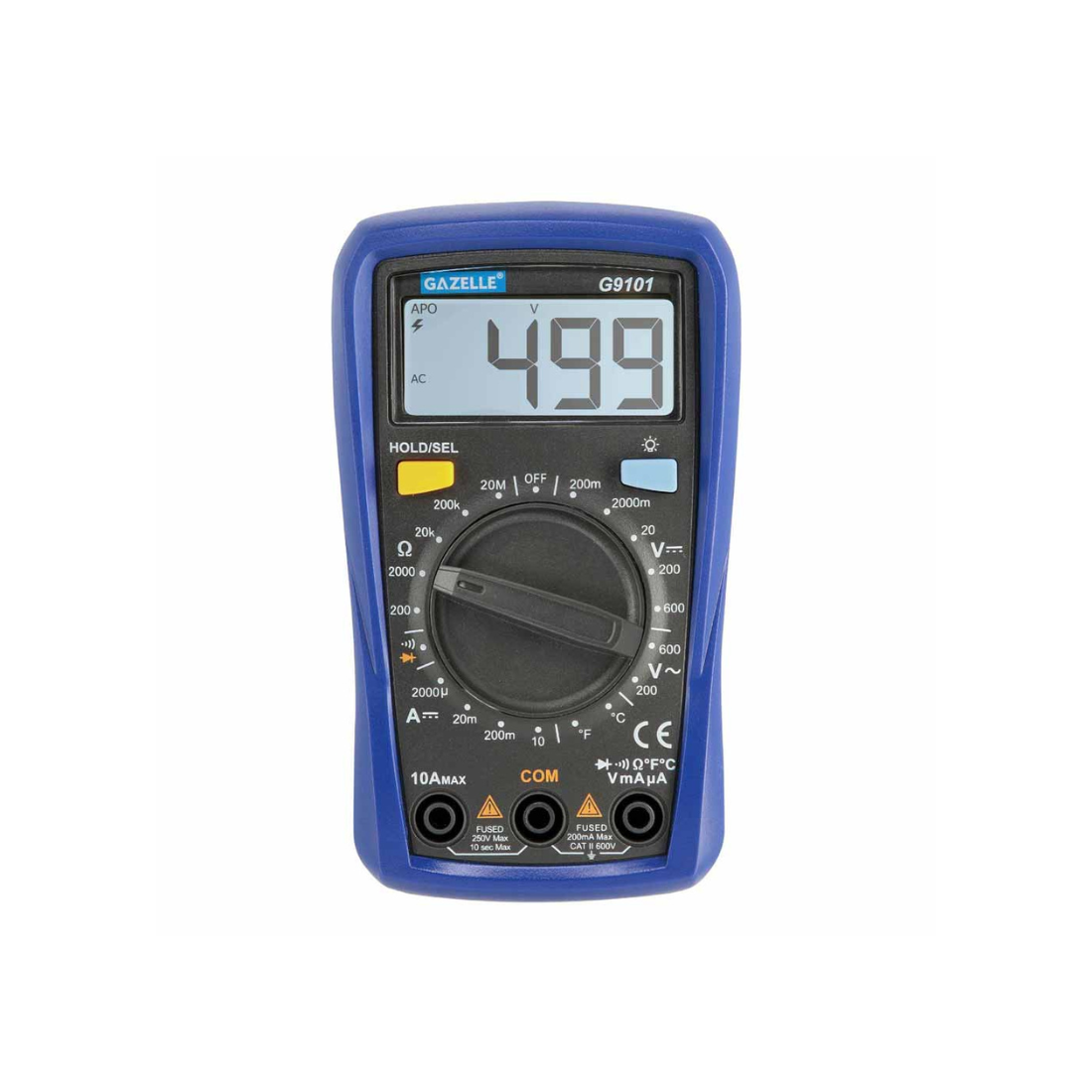

Gazelle G9101 Palm Size Digital Multimeter is a compact and portable electronic device used to measure various electrical parameters in circuits. It can measure currents up to 10 amps. A digital multimeter typically offers a variety of functions including voltage measurement, current measurement, resistance measurement, and sometimes additional functions such as continuity testing, diode testing, and capacitance measurement.

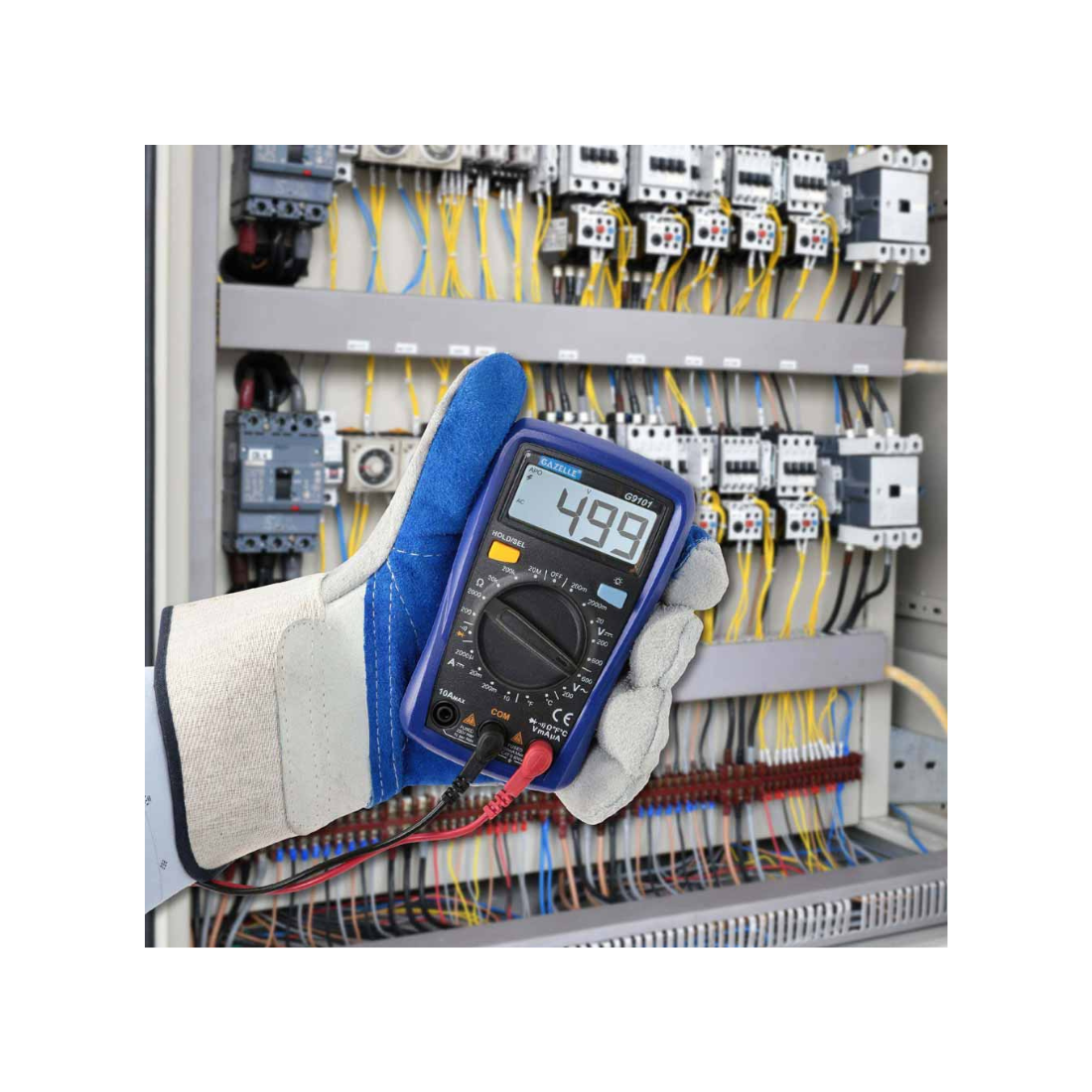

Gazelle G9101 Palm Size Digital Multimeter is suitable for a variety of applications including testing electronic circuits, troubleshooting electrical problems, and checking component functionality.
Features
- Best entry-level DMM with wide capability VDC, VAC, Ohms, Continuity, Diode, Temp, Current DC
- Big LCD display with bright white backlight for clear view of measurement
- CAT II 600V safety rating
- With a rubber holster extra protection
- Auto-off feature switches the device off during inactivity.
| Brand | Gazelle |
| Type | Palm Size Digital Multimeter |
| Model | G9101 |
| Color | Blue |
| DC Voltage | 200mV-600V |
| AC Voltage | 200V-600V |
| DC Current | 2000μA-10A |
| Resistance | 200Ω-20MΩ |
| Temperature | -40 to 1000°C (-40 to 1832°F) |
| Dimensions | 134x76.5x47mm |
| Input Impedance | ≥10MΩ |
| Sample Rate | 3 times/S |

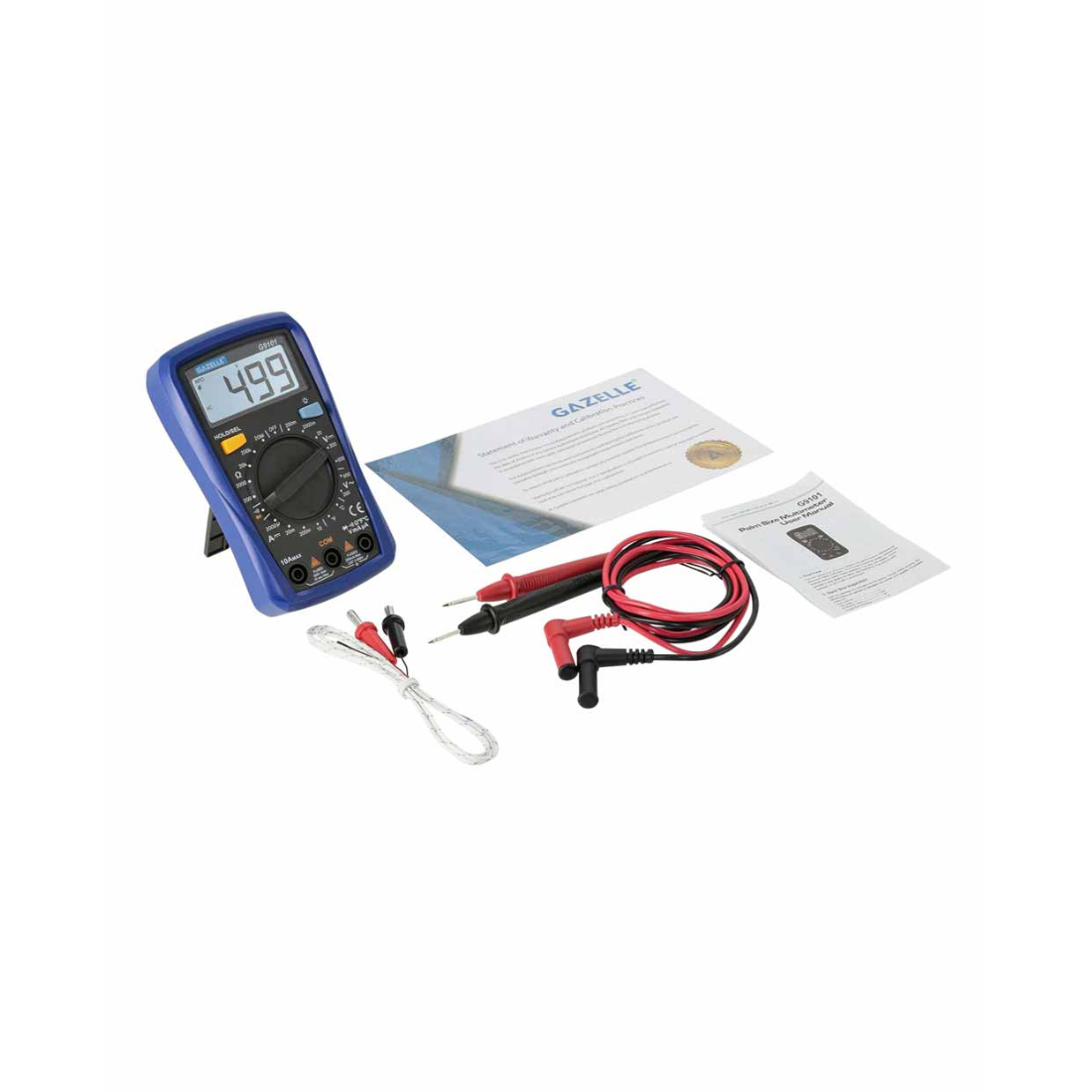

| Items Included | User Manual, Test Lead, K-Type Thermocouple |
