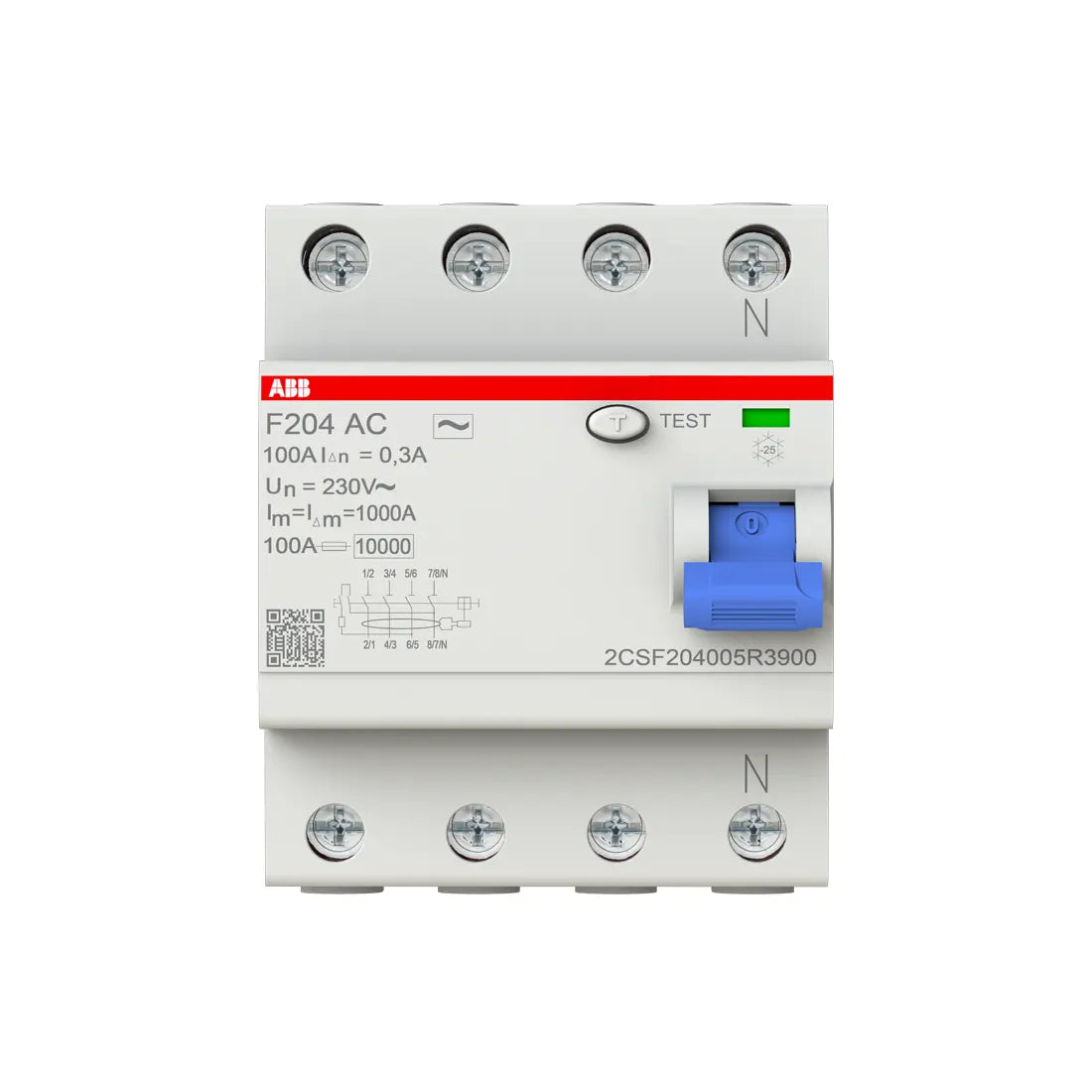

ABB Residual Current Circuit Breaker 2CSF204005R3900 100A 4P 300mA F204 AC-100/0.3 IEC
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Circuit Breaker
Description
The ABB Residual Current Circuit Breaker 2CSF204005R3900 (F200 Series, 100A, 4P, 300mA, Type F204 AC-100/0.3 IEC) ensures reliable protection for people and electrical installations against earth fault currents. Built to IEC 61008 standards, it features high endurance (10,000 electrical and 20,000 mechanical cycles), a compact 4-module design, and DIN-rail mounting for easy installation. With a rated voltage of 230/400V AC, short-circuit capacity of 10kA, and operating temperature range from –25°C to +55°C, it guarantees performance in demanding environments. The device is EcoSolutions certified, offering 52.5% recyclability and sustainable packaging made from 78% recycled paper, while maintaining compliance with CE, RoHS, and REACH standards—making it a safe, durable, and eco-friendly choice for residential, commercial, and industrial applications.
| Brand | ABB |
| Series | F200 |
| Model | F204 AC-100/0.3 IEC |
| Product ID | 2CSF204005R3900 |
| Product Type | Residual Current Circuit Breaker (RCCB) |
| Width | 70 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Weight | 380 g |
| Rated Current | 100 A |
| Poles | 4P |
| Residual Current (IΔn) | 300 mA, Type AC |
| Rated Voltage | 230/400 V AC |
| Short-Circuit Capacity | 10 kA |
| Frequency | 50/60 Hz |
| Endurance | 10,000 electrical / 20,000 mechanical cycles |
| Mounting | DIN rail, any position |
| Protection Degree | IP20 (terminals) / IP40 (housing) |
| Operating Temperature | –25°C to +55°C |
| Compliance | IEC 61008, CE, RoHS, REACH |
