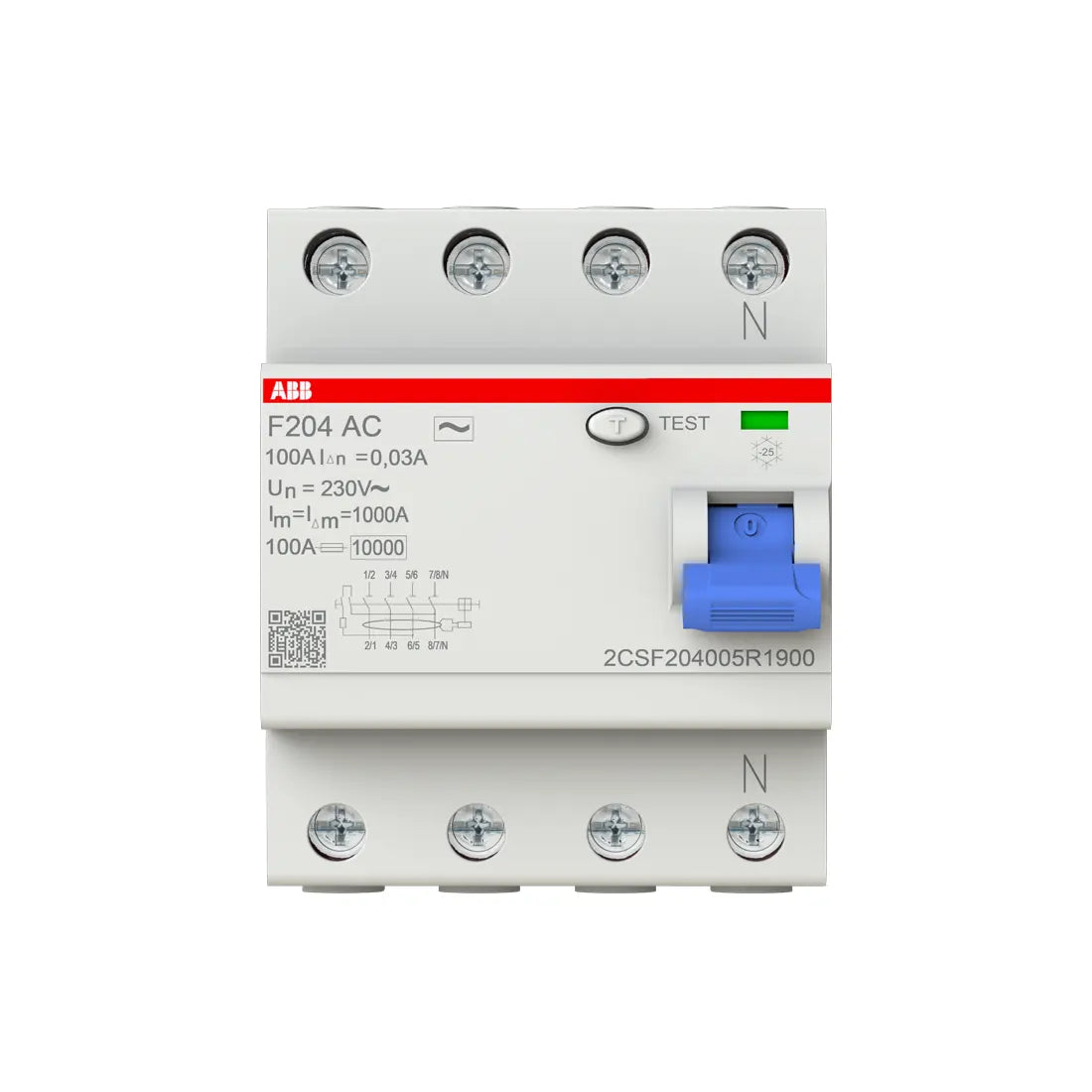

ABB Residual Current Circuit Breaker 2CSF204005R1900 100A 4P 30mA F204 AC-100/0.03 IEC
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Circuit Breaker
Description
The ABB Residual Current Circuit Breaker 2CSF204005R1900 (F200 Series, 100A, 4P, 30mA, Type F204 AC-100/0.03 IEC) provides reliable protection for people and electrical installations against earth fault currents. Built to IEC 61008 standards, it features a rated voltage of 230/400V AC, a conditional short-circuit capacity of 10kA, and endurance of 10,000 electrical and 20,000 mechanical cycles. With a compact 4-module design (70 × 85 × 69 mm), screw terminals, and DIN-rail mounting, it ensures easy installation and dependable performance. Operating between –25°C and +55°C with protection levels of IP20 (terminals) and IP40 (housing), this RCCB is engineered for safety and durability. Certified under CE, RoHS, and REACH, and part of ABB EcoSolutions with 52.5% recyclability and 78% recycled packaging, it delivers both high safety and environmental responsibility for residential, commercial, and industrial applications.
| Brand | ABB |
| Series | F200 |
| Model | F204 AC-100/0.03 IEC |
| Product ID | 2CSF204005R1900 |
| Product Type | Residual Current Circuit Breaker (RCCB) |
| Width | 70 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 380 g |
| Rated Current | 100 A |
| Poles | 4P |
| Residual Current | 30 mA (Type AC) |
| Rated Voltage | 230/400 V AC |
| Short-Circuit Capacity | 10 kA |
| Frequency | 50/60 Hz |
| Endurance | 10,000 electrical / 20,000 mechanical cycles |
| Mounting | DIN rail, any position |
| Protection Degree | IP20 (terminals) / IP40 (housing) |
| Operating Temperature | –25°C to +55°C |
| Compliance | IEC 61008, CE, RoHS, REACH |
| EcoSolutions Certified | 52.5% recyclable, 78% recycled packaging |
