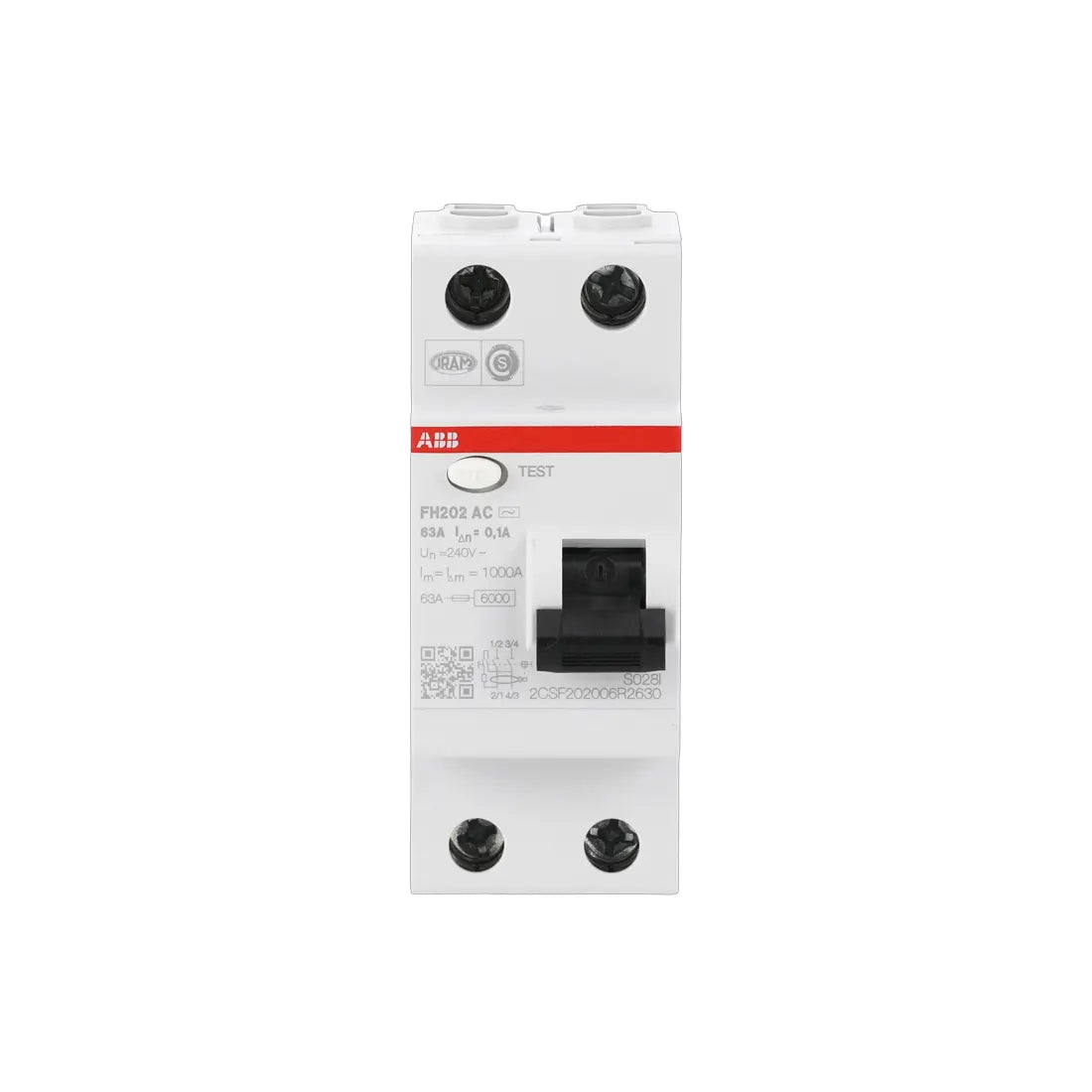

ABB Residual Current Circuit Breaker 2CSF202006R2630 63A 2P 100mA FH202 AC-63/0.1
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Circuit Breaker
Description
The ABB Residual Current Circuit Breaker 2CSF202006R2630 FH202 AC-63/0.1 (63A, 2P, 100mA) from the FH200 series provides reliable protection for people and installations against earth fault currents, making it ideal for domestic applications. Designed with instantaneous AC protection, it offers robust performance with 10,000 electrical and 20,000 mechanical endurance cycles, a rated operational voltage of 230V, insulation voltage of 500V, impulse withstand voltage of 4kV, and a conditional short-circuit current of 6kA. Built for convenience and safety, it features IP2X protection, compact DIN-rail mounting, and a lightweight design of 200 g with dimensions of 35 x 85 x 69 mm. As part of ABB’s EcoSolutions initiative, the device ensures sustainability with a recyclability rate of 72.33%, zero non-hazardous waste to landfill, and packaging made with up to 78% recycled cardboard, all while being fully compliant with IEC 61008, RoHS, and REACH standards.
| Brand | ABB |
| Series | F200 |
| Model | FH202 AC-63/0.1 |
| Product ID | 2CSF202006R2630 |
| Product Type | Residual Current Circuit Breaker (RCCB) |
| Width | 35 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 200 g |
| Built-in Depth (t2) | 69 mm |
| Rated Current (In) | 63 A |
| Number of Poles | 2P |
| Rated Residual Current (IΔn) | 100 mA |
| Rated Operational Voltage (Ue) | 230 V |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Conditional Short-Circuit Current (Inc) | 6 kA |
| Frequency | 50 Hz |
| Electrical Endurance | 10,000 cycles |
| Mechanical Endurance | 20,000 cycles |
| Operating Characteristic | Instantaneous (Type AC) |
| Number of Modules | 2 |
| Position of Neutral Terminals | Right |
| Rated Cross-Section | Multi-wired 10…25 mm² / Solid-core 25 mm² |
| Power Loss | 3.2 W per pole |
| Mounting | DIN Rail |
| Degree of Protection | IP2X |
| Ambient Temperature | Operation -5…+40 °C / Storage -40…+70 °C |
| Standards & Compliance | IEC 61008, RoHS, REACH, CE |
