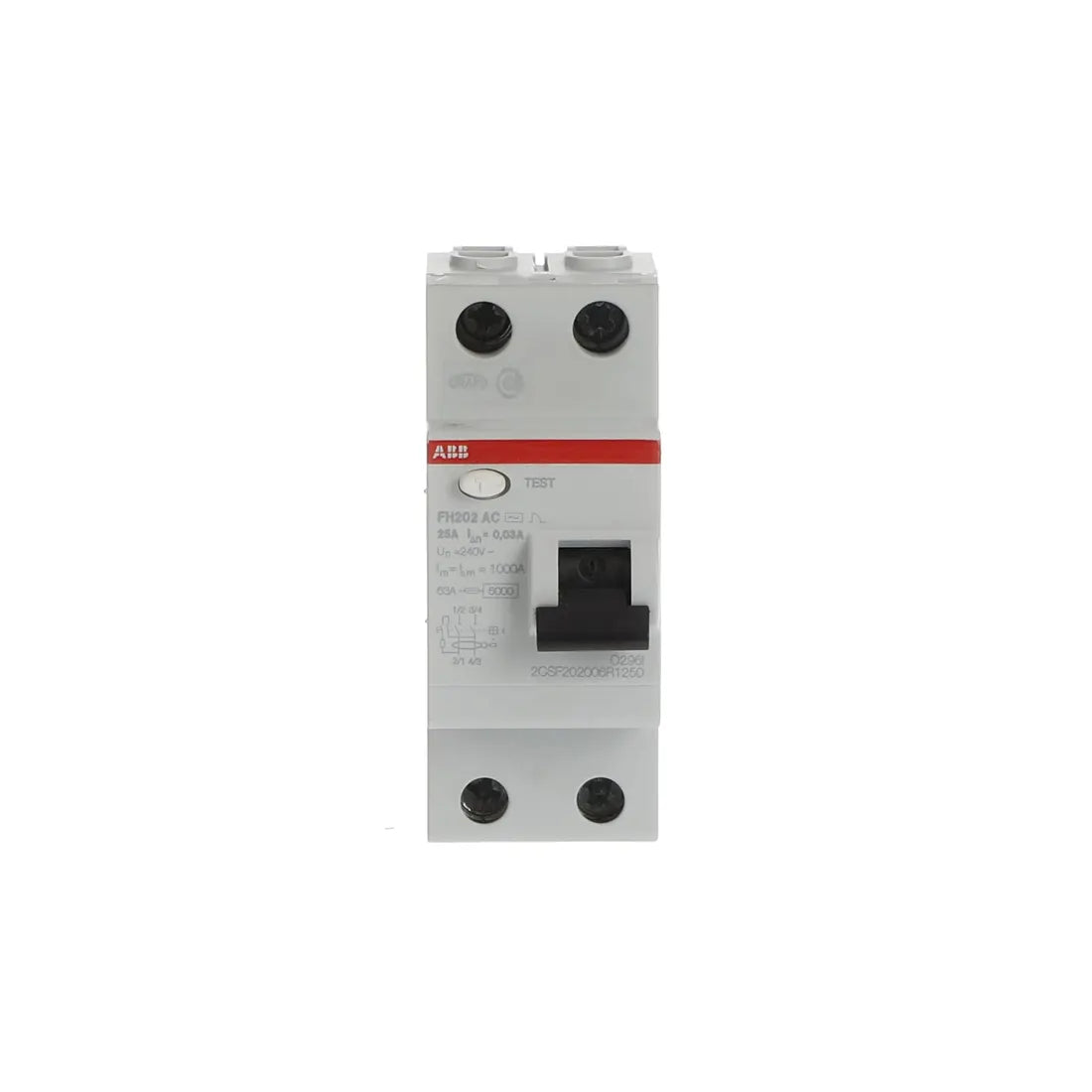

ABB Residual Current Circuit Breaker 2CSF202006R1250 25A 2P 30mA FH202 AC-25/0.03
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Circuit Breaker
Description
The ABB Residual Current Circuit Breaker 2CSF202006R1250 (FH200 Series, 25A, 2P, 30mA, FH202 AC-25/0.03) provides reliable protection for people and domestic electrical installations against earth fault currents. Designed according to IEC 61008 standards, it features a rated voltage of 230V, a conditional short-circuit current of 6kA, and endurance of 10,000 electrical and 20,000 mechanical cycles. Its compact 2-module design (35 × 85 × 69 mm) with DIN-rail mounting ensures easy installation in homes. Part of ABB EcoSolutions, it offers 72.33% recyclability, durable construction, and environmentally responsible packaging, delivering high safety, efficiency, and eco-friendliness for residential applications requiring standard instantaneous AC protection.
| Brand | ABB |
| Series | F200 |
| Model | FH202 AC-25/0.03 |
| Product ID | 2CSF202006R1250 |
| Product Type | Residual Current Circuit Breaker (RCCB) |
| Width | 35 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 200 g |
| Rated Current | 25 A |
| Poles | 2P |
| Residual Current | 30 mA (Type AC) |
| Rated Voltage | 230 V |
| Short-Circuit Capacity | 6 kA |
| Frequency | 50 Hz |
| Endurance | 10,000 electrical / 20,000 mechanical cycles |
| Mounting | DIN rail |
| Protection Degree | IP2X |
| Operating Temperature | –5°C to +40°C |
| Compliance | IEC 61008, CE, RoHS, REACH |
| EcoSolutions Certified | 72.33% recyclable |
