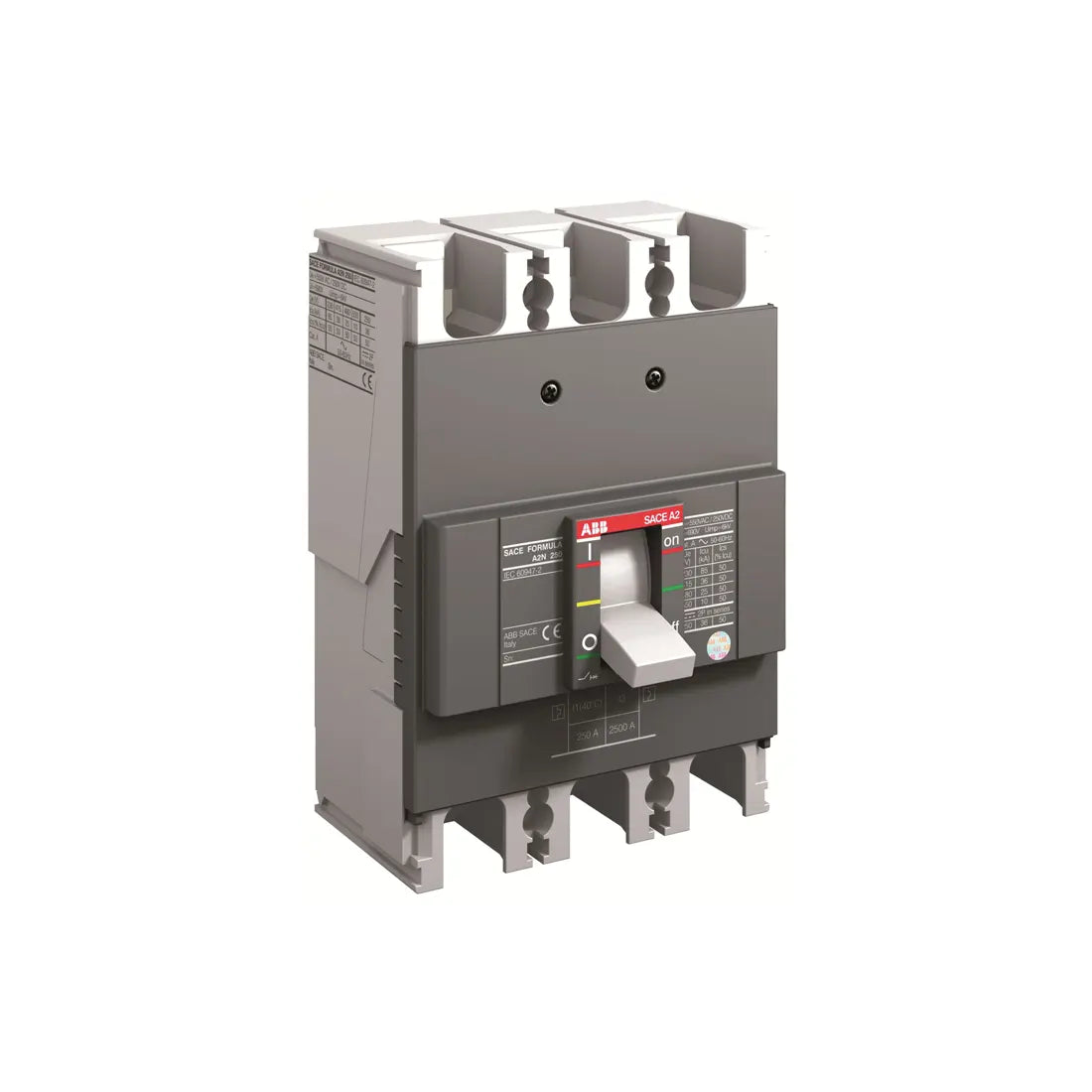

ABB Moulded Case Circuit Breaker 1SDA066778R1 200A 3P A2C 250 TMF 200-2000 3p F F
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Automatic Circuit Breaker
Description
The ABB Moulded Case Circuit Breaker 1SDA066778R1 is a high-performance, three-pole (3P) automatic circuit breaker with a rated current of 200A and a TMF (thermomagnetic) release, designed to provide reliable protection against overloads and short circuits in industrial, commercial, and utility electrical installations. Part of the SACE FORMULA A2C 250 series, it features front terminals for easy installation, a compact design (105 × 150 × 60 mm, 1.393 kg), and high electrical (4000 cycles) and mechanical (10,000 cycles) durability. Rated for 550 V AC and 250 V DC operation, it offers a rated service short-circuit breaking capacity up to 25 kA and an ultimate breaking capacity up to 50 kA depending on voltage. With low power loss (12 W per pole), IEC compliance, and full adherence to REACh, RoHS, TSCA, and SCIP environmental standards, this MCCB ensures safe, efficient, and durable performance in demanding electrical distribution systems.
| Brand | ABB |
| Model | A2C 250 TMF 200-2000 3p F F |
| Product ID | 1SDA066778R1 |
| Product Type | Automatic Circuit Breaker |
| Width | 105 mm |
| Height | 150 mm |
| Depth | 60 mm |
| Net Weight | 1.393 kg |
| Number of Poles | 3P |
| Rated Current (In) | 200 A |
| Rated Operational Voltage | 550 V AC / 250 V DC |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Service Short-Circuit Breaking Capacity (Ics) | Up to 25 kA (voltage-dependent) |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | Up to 50 kA (voltage-dependent) |
| Rated Uninterrupted Current (Iu) | 250 A |
| Release Type | TMF (Thermomagnetic) |
| Short-Circuit Performance Level | C |
| Electrical Durability | 4000 cycles |
| Mechanical Durability | 10000 cycles |
| Power Loss | 12 W per pole at rated operating conditions |
| Opening Time | CB with SOR 15 ms / CB with UVR 15 ms |
| Terminal Connection Type | Front |
| Standards | IEC compliant |
| Order Code (US & Canada) | ABC200TW |
| EAN | 8015644006884 |
| Customs Tariff Number | 85362090 |
| Environmental Compliance | REACh, RoHS, TSCA, SCIP |
