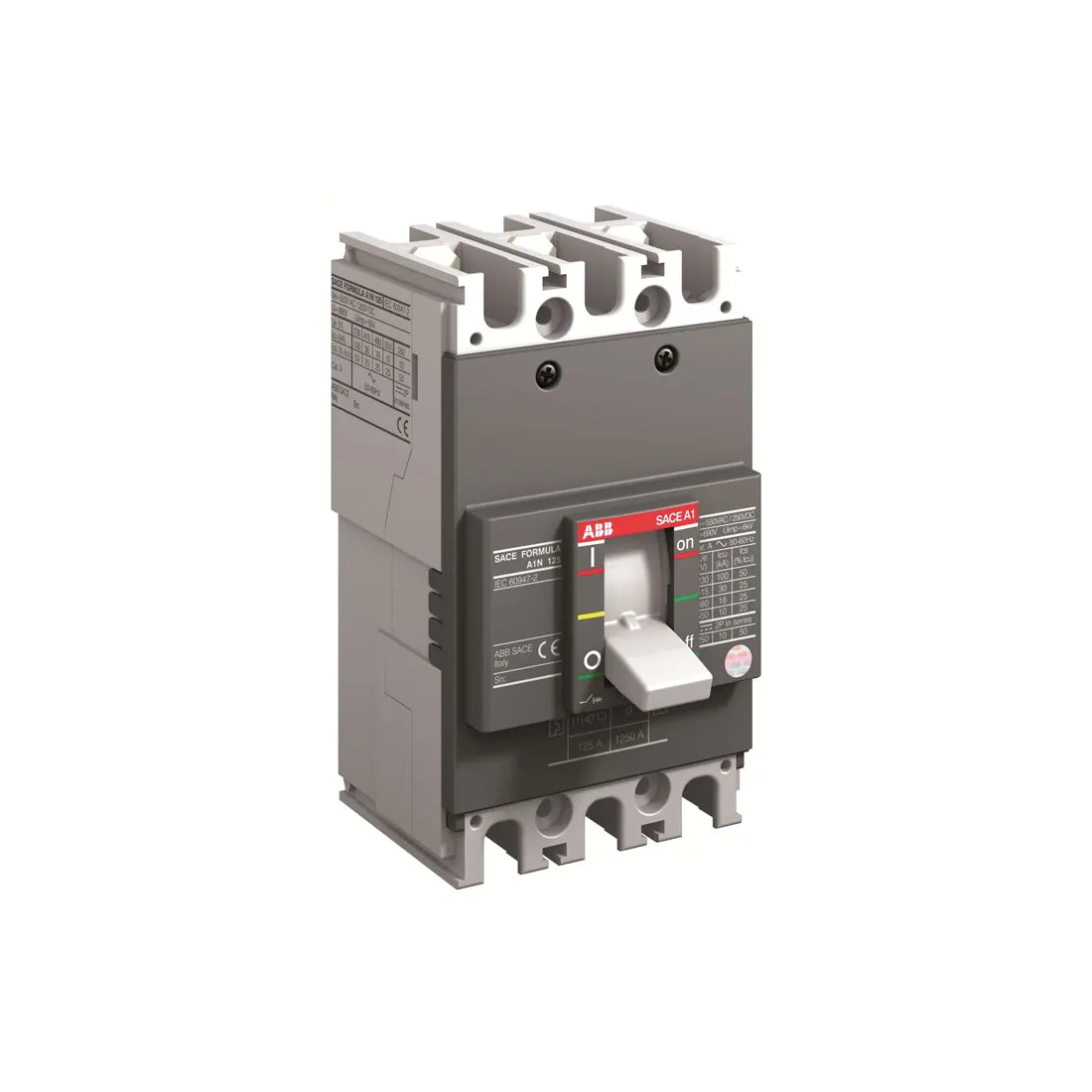

ABB Moulded Case Circuit Breaker 1SDA066717R1 80A 3P A1C 125 TMF 80-800 3p F F
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Automatic Circuit Breaker
Description
The ABB Moulded Case Circuit Breaker 1SDA066717R1 is a robust three-pole (3P) automatic circuit breaker with a rated current of 80A, designed to provide reliable protection against overloads and short circuits in industrial and commercial electrical systems. Part of the SACE FORMULA A1C 125 series, it features a fixed three-pole design with front terminals and a TMF (thermomagnetic) release for combined thermal and magnetic protection. Compact and durable, it measures 76.2 × 130 × 60 mm and weighs 0.793 kg, with electrical durability of 1500 cycles and mechanical durability of 8500 operations. Rated for 550 V AC / 250 V DC, it offers service short-circuit breaking capacity up to 15 kA and ultimate breaking capacity up to 30 kA depending on voltage, with low power loss of 9 W per pole. IEC-compliant and certified with REACh, RoHS, and TSCA standards, this MCCB ensures safe, efficient, and long-lasting performance for demanding electrical installations.
| Brand | ABB |
| Model | A1C 125 TMF 80-800 3p F F |
| Product ID | 1SDA066717R1 |
| Product Type | Automatic Circuit Breaker |
| Width | 76.2 mm |
| Height | 130 mm |
| Depth | 60 mm |
| Net Weight | 0.793 kg |
| Number of Poles | 3P |
| Rated Current (In) | 80 A |
| Rated Operational Voltage | 550 V AC / 250 V DC |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Service Short-Circuit Breaking Capacity (Ics) | Up to 15 kA (voltage-dependent) |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | Up to 30 kA (voltage-dependent) |
| Rated Uninterrupted Current (Iu) | 125 A |
| Release Type | TMF (Thermomagnetic) |
| Short-Circuit Performance Level | C |
| Electrical Durability | 1500 cycles |
| Mechanical Durability | 8500 cycles |
| Power Loss | 9 W per pole at rated operating conditions |
| Opening Time | CB with SOR 15 ms / CB with UVR 15 ms |
| Terminal Connection Type | Front |
| Standards | IEC compliant |
| Order Code (US & Canada) | AAC080TW |
| EAN | 8015644694050 |
| Customs Tariff Number | 85362090 |
| Environmental Compliance | REACh, RoHS, TSCA |
