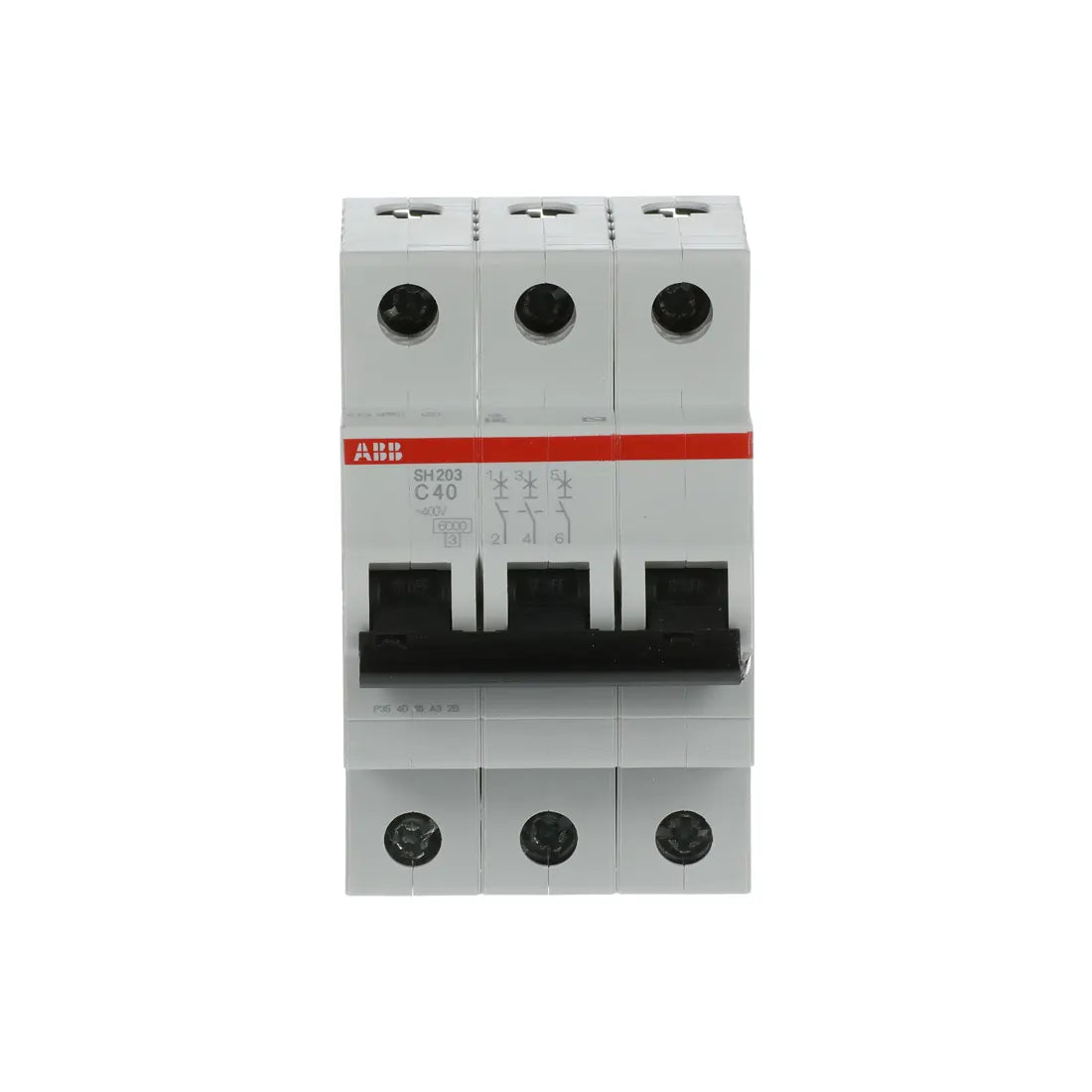

ABB Miniature Circuit Breaker 2CDS213001R0404 40A 3P Curve C SH203-C40
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Miniature Circuit Breaker
Description
The ABB SH203-C40 Miniature Circuit Breaker is a reliable 3-pole protection device with a rated current of 40A and Curve C tripping characteristic, designed to safeguard residential and commercial electrical systems. It combines a delayed thermal mechanism for overload protection with an electromechanical mechanism for short-circuit protection, offering a breaking capacity of up to 6 kA at 400 V AC in compliance with IEC/EN 60898-1 standards. Built with durable insulation materials, IP20 protection, and tested for 10,000 electrical and 20,000 mechanical cycles, it ensures long-lasting performance. As part of ABB’s EcoSolutions portfolio, it features over 92% recyclability and eco-friendly production. Compact and easy to install on standard DIN rails, the SH203-C40 is ideal for dependable circuit protection in homes, offices, and light commercial applications.
| Brand | ABB |
| Series | SH200 |
| Model | SH203-C40 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Width | 52.5 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.33 kg |
| Rated Current (In) | 40 A |
| Rated Operational Voltage | 400 V AC |
| Operational Voltage Range | 12 V AC – 440 V AC |
| Rated Short-Circuit Capacity | 6 kA (230/400 V AC) |
| Rated Frequency | 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (5 kV at 2000 m, 6.2 kV at sea level) |
| Power Loss | 14.4 W (4.8 W per pole) |
