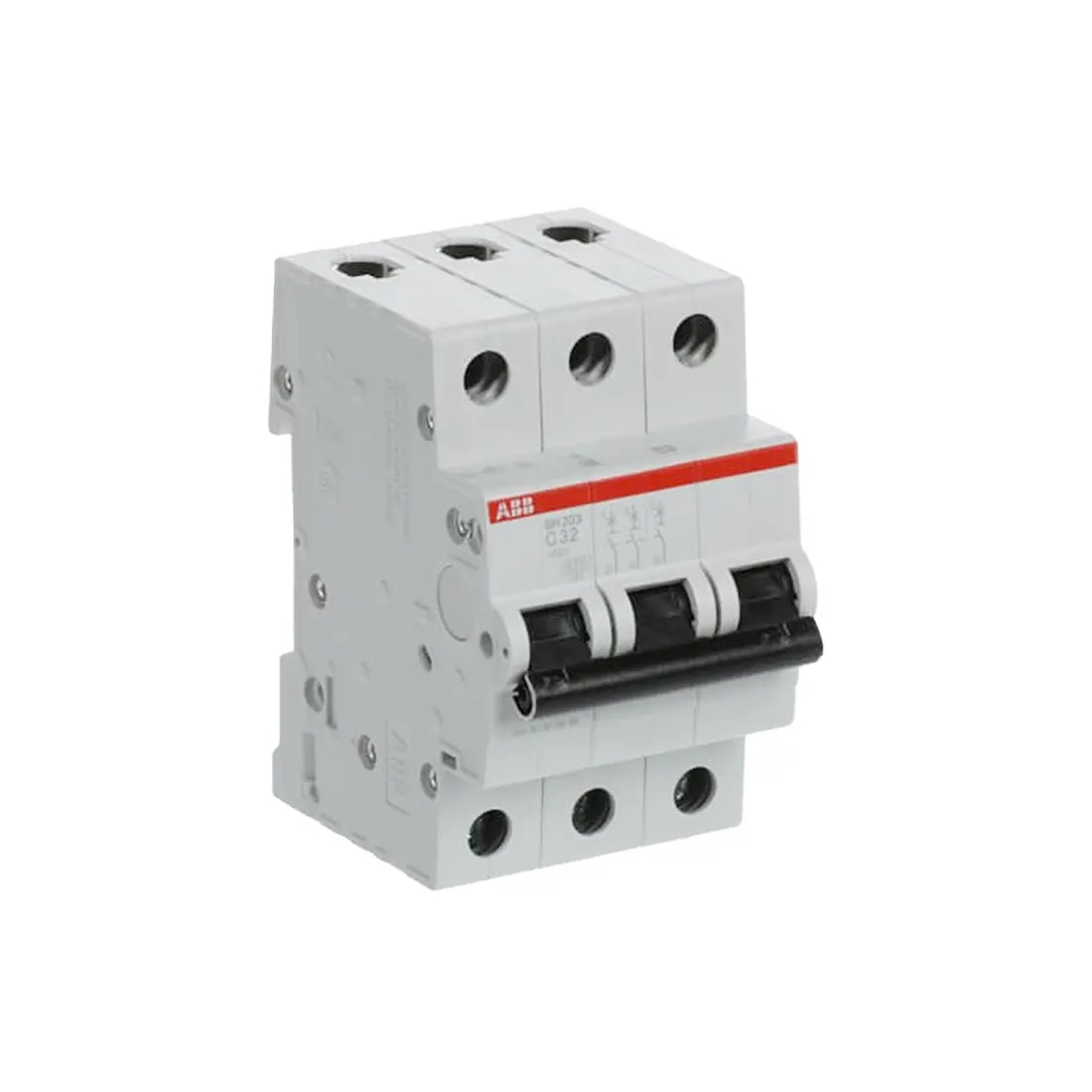

ABB Miniature Circuit Breaker 2CDS213001R0324 32A 3P Curve C SH203-C32
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Miniature Circuit Breaker
Description
The ABB SH203-C32 Miniature Circuit Breaker 32A 3P Curve C from the Compact Home SH200 series ensures reliable protection for residential and light commercial applications. It features current-limiting technology with dual tripping mechanisms—a delayed thermal trip for overload protection and an electromechanical trip for short-circuit protection. With a rated current of 32A, 3-pole configuration, 6 kA short-circuit capacity at 400V AC, and compliance with IEC/EN 60898-1, this MCB offers high safety and performance. Designed for durability with 20,000 mechanical cycles and 10,000 electrical cycles, it has a compact footprint (52.5 mm width, 85 mm height, 69 mm depth) and screw terminals supporting conductors up to 25 mm². Environmentally conscious, it is 92.1% recyclable, RoHS and REACH compliant, and built to deliver long-lasting circuit protection.
| Brand | ABB |
| Series | SH200 |
| Model | SH203-C32 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Width | 52.5 mm (3 modular spacings) |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.33 kg |
| Rated Current (In) | 32 A |
| Rated Operational Voltage | 400 V AC |
| Operational Voltage Range | 12 V AC – 440 V AC |
| Rated Short-Circuit Capacity | 6 kA (400 V AC) |
| Rated Frequency | 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (5 kV at 2000 m, 6.2 kV at sea level) |
| Power Loss | 11.1 W (3.7 W per pole) |
