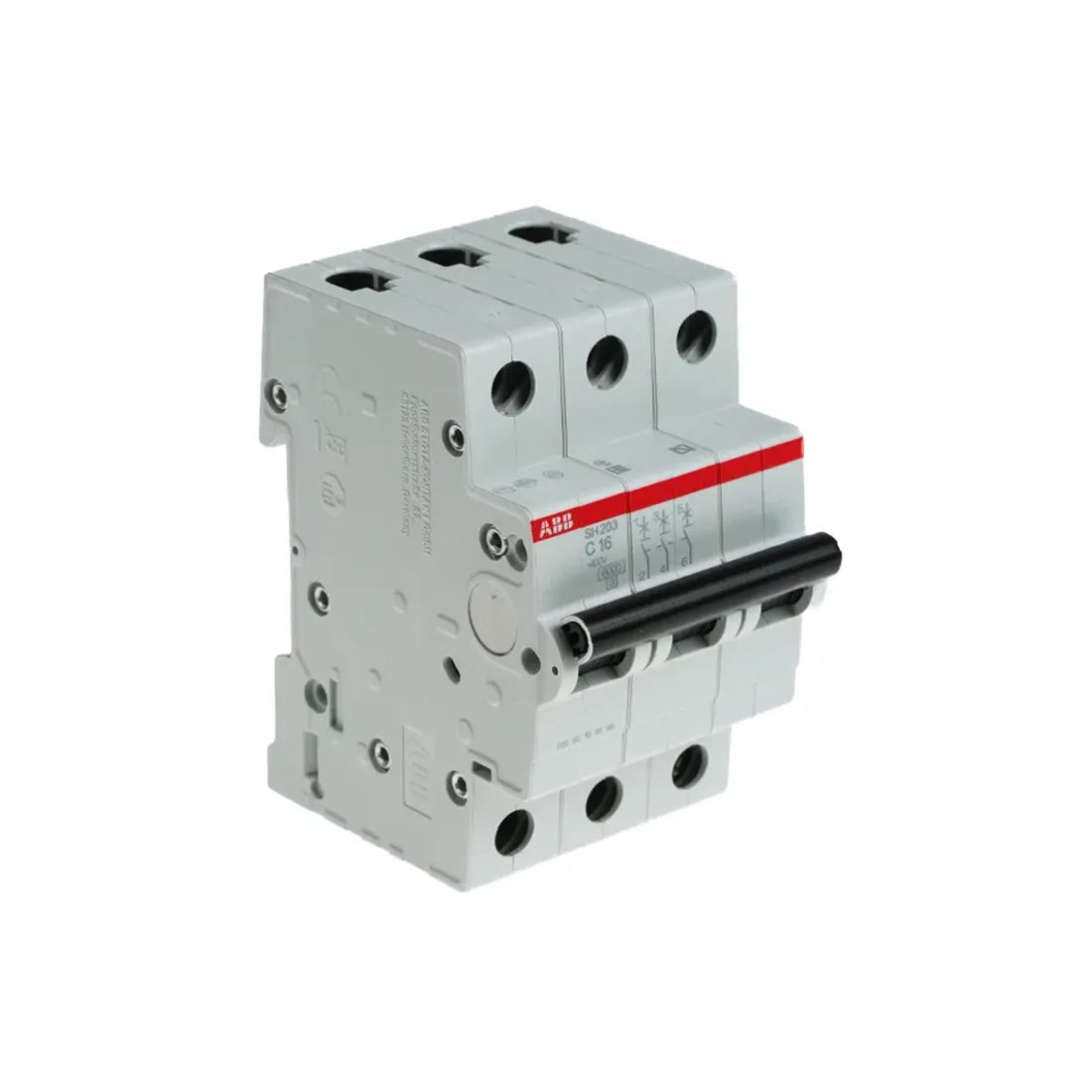

ABB Miniature Circuit Breaker 2CDS213001R0164 16A 3P Curve C SH203-C16
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Miniature Circuit Breaker
Description
The ABB SH203-C16 Miniature Circuit Breaker (MCB) 16A 3P Curve C is a compact and reliable protection device designed for residential and commercial applications, offering dependable safety against overloads and short circuits through its dual tripping mechanism—thermal for overload protection and electromechanical for short-circuit protection. Built to IEC/EN 60898-1 standards, it features a 16A rated current, Curve C tripping characteristic, and a breaking capacity of 6 kA at 400 V AC, ensuring strong and consistent circuit protection. With high durability of 20,000 mechanical and electrical endurance cycles, robust construction, and simple DIN rail mounting in any position, it provides both efficiency and ease of use. Designed for sustainability, the SH200 series is ABB EcoSolutions certified, RoHS and REACH compliant, and offers a 92% recyclability rate, making it an eco-friendly choice. Compact in size and reliable in performance, the ABB SH203-C16 is ideal for safe and long-lasting circuit protection in homes, offices, and light industrial setups.
| Brand | ABB |
| Series | SH200 |
| Model | SH203-C16 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Width | 52.5 mm (3 modules) |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.315 kg |
| Rated Current (In) | 16 A |
| Number of Poles | 3P |
| Tripping Characteristic | Curve C |
| Rated Operational Voltage | 400 V AC (IEC 60898-1) |
| Voltage Range | 12 V AC – 440 V AC |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | Up to 6.2 kV |
| Rated Frequency | 50 / 60 Hz |
| Breaking Capacity | 6 kA (230/400 V AC) |
| Conditional Short-Circuit Current | 6 kA |
| Power Loss | 7.5 W (2.5 W per pole) |
