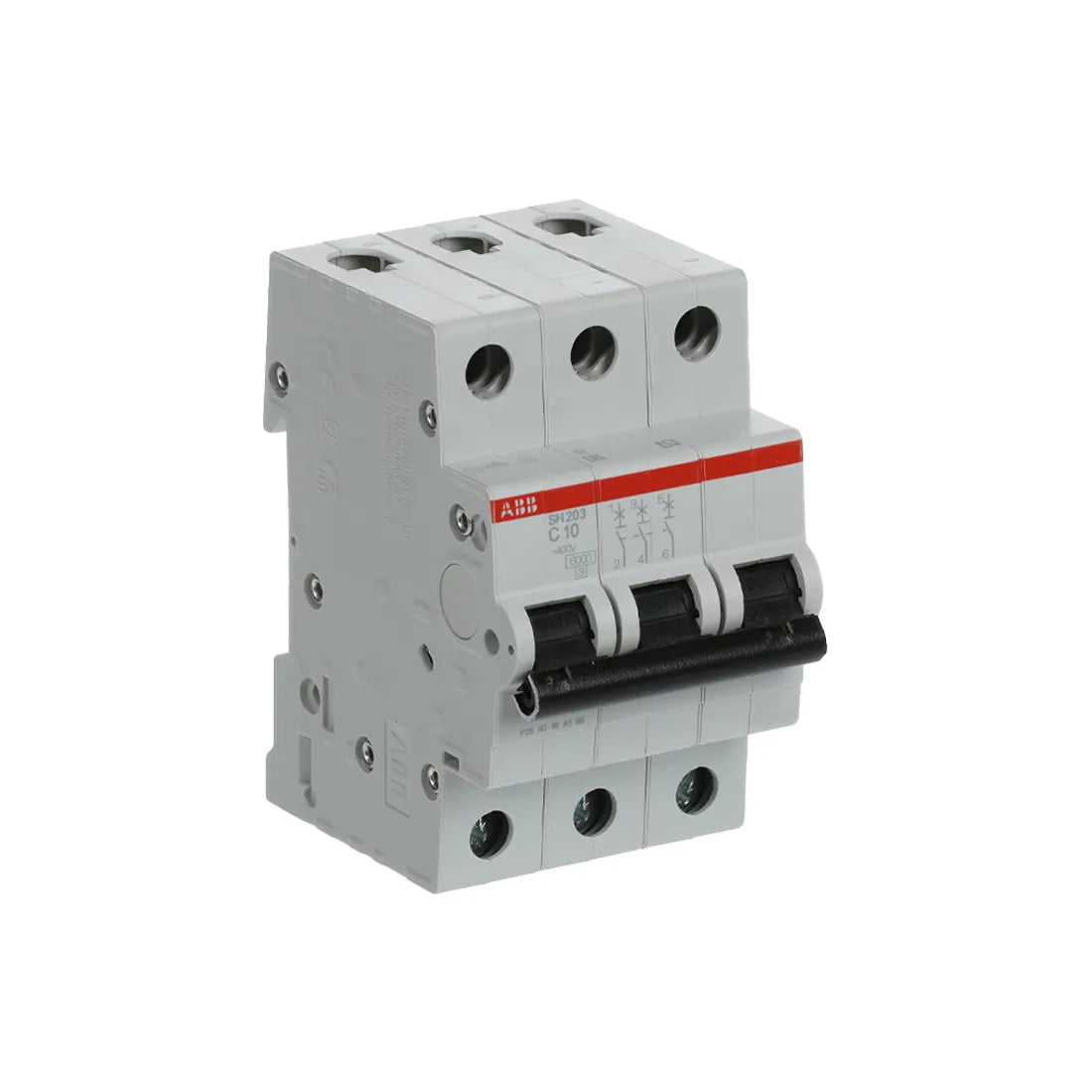

ABB Miniature Circuit Breaker 2CDS213001R0104 10A 3P Curve C SH203-C10
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Miniature Circuit Breaker
Description
The ABB SH203-C10 Miniature Circuit Breaker (MCB) 10A 3P Curve C is a reliable and compact protection device designed for residential and commercial use, providing safety against overloads and short circuits with its dual tripping mechanism—thermal for overload and electromechanical for short circuit protection. Built to IEC/EN 60898-1 standards, it offers a breaking capacity of 6 kA at 230/400 V AC, high durability with 20,000 electrical and mechanical cycles, and easy DIN rail mounting in any position. With features including IP20 protection (IP40 with enclosure), wide operating temperature range of -25 °C to +55 °C, and EcoSolutions certification with 92% recyclability, this RoHS and REACH-compliant breaker delivers dependable, safe, and environmentally responsible circuit protection for homes, offices, and light commercial applications.
| Brand | ABB |
| Series | SH200 |
| Model | SH203-C10 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Width | 52.5 mm (3 modules) |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.306 kg |
| Rated Current (In) | 10 A |
| Number of Poles | 3P |
| Tripping Characteristic | Curve C |
| Rated Operational Voltage | 400 V AC (IEC 60898-1) |
| Voltage Range | 12 V AC – 440 V AC |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | Up to 6.2 kV |
| Rated Frequency | 50 / 60 Hz |
| Breaking Capacity | 6 kA (230/400 V AC) |
| Conditional Short-Circuit Current | 6 kA |
| Power Loss | 6.3 W (2.1 W per pole) |
