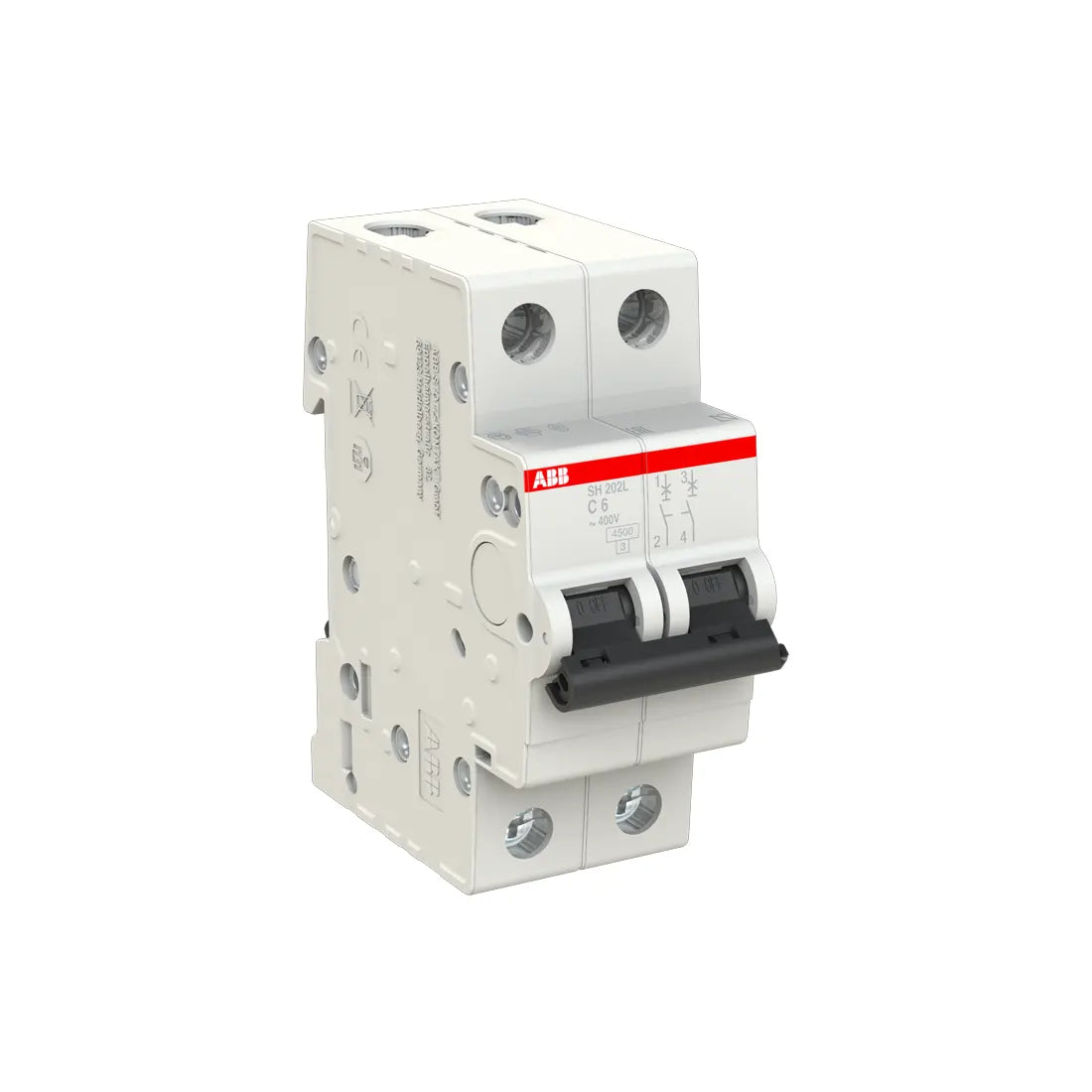

ABB Miniature Circuit Breaker 2CDS212001R0064 6A 2P Curve C SH202-C6
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Miniature Circuit Breaker
Description
The ABB Miniature Circuit Breaker 6A 2P Curve C SH202-C6 is a reliable 2-pole MCB designed for residential and light commercial applications, providing protection against overloads and short circuits. Part of ABB’s Compact Home SH200 series and EcoSolutions, it features dual tripping mechanisms—thermal for overloads and electromechanical for short circuits. Rated at 6A with C-curve tripping, it operates at up to 440V AC with a 6kA short-circuit capacity, and supports flexible and rigid conductors (0.75–25 mm²) via screw cage terminals. Compact and durable, it mounts easily on standard DIN rails, has IP20 protection (IP40 with cover), and meets RoHS, REACH, and IEC/EN 60898-1 standards, with a 92.1% recyclability rate, making it an eco-friendly and efficient solution for safe circuit protection.
| Brand | ABB |
| Series | SH200 |
| Model | SH202-C6 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Width | 35 mm |
| Height | 88 mm |
| Depth | 69 mm |
| Net Weight | 0.204 kg |
| Rated Current (In) | 6 A |
| Rated Operational Voltage | 400 V AC |
| Operational Voltage Range | 12–440 V AC |
| Rated Short-Circuit Capacity | 6 kA |
| Rated Frequency | 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (2000 m: 5 kV, Sea Level: 6.2 kV) |
| Power Loss | 2 W per pole |
