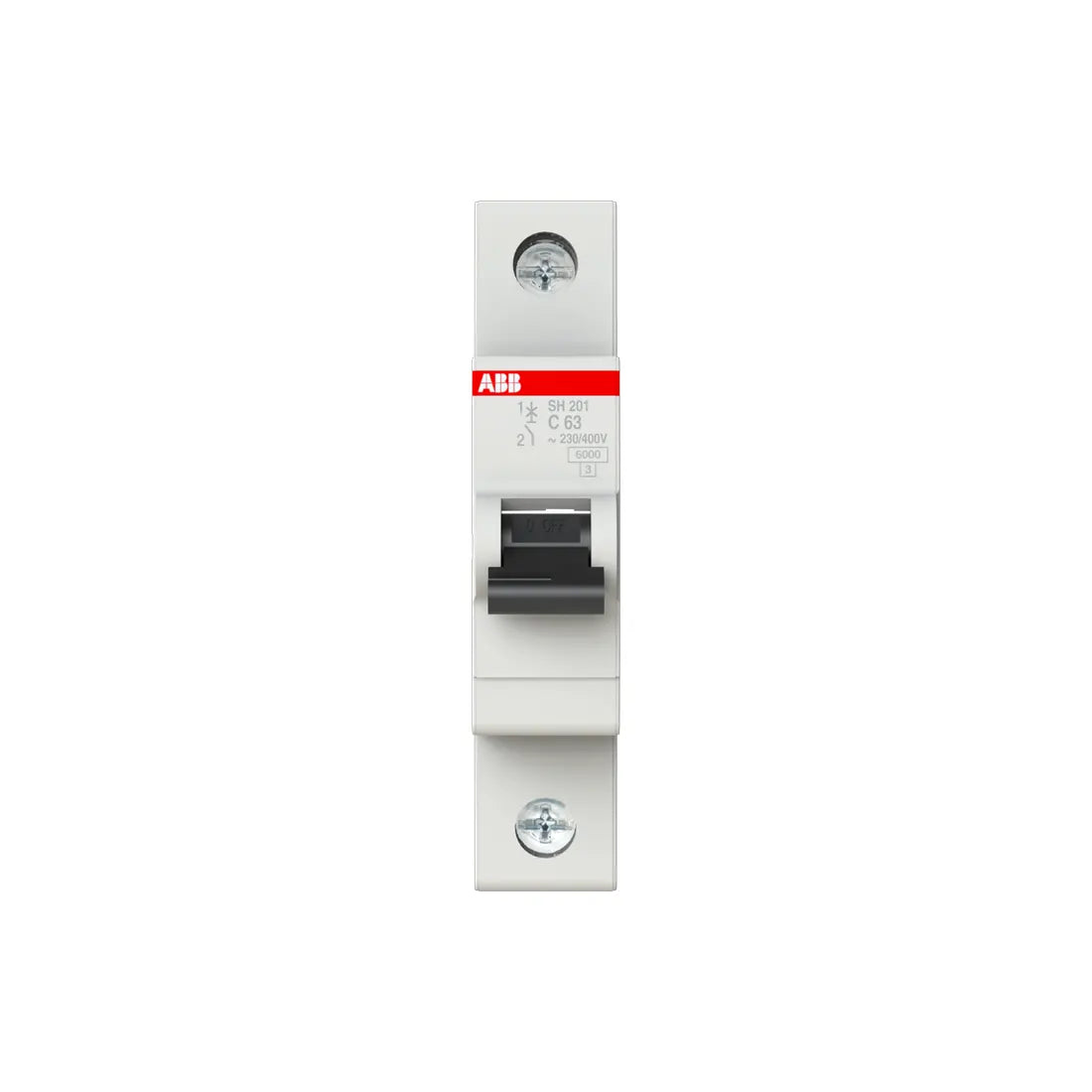

ABB Miniature Circuit Breaker 2CDS211001R0634 63A 1P Curve C SH201-C63

The ABB Miniature Circuit Breaker 63A 1P Curve C SH201-C63 is a reliable and eco-friendly 1-pole MCB designed for home and light commercial electrical systems. Part of ABB’s EcoSolutions, it features a 63A rated current, C-curve tripping for moderate inrush currents, 230V AC operational voltage, and 6kA short-circuit capacity. Built for durability, it offers 10,000 AC electrical cycles and 20,000 mechanical cycles, with ON/OFF contact indication, screw cage terminals supporting 0.75–25 mm² conductors, and a compact 17.5 mm DIN-rail mounting design. With an insulation voltage of 440V, impulse withstand voltage up to 6.2 kV, IP20 protection (IP40 with cover), and operation in -25°C to +55°C, it ensures safe and reliable circuit protection. The SH201-C63 is RoHS and REACH compliant, CE certified, and designed for sustainability, featuring a 92.1% recyclability rate and clear end-of-life disassembly instructions, making it a smart choice for efficient, long-lasting, and environmentally responsible electrical protection.
