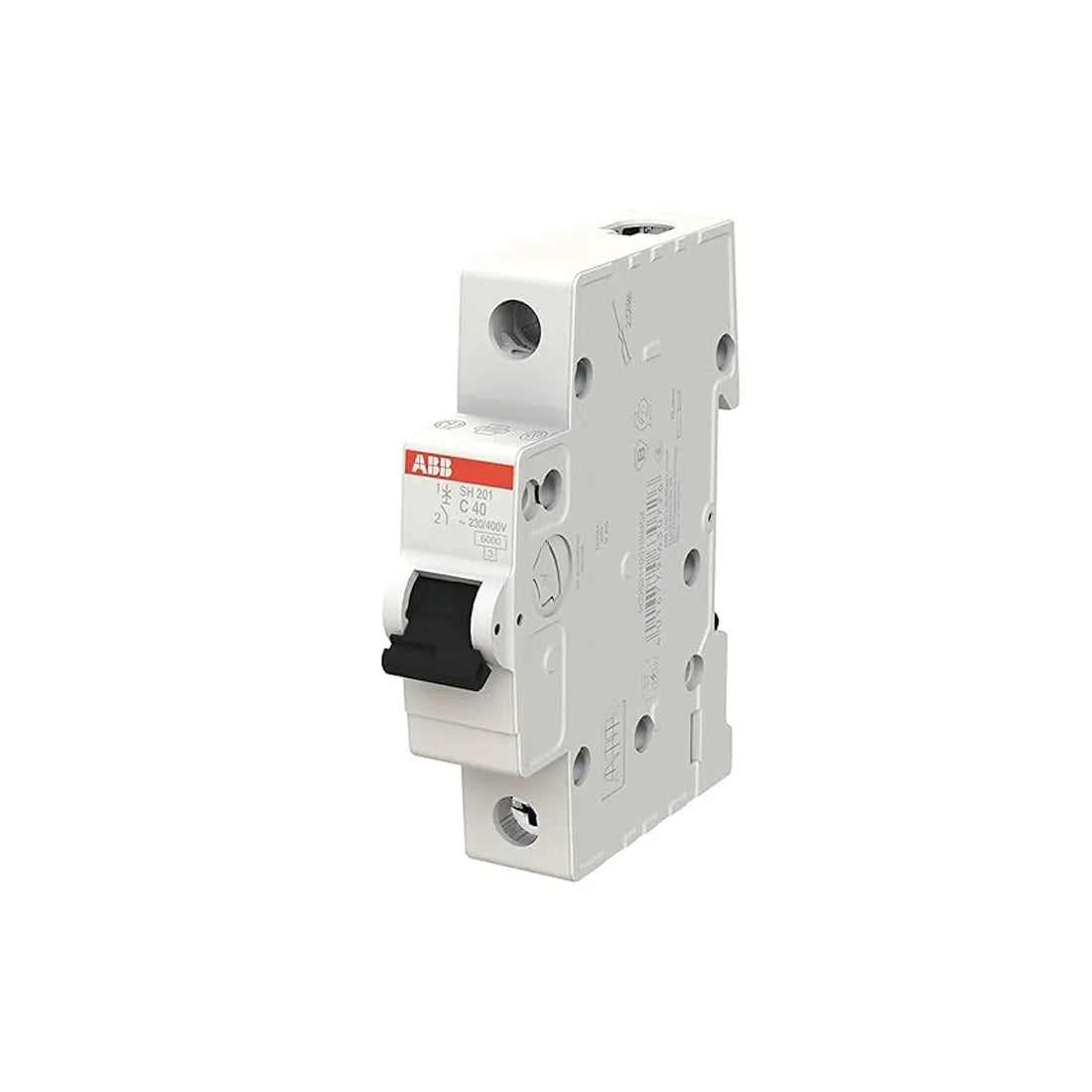

ABB Miniature Circuit Breaker 2CDS211001R0404 40A 1P Curve C SH201-C40
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Miniature Circuit Breaker
Description
The ABB SH201-C40 Miniature Circuit Breaker is a reliable solution for protecting electrical circuits from overloads and short circuits. Designed with dual tripping mechanisms—thermal for overload protection and electromechanical for short-circuit protection—it ensures enhanced safety and performance. With a rated current of 40A, 1 pole configuration, and C-curve tripping characteristic, it provides precise protection in residential and commercial applications. The breaker offers a rated short-circuit capacity of 6kA at 230/400V AC and complies with IEC/EN 60898-1 standards. Compact and durable, it features a toggle actuator, screw terminals, and IP20 protection, making it easy to install on DIN rails. Environmentally friendly with 92.1% recyclability, the SH201-C40 also supports ABB’s EcoSolutions commitment to sustainability.
| Brand | ABB |
| Series | SH200 |
| Model | SH201-C40 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Width | 17.5 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.11 kg |
| Rated Current (In) | 40 A |
| Rated Operational Voltage | 230 V AC |
| Operational Voltage Range | 12 – 253 V AC |
| Rated Short-Circuit Capacity | 6 kA (230/400 V AC) |
| Rated Frequency | 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (5 kV at 2000 m, 6.2 kV at sea level) |
| Power Loss | 4.8 W |
