ABB Miniature Circuit Breaker 2CDS211001R0324 32A 1P Curve C SH201-C32
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Miniature Circuit Breaker
Description

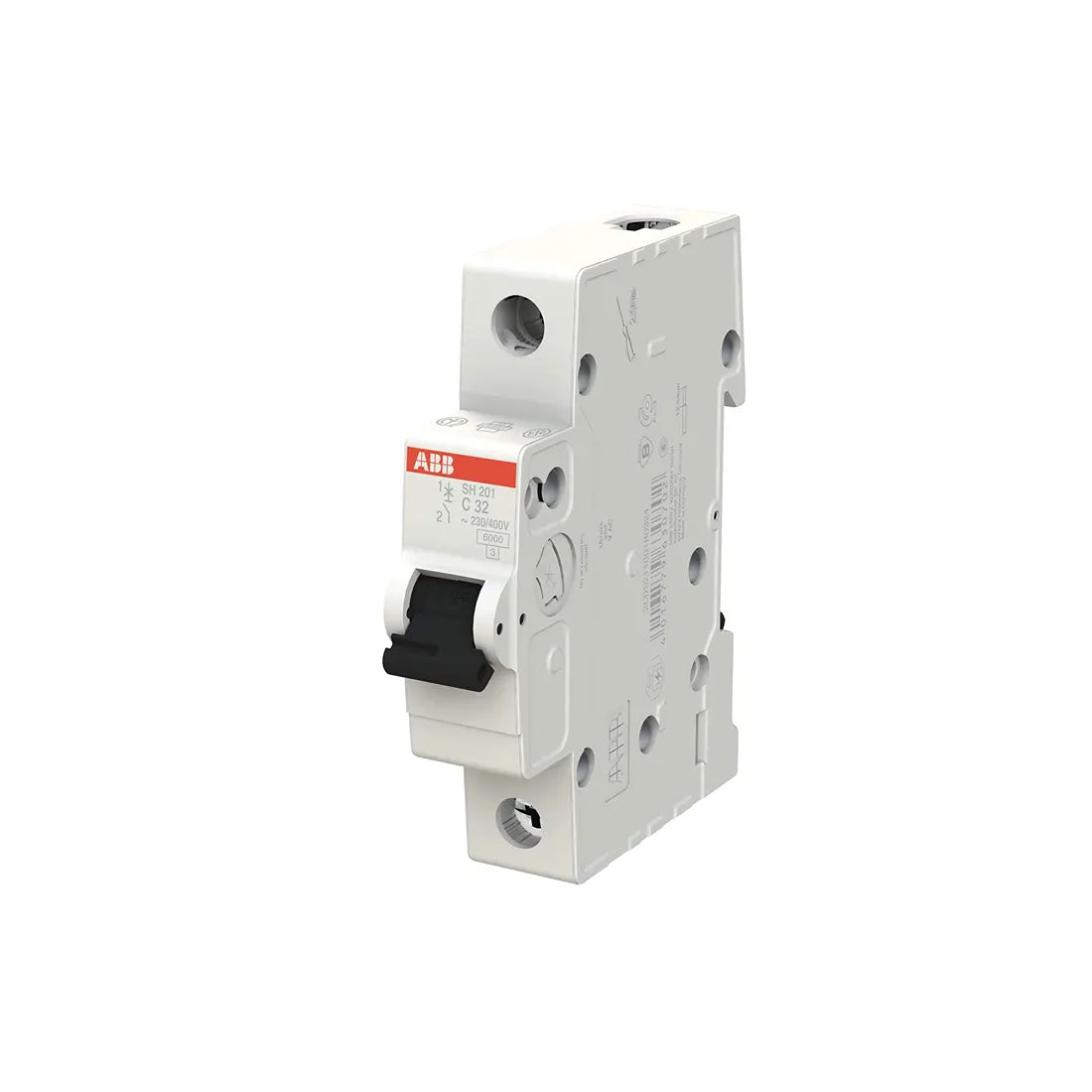

The ABB SH201-C32 Miniature Circuit Breaker 32A 1P Curve C from the Compact Home SH200 series delivers reliable protection for residential electrical installations. It uses advanced current-limiting technology with dual tripping mechanisms—a delayed thermal trip for overloads and an electromechanical trip for short circuits. With a rated current of 32A, 1-pole configuration, and 6 kA short-circuit capacity at 230/400 V AC, it ensures dependable safety while complying with IEC/EN 60898-1 standards. Designed for durability with up to 20,000 mechanical cycles and 10,000 electrical cycles, this compact MCB (17.5 mm width, 85 mm height, 69 mm depth) features screw terminals supporting conductors up to 25 mm². Environmentally responsible with 92.1% recyclability, RoHS and REACH compliance, the SH201-C32 is a robust and sustainable choice for long-lasting circuit protection.
| Brand | ABB |
| Series | SH200 |
| Model | SH201-C32 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Width | 17.5 mm (1 modular spacing) |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.11 kg |
| Rated Current (In) | 32 A |
| Rated Operational Voltage | 230 V AC |
| Operational Voltage Range | 12 V AC – 253 V AC |
| Rated Short-Circuit Capacity | 6 kA (230/400 V AC) |
| Rated Frequency | 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (5 kV at 2000 m, 6.2 kV at sea level) |
| Power Loss | 3.7 W (per pole) |
