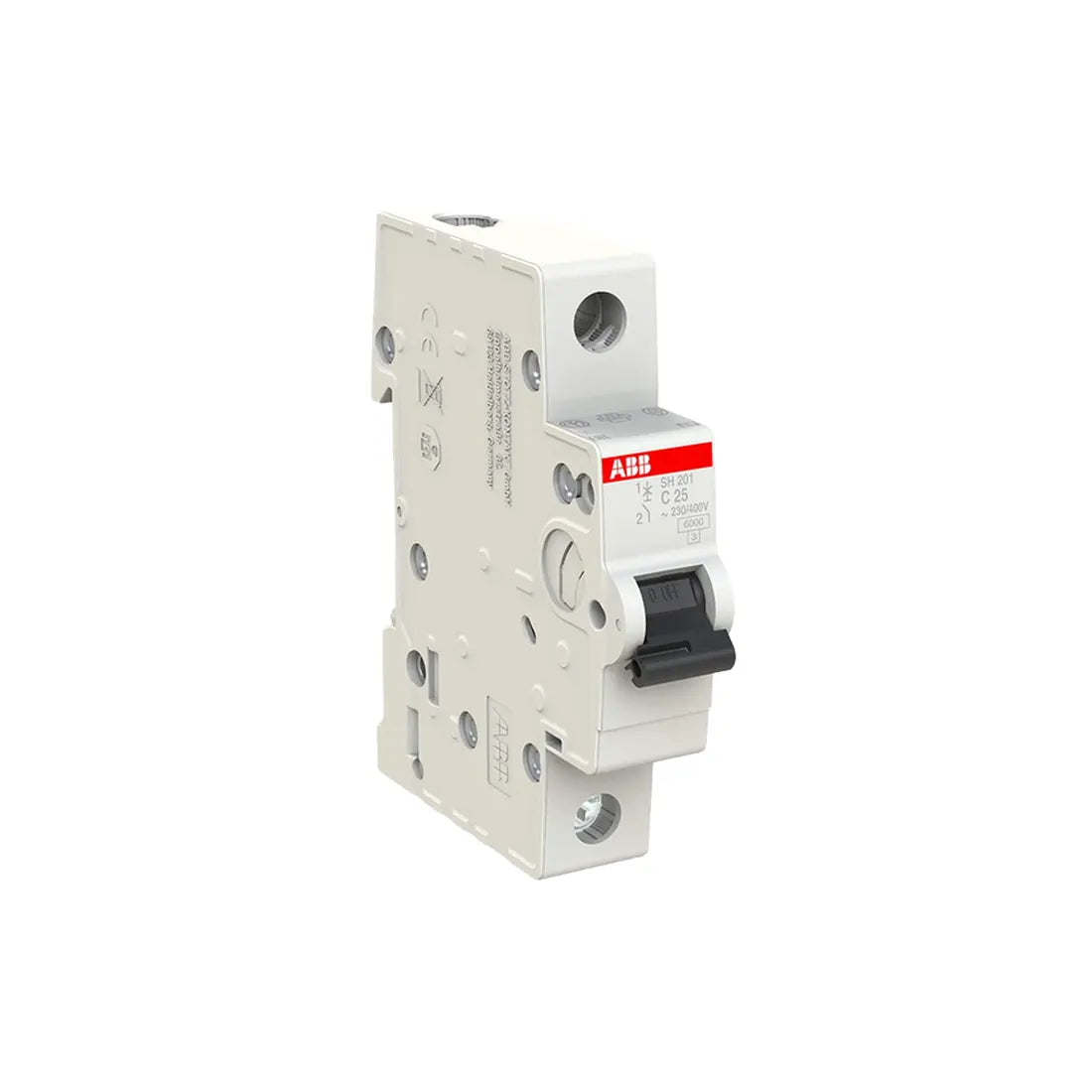

ABB Miniature Circuit Breaker 2CDS211001R0254 25A 1P Curve C SH201-C25
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Miniature Circuit Breaker
Description
The ABB SH201-C25 Miniature Circuit Breaker 25A 1P Curve C from the Compact Home SH200 series provides reliable residential circuit protection with advanced current-limiting technology and dual tripping mechanisms—delayed thermal for overloads and electromechanical for short circuits. Compliant with IEC/EN 60898-1, it supports rated currents up to 25A, 1 pole configuration, and a short-circuit capacity of 6 kA at 230/400V AC. Compact and durable, it features a toggle actuator with ON/OFF indication, screw terminals for flexible and rigid conductors (0.75–25 mm²), and withstands 20,000 mechanical and electrical cycles. Environmentally conscious, it is 92.1% recyclable and fully RoHS and REACH compliant, making it ideal for safe, long-lasting home installations.
| Brand | ABB |
| Series | SH200 |
| Model | SH201-C25 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Width | 17.5 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.105 kg |
| Rated Current (In) | 25 A |
| Rated Operational Voltage | 230 V AC |
| Operational Voltage Range | 12 V AC – 253 V AC |
| Rated Short-Circuit Capacity | 6 kA (230 / 400 V AC) |
| Rated Frequency | 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Power Loss | 3.2 W per pole |
