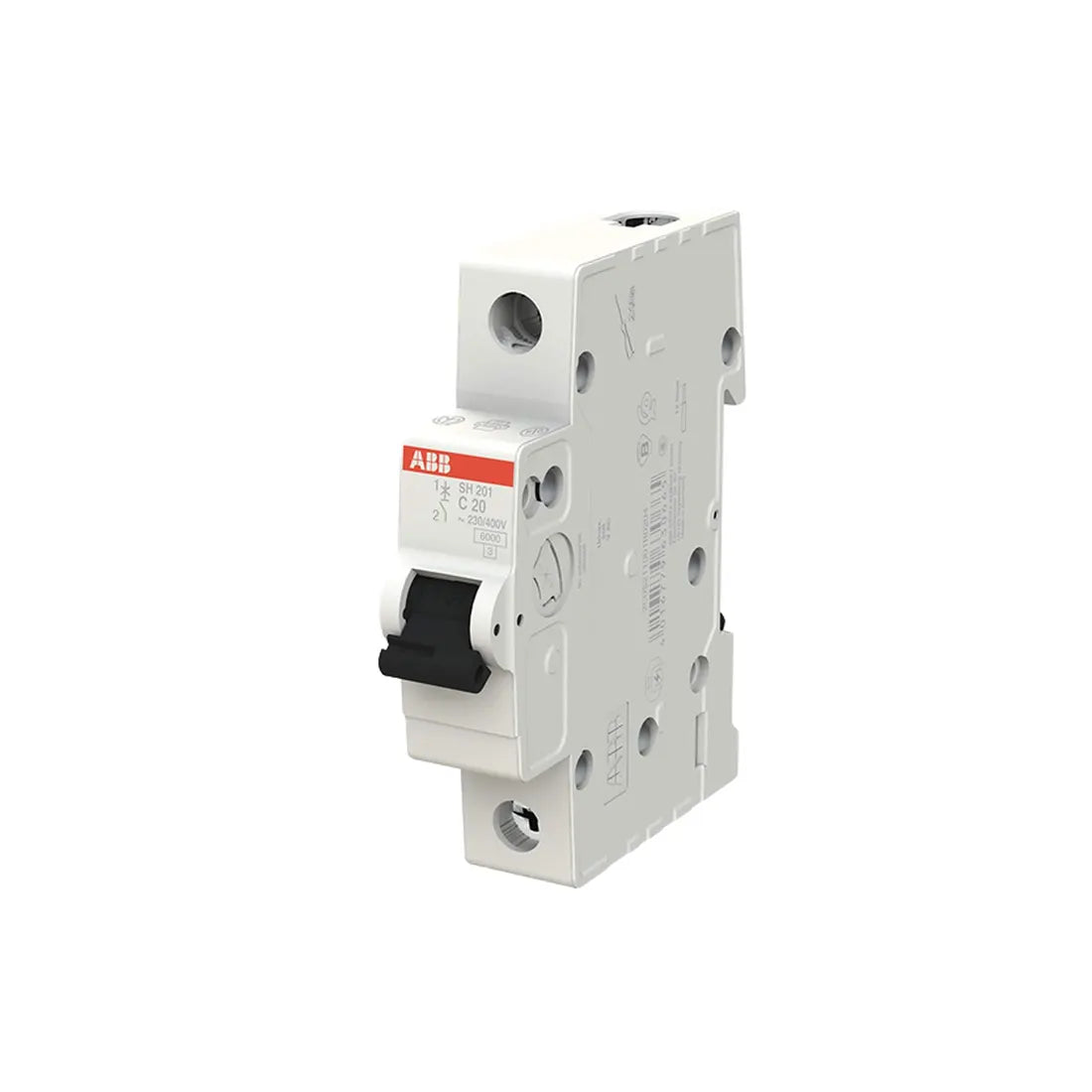

ABB Miniature Circuit Breaker 2CDS211001R0204 20A 1P Curve C SH201-C20
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Miniature Circuit Breaker
Description
ABB Miniature Circuit Breaker 20A 1P Curve C SH201-C20 is a compact, reliable protection device from the SH200 series, designed for residential and commercial electrical systems. It features current-limiting technology with dual tripping mechanisms: a delayed thermal trip for overload protection and an electromechanical trip for short-circuit protection. Rated at 20A with a C-curve characteristic, this single-pole breaker provides a 6 kA breaking capacity at 230V AC, ensuring safe and efficient circuit protection. The device offers clear ON/OFF contact indication, robust mechanical and electrical endurance of up to 20,000 cycles, and easy installation on DIN rails. With eco-friendly design, 92.1% recyclability, and full RoHS/REACH compliance, the SH201-C20 MCB combines safety, durability, and environmental responsibility in a compact form factor.
| Brand | ABB |
| Series | SH200 |
| Model | SH201-C20 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Width | 17.5 mm (1 modular spacing) |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.105 kg |
| Rated Current (In) | 20 A |
| Rated Operational Voltage | 230 V AC |
| Operational Voltage Range | 12 – 253 V AC |
| Rated Short-Circuit Capacity | 6 kA (230 / 400 V AC) |
| Rated Frequency | 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (5 kV at 2000 m, 6.2 kV at sea level) |
| Power Loss | 2.5 W per pole |
| Overvoltage Category | III |
