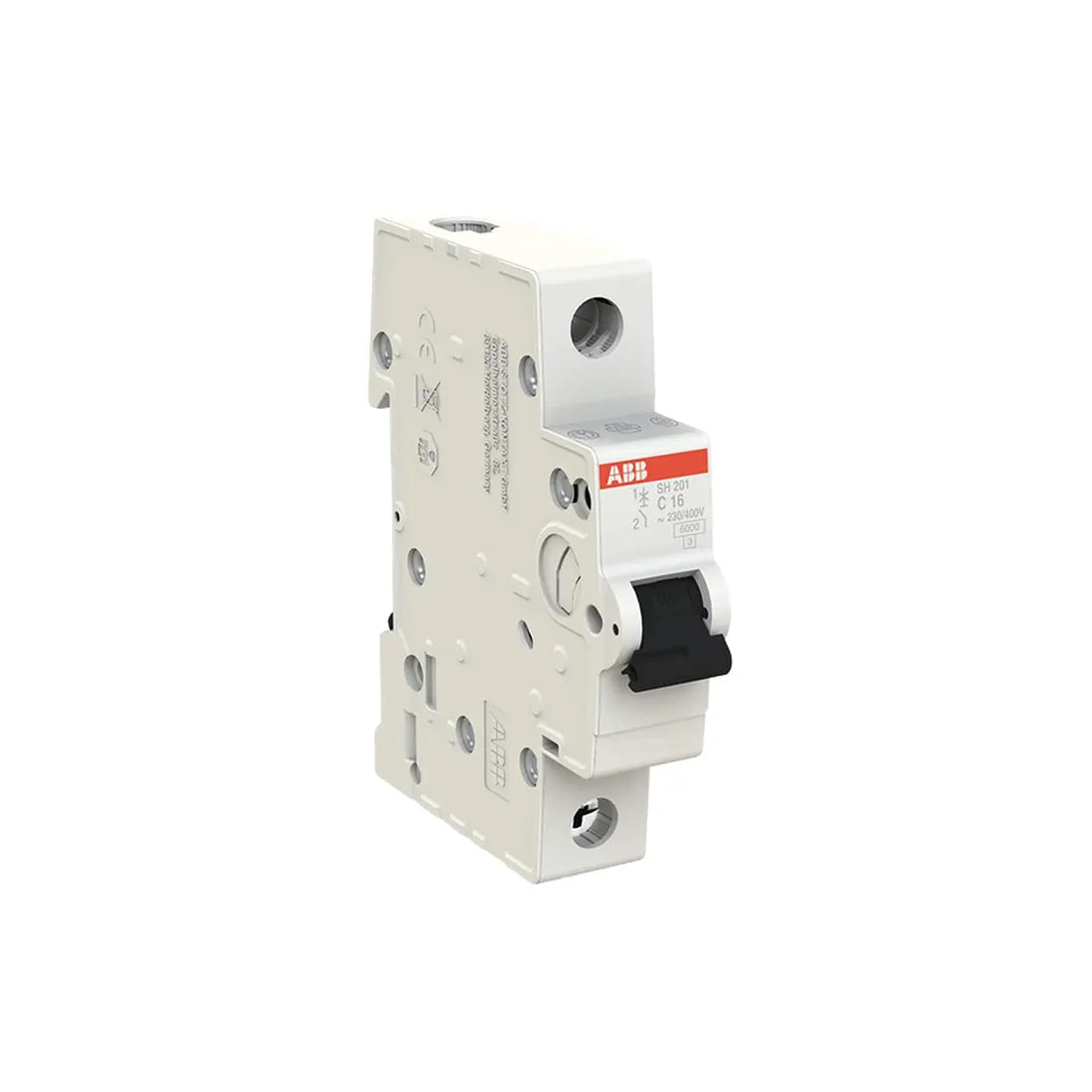

ABB Miniature Circuit Breaker 2CDS211001R0164 16A 1P Curve C SH201-C16
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Miniature Circuit Breaker
Description
The ABB SH201-C16 Miniature Circuit Breaker (MCB) 16A 1P Curve C is a compact and reliable solution for residential circuit protection, designed to safeguard electrical systems against overloads and short circuits. Featuring dual tripping mechanisms—a delayed thermal mechanism for overload protection and an electromechanical mechanism for short-circuit protection—it ensures consistent and safe performance. With a 16A rated current, Curve C tripping characteristic, and a 6 kA breaking capacity at 230 V AC, this MCB complies with IEC/EN 60898-1 standards, making it suitable for home and light commercial applications. Built with high durability, offering 20,000 mechanical and electrical endurance cycles, it is easy to mount on DIN rails and includes clear ON/OFF indication for user convenience. Environmentally responsible, the SH201-C16 is part of the ABB EcoSolutions range, with a 92% recyclability rate, RoHS and REACH compliance, and a long product lifespan. Compact, safe, and eco-friendly, it is an ideal choice for efficient home circuit protection.
| Brand | ABB |
| Series | SH200 |
| Model | SH201-C16 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Width | 17.5 mm (1 modular spacing) |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.105 kg |
| Rated Current (In) | 16 A |
| Rated Operational Voltage | 230 V AC |
| Operational Voltage Range | 12 – 253 V AC |
| Rated Short-Circuit Capacity | 6 kA (230/400 V AC) |
| Rated Frequency | 50 / 60 Hz |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (5 kV at 2000 m, 6.2 kV at sea level) |
| Power Loss | 2.5 W per pole |
| Overvoltage Category | III |
