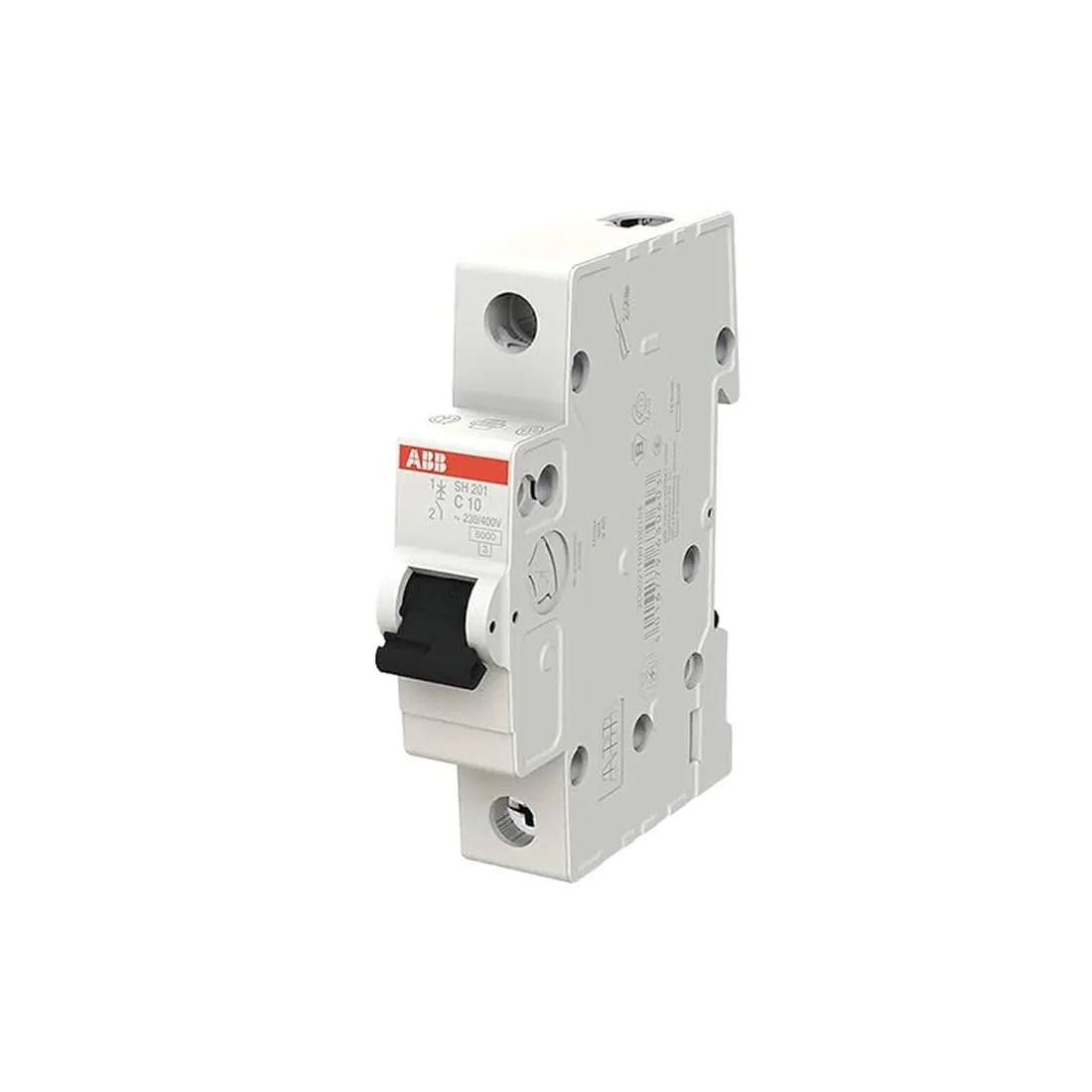

ABB Miniature Circuit Breaker 2CDS211001R0104 10A 1P Curve C SH201-C10
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Miniature Circuit Breaker
Description
The ABB SH201-C10 Miniature Circuit Breaker (MCB) 10A 1P Curve C is a compact and reliable protection device designed for residential and light commercial applications. It safeguards electrical circuits from overloads and short circuits with a dual tripping mechanism—thermal for overload protection and electromechanical for short-circuit protection. Built to IEC/EN 60898-1 standards, it offers a breaking capacity of 6 kA at 230 V AC, high endurance with 20,000 electrical and mechanical cycles, and easy installation on DIN rails in any position. With Curve C tripping characteristic, IP20 protection (IP40 with enclosure), and an operating temperature range of -25 °C to +55 °C, it ensures safe and dependable performance. Environmentally responsible, it is ABB EcoSolutions certified, RoHS and REACH compliant, and designed for durability with a 92% recyclability rate. Compact at just 17.5 mm width and weighing only 0.102 kg, the SH201-C10 is an efficient, durable, and eco-friendly solution for circuit protection.
| Brand | ABB |
| Series | SH200 |
| Model | SH201-C10 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Width | 17.5 mm (1 module) |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.102 kg |
| Rated Current (In) | 10 A |
| Number of Poles | 1P |
| Tripping Characteristic | Curve C |
| Rated Operational Voltage | 230 V AC (IEC 60898-1) |
| Voltage Range | 12 V AC – 253 V AC |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | Up to 6.2 kV |
| Rated Frequency | 50 / 60 Hz |
| Breaking Capacity | 6 kA (230 V AC) |
| Conditional Short-Circuit Current | 6 kA |
| Power Loss | 2.1 W per pole |
